7-43 — SUN VISOR AND ASSIST GRIP (#31405) — 153 parça

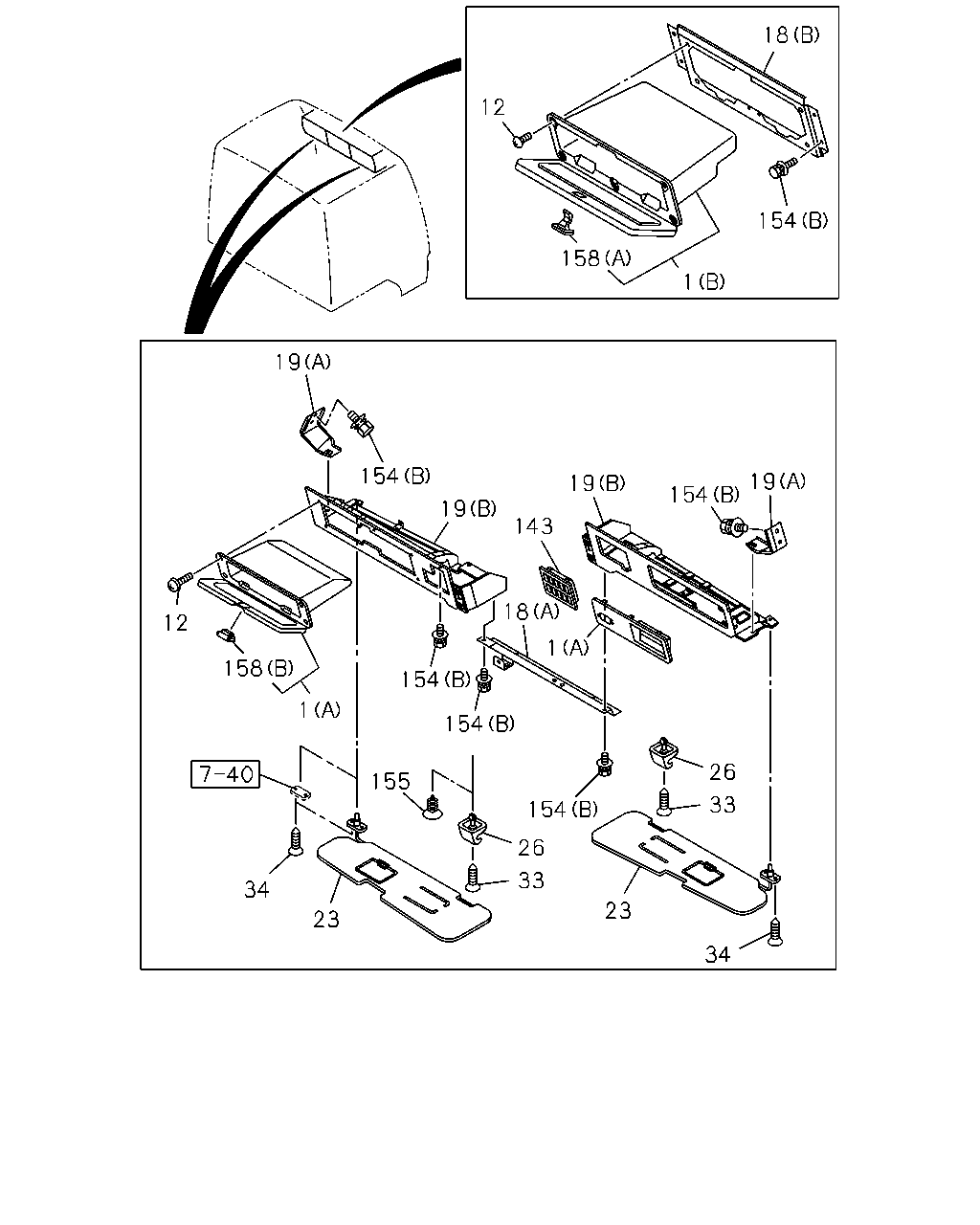

18 12 154 158 1 19 154 19 19 154 19 143 18 12 1 158 154 1 154 26 155 33 154 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0407-0511	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0512-		●	●
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0407-0511	●
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0512-		●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0407-0511	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0512-		●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0407-0511	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0512-		●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0407-0511	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0512-		●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0407-0511	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0512-0909		●	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-		●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0407-0511	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0512-		●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0407-0511	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0512-		●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0407-0511	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0512-		●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0407-0511	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0512-		●	●
23	SUN VISOR EXC. CUSTOM CAB(SR5)	1-73138-156-1	01	1	0512-		●
23	SUN VISOR	1-73138-157-1	01	1	0407-0511	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0512-		●
23	SUN VISOR	1-73138-157-1	01	1	0512-			●
23	SUN VISOR	1-73137-178-1	01	1	0407-0511	●
23	SUN VISOR CUSTOM CAB(SR5)	1-73137-178-1	01	1	0512-		●
23	SUN VISOR	1-73137-178-1	01	1	0512-			●
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0512-		●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0407-0511	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	02	1	0512-		●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0512-			●
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0512-0603		●
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0407-0511	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0512-0603		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0512-0603			●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-			●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0407-0511	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0512-		●	●
143	BEZEL	1-72447-768-2	01	1	0407-0511	●
143	BEZEL	1-72447-768-2	01	1	0512-		●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-		●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0407-0511	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-		●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-0511	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0512-		●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0512-		●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0407-0511	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0512-		●	●
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0407-0511	●
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0512-		●	●

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904		●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-		●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0512-		●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-0511	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0512-		●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-0511	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0512-		●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-0511	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0512-		●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0407-0511	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0512-0907		●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-		●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0407-0511	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0512-		●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0407-0511	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0512-		●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0512-		●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0512-		●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0512-		●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0407-0511	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0512-		●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0407-0511	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0512-		●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-		●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0407-0511	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-		●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-0511	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0512-		●	●

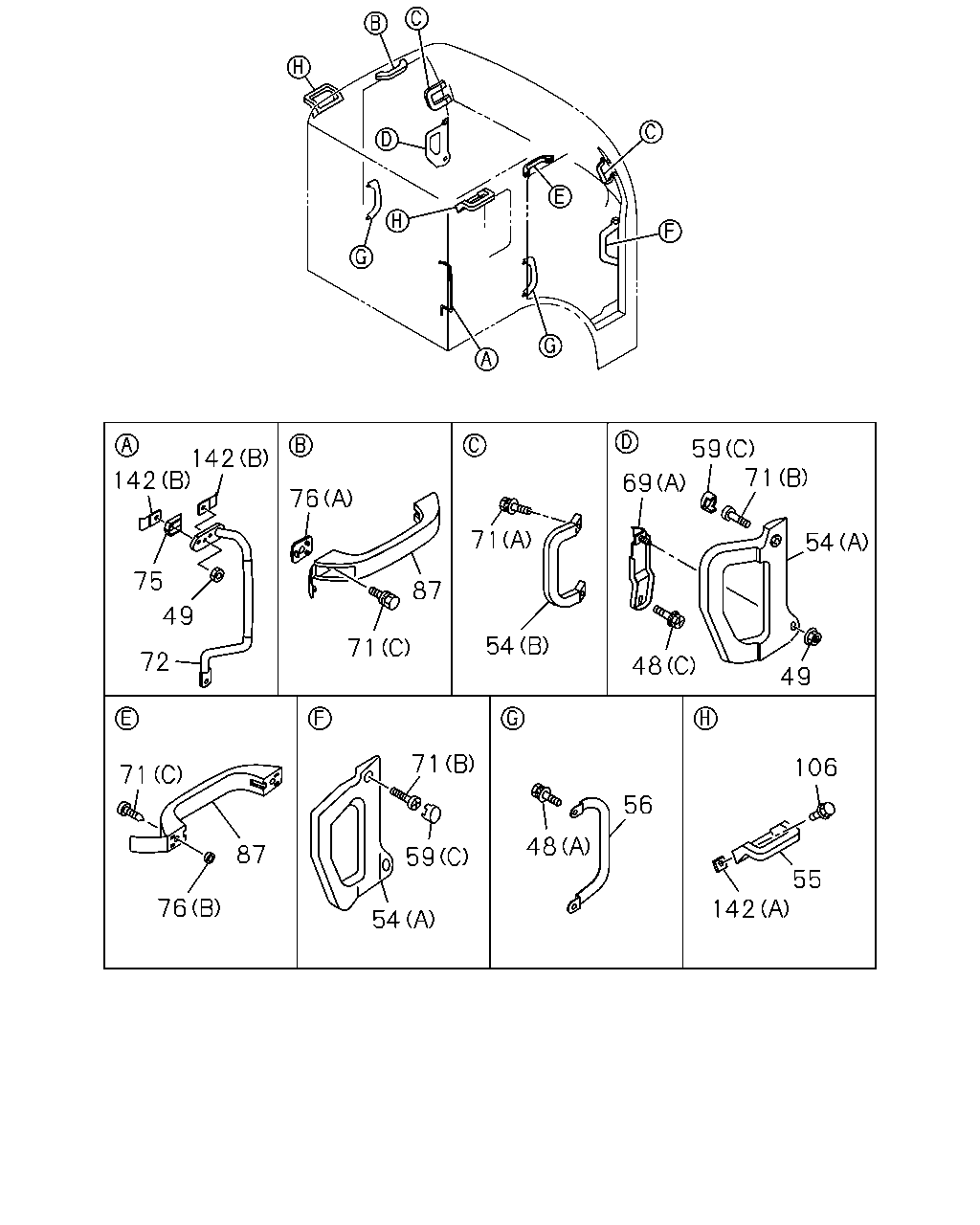

59 71 142 142 69 76 71 54 75 87 49 54 71 72 48 49 71 106 71 56 48 87 59 55 76 142 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904		●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-		●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0512-		●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-0511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0512-		●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0407-0511	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0512-0602		●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
49	NUT; ASSIST GRIP M8 FLANGE	1-09984-126-0	01	1	0407-0511	●
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0512-0808		●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0407-0511	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0512-		●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0407-0511	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0512-		●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0407-0511	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0512-		●	●
55	GRIP; ASSIST,CAB SIDE UPR	1-73618-169-1	02	1	0407-0511	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0512-		●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0407-0511	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0512-0804		●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-		●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-0511	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0512-		●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-0511	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0512-		●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-0511	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0512-		●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0512-		●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0512-		●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-0511	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0512-		●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0407-0511	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0512-		●	●
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0407-0511	●
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0512-		●	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0407-0511	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0512-		●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0512-1006		●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-		●	●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	01	1	0407-0511	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0512-		●	●
76	SPACER; ASSIST GRIP (B)	1-73618-180-0	02	1	0407-0511	●
76	SPACER; ASSIST GRIP (B)	1-73618-180-0	02	1	0512-		●	●
76	SPACER; ASSIST GRIP (A) OD=13 T=4.5	8-94230-464-1	02	1	0407-0511	●
76	SPACER; ASSIST GRIP (A) OD=13 T=4.5	8-94230-464-1	02	1	0512-		●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0407-0511	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0512-		●	●
106	SCREW; ASSIST GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-0511	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0512-		●	●
142	SEAL; ASSIST GRIP (B)	1-71997-691-1	02	1	0407-0511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0512-		●	●
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	04	1	0407-0511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0512-		●	●
