◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#31404) — 245 parça

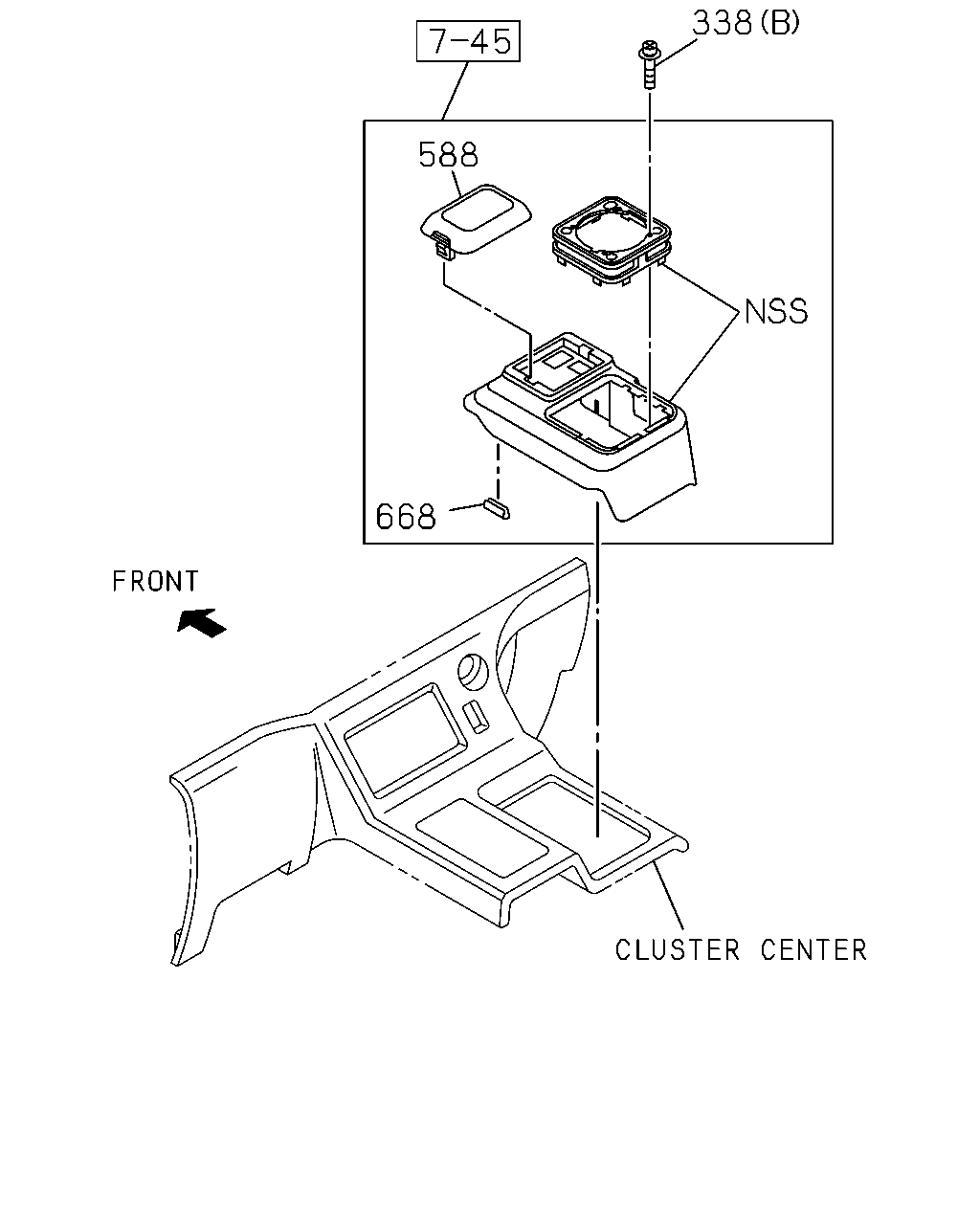

çizim 86730
338 588 668
BalonParca AdiParca NoAdetTipApplied Date A B C
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0407-0511 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0512- ● ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0511 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605- ●
338 SCREW; COVER
MJX16P M/T(Y3Z) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605- ●
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 0407-0511 ●
588 LID; BOX
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-72447-974-1 01 1 0512- ●
588 LID; BOX
MJX16P M/T(Y3Z) 		1-72447-974-1 01 1 0512- ●
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 0407-0511 ●
668 FINISHER; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 0512- ●
668 FINISHER; COVER
MJX16P M/T(Y3Z) L=167 		1-71996-271-0 01 1 0512- ●

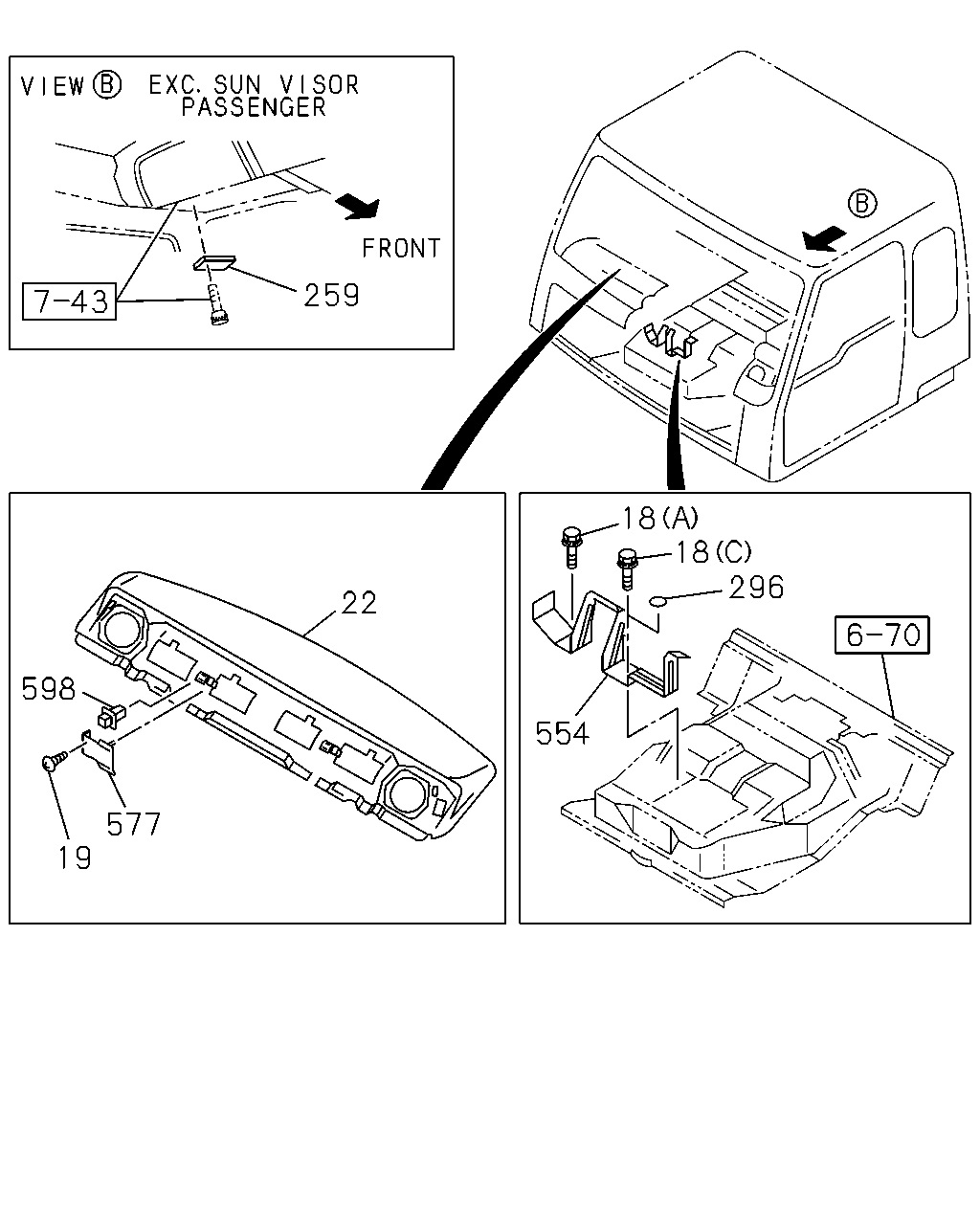

çizim 87365
259 18 18 296 22 598 554 577 19
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-0511 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0512- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-0511 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0512- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0407-0511 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0512- ● ●
22 PAD; INST 1-72317-347-1 01 1 0407-0511 ●
22 PAD; INST 1-72317-347-2 01 1 0512-0710 ● ●
22 PAD; INST 1-72317-372-1 01 1 0711- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0512- ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 03 1 0510-0511 ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 03 1 0512-0607 ● ●
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0407-0509 ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0510-0511 ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0512-0607 ● ●
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0608- ● ●
577 BRACKET; SENSOR 1-72318-413-0 01 1 0407-0511 ●
577 BRACKET; SENSOR 1-72318-413-0 01 1 0512- ● ●
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0407-0511 ●
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0512- ● ●

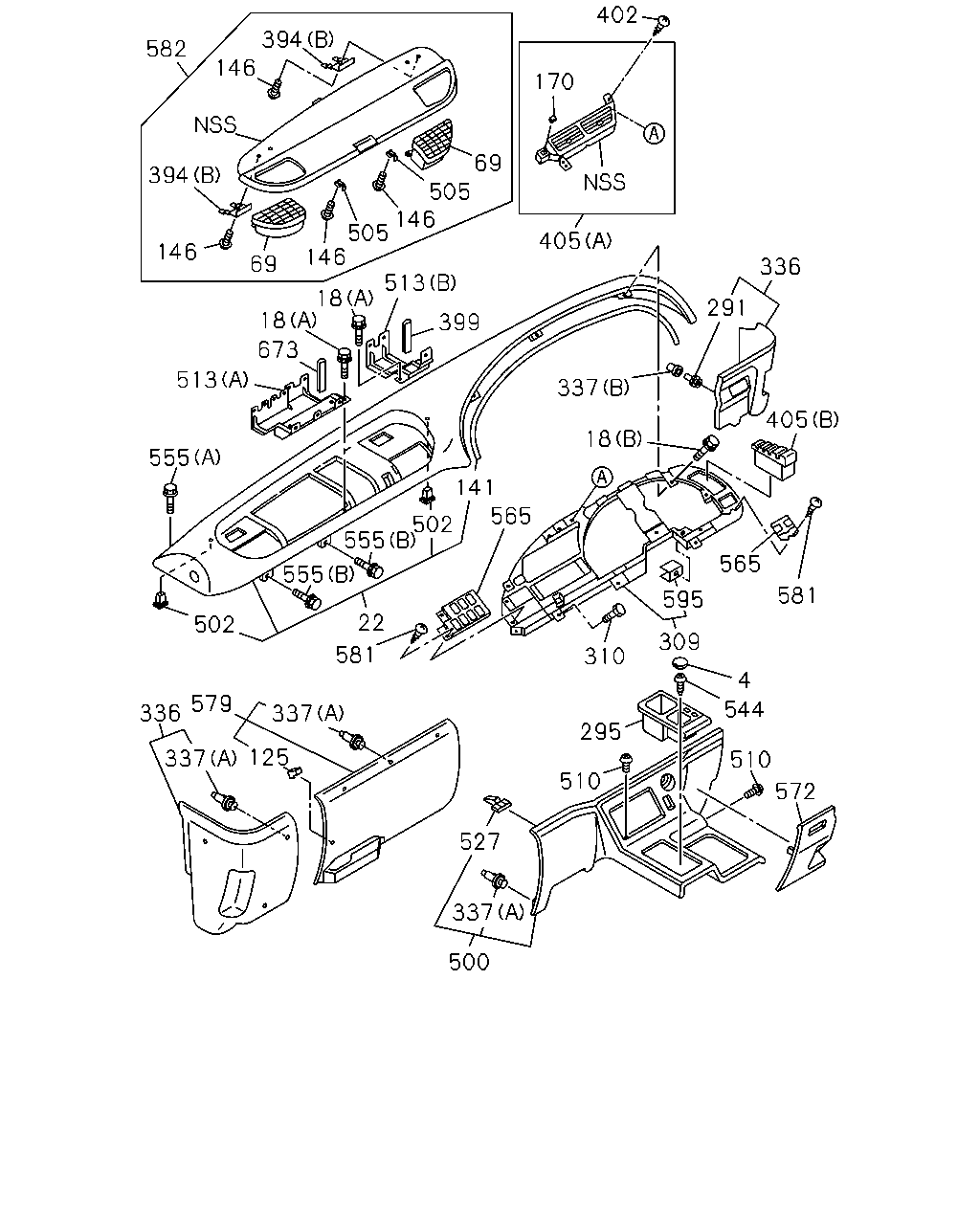

çizim 104691
402 394 582 146 170 69 394 505 146 505 146 405 146 69 336 513 18 291 18 399 673 513 337 405 18 555 141 565 502 555 565 555 581 595 22 502 309 581 310 4 579 544 336 337 295 125 337 510 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL 1-72537-106-0 01 1 0407-0511 ●
4 COVER; INST PNL 1-72537-106-0 01 1 0512- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-0511 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0512- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-0511 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0512- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509 ●
22 PAD; INST 1-72317-347-1 01 1 0407-0511 ●
22 PAD; INST 1-72317-347-2 01 1 0512-0710 ● ●
22 PAD; INST 1-72317-372-1 01 1 0711- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0407-0511 ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0512- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0407-0511 ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0512- ● ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0407-0511 ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0512- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0407-0511 ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0512- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0407-0511 ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0512- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0407-0511 ●
170 COVER; HOLE 1-76367-068-0 01 1 0512- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0512- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0407-0511 ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0407-0511 ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0512- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0407-0511 ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0512- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0407-0511 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0512- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0407-0511 ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0512- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0407-0511 ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0407-0511 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0407-0511 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0512- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0407-0511 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0512- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0407-0511 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0512- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407-0511 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0512- ● ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0407-0511 ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0512- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0511 ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0512-0604 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0407-0511 ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0512- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0407-0511 ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0512- ● ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 0407-0511 ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-72437-628-0 01 1 0512-0705 ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) 		1-72437-628-0 01 1 0512-0705 ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-72437-655-0 01 1 0706- ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) 		1-72437-655-0 01 1 0706- ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) 		1-72437-619-0 01 1 0407-0511 ●
500 CLUSTER; INST CENTER
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) 		1-72437-653-0 01 1 0512- ●
500 CLUSTER; INST CENTER
TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-72437-653-0 01 1 0512- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0407-0511 ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0512- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0407-0511 ●
505 LOCK; LID 1-72558-024-2 02 1 0512- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0407-0511 ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0512- ● ●
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0407-0511 ●
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0512- ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0407-0511 ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0512- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0407-0511 ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0512- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0407-0511 ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0512- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0407-0511 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0512-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-0511 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0512- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 0407-0511 ●
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0512- ● ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 0407-0511 ●
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0512- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0407-0511 ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0512- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 0407-0511 ●
579 COVER; INST PNL 1-72437-626-0 01 1 0512- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0511 ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0512-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0407-0511 ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0512- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 0407-0511 ●
595 NUT; HOOK 1-72418-013-0 11 1 0512- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0407-0511 ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0512- ● ●

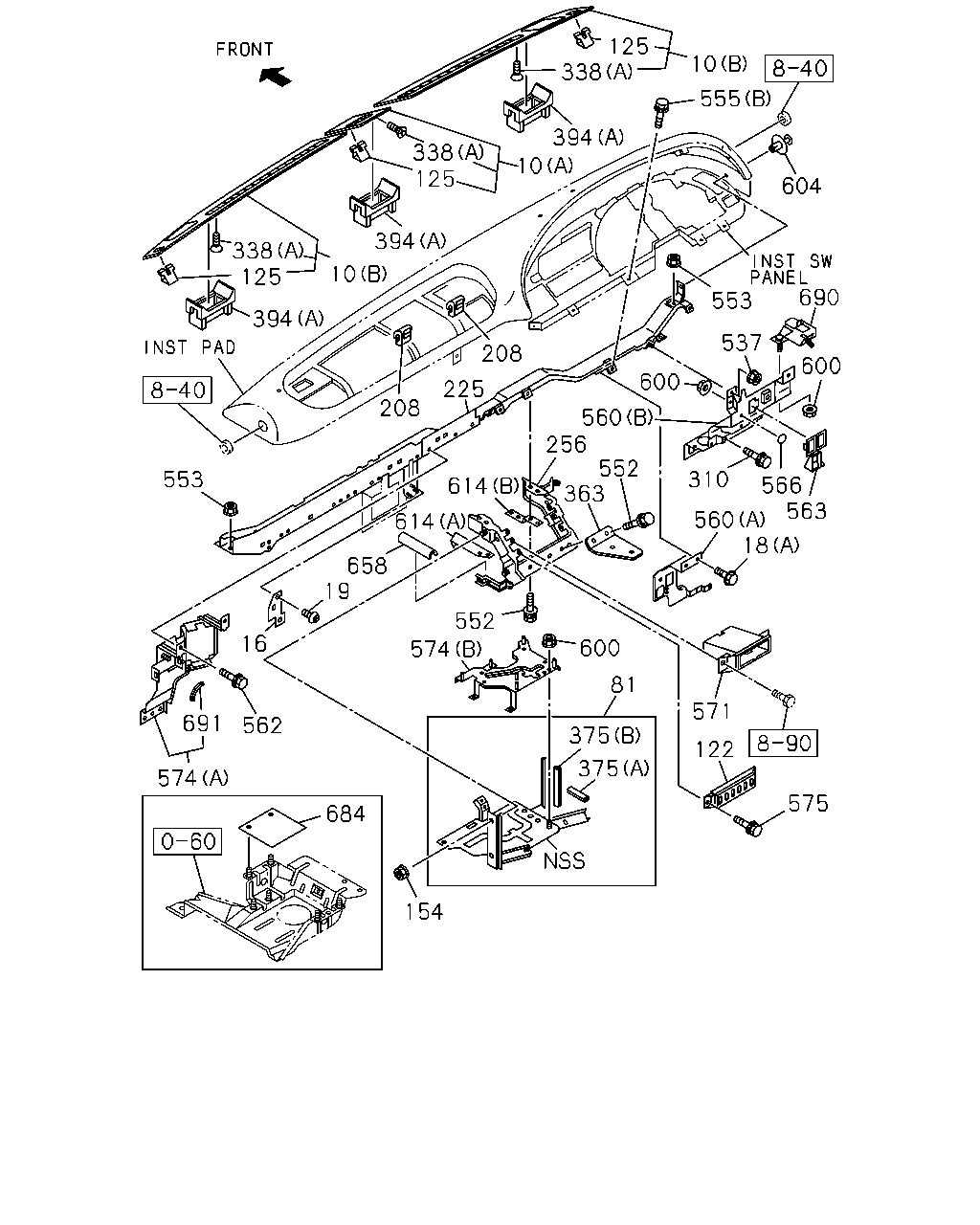

çizim 105144
125 338 10 555 394 338 125 10 604 394 338 125 553 690 10 394 537 208 600 600 225 208 560 256 614 552 363 310 553 566 563 614 560 18 658 19 552 16 600 574 81 571 691 562 375 122 375 574 575 684 154
BalonParca AdiParca NoAdetTipApplied Date A B C
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0407-0511 ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0512- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0407-0511 ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0512- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-6 01 1 0407-0511 ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 0512- ● ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0407-0511 ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0512- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-0511 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0512- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-0511 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0512- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0407-0511 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0512- ● ●
81 BRACKET; ELEC CONT UNIT
6WG1 TC-C(72L) 		1-73907-726-0 01 1 0512-0702 ● ●
81 BRACKET; ELEC CONT UNIT
6WG1 TC-C(72L) 		1-73907-739-0 01 1 0703- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 0407-0511 ●
81 BRACKET; ELEC CONT UNIT
6WF1 TC-C(1B8) 		1-73907-689-4 01 1 0512- ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0407-0511 ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0512- ● ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0407-0511 ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0512- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0407-0511 ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0512- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 0407-0511 ●
225 FRAME; FACIA 1-65671-725-8 01 1 0512- ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0407-0511 ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0512-0710 ● ●
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0812 ● ●
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0901- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0407-0511 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0512- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0407-0511 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0512- ● ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0511 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) (B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
338 SCREW; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605- ●
338 SCREW; COVER
MJX16P M/T(Y3Z) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605- ●
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-722-1 01 1 0407-0511 ●
363 SUPPORT ASM; COMPT PANEL CTR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-722-1 01 1 0512-0804 ●
363 SUPPORT ASM; COMPT PANEL CTR
MJX16P M/T(Y3Z) 		1-73907-722-1 01 1 0512-0804 ●
363 SUPPORT ASM; COMPT PANEL CTR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-776-0 01 1 0805- ●
363 SUPPORT ASM; COMPT PANEL CTR
MJX16P M/T(Y3Z) 		1-73907-776-0 01 1 0805- ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0407-0511 ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0512- ● ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 		5-71997-133-0 01 1 0407-0511 ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0512- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0407-0511 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0512- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407-0511 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0512- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0407-0511 ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0512- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0407-0511 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0512-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-0511 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0512- ● ●
560 BRACKET
6WG1 TC-C(72L) (B) 		1-65671-793-1 01 1 0512- ● ●
560 BRACKET
(B) 		1-65671-760-4 01 1 0407-0511 ●
560 BRACKET
6WF1 TC-C(1B8) (B) 		1-65671-760-4 01 1 0512- ●
560 BRACKET
(A) 		1-65680-976-3 01 1 0407-0511 ●
560 BRACKET
(A) 		1-65681-197-2 01 1 0512- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-0511 ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0512- ● ●
563 BEZEL; BRKT
6WG1 TC-C(72L) 		1-72448-410-3 02 1 0512- ● ●
563 BEZEL; BRKT 1-72448-410-3 01 1 0407-0511 ●
563 BEZEL; BRKT
6WF1 TC-C(1B8) 		1-72448-410-3 01 1 0512- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0407-0511 ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0512- ● ●
571 BEZEL; POCKET 1-72438-151-3 02 1 0407-0511 ●
571 BEZEL; POCKET 1-72438-151-3 02 1 0512- ● ●
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0407-0511 ●
574 PANEL; RELAY BOX
FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 0512- ●
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0512- ●
574 PANEL; RELAY BOX
(A) 		1-73907-705-3 01 1 0407-0511 ●
574 PANEL; RELAY BOX
(A) 		1-73907-705-4 01 1 0512- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 02 1 0603-0705 ● ●
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0407-0511 ●
600 NUT; PANEL
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
600 NUT; PANEL
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0407-0511 ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0512- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0407-0511 ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0512- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0407-0511 ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0512- ● ●
658 FINISHER; BEZEL
L=80 		5-71997-133-0 01 1 0407-0511 ●
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0512- ● ●
684 RUBBER; HARNESS 1-82698-417-1 01 1 0407-0511 ●
684 RUBBER; HARNESS 1-82698-417-1 01 1 0512- ● ●
690 PANEL; RELAY,HEADLAMP 1-65681-196-1 01 1 0512-0705 ● ●
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
