Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#31402) — 420 parça

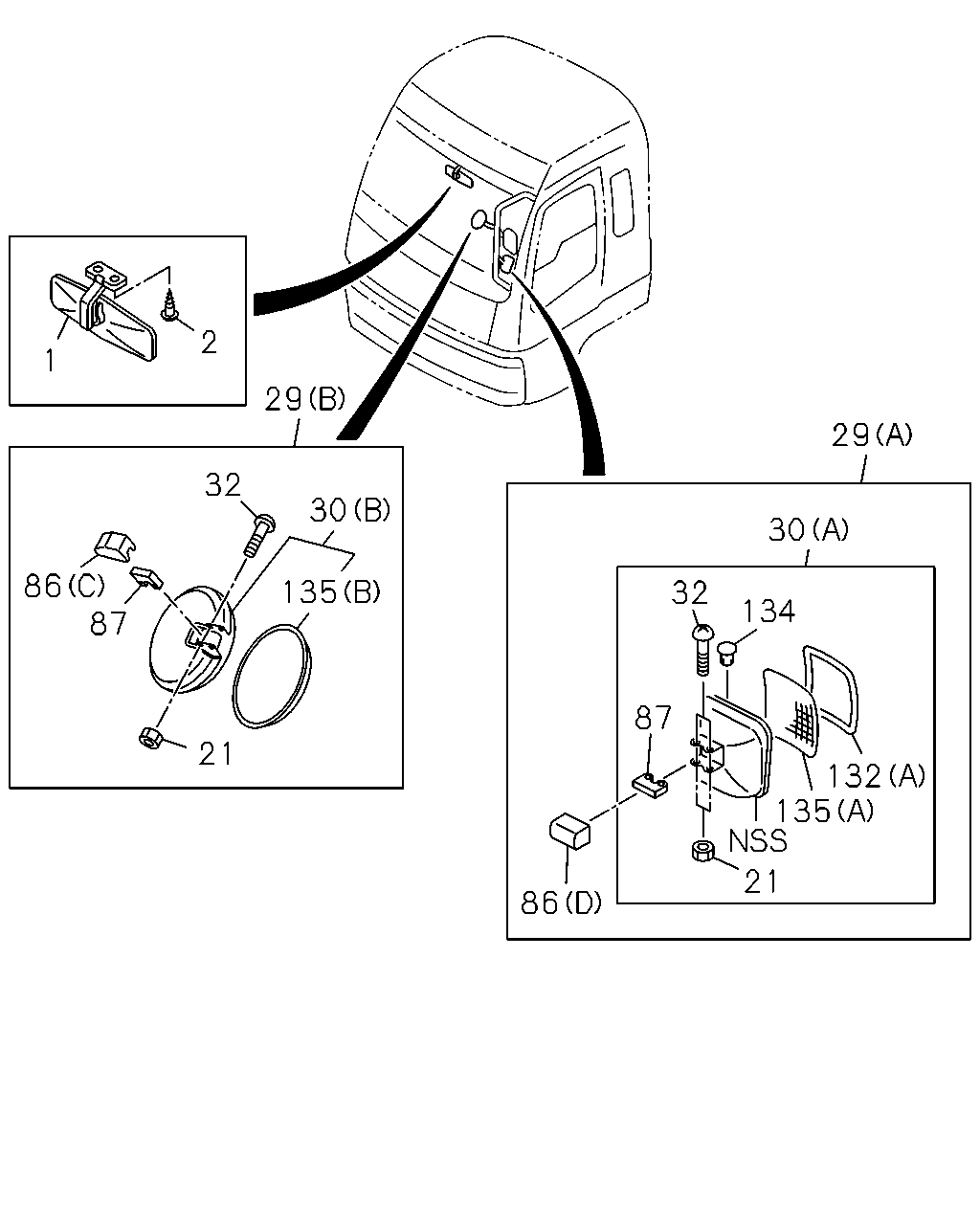

2 1 29 29 32 30 30 86 87 135 32 134 87 21 132 135 21 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MIRROR; ROOM	1-73117-033-1	01	1	0407-0511	●
1	MIRROR; ROOM	1-73117-033-1	01	1	0512-		●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0407-0511	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0512-		●	●
21	NUT; MIRROR M5	1-09984-124-0	04	1	0407-0511	●
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	04	1	0512-		●	●
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-137-1	01	1	0512-		●	●
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-421-1	01	1	0512-		●	●
30	MIRROR; UNDER (B)	1-71797-853-1	01	1	0407-0511	●
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-853-1	01	1	0512-		●	●
30	MIRROR; UNDER (A)	1-71798-592-1	01	1	0407-0511	●
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-592-1	01	1	0512-		●	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	0407-0511	●
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-649-1	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-652-1	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-732-0	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0512-		●	●
87	SPACER	1-71737-646-2	02	1	0407-0511	●
87	SPACER MIR STAY O/S W/REMOTE<TBA>	1-71737-646-2	02	1	0512-		●	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-1	01	1	0407-0511	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-2	01	1	0512-		●	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0407-0511	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0512-		●	●
132	RING; MIRROR (A)	1-71737-935-0	01	1	0407-0511	●
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	0512-		●	●
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0407-0511	●
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	01	1	0512-		●	●
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71707-130-0	01	1	0512-		●	●
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	0407-0511	●
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	0407-0511	●
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-929-0	01	1	0512-		●	●

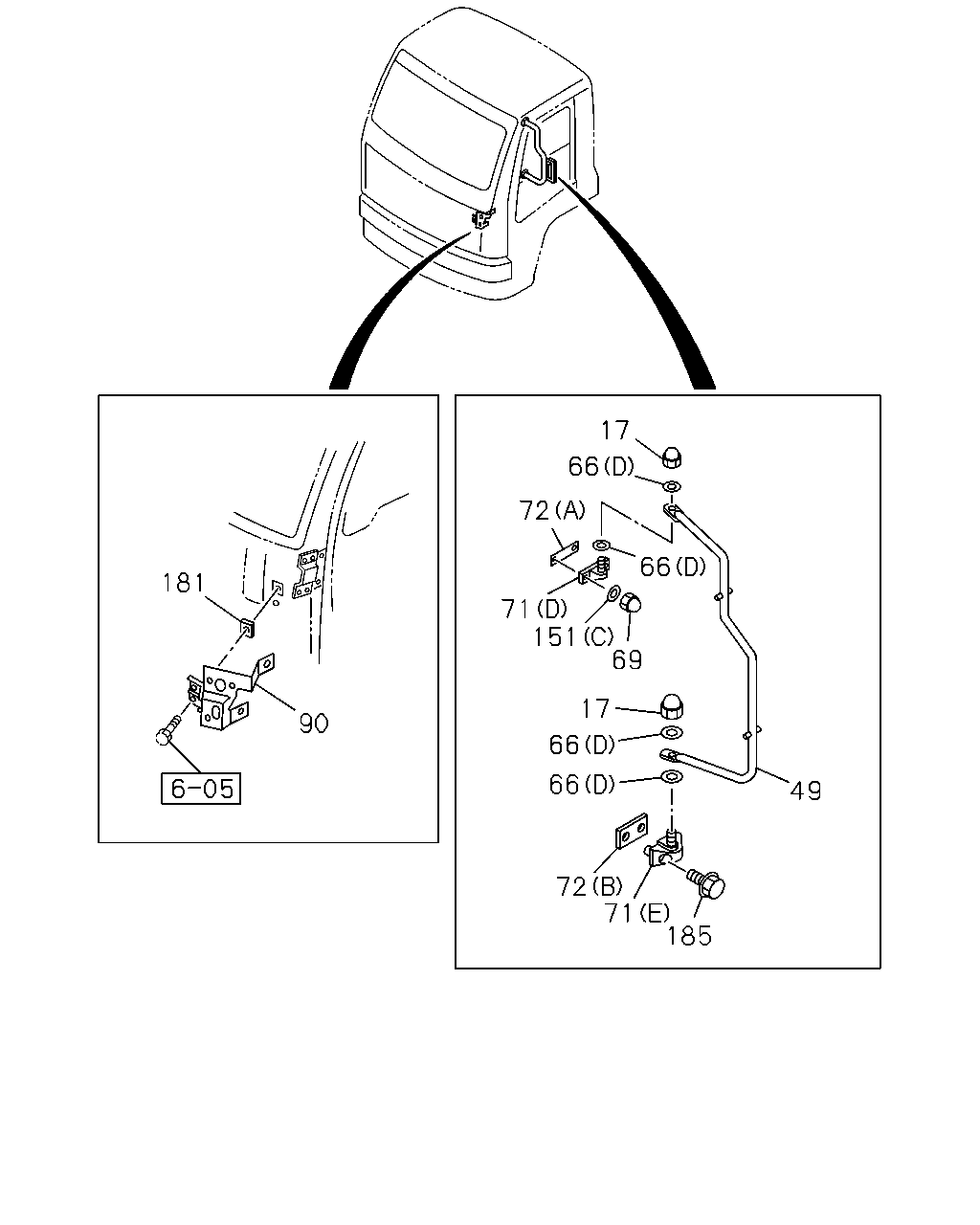

17 66 72 66 181 71 151 69 17 90 66 66 49 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	NUT; CAP,MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> M10 CAP NUT	1-09984-134-0	04	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-0	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-1	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0512-		●	●
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0512-		●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-		●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-		●	●
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8	1-09984-187-0	04	1	0512-0809		●	●
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8 CAP NUT	8-98059-914-0	04	1	0810-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-809-2	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-309-4	01	1	0512-		●	●
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-487-3	02	1	0512-		●	●
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-488-1	02	1	0512-		●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0512-0809		●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0512-		●	●
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-		●	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-0511	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-		●	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0407-0511	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0512-		●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-0511	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0512-		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	8-98046-876-0	04	1	0606-		●	●

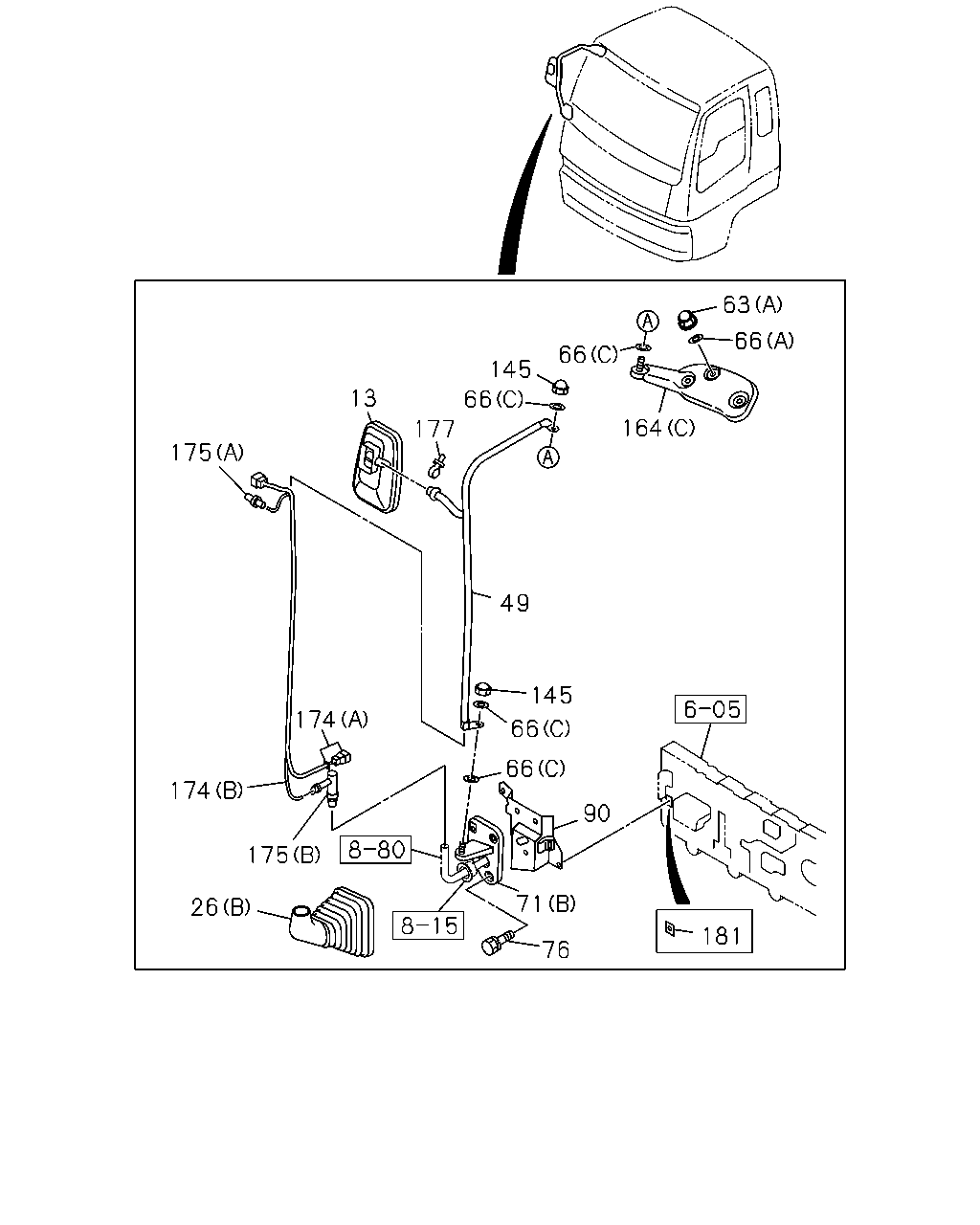

63 66 66 145 13 66 164 177 175 49 145 174 66 66 174 90 175 71 26 181 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

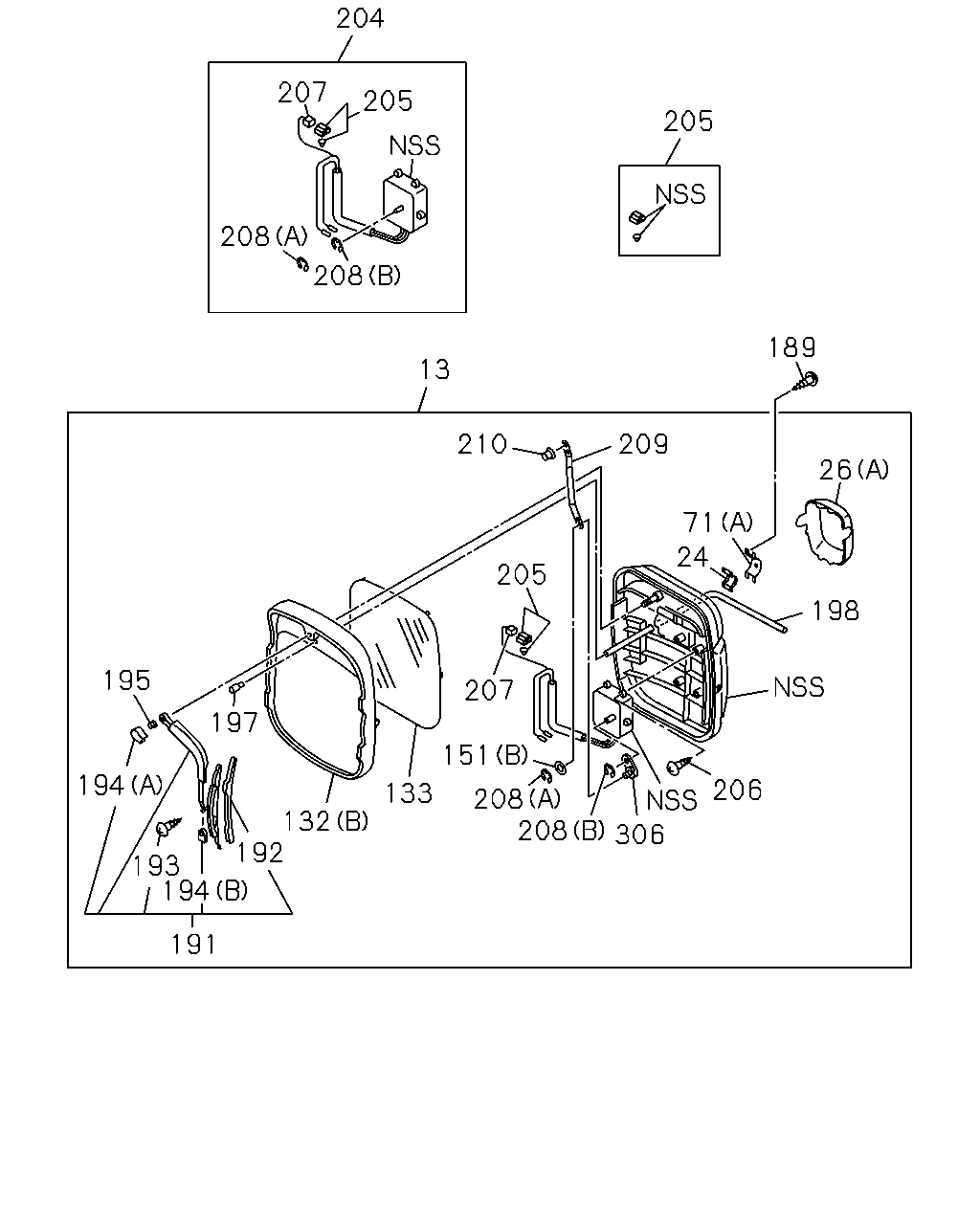

13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-316-2	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-695-0	01	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-0	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-1	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0512-		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0512-		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0512-		●	●
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (A) M8	1-09984-187-0	06	1	0512-		●	●
63	NUT; STAY (D) M14	9-99110-414-0	01	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	9-99110-414-0	01	1	0512-0512		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	0-91110-514-0	01	1	0601-		●	●
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0512-		●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-		●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-809-2	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-309-4	01	1	0512-		●	●
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0407-0511	●
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512		●	●
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-		●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0512-0809		●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0512-		●	●
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	0407-0511	●
145	NUT; CAP,SUB STAY MIR STAY O/S W/REMOTE<TBA> M10	1-09984-183-0	02	1	0512-		●	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0512-		●	●
164	STAY; ROOF (C)	1-71707-090-0	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-090-0	01	1	0512-		●	●
164	STAY; ROOF (B)	1-71798-299-4	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-299-4	01	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0512-		●	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0407-0511	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0512-		●	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0407-0511	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0512-		●	●
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0407-0511	●
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0512-		●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-0511	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0512-		●	●

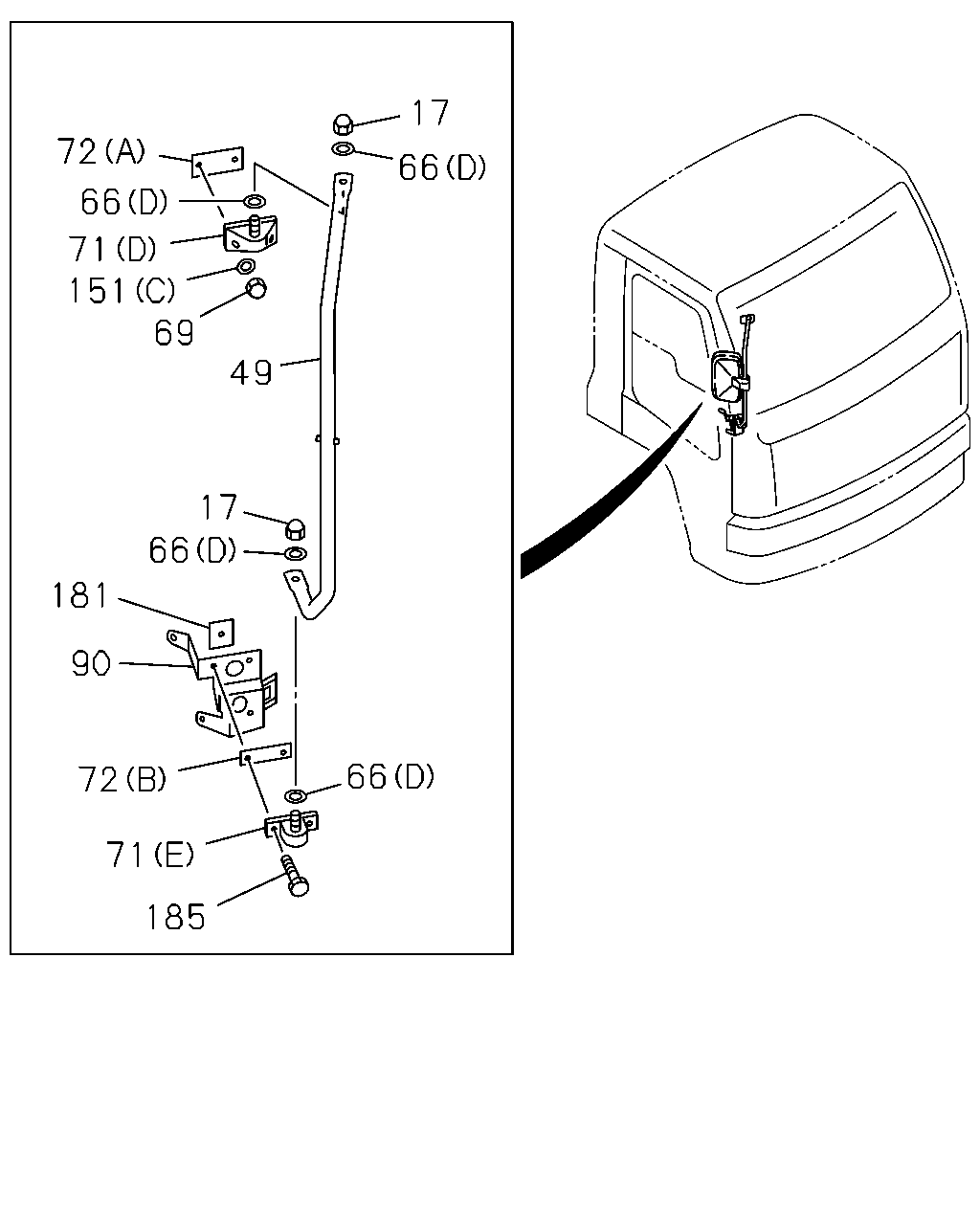

17 72 66 66 71 151 69 49 17 66 181 90 66 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	NUT; CAP,MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> M10 CAP NUT	1-09984-134-0	04	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-0	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-1	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0512-		●	●
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0512-		●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-		●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-		●	●
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8	1-09984-187-0	04	1	0512-0809		●	●
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8 CAP NUT	8-98059-914-0	04	1	0810-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-809-2	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-309-4	01	1	0512-		●	●
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-487-3	02	1	0512-		●	●
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-488-1	02	1	0512-		●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0512-0809		●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0512-		●	●
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-		●	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-0511	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-		●	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0407-0511	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0512-		●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-0511	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0512-		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●	●
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	8-98046-876-0	04	1	0606-		●	●

204 207 205 205 208 208 189 13 210 209 26 71 24 205 198 195 207 197 151 194 206 133 208 208 306 132 192 193 194 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0512-		●	●
24	HOLDER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-474-0	02	1	0407-0511	●
24	HOLDER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-474-0	02	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-316-2	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-695-0	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-809-2	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-309-4	01	1	0512-		●	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-1	01	1	0407-0511	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-2	01	1	0512-		●	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0407-0511	●
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0512-		●	●
132	RING; MIRROR (A)	1-71737-935-0	01	1	0407-0511	●
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	0512-		●	●
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-176-0	01	1	0407-0511	●
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-176-1	01	1	0512-		●	●
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-177-0	01	1	0407-0511	●
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-177-1	01	1	0512-		●	●
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-		●	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-0511	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-		●	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0407-0511	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0512-		●	●
189	SCREW; PIVOT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5X25 W/LK&PL WASHER	9-03920-525-0	04	1	0407-0511	●
189	SCREW; PIVOT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5X25 W/LK&PL WASHER	9-03920-525-0	04	1	0512-0604		●	●
189	SCREW; PIVOT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5X25 W/LK&PL WASHER	0-36230-525-0	04	1	0605-		●	●
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-467-2	01	1	0407-0511	●
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-467-2	01	1	0512-		●	●
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-468-3	01	1	0407-0511	●
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-468-3	01	1	0512-		●	●
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-471-0	01	1	0407-0511	●
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-471-0	01	1	0512-		●	●
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-535-0	01	1	0407-0511	●
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-535-0	01	1	0512-		●	●
193	SCREW; WIPER BRADE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-09981-538-0	02	1	0407-0511	●
193	SCREW; WIPER BRADE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-09981-538-0	02	1	0512-		●	●
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-472-0	02	1	0407-0511	●
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-472-0	02	1	0512-		●	●
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-473-0	02	1	0407-0511	●
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-473-0	02	1	0512-		●	●
195	NUT; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5 FLANGE	1-09984-181-0	02	1	0512-		●	●
195	NUT; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5 FLANGE	1-09984-181-0	02	1	0407-0511	●
197	NOZZLE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-906-0	02	1	0407-0511	●
197	NOZZLE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-906-0	02	1	0512-		●	●
198	TUBE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=230	1-71797-905-0	02	1	0407-0511	●
198	TUBE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=230	1-71797-905-0	02	1	0512-		●	●
204	MOTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-985-0	02	1	0407-0511	●
204	MOTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-985-0	02	1	0512-		●	●
205	CONNECTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-901-0	02	1	0407-0511	●
205	CONNECTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-901-0	02	1	0512-		●	●
206	SCREW; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-910-0	08	1	0407-0511	●
206	SCREW; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-910-0	08	1	0512-		●	●
207	HOLDER; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-903-0	02	1	0407-0511	●
207	HOLDER; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-903-0	02	1	0512-		●	●
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71797-908-0	02	1	0407-0511	●
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71797-908-0	02	1	0512-		●	●
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-909-0	02	1	0407-0511	●
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-909-0	02	1	0512-		●	●
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-915-0	01	1	0407-0511	●
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-915-0	01	1	0512-		●	●
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-982-0	01	1	0407-0511	●
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-982-0	01	1	0512-		●	●
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-907-0	01	1	0407-0511	●
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-907-0	01	1	0512-		●	●
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-836-0	01	1	0407-0511	●
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-836-0	01	1	0512-		●	●
306	ARM; CRANK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-860-0	02	1	0407-0511	●
306	ARM; CRANK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-860-0	02	1	0512-		●	●

63 46 151 63 66 164 170 171 170 172 172 200 165 169 118 168 201 118 173 165 58 66 54 67 167 66 63 46 29 177 49 46 166 66 13 164 63 118 175 174 190 174 166 66 58 29 26 86 175 90 86 71 76 66 58 181 63 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0512-		●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-3	01	1	0407-0511	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-316-2	01	1	0512-		●	●
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0407-0511	●
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-695-0	01	1	0512-		●	●
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-137-1	01	1	0512-		●	●
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-421-1	01	1	0512-		●	●
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0407-0511	●
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0512-		●	●
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0407-0511	●
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-0	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-		●	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-1	01	1	0407-0511	●
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0512-		●	●
54	BOLT; STAY MIR STAY O/S W/REMOTE<TBA>	1-09980-618-0	01	1	0407-0511	●
54	BOLT; STAY MIR STAY O/S W/REMOTE<TBA>	1-09980-618-0	01	1	0512-		●	●
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0407-0511	●
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0512-		●	●
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0407-0511	●
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0512-		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0512-		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0512-		●	●
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (A) M8	1-09984-187-0	06	1	0512-		●	●
63	NUT; STAY (D) M14	9-99110-414-0	01	1	0407-0511	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	9-99110-414-0	01	1	0512-0512		●	●
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	0-91110-514-0	01	1	0601-		●	●
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-		●	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0512-		●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-		●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511	●
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-		●	●
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0407-0511	●
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-809-2	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	0512-		●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0407-0511	●
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-309-4	01	1	0512-		●	●
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0407-0511	●
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512		●	●
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-		●	●
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-649-1	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-652-1	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-732-0	01	1	0512-		●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0407-0511	●
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0512-		●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0512-0809		●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-0511	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0512-		●	●
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0407-0511	●
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0512-		●	●
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0407-0511	●
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0512-		●	●
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	0407-0511	●
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-1	01	1	0512-		●	●
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-		●	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-0511	●
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-		●	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0407-0511	●
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0512-		●	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0512-		●	●
164	STAY; ROOF (C)	1-71707-090-0	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-090-0	01	1	0512-		●	●
164	STAY; ROOF (B)	1-71798-299-4	01	1	0407-0511	●
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-299-4	01	1	0512-		●	●
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0407-0511	●
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0512-		●	●
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0407-0511	●
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0512-		●	●
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0407-0511	●
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0512-		●	●
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0407-0511	●
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0512-		●	●
168	POWER UNIT; MIRROR STAY	1-86855-031-0	01	1	0407-0511	●
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0512-1311		●	●
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	8-98251-163-0	01	1	1312-		●	●
169	WASHER; PL,POWER UNIT ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0407-0511	●
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0512-		●	●
170	CAP; POWER UNIT (A)	1-86855-012-0	01	1	0407-0511	●
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	0512-		●	●
170	CAP; POWER UNIT (B)	1-86855-014-1	01	1	0407-0511	●
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	0512-		●	●
171	NUT; POWER UNIT M26	1-86855-013-1	01	1	0407-0511	●
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	0512-		●	●
172	SEAL; RUBBER,POWER UNIT (A)	1-79928-003-1	01	1	0407-0511	●
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	0512-		●	●
172	SEAL; RUBBER,POWER UNIT (B)	1-86855-015-0	01	1	0407-0511	●
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	0512-		●	●
173	BOLT; POWER UNIT M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0407-0511	●
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0512-		●	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0407-0511	●
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0512-		●	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0407-0511	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0512-		●	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0407-0511	●
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0512-		●	●
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0407-0511	●
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0512-		●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-0511	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0512-		●	●
190	SCREW; COVER M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0407-0511	●
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0512-		●	●
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0407-0511	●
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0512-		●	●
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0407-0511	●
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0512-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
