◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#31401) — 68 parça

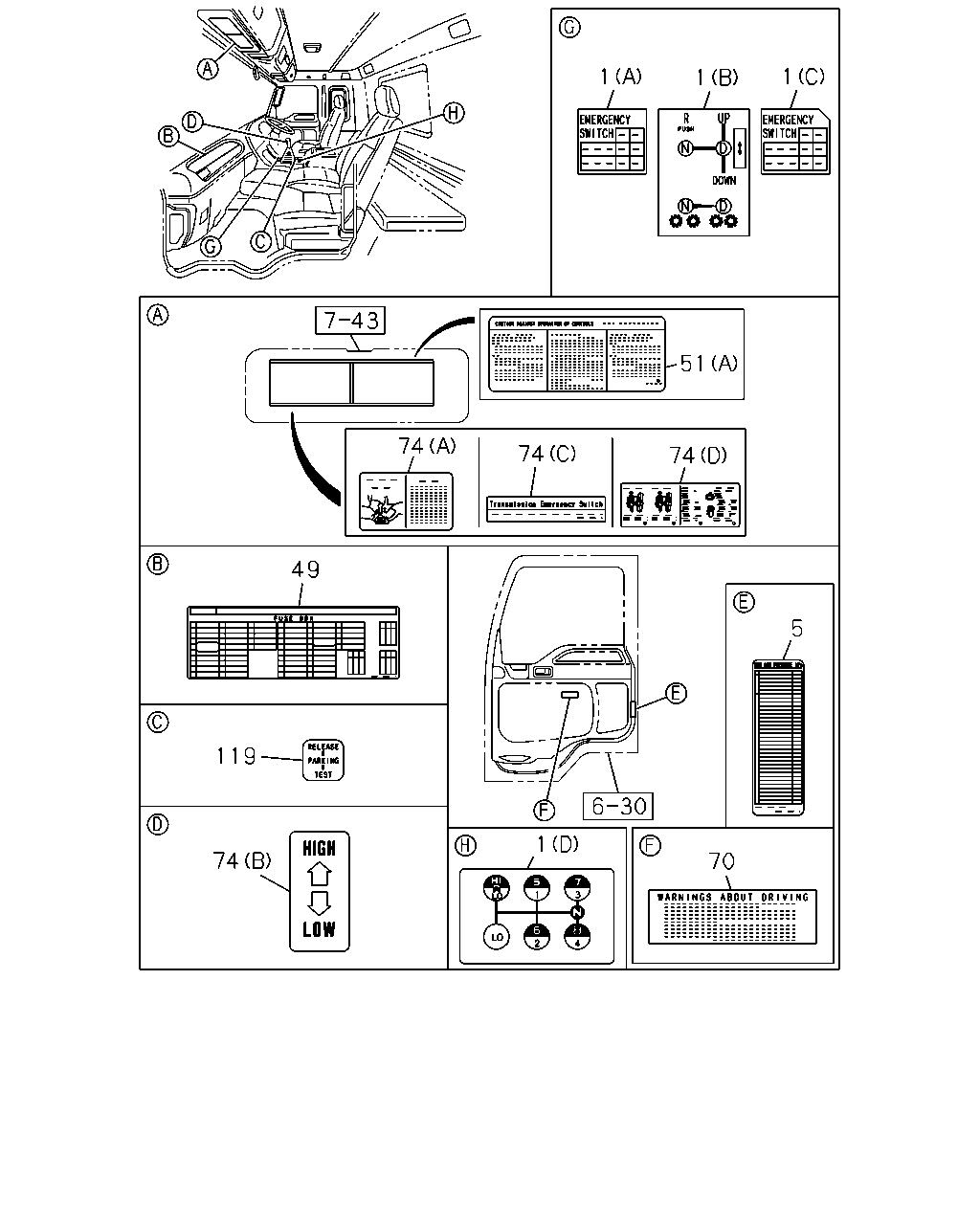

çizim 87092
1 1 1 51 74 74 74 49 5 119 1 74 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) 		1-85881-519-0 01 1 0512-0703 ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (D) 		1-85881-519-0 01 1 0704- ●
1 PLATE; CAUTION,SHIFT PATTERN
6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-85881-879-1 01 1 0512- ●
1 PLATE; CAUTION,SHIFT PATTERN
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C) 		1-85881-879-1 01 1 0512- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 0407-0511 ●
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 0512- ●
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) (B) 		1-85881-798-0 01 1 0512- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-859-0 01 1 0407-0511 ●
1 PLATE; CAUTION,SHIFT PATTERN
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-85881-859-0 01 1 0512- ●
5 LABEL; TIRE AIR PRESSURE 1-85880-780-0 01 1 0407-0410 ●
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0411-0511 ●
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0512- ● ●
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-C(72L) 		1-85878-549-0 01 1 0512- ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-487-0 01 1 0407-0407 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-499-0 01 1 0408-0505 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-550-0 01 1 0506-0511 ●
49 PLATE; CAUTION,FUSE BOX
6WF1 TC-C(1B8) 		1-85878-550-0 01 1 0512- ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0512- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0407-0511 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0512- ● ●
70 PLATE; CAUTION,ACT
SMOOTHER-G(C1W) 		1-85878-484-0 01 1 0407-0511 ●
70 PLATE; CAUTION,ACT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-85878-484-0 01 1 0512- ●
70 PLATE; CAUTION,ACT
MJX16P M/T(Y3Z) 		1-85878-484-0 01 1 0512- ●
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) 		1-85881-786-0 01 1 0602- ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-85881-736-1 01 1 0407-0511 ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-85881-736-1 01 1 0512-0805 ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-98118-493-0 01 1 0806- ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-85881-836-0 01 1 0407-0511 ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-85881-836-0 01 1 0512- ●
74 PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (C) 		1-85881-869-0 01 1 0407-0511 ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-85881-869-0 01 1 0512- ●
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (C) 		1-85881-869-0 01 1 0512- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0407-0511 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0512- ● ●

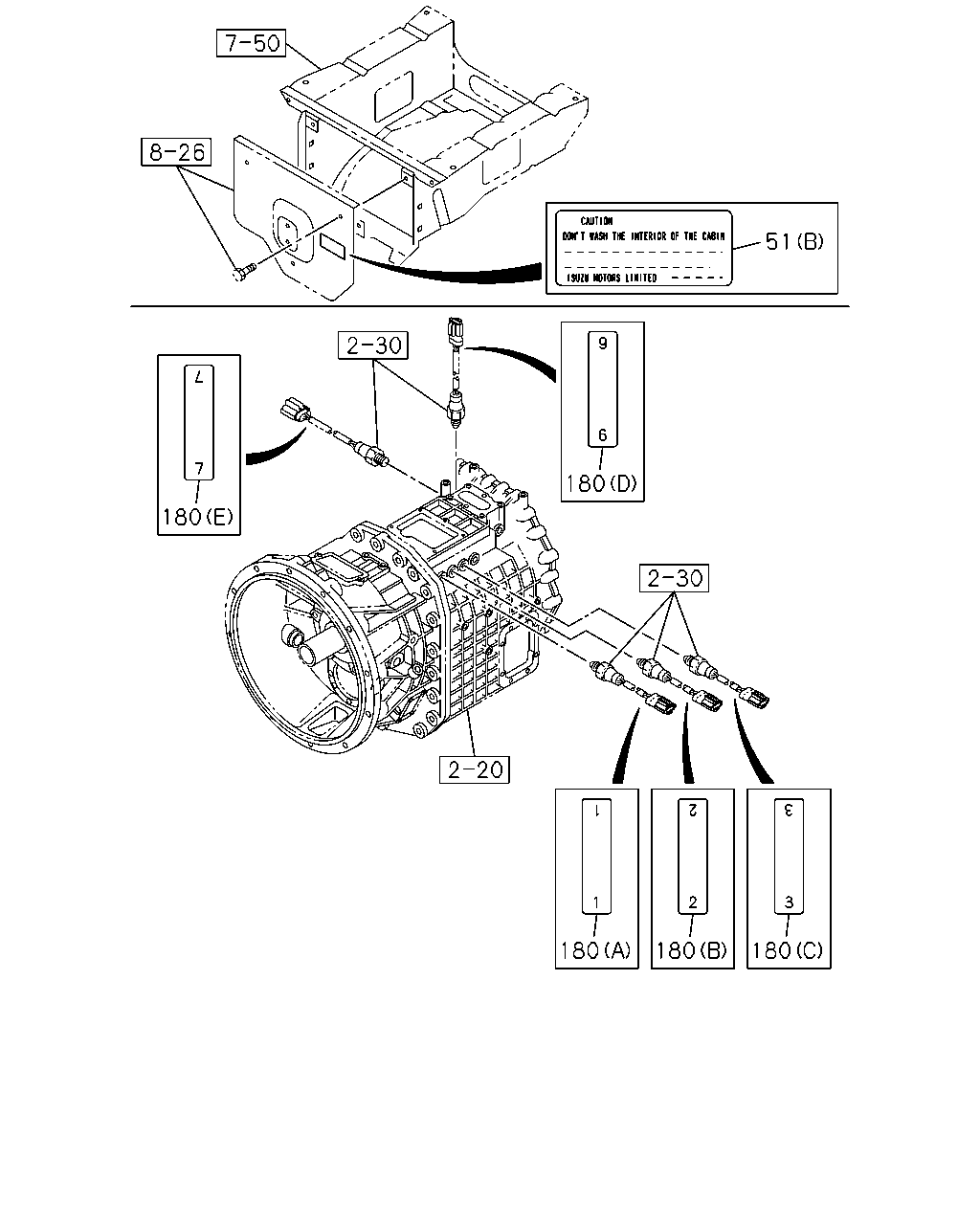

çizim 87184
51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0512- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0407-0511 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0512- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 0512- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 0512- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (C) 		1-85881-873-0 01 1 0512- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		1-85881-880-0 01 1 0512- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (E) 		1-85881-881-0 01 1 0512- ● ●

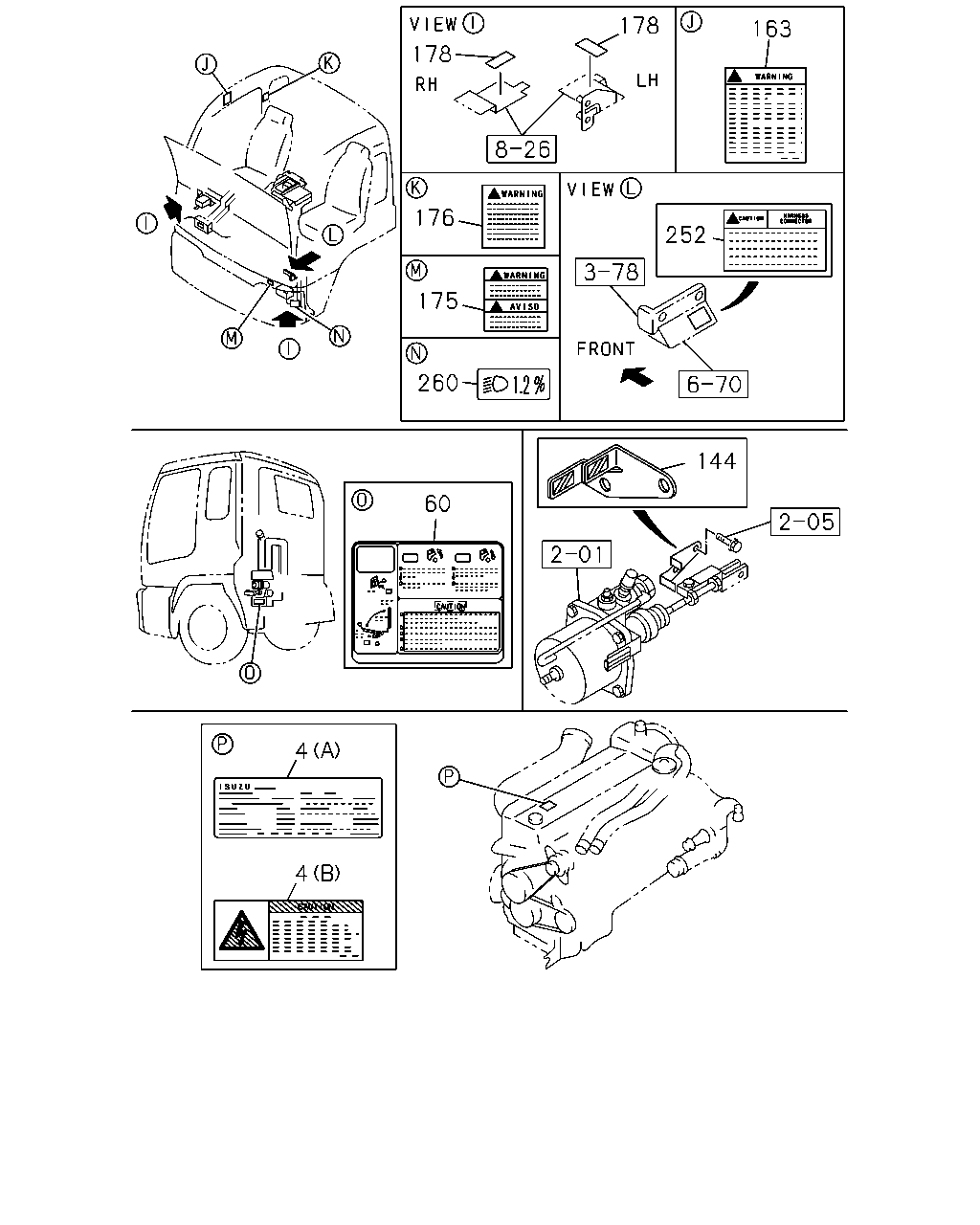

çizim 87391
178 163 178 176 252 175 260 144 60 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) (B) 		8-94391-524-0 01 1 0705-0902 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-0 01 1 0512-0704 ●
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-462-0 02 1 0705-0902 ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-1 01 1 0903- ●
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-0 01 1 0407-0511 ●
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) (A) 		1-85875-350-2 01 1 0512- ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0407-0511 ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0512-0704 ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 02 1 0705-0902 ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0903- ● ●
60 PLATE; CAUTION,CAB TILT
6WG1 TC-C(72L) 		1-85883-234-0 01 1 0512- ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0407-0511 ●
60 PLATE; CAUTION,CAB TILT
6WF1 TC-C(1B8) 		1-85883-174-0 01 1 0512- ●
144 PLATE; CAUTION,CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-85878-345-0 01 1 0407-0511 ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0407-0511 ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0512- ● ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0407-0511 ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0512- ● ●
176 LABEL; SEAT BELT 1-85878-486-0 01 1 0407-0511 ●
176 LABEL; SEAT BELT 1-85878-486-0 01 1 0512- ● ●
178 LABEL; SAFETY,DISCHARGE HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-85878-497-0 02 1 0407-0511 ●
252 PLATE; CAUTION,HARNESS 1-85878-488-0 01 1 0407-0511 ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0512- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0602- ● ●
çizim 105154
181 181
BalonParca AdiParca NoAdetTipApplied Date A B C
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0512- ● ●
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0512- ● ●
