Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

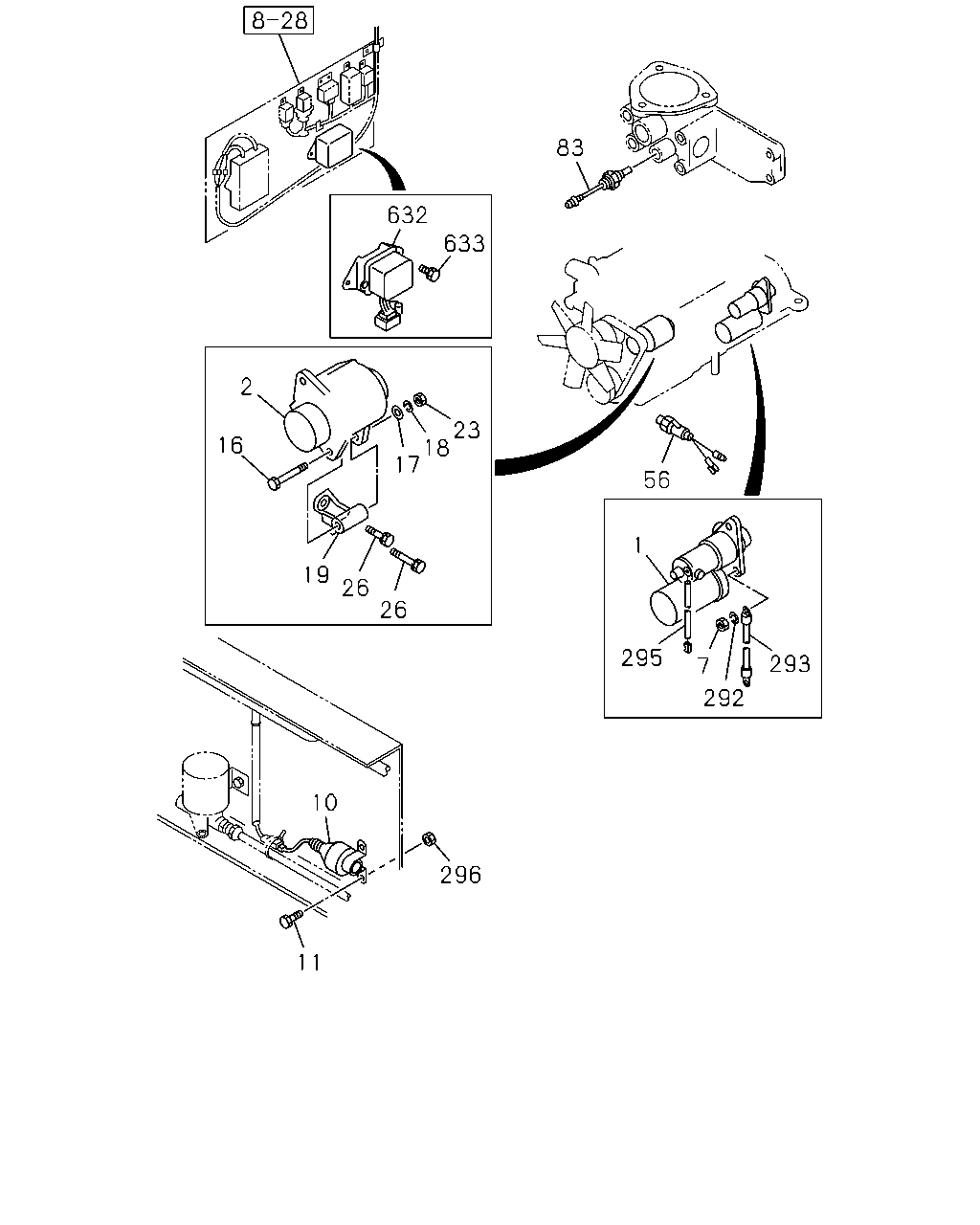

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#3140) — 37 parça
83
632
633
2
23
18
17
16
56
1
19
26
26
295
293
7
292
10
296
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
1-81100-141-1
01
1
9104-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO
5-81200-180-3
01
1
9104-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO
5-81200-180-3
02
1
0108-
7
NUT; STARTER
M12
9-99110-412-0
03
1
9104-
7
NUT; STARTER
M12
9-99110-412-0
03
1
0108-
10
RELAY; STARTER
DENSO
1-81171-055-0
01
1
9104-
11
BOLT; RELAY STARTER
M8X25 W/LK WASHER
9-01900-825-0
02
1
9104-9204
11
BOLT; RELAY STARTER
M8X25 W/LK WASHER
0-50040-825-0
02
1
9205-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
9104-
16
BOLT; GEN
M14X135
1-09000-133-1
03
1
0108-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9104-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
03
1
0108-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9104-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
03
1
0108-
19
BRACKET; GEN
5-19711-031-2
01
1
9104-
19
BRACKET; GEN
5-19711-031-2
02
1
0108-
23
NUT; GEN
M14
9-99110-414-0
01
1
9104-
23
NUT; GEN
M14
9-99110-414-0
03
1
0108-
26
BOLT; GEN BRKT
M10X25 W/LK WASHER
0-50041-025-0
01
1
9104-
26
BOLT; GEN BRKT
M10X35 W/LK WASHER
0-50041-035-0
02
1
9104-
26
BOLT; GEN BRKT
M10X25 W/LK WASHER
0-50041-025-0
02
1
0108-
26
BOLT; GEN BRKT
M10X35 W/LK WASHER
0-50041-035-0
04
1
0108-
56
SWITCH; OIL PRESSURE WARNING
PT1/8
1-82410-091-2
01
1
9104-9502
56
SWITCH; OIL PRESSURE WARNING
PT1/8
1-82410-160-0
01
1
9503-
56
SWITCH; OIL PRESSURE WARNING
PT1/8
1-82410-160-0
01
1
0108-
83
THERMOMETER UNIT
1-83161-019-1
01
1
9104-
83
THERMOMETER UNIT
1-83161-019-1
01
1
0108-
292
WASHER; LK,STARTER
ID=12.2
9-09150-512-0
03
1
9104-
292
WASHER; LK,STARTER
ID=12.2
9-09150-512-0
03
1
0108-
293
CABLE; STARTER EARTH
9-82932-211-0
01
1
9104-
293
CABLE; STARTER EARTH
9-82932-211-0
01
1
0108-
295
HARNESS; STARTER
1-82640-130-0
01
1
9104-
295
HARNESS; STARTER
1-82640-130-0
02
1
0108-
296
NUT; RELAY,STARTER
M8
9-09110-408-0
02
1
9104-
632
REGULATOR; VOLTAGE
1-81251-026-0
01
1
9104-
633
BOLT; VOLTAGE REG
M6X14 W/LK WASHER
9-01900-614-0
02
1
9104-9204
633
BOLT; VOLTAGE REG
M6X14 W/LK WASHER
0-50040-614-0
02
1
9205-
