6-90 — REAR BUMPER (#31399) — 31 parça

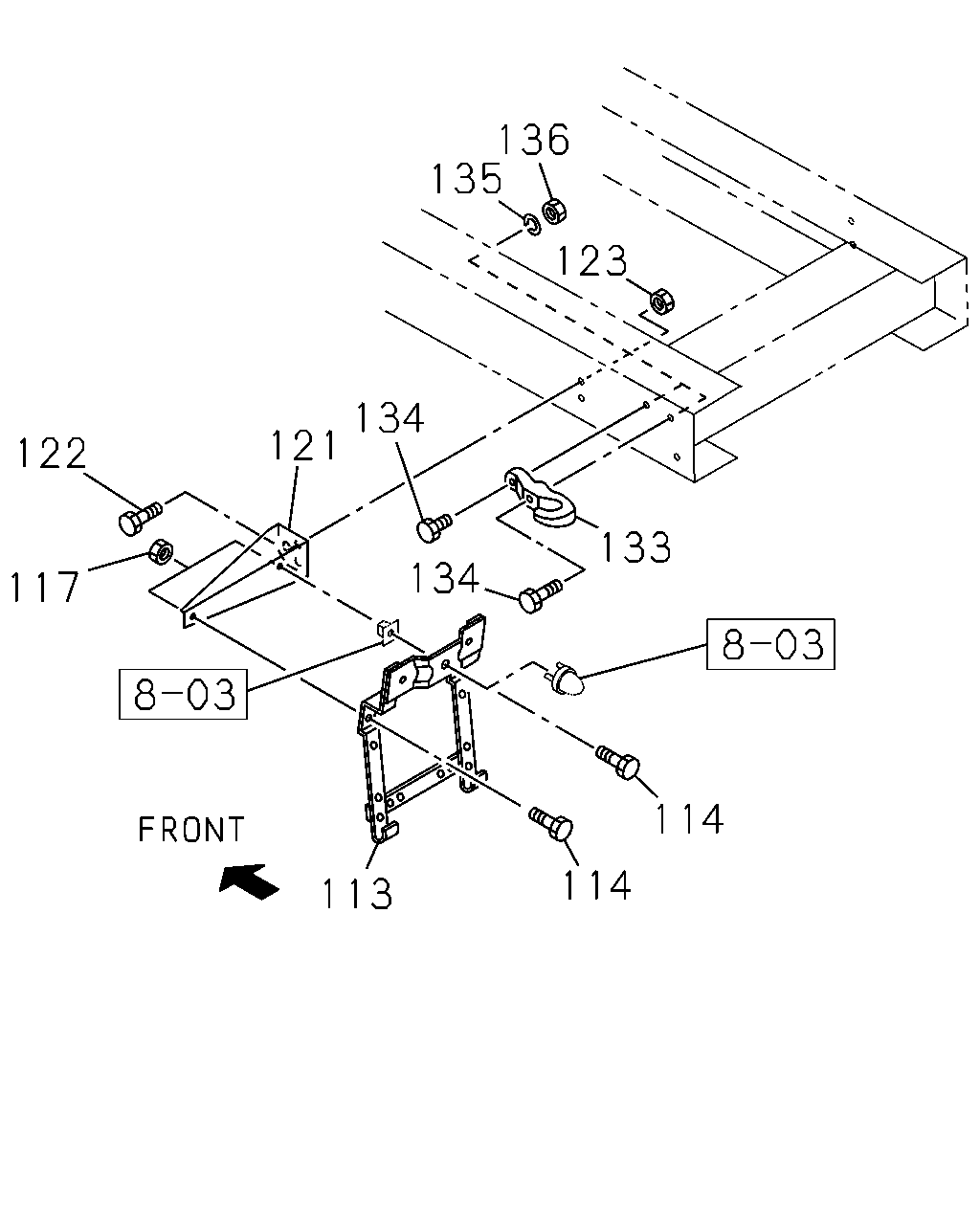

çizim 87416
136 135 123 134 121 122 133 134 117 114 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C
113 BRACKET; LICENSE PLATE 1-53485-049-2 01 1 0407-0511 ●
113 BRACKET; LICENSE PLATE 1-53485-049-2 01 1 0512-0907 ● ●
113 BRACKET; LICENSE PLATE 8-98052-734-1 01 1 0908- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
117 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
117 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
121 STAY; RR LICENSE PLATE BRKT 1-53485-050-0 01 1 0407-0511 ●
121 STAY; RR LICENSE PLATE BRKT 1-53485-050-0 01 1 0512- ●
122 BOLT; STAY TO FRAME
M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
122 BOLT; STAY TO FRAME
M8X25 FLANGE 		0-28680-825-0 03 1 0512-0512 ●
122 BOLT; STAY TO FRAME
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
123 NUT; STAY
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
123 NUT; STAY
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ●
123 NUT; STAY
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
133 HOOK 1-57181-027-1 01 1 0407-0511 ●
133 HOOK 1-57181-027-1 01 1 0512- ● ●
134 BOLT; HOOK
M16X60 		0-10811-660-0 01 1 0407-0511 ●
134 BOLT; HOOK
M16X60 		0-10811-660-0 01 1 0512-0512 ● ●
134 BOLT; HOOK
M16X60 		0-10861-660-0 01 1 0601- ● ●
134 BOLT; HOOK
M16X50 		0-20801-650-0 01 1 0407-0511 ●
134 BOLT; HOOK
M16X50 		0-20801-650-0 01 1 0512-0512 ● ●
134 BOLT; HOOK
M16X50 		0-20851-650-0 01 1 0601- ● ●
135 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0407-0511 ●
135 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0512-0603 ● ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
136 NUT; HOOK
M16 		9-99110-516-0 02 1 0407-0511 ●
136 NUT; HOOK
M16 		9-99110-516-0 02 1 0512-0512 ● ●
136 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ● ●
