Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

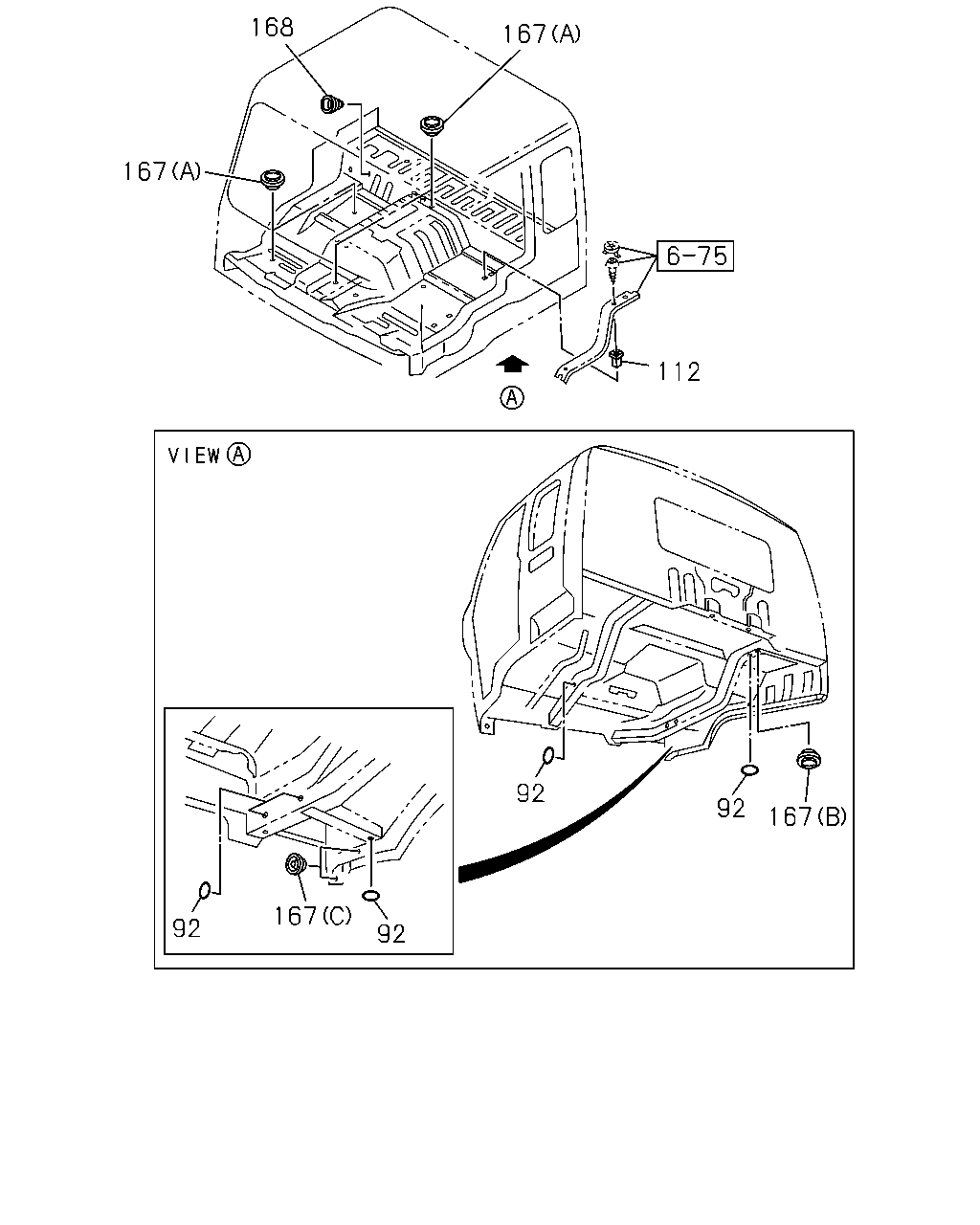

6-78 — FLOOR HOLE PLUG
(#31394) — 13 parça
Tümü
A - CYZ5MC
B - CYZ5MF
C - CXZ5MF
168
167
167
112
92
92
167
167
92
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
10
1
0512-
●
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
19
1
0407-0511
●
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
09
1
0512-
●
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0407-0511
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0512-
●
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
08
1
0407-0511
●
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
08
1
0512-
●
●
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
0407-0511
●
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
0512-
●
●
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
0407-0511
●
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
0512-
●
●
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0407-0511
●
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
