◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#31390) — 42 parça

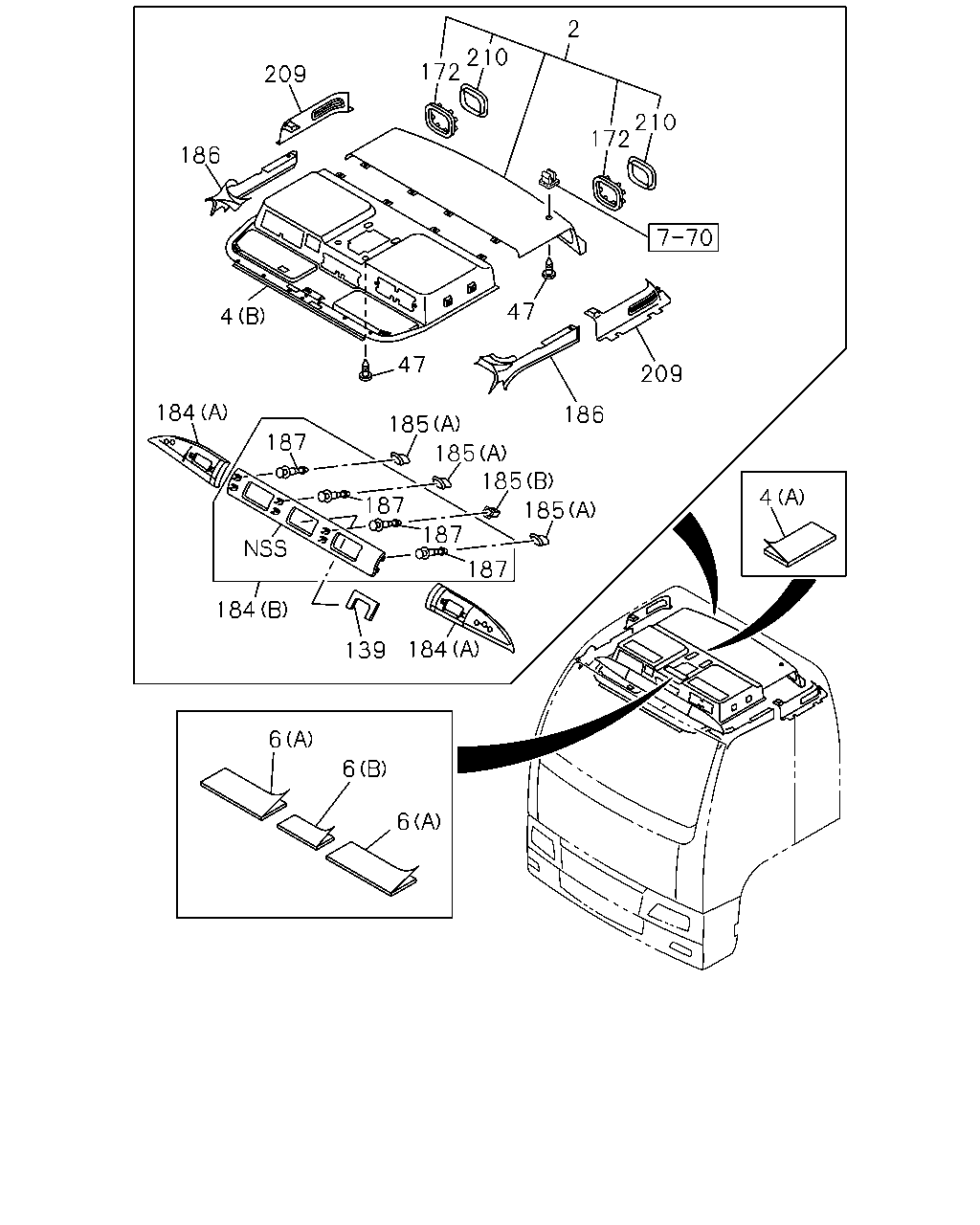

çizim 87415
2 210 172 209 210 172 186 47 4 47 209 184 186 185 187 185 185 187 4 185 187 187 184 184 139 6 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINING; HD,ROOF RR 1-73317-503-2 01 1 0407-0511 ●
2 LINING; HD,ROOF RR 1-73317-503-2 01 1 0512- ● ●
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0512- ● ●
4 LINING; ROOF,FRT
(B) 		1-73317-482-2 01 1 0407-0511 ●
4 LINING; ROOF,FRT
(B) 		1-73317-482-2 01 1 0512- ● ●
6 SPACER; HD LINING
(A) 140X800 		1-73317-429-2 02 1 0512- ● ●
6 SPACER; HD LINING
(B) 130X300 		1-73317-435-2 01 1 0512- ● ●
47 CLIP; HEADLINING
D4.6X14.7 BLACK 		1-09983-104-0 05 1 0407-0410 ●
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 0411-0511 ●
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 0512- ● ●
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0407-0511 ●
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0512- ● ●
139 SEAL; ROOF 1-73318-562-0 03 1 0512- ● ●
172 RETAINER; HEAD LINING 1-73317-448-0 01 1 0407-0511 ●
172 RETAINER; HEAD LINING 1-73317-448-0 01 1 0512- ● ●
172 RETAINER; HEAD LINING 1-73317-449-0 01 1 0407-0511 ●
172 RETAINER; HEAD LINING 1-73317-449-0 01 1 0512- ● ●
184 ORNAMENT; ROOF
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-73317-408-2 01 1 0512- ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 0407-0511 ●
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 0512- ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-452-1 01 1 0407-0511 ●
184 ORNAMENT; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-73317-452-1 01 1 0512- ● ●
184 ORNAMENT; ROOF
(B) 		1-73317-405-1 01 1 0407-0511 ●
184 ORNAMENT; ROOF
(B) 		1-73317-405-1 01 1 0512- ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0407-0511 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0512- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0407-0511 ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0512- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 0407-0511 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 0512- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 0407-0511 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 0512- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0407-0511 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0512- ● ●
209 COVER; GRILLE 1-73347-865-3 01 1 0407-0511 ●
209 COVER; GRILLE 1-73347-865-3 01 1 0512- ● ●
209 COVER; GRILLE 1-73347-866-3 01 1 0407-0511 ●
209 COVER; GRILLE 1-73347-866-3 01 1 0512- ● ●
210 GRILLE; SPEAKER 1-73347-885-1 01 1 0407-0511 ●
210 GRILLE; SPEAKER 1-73347-885-1 01 1 0512- ● ●
210 GRILLE; SPEAKER 1-73347-886-1 01 1 0407-0511 ●
210 GRILLE; SPEAKER 1-73347-886-1 01 1 0512- ● ●
