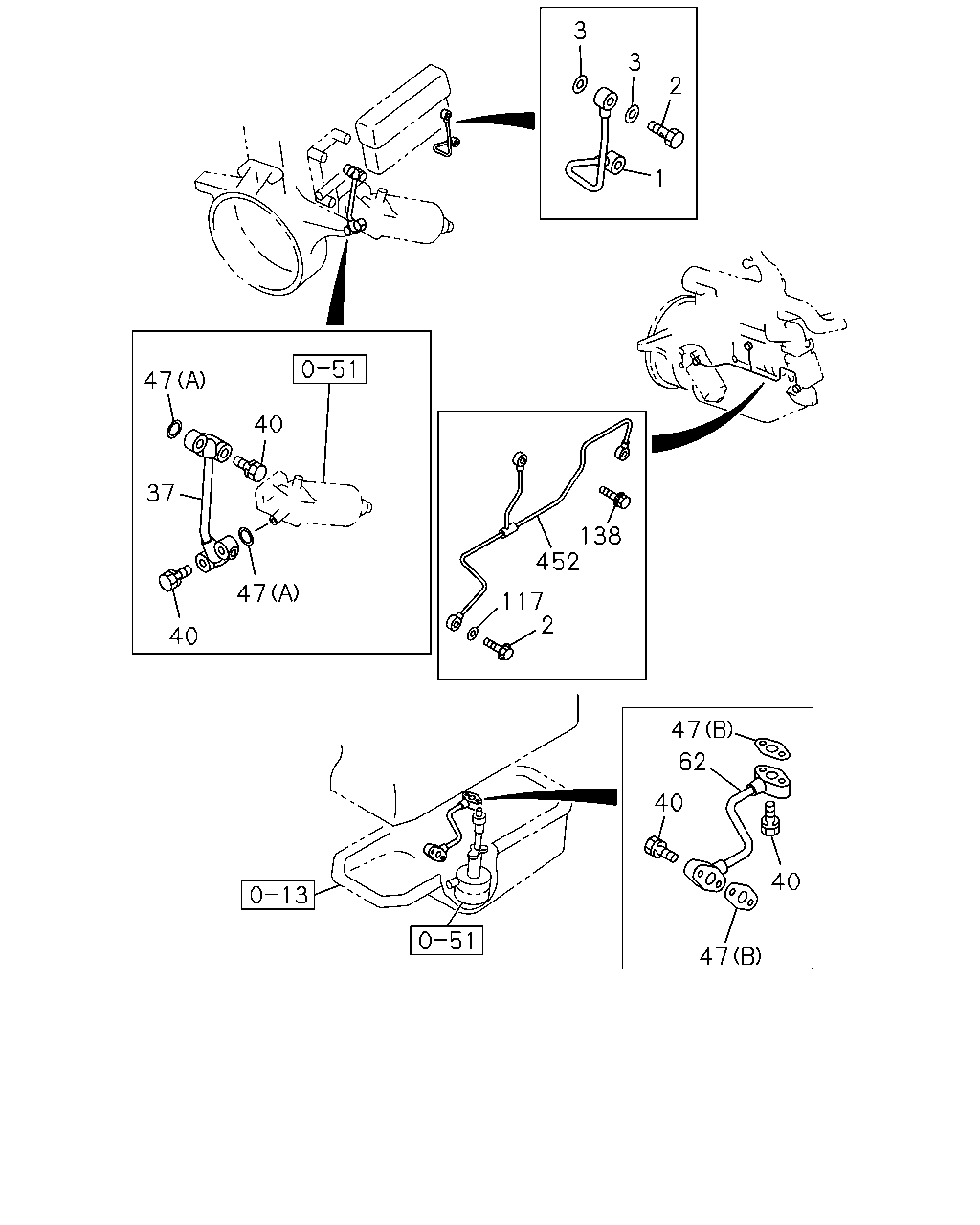

0-52 — OIL AND VACUUM PIPING; ENGINE (#3139) — 29 parça

3 3 2 1 47 40 37 138 452 47 117 2 40 47 62 40 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-765-0	01	1	9104-
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-765-0	01	1	0108-
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9104-
2	BOLT; EYE,OIL PIPE M12X24 EYE-BOLT	1-09675-081-0	01	1	9104-
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	0108-
2	BOLT; EYE,OIL PIPE M12X24 EYE-BOLT	1-09675-081-0	01	1	0108-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9104-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	0108-
37	PIPE; OIL,FILTER TO COOLER	5-13311-119-0	01	1	9104-
37	PIPE; OIL,FILTER TO COOLER	5-13311-119-0	01	1	0108-
40	BOLT; OIL PIPE M8X40 FLANGE	0-28680-840-0	04	1	9708-
40	BOLT; OIL PIPE M8X40 FLANGE	0-28680-840-0	04	1	0108-
40	BOLT; OIL PIPE M8X40 W/LK WASHER	0-50040-840-0	08	1	9104-9707
40	BOLT; OIL PIPE M8X40 FLANGE	0-28080-840-0	04	1	9708-0012
40	BOLT; OIL PIPE M8X40 W/LK WASHER	0-50040-840-0	04	1	0101-
40	BOLT; OIL PIPE M8X40 W/LK WASHER	0-50040-840-0	04	1	0108-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=22.8	1-09623-462-0	02	1	9104-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=18	9-09921-188-0	02	1	9104-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.8	1-09623-462-0	02	1	0108-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18	9-09921-188-0	02	1	0108-
62	PIPE; OIL,PUMP TO C/BL	1-13311-532-2	01	1	9104-
62	PIPE; OIL,PUMP TO C/BL	1-13311-532-2	01	1	0108-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9104-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0108-
138	BOLT; CLIP FIX M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9104-
138	BOLT; CLIP FIX M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0108-
452	PIPE; OIL,OIL FILTER TO AIR CMPR	1-13312-962-0	01	1	9104-9106
452	PIPE; OIL,OIL FILTER TO AIR CMPR	1-13313-090-0	01	1	9107-
452	PIPE; OIL,OIL FILTER TO AIR CMPR	1-13313-090-0	01	1	0108-
