◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#31388) — 428 parça

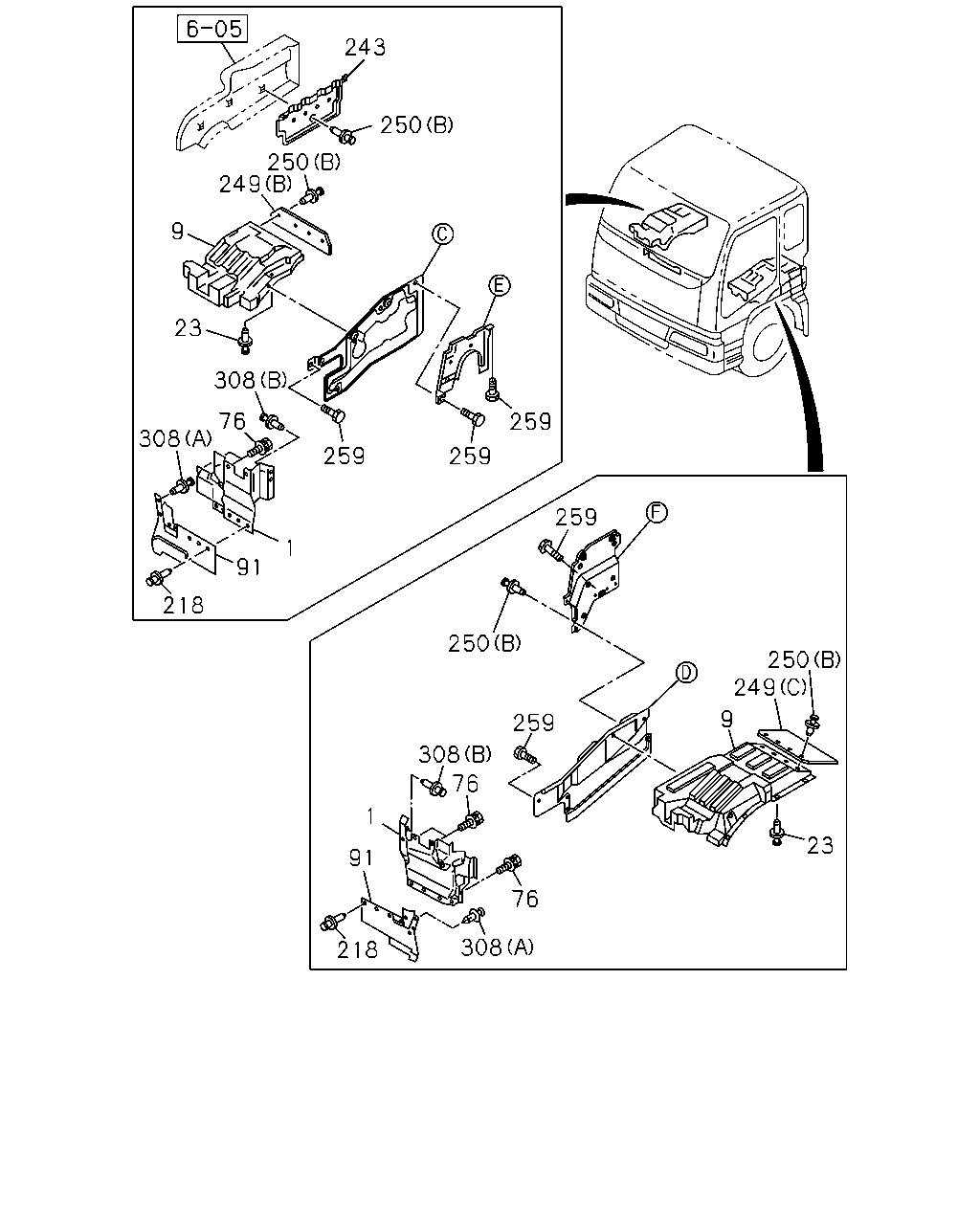

çizim 87077
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GUARD; MUD,FRT 1-79937-894-5 01 1 0407-0511 ●
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0512- ● ●
1 GUARD; MUD,FRT 1-79937-895-4 01 1 0407-0511 ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0512- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0407-0511 ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0512- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0407-0511 ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0512- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0407-0511 ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0512- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0407-0511 ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0512-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407-0511 ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0512- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0407-0511 ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0512- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0407-0511 ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0512- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0407-0511 ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0512- ● ●
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0407-0511 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-0512 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0407-0511 ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0512- ● ●
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 0407-0511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0407-0511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0512- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0407-0511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0512- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0407-0511 ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0512-0904 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0407-0511 ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0512- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0407-0511 ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0512- ● ●
çizim 87177
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date A B C
73 BOLT; MUD COVER BRKT
CAB UP +110MM<TGG> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0512-0512 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0512-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0512-0805 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
74 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
122 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0407-0511 ●
122 BOLT
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0512-0512 ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602- ● ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0407-0511 ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0512-1207 ● ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208- ● ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0407-0511 ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0512- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-0511 ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0512- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-0511 ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0512- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-0511 ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0512- ● ●
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501 ●
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0512-0701 ● ●
162 BRACKET
(F) 		1-71907-815-0 01 1 0702- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
168 NUT; EXH COVER
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (A) 		8-94165-394-0 09 1 0407-0511 ●
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (B) 		8-94279-048-0 05 1 0407-0511 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 03 1 0407-0501 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0502-0511 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0512- ● ●

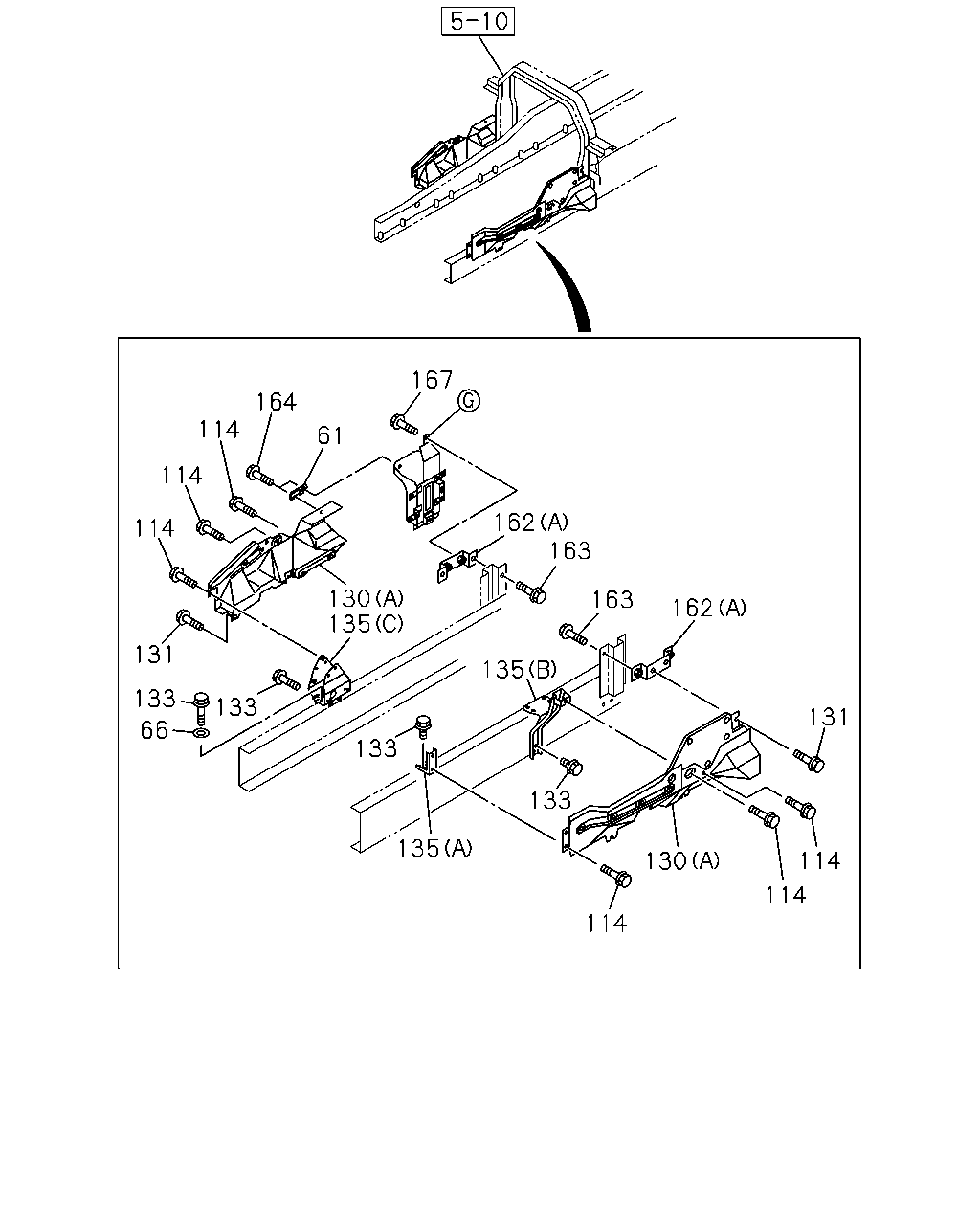

çizim 87332
167 164 114 61 114 162 163 114 130 135 163 162 131 135 133 133 131 66 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date A B C
61 BRACKET; COVER 1-53441-536-1 01 1 0407-0511 ●
61 BRACKET; COVER 1-53441-536-1 01 1 0512-0803 ● ●
61 BRACKET; COVER 8-98039-501-1 01 1 0804- ● ●
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		9-09150-614-0 02 1 0407-0511 ●
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		9-09150-614-0 02 1 0512-0603 ●
66 WASHER; LK
ID=14.2 		9-09150-614-0 02 1 0512-0603 ●
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		0-91510-614-0 02 1 0604- ●
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0604- ●
114 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
114 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0407-0511 ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602- ● ●
131 BOLT; PANEL
6WG1 TC-C(72L) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0407-0511 ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0512-0805 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806- ● ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 		0-20801-445-0 02 1 0512- ●
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0512- ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 		0-20801-445-0 02 1 0407-0511 ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28681-035-0 02 1 0407-0511 ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28681-035-0 02 1 0512-0512 ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28681-035-0 02 1 0512-0512 ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
135 BRACKET; SIDE PANEL
6WG1 TC-C(72L) (B) 		1-53441-508-1 01 1 0512- ● ●
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		1-33657-583-1 01 1 0407-0511 ●
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		1-33657-583-1 01 1 0512- ●
135 BRACKET; SIDE PANEL
(C) 		1-33657-583-1 01 1 0512- ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0407-0511 ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0512- ● ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0407-0511 ●
135 BRACKET; SIDE PANEL
6WF1 TC-C(1B8) (B) 		1-53441-598-1 01 1 0512- ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-0511 ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0512- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-0511 ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0512- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-0511 ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0512- ● ●
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501 ●
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0512-0701 ● ●
162 BRACKET
(F) 		1-71907-815-0 01 1 0702- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
çizim 87778
130 185 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date A B C
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0512- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511 ●
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601 ● ●
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0511 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0512-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-1 01 1 0409-0511 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0512- ● ●
çizim 104574
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date A B C
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0511 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0512-0601 ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0512- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511 ●
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601 ● ●
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0511 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0512-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-1 01 1 0409-0511 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0512- ● ●

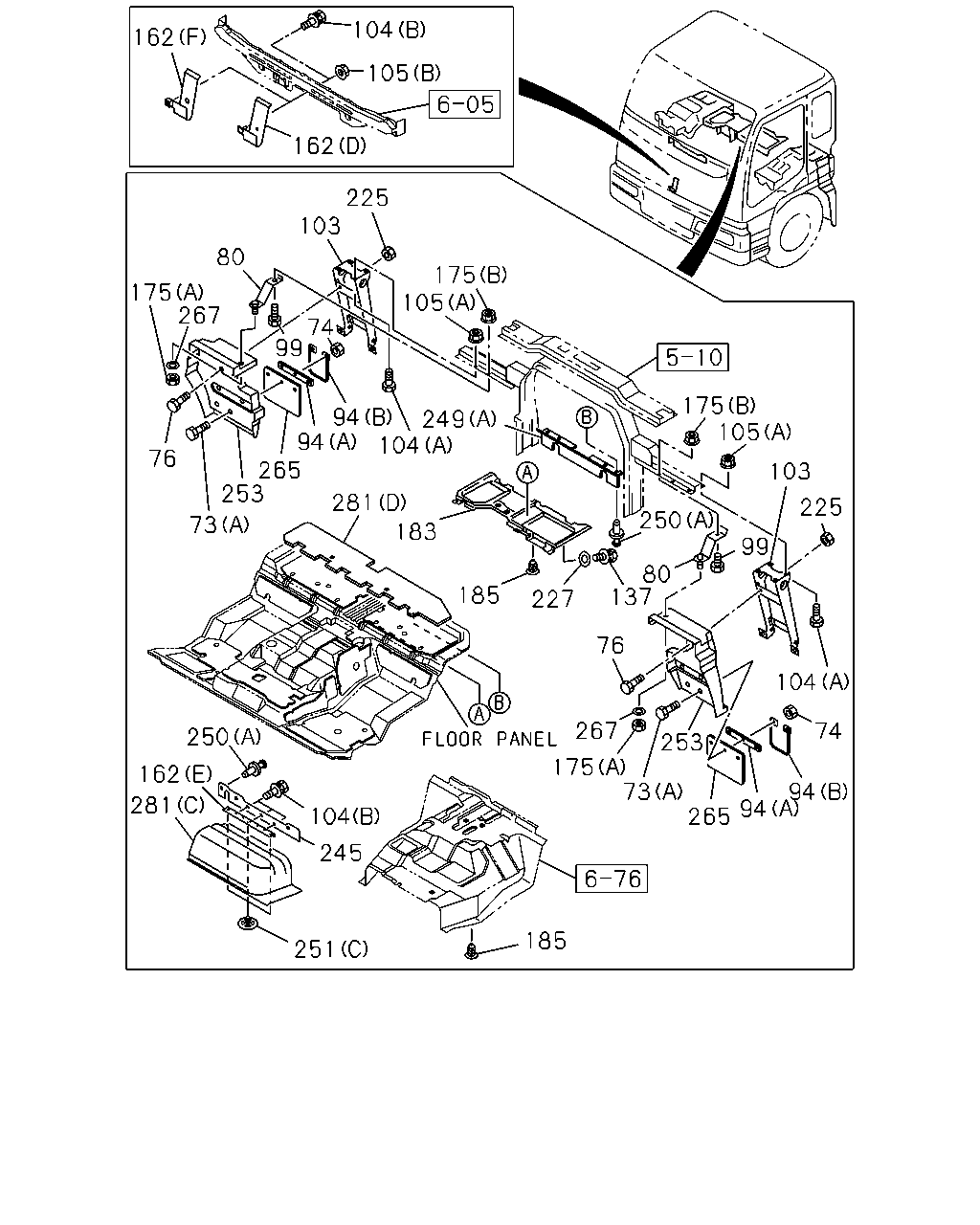

çizim 104580
104 162 105 162 225 103 80 175 105 175 267 74 99 175 105 94 249 94 104 265 253 76 103 281 183 225 250 73 99 80 137 185 227 76 104 267 74 250 253 175 73 162 94 265 281 94 104 245 185 251
BalonParca AdiParca NoAdetTipApplied Date A B C
73 BOLT; MUD COVER BRKT
CAB UP +110MM<TGG> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0512-0512 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0512-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0512-0805 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
74 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
74 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0407-0511 ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0512-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407-0511 ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0512- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0407-0511 ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0512- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0407-0511 ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0512- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0407-0511 ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0407-0511 ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0512- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0512- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0407-0511 ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0407-0511 ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0512- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0512- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0511 ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0512-0512 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0407-0511 ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0512-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503- ● ●
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808 ● ●
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809- ● ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0407-0511 ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0512-0512 ● ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ●
104 BOLT; BRKT
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 0407-0511 ●
105 NUT; BRKT
6WG1 TC-C(72L) (A) M10 FLANGE 		0-91150-210-0 07 1 0512-0602 ● ●
105 NUT; BRKT
6WG1 TC-C(72L) (A) M10 FLANGE 		0-91180-210-0 07 1 0603- ● ●
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 0407-0511 ●
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-210-0 08 1 0512-0602 ●
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91180-210-0 08 1 0603- ●
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0407-0511 ●
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0512-0701 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-0511 ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0512- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-0511 ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0512- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-0511 ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0512- ● ●
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501 ●
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0511 ●
162 BRACKET
(D) 		1-71907-521-0 01 1 0512-0701 ● ●
162 BRACKET
(F) 		1-71907-815-0 01 1 0702- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-3 01 1 0407-0511 ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0512- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0512- ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0407-0511 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0512-0602 ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0407-0511 ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0512- ● ●
245 RUBBER; SHUTTER,RAD
6WG1 TC-C(72L) 		1-79947-014-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-0511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0512- ● ●
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 0407-0511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0407-0511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0512- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0407-0511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0512- ● ●
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (A) 		8-94165-394-0 09 1 0407-0511 ●
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (B) 		8-94279-048-0 05 1 0407-0511 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 03 1 0407-0501 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0502-0511 ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0512- ● ●
253 GUARD; MUD 1-79931-064-7 01 1 0407-0511 ●
253 GUARD; MUD 1-79931-064-7 01 1 0512-0901 ● ●
253 GUARD; MUD 8-98134-759-0 01 1 0902- ● ●
253 GUARD; MUD 1-79931-066-7 01 1 0407-0511 ●
253 GUARD; MUD 1-79931-066-7 01 1 0512-0901 ● ●
253 GUARD; MUD 8-98134-766-1 01 1 0902- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0407-0511 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0407-0511 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0512- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0512- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0407-0511 ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0512-0605 ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511 ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512- ● ●
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511 ●
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601 ● ●
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0511 ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0512-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-1 01 1 0409-0511 ●
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
