◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#31384) — 70 parça
çizim 87202
14 18 154 35 147 86 102 43 49 39 133 125 34 41
BalonParca AdiParca NoAdetTipApplied Date A B C
14 STRIKER; FRT DOOR 8-97221-702-0 02 1 0407-0511 ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0512- ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0407-0511 ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0512- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 0407-0511 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 0512- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 0407-0511 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 0512- ● ●
35 LINK; DOOR LOCK,INSIDE
AUTO DOOR LOCK<AU4> 		1-74518-129-2 01 1 0512- ●
35 LINK; DOOR LOCK,INSIDE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-094-3 01 1 0512- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 0407-0511 ●
35 LINK; DOOR LOCK,INSIDE
REMOTE CONT DOOR LOCK<SLG> 		1-74518-093-3 01 1 0512- ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 0512- ●
35 LINK; DOOR LOCK,INSIDE 1-74518-130-2 01 1 0407-0511 ●
35 LINK; DOOR LOCK,INSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-130-2 01 1 0512- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74758-033-1 01 1 0512- ●
39 LINK; INSIDE HANDLE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74758-022-2 01 1 0512- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 0407-0511 ●
39 LINK; INSIDE HANDLE,FRT DOOR
REMOTE CONT DOOR LOCK<SLG> 		1-74758-021-2 01 1 0512- ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 0512- ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-034-1 01 1 0407-0511 ●
39 LINK; INSIDE HANDLE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74758-034-1 01 1 0512- ● ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 0407-0511 ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 0512- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0407-0511 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0512- ● ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 0407-0511 ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 0512- ● ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 0407-0511 ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 0512- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0407-0511 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0512- ● ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 0407-0511 ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 0512- ● ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 0407-0511 ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 0512- ● ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0407-0511 ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0512- ● ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ● ●
154 SEAL; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-1 02 1 0512- ● ●
154 SEAL; DOOR
30X30 		1-74998-128-0 01 1 0407-0511 ●
154 SEAL; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-1 01 1 0512- ● ●

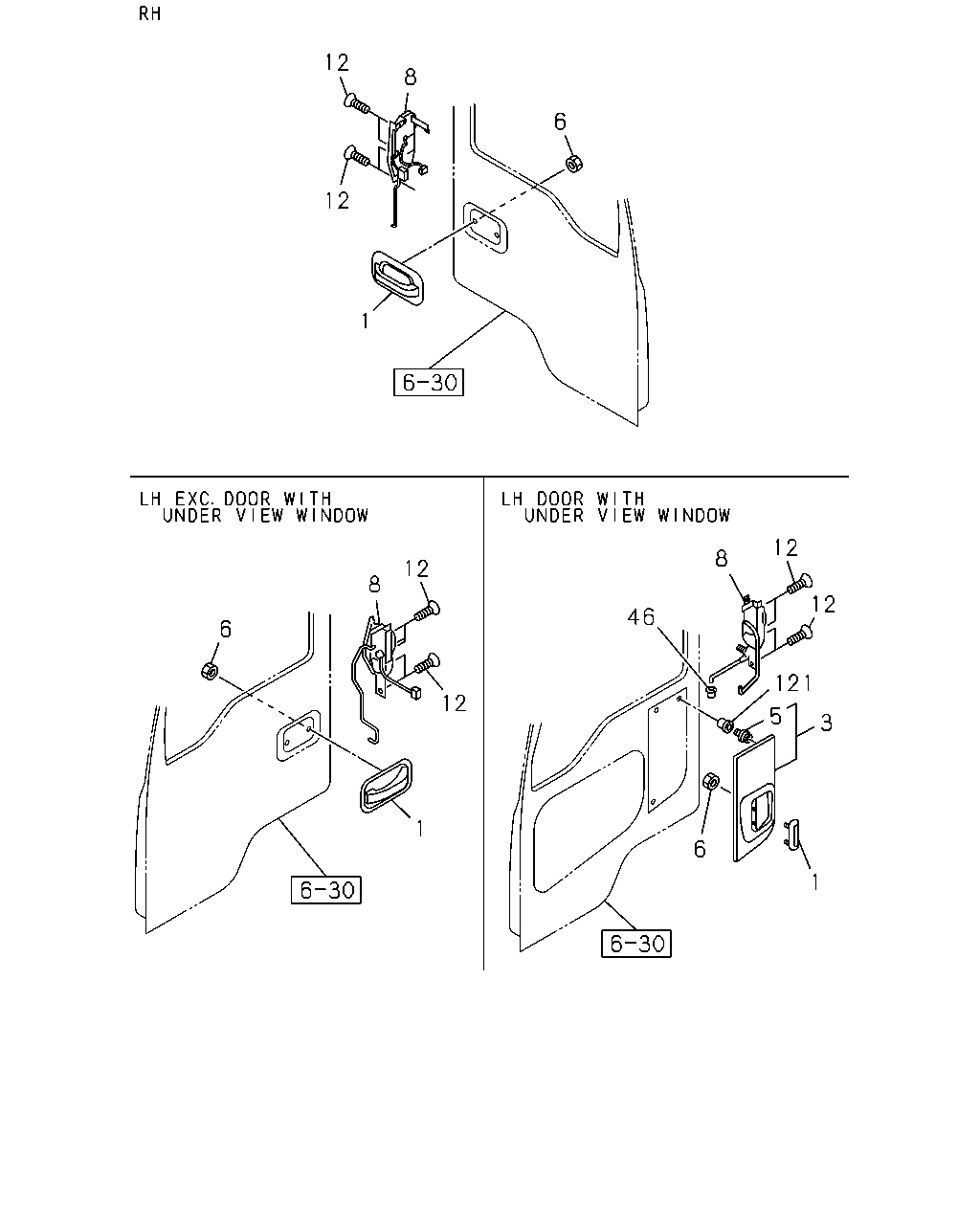

çizim 87252
12 8 6 12 1 12 8 12 8 12 46 6 121 12 5 3 1 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; OUTSIDE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-024-4 01 1 0512- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-032-0 01 1 0407-0511 ●
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-032-0 01 1 0512- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-040-0 01 1 0407-0511 ●
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-040-0 01 1 0512- ● ●
3 BASE; HANDLE,DOOR OUTSIDE 1-74618-039-1 01 1 0407-0511 ●
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-039-1 01 1 0512- ● ●
5 CLIP; BASE
D5.4X8 		1-09983-174-0 03 1 0407-0511 ●
5 CLIP; BASE
DOOR WITH UNDER VIEW WINDOW<YD8> D5.4X8 		1-09983-174-0 03 1 0512- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407-0511 ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0512- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-125-3 01 1 0512- ●
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-115-3 01 1 0512- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-107-6 01 1 0407-0511 ●
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<SLG> 		1-74518-107-6 01 1 0512- ●
8 LOCK; DOOR,FRT DOOR 1-74518-107-6 01 1 0512- ●
8 LOCK; DOOR,FRT DOOR 1-74518-126-1 01 1 0407-0511 ●
8 LOCK; DOOR,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-126-1 01 1 0512- ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0407-0511 ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0512-0805 ● ●
12 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 0806- ● ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 0407-0511 ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 0512- ● ●
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE 5-74617-009-0 01 1 0407-0511 ●
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		5-74617-009-0 01 1 0512- ● ●
121 FASTENER; COVER
ID=5.4 OD=6.8 		1-09989-019-0 03 1 0407-0511 ●
121 FASTENER; COVER
DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8 		1-09989-019-0 03 1 0512- ● ●
