6-31 — FRONT DOOR GLASS AND REGULATOR (#31383) — 223 parça

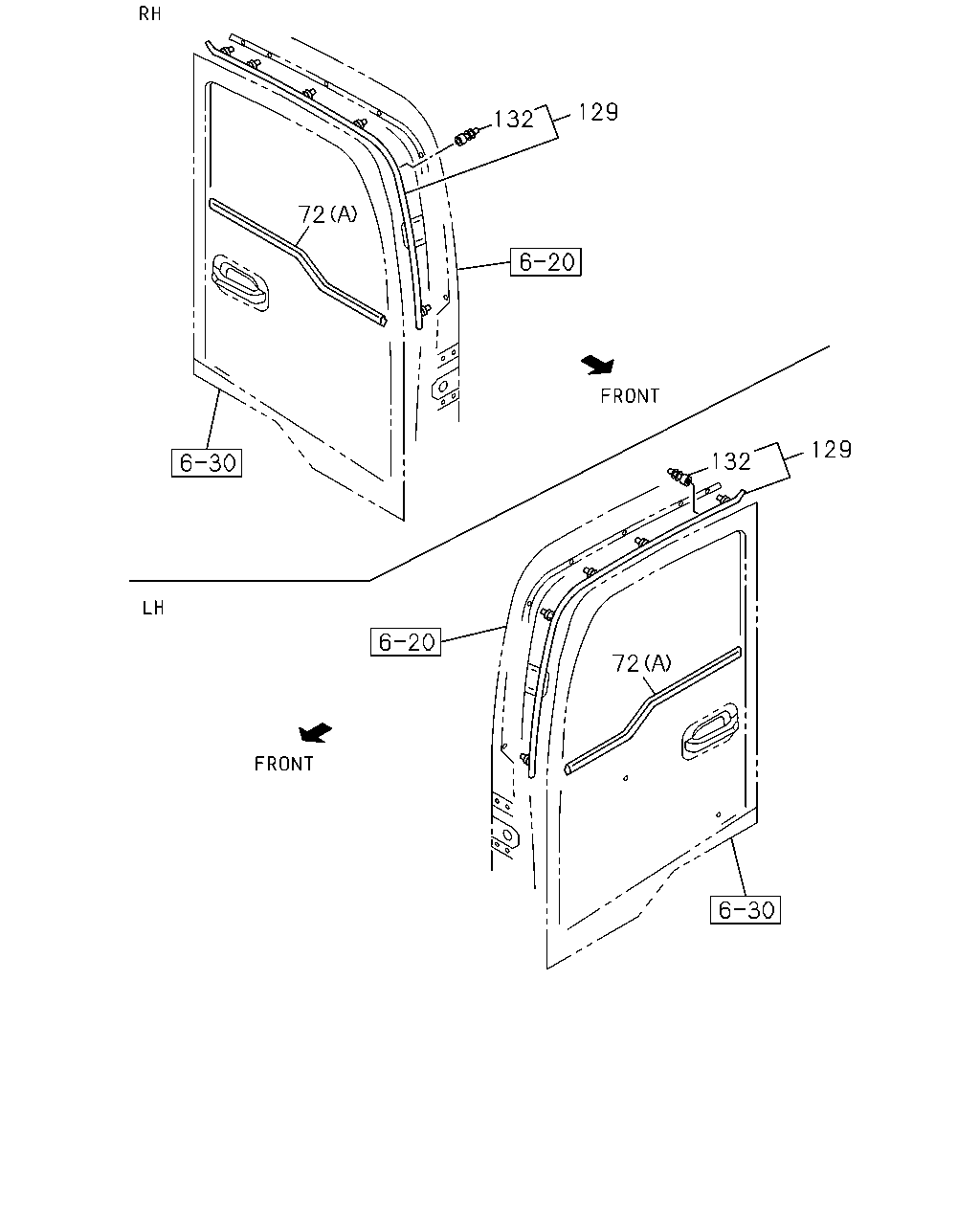

çizim 87130
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0512- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0512- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0407-0511 ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0512- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0407-0511 ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0512- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0407-0511 ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0512- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0407-0511 ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0512- ● ●

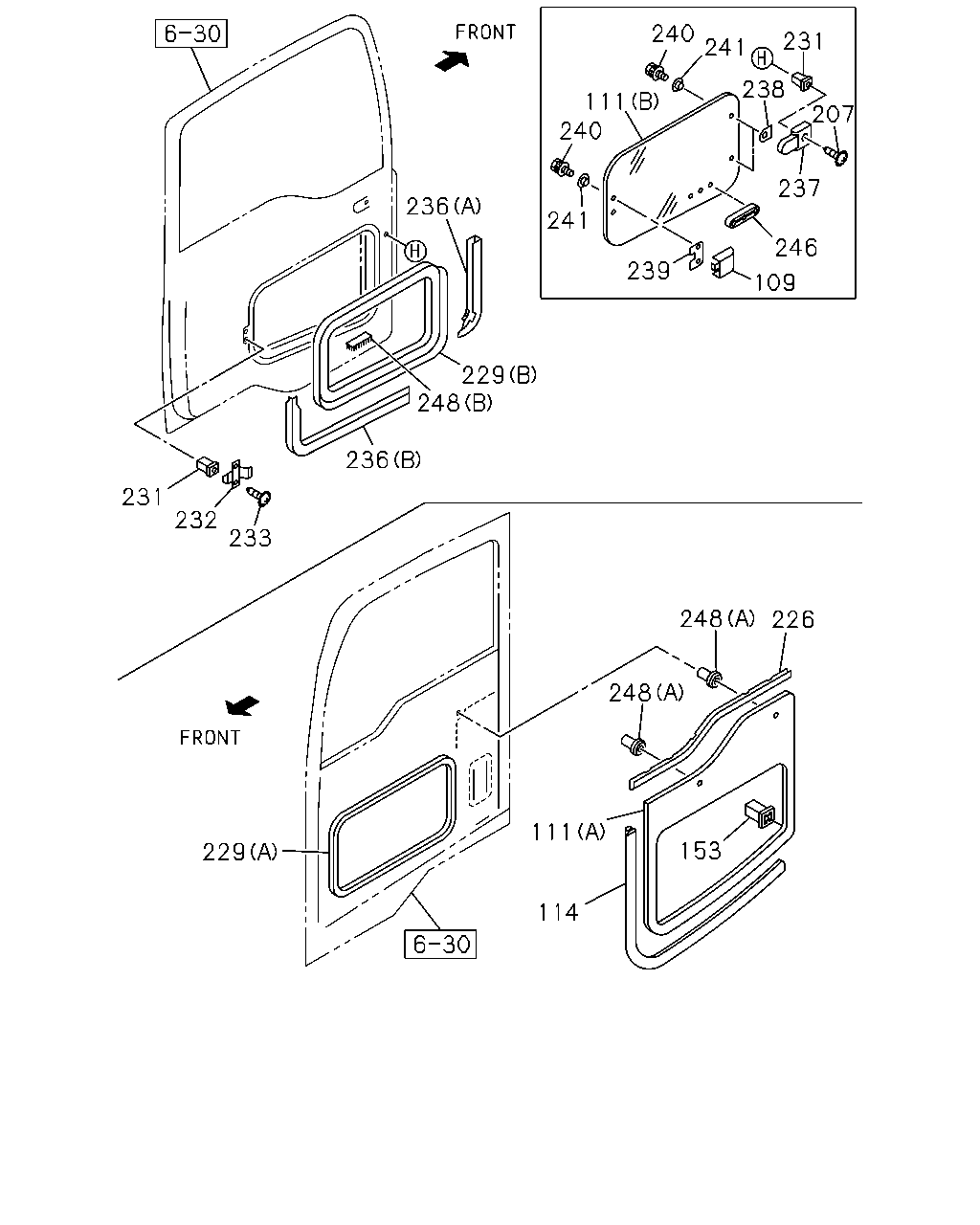

çizim 87154
240 241 231 238 111 240 207 237 236 241 246 239 109 229 248 236 231 232 233 248 226 248 111 153 229 114
BalonParca AdiParca NoAdetTipApplied Date A B C
109 LOCK ASM; DOOR WINDOW GLASS 1-74998-052-0 01 1 0407-0511 ●
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 0512- ● ●
111 GLASS; FRT DOOR,LWR
(A) 		1-76167-155-0 01 1 0407-0511 ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-155-2 01 1 0512- ● ●
111 GLASS; FRT DOOR,LWR
(B) 		1-76167-176-0 01 1 0407-0511 ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76167-176-0 01 1 0512- ● ●
114 MOLDING; OK WINDOW,LWR 1-71538-038-1 01 1 0407-0511 ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-038-1 01 1 0512- ● ●
153 GROMMET; FRT DOOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0407-0511 ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0512- ● ●
207 SCREW; DOOR GLASS
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0407-0511 ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0512- ● ●
226 FINISHER; OK WINDOW,LWR 1-76738-093-5 01 1 0407-0511 ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-093-6 01 1 0512- ● ●
229 SEAL; OK WINDOW
(A) OUTER 		1-76738-096-5 01 1 0407-0511 ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-096-5 01 1 0512- ● ●
229 SEAL; OK WINDOW
(B) INNER 		1-76738-097-4 01 1 0407-0511 ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-097-4 01 1 0512- ● ●
231 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0407-0511 ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0512- ● ●
232 STRIKER; OK WINDOW 1-74998-055-1 01 1 0407-0511 ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 0512-0805 ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-98048-053-0 01 1 0806- ● ●
233 SCREW; STRIKER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0407-0511 ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0512- ● ●
236 COVER; OK WINDOW
(A) 		1-73338-363-5 01 1 0407-0511 ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-363-5 01 1 0512- ● ●
236 COVER; OK WINDOW
(B) 		1-73338-364-5 01 1 0407-0511 ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-364-5 01 1 0512- ● ●
237 HINGE; DOOR WINDOW GLASS 1-74998-050-1 02 1 0407-0511 ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 0512- ● ●
238 SHEET; HINGE 1-74998-051-0 02 1 0407-0511 ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 0512- ● ●
239 SHEET; LOCK 1-74998-053-0 01 1 0407-0511 ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 0512- ● ●
240 SCREW; HINGE & LOCK
M6X12 		8-94279-346-0 04 1 0407-0511 ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 0512- ● ●
241 GASKET; HINGE & LOCK 1-74998-054-0 04 1 0407-0511 ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 0512- ● ●
246 GRILLE; OK WINDOW 1-74298-002-1 01 1 0407-0511 ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 0512- ● ●
248 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 02 1 0407-0511 ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 02 1 0512- ● ●
248 FASTENER
(B) 		1-74998-072-0 01 1 0407-0511 ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-072-1 01 1 0512- ● ●

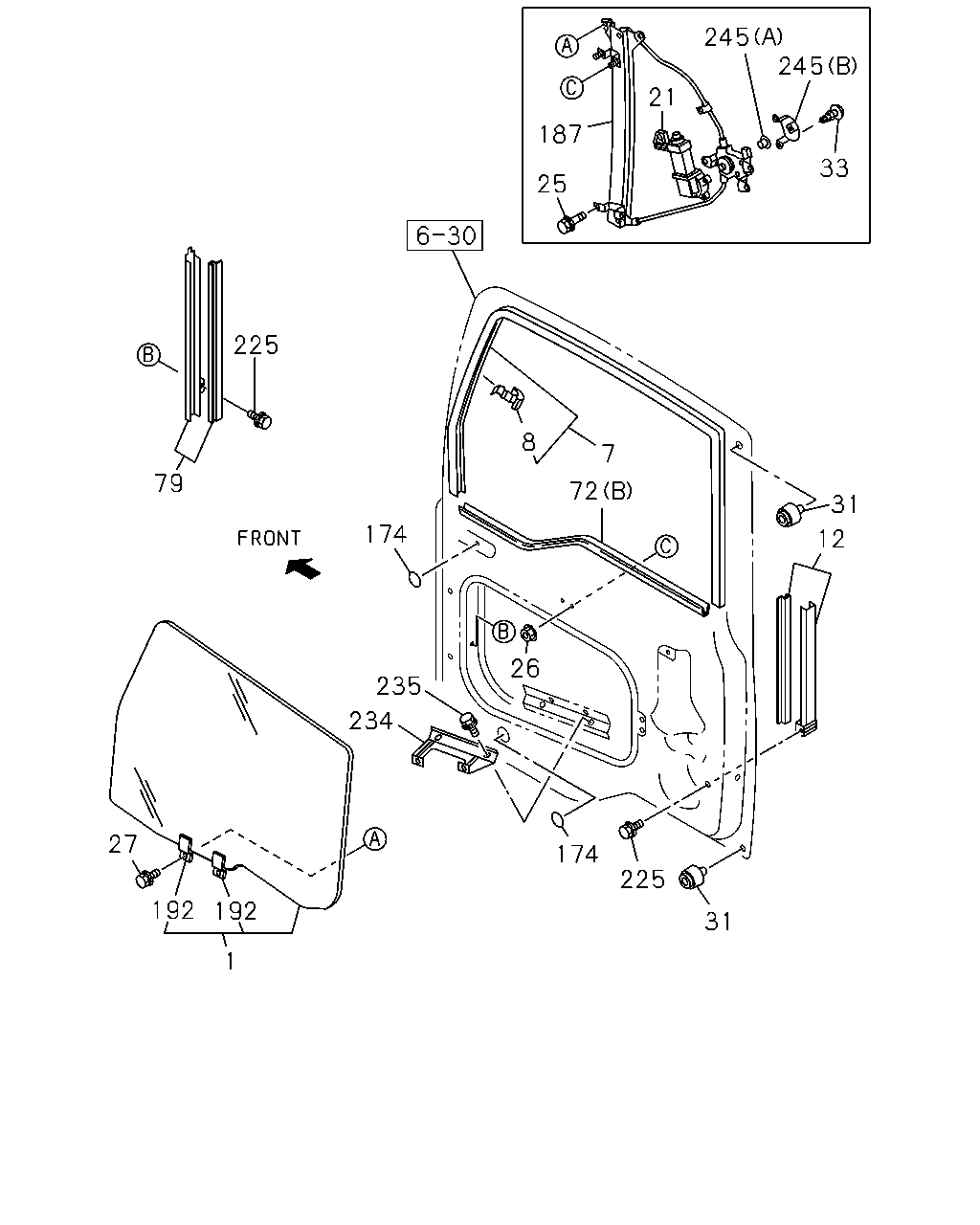

çizim 87776
245 245 21 187 33 25 225 8 7 79 72 31 174 12 26 235 234 27 174 225 192 12 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0512- ● ●
1 GLASS; FRT DOOR 1-76167-173-2 01 1 0407-0511 ●
1 GLASS; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0512- ● ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0407-0511 ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0407-0511 ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0407-0511 ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0512- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0407-0511 ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0512- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-2 01 1 0407-0511 ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0512- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-2 01 1 0407-0511 ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-162-0 01 1 0407-0511 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0407-0511 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0512- ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0512-0512 ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 07 1 0407-0511 ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0512-0512 ● ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601-0710 ● ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 07 1 0711- ● ●
26 NUT; FLANGE,WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0512- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 08 1 0407-0511 ●
26 NUT; FLANGE,WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0512- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0407-0511 ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0512- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0407-0511 ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0512- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 03 1 0512- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 03 1 0512- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0512- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0512- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0512- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 0407-0511 ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0512- ● ●
174 SEAL; LOCATION HOLE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0512- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 13 1 0407-0511 ●
174 SEAL; LOCATION HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0512- ● ●
187 REGULATOR ASM; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-3 01 1 0512- ● ●
187 REGULATOR ASM; DOOR 1-74418-166-3 01 1 0407-0511 ●
187 REGULATOR ASM; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 0512- ● ●
187 REGULATOR ASM; DOOR 1-74418-178-2 01 1 0407-0511 ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0512- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0407-0511 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0512- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0512- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0512-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 03 1 0407-0511 ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0512-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0407-0511 ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0512- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0407-0511 ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0512- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0407-0511 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) 		1-74418-181-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 02 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-147-1 01 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-147-1 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-180-0 01 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-180-0 01 1 0512- ● ●

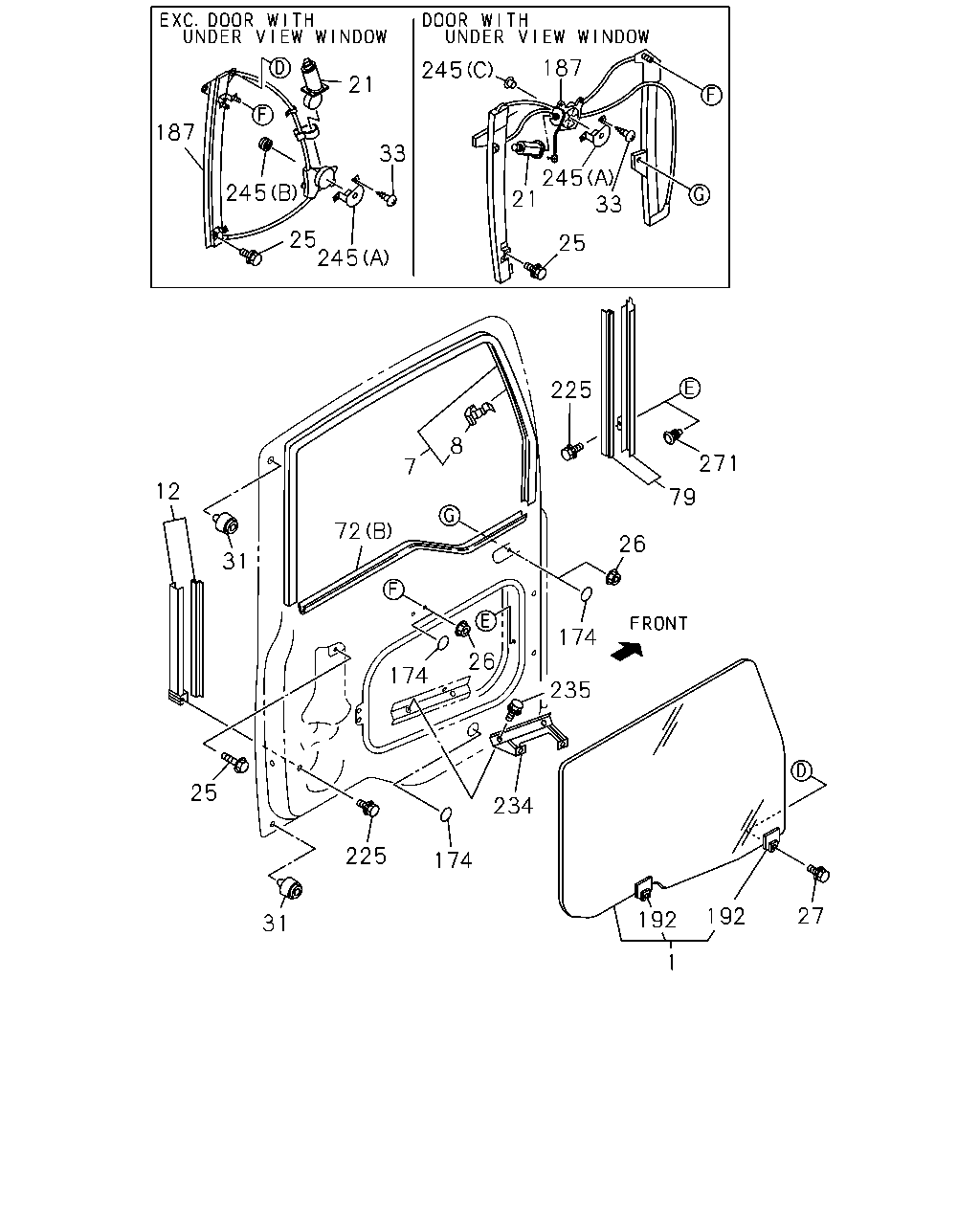

çizim 88544
187 245 21 187 33 245 21 33 245 25 245 25 225 8 271 7 12 79 72 26 31 174 26 174 235 25 234 225 174 192 27 192 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0512- ● ●
1 GLASS; FRT DOOR 1-76167-173-2 01 1 0407-0511 ●
1 GLASS; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0512- ● ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0407-0511 ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0407-0511 ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0407-0511 ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0512- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0407-0511 ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0512- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-2 01 1 0407-0511 ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0512- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-2 01 1 0407-0511 ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-162-0 01 1 0407-0511 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 0512- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0407-0511 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0512- ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0512-0512 ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ●
25 BOLT; WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 07 1 0407-0511 ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0512-0512 ● ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601-0710 ● ●
25 BOLT; WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 07 1 0711- ● ●
26 NUT; FLANGE,WINDOW REG
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0512- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 08 1 0407-0511 ●
26 NUT; FLANGE,WINDOW REG
DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0512- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0407-0511 ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0512- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0407-0511 ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0512- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 03 1 0512- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 03 1 0512- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-8 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0512-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0512- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-0511 ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0512- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0512- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 0407-0511 ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0512- ● ●
174 SEAL; LOCATION HOLE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0512- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 13 1 0407-0511 ●
174 SEAL; LOCATION HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0512- ● ●
187 REGULATOR ASM; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-3 01 1 0512- ● ●
187 REGULATOR ASM; DOOR 1-74418-166-3 01 1 0407-0511 ●
187 REGULATOR ASM; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 0512- ● ●
187 REGULATOR ASM; DOOR 1-74418-178-2 01 1 0407-0511 ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0512- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0407-0511 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0512- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0512- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0512-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 03 1 0407-0511 ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0512-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0407-0511 ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0512- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0407-0511 ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0512- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0407-0511 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) 		1-74418-181-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 02 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-147-1 01 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-147-1 01 1 0512- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-180-0 01 1 0407-0511 ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-180-0 01 1 0512- ● ●
271 PLUG; HOLE
OD=16 L=11 		1-76378-155-0 01 1 0407-0511 ●
271 PLUG; HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11 		1-76378-155-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
