◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#31379) — 329 parça

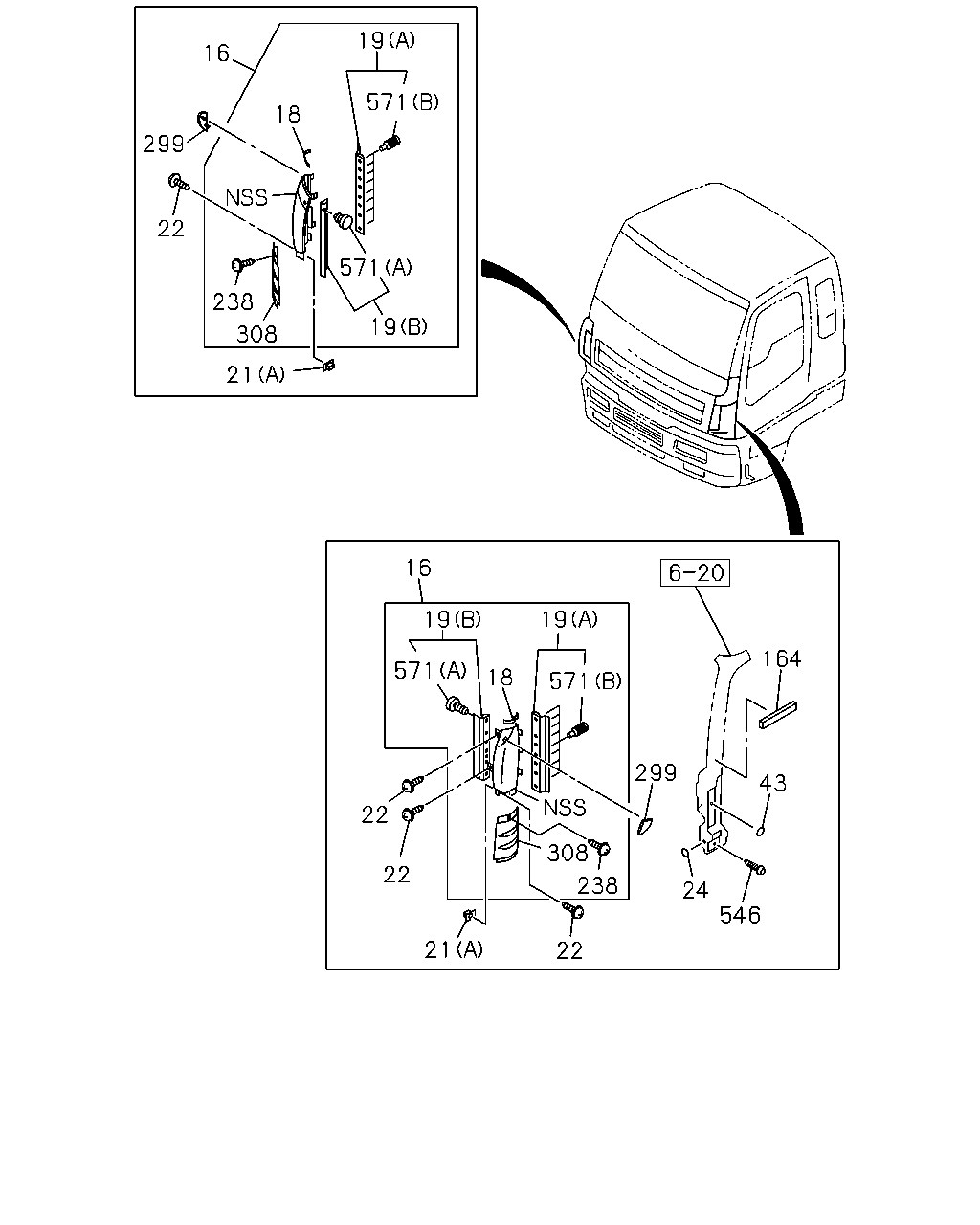

çizim 87265
19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 18 571 299 43 22 308 22 238 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-3 01 1 0407-0511 ●
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-4 01 1 0512- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-3 01 1 0407-0511 ●
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-4 01 1 0512- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0407-0511 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0512- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0407-0511 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0512-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-433-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0512-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0512- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0407-0511 ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0512- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0407-0511 ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0512- ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0407-0511 ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0512-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 0407-0511 ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 0512- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0407-0511 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0512- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0407-0511 ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0512- ● ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0407-0511 ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0512- ● ●
299 COVER; FRT PANEL SIDE
6WF1 TC-C(1B8) 		1-71998-995-1 01 1 0512- ●
299 COVER; FRT PANEL SIDE
6WF1 TC-C(1B8) 		1-71998-996-1 01 1 0512- ●
308 PLATE; FRT PANEL 1-65472-568-1 01 1 0407-0511 ●
308 PLATE; FRT PANEL 1-65472-568-1 01 1 0512- ● ●
308 PLATE; FRT PANEL 1-65472-569-1 01 1 0407-0511 ●
308 PLATE; FRT PANEL 1-65472-569-1 01 1 0512- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0407-0511 ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0512- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0407-0511 ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0512- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0407-0511 ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0512- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0407-0511 ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0512- ● ●
çizim 87360
544 547 544 560 548 545 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date A B C
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0407-0511 ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0512- ● ●
544 LID; FRT
WHITE 		1-71107-367-2 01 1 0407-0511 ●
544 LID; FRT
WHITE 		1-71107-367-2 01 1 0512- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0512- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0407-0511 ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0512- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0512- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0407-0511 ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0512- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0407-0511 ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0512- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0407-0511 ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0512- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0407-0511 ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0512- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 0407-0511 ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0512- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0407-0511 ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0512- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0407-0511 ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0512-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0407-0511 ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0512-1105 ● ●

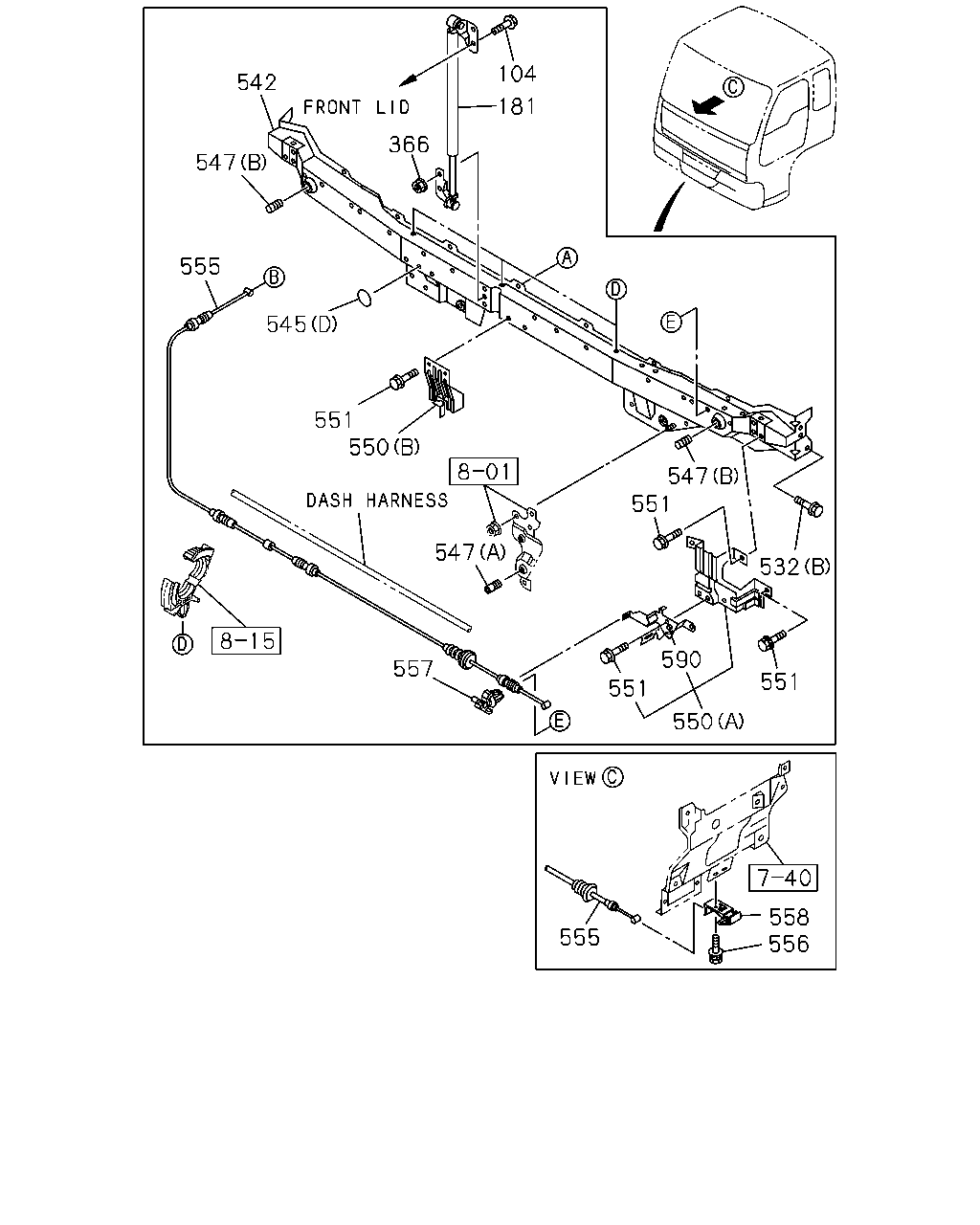

çizim 87775
104 542 181 366 547 555 545 551 550 547 551 547 532 590 557 551 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date A B C
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407-0511 ●
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0512- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0407-0412 ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0501-0511 ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0512- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0407-0511 ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0407-0511 ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0512- ● ●
542 RAIL; FRT MOUNTING
6WF1 TC-C(1B8) 		1-61470-721-1 01 1 0512- ●
542 RAIL; FRT MOUNTING 1-61470-718-1 01 1 0407-0505 ●
542 RAIL; FRT MOUNTING 1-61470-723-0 01 1 0506-0511 ●
542 RAIL; FRT MOUNTING
6WG1 TC-C(72L) 		1-61470-723-1 01 1 0512- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0512- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0407-0511 ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0512- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0512- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0407-0511 ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0512- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0407-0511 ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0512- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0407-0511 ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0512- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-011-0 01 1 0407-0511 ●
550 LOCK ASM; FRT LID
(A) 		1-79317-011-1 01 1 0512- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-012-0 01 1 0407-0511 ●
550 LOCK ASM; FRT LID
(A) 		1-79317-012-1 01 1 0512- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-013-0 01 1 0407-0511 ●
550 LOCK ASM; FRT LID
(B) 		1-79317-013-1 01 1 0512- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0407-0511 ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0512- ● ●
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0407-0511 ●
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0512- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0407-0511 ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0512- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0407-0511 ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0512- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0407-0511 ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0512- ● ●
590 LOCK; FRT LID 1-79318-009-3 01 1 0407-0511 ●
590 LOCK; FRT LID 1-79318-009-4 01 1 0512- ● ●
590 LOCK; FRT LID 1-79318-010-1 01 1 0407-0511 ●
590 LOCK; FRT LID 1-79318-010-2 01 1 0512- ● ●

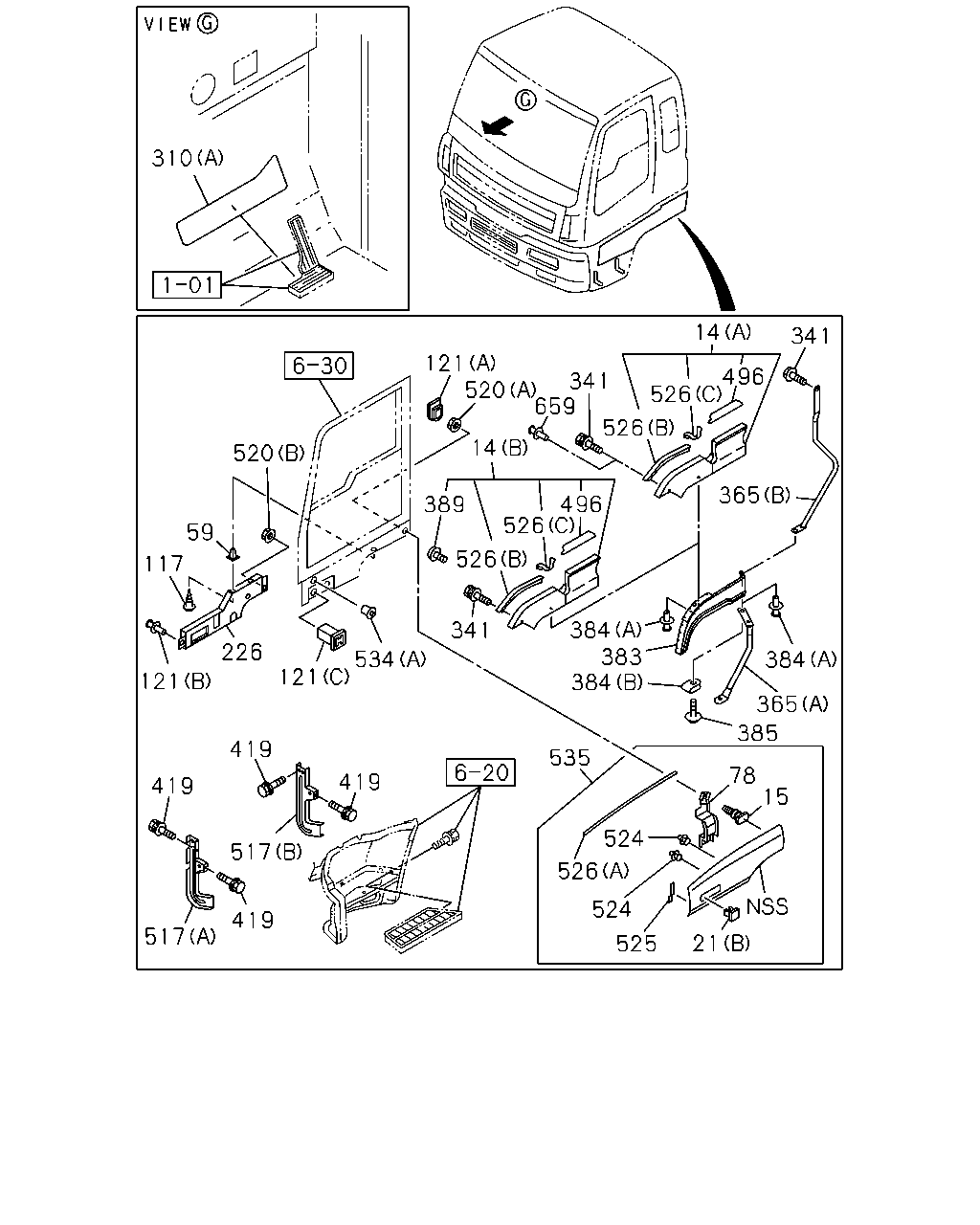

çizim 104581
310 14 341 121 520 496 526 341 659 526 14 520 365 496 526 389 59 526 117 384 383 384 341 226 534 121 384 121 365 385 419 535 78 15 419 419 524 517 526 524 419 517 21 525
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT
(A) WHITE 		1-65472-452-3 01 1 0407-0503 ●
14 FENDER; FRT
(B) 		1-65472-874-8 01 1 0504-0511 ●
14 FENDER; FRT
(B) 		1-65472-874-9 01 1 0512-0901 ● ●
14 FENDER; FRT
(B) 		8-98137-383-0 01 1 0902-0910 ● ●
14 FENDER; FRT
(B) 		8-98154-744-1 01 1 0911- ● ●
14 FENDER; FRT
(A) WHITE 		1-65472-453-3 01 1 0407-0503 ●
14 FENDER; FRT
(B) 		1-65472-875-8 01 1 0504-0511 ●
14 FENDER; FRT
(B) 		1-65472-875-9 01 1 0512-0901 ● ●
14 FENDER; FRT
(B) 		8-98137-384-0 01 1 0902-0910 ● ●
14 FENDER; FRT
(B) 		8-98154-745-1 01 1 0911- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0407-0511 ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0512- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0407-0511 ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0512- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0407-0511 ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0512- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0407-0511 ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0512- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0407-0511 ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0512- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0407-0511 ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0512- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0407-0511 ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0512- ● ●
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0407-0511 ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0407-0511 ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0512- ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0407-0511 ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0512- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0407-0511 ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0512- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0407-0511 ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0512- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0407-0511 ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0512- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0407-0511 ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0512- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0407-0503 ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0504-0511 ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0512-0810 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> (A) 		1-71907-417-1 01 1 0407-0511 ●
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0512-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> (A) 		1-71907-418-1 01 1 0407-0511 ●
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0512-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 0407-0511 ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0512- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 0407-0511 ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0512- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 07 1 0407-0511 ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 07 1 0512-0711 ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 09 1 0712-0810 ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 13 1 0811- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 0407-0511 ●
384 CLIP; FENDER LWR
(B) ID=6 		1-09987-266-0 04 1 0512-0810 ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 0407-0511 ●
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0512-0810 ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504-0511 ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0512- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0407-0511 ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0512-0904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
496 RUBBER; STEP 1-71998-861-1 01 1 0407-0511 ●
496 RUBBER; STEP 1-71998-861-2 01 1 0512- ● ●
496 RUBBER; STEP 1-71998-862-1 01 1 0407-0511 ●
496 RUBBER; STEP 1-71998-862-2 01 1 0512- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0407-0511 ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0512- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0407-0511 ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0512- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0407-0511 ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0512- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0407-0511 ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0512- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-0511 ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0512- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0407-0511 ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0512- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0407-0511 ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0512- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0407-0409 ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-0511 ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0512- ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0407-0511 ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0512- ● ●
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0407-0511 ●
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0512- ● ●
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0407-0511 ●
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0512- ● ●
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0407-0511 ●
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0512- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0407-0511 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0512-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0407-0511 ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0512- ● ●
535 FENDER; BLISTER 1-71267-293-1 01 1 0407-0511 ●
535 FENDER; BLISTER 1-71267-293-1 01 1 0512- ● ●
535 FENDER; BLISTER 1-71267-294-1 01 1 0407-0511 ●
535 FENDER; BLISTER 1-71267-294-1 01 1 0512- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911- ● ●

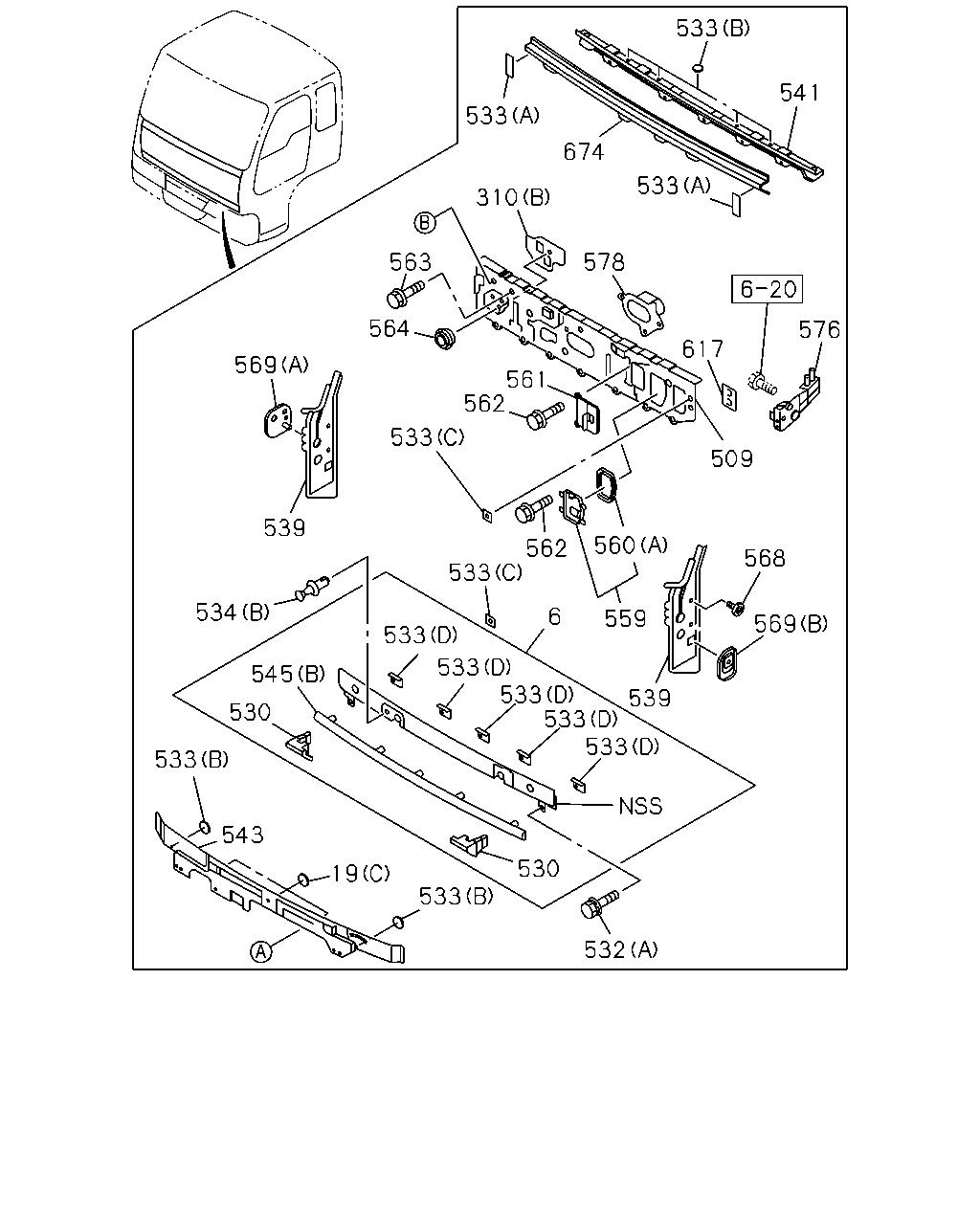

çizim 104582
533 541 533 674 533 310 563 578 564 576 617 569 561 562 533 509 539 560 562 533 568 534 6 559 569 533 533 533 533 533 545 539 530 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PANEL; FRONT 1-65472-549-4 01 1 0407-0511 ●
6 PANEL; FRONT 1-65472-549-4 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0512- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0512-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-433-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0512-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0407-0511 ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0512- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0407-0511 ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0512- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0407-0511 ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0512- ● ●
509 PANEL; DASH 1-62270-478-5 01 1 0407-0511 ●
509 PANEL; DASH 1-62270-478-6 01 1 0512- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0407-0511 ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0512- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0407-0511 ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0512- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0407-0511 ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0512- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0407-0511 ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0512- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0512- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-2 02 1 0407-0511 ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0512- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0407-0511 ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0512- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0407-0511 ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0512- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0407-0511 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0512-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0407-0511 ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0512- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0407-0511 ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0512- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0407-0511 ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0512- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0407-0511 ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0512- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0407-0505 ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0506-0511 ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0512- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0512- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0407-0511 ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0512- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0407-0511 ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0512- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0407-0511 ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0512- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0407-0511 ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0512- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0407-0511 ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0512-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0407-0511 ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0512-1105 ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0407-0511 ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0512- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0407-0511 ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0512- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0407-0511 ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0512- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0407-0511 ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0512- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0407-0511 ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0512- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0407-0511 ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0512- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0407-0511 ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0512- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0407-0511 ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0512- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0407-0511 ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0512- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0407-0511 ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0512- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0407-0511 ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0512- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0407-0511 ●
617 SEAL; DASH 1-61281-497-1 02 1 0512- ● ●
674 PANEL; UPR 1-61470-688-2 01 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
