0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#31375) — 96 parça

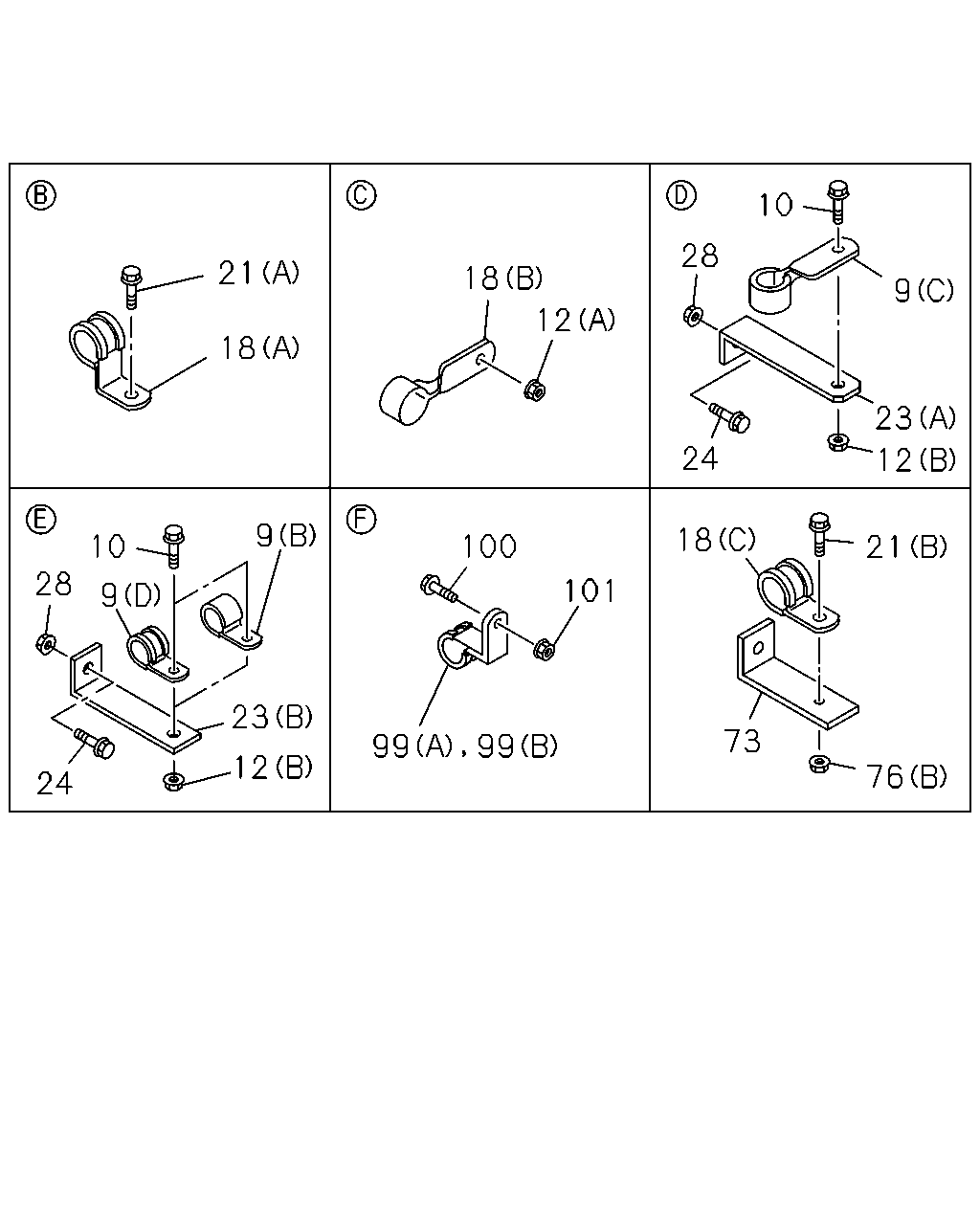

çizim 89959
73 76 18 21 12 23 24 28 10 9 12 18 21 18 9 23 24 12 28 10 101 100 99 99 9
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=19 L=28 		0-95235-856-0 01 1 1306-
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (D) ID=18 L=28 		1-09701-067-0 02 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0604-1305
9 CLIP; BATTERY CABLE
MAL6 M/T<X9G> (D) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0604-0606
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-1305
9 CLIP; BATTERY CABLE
MAL6 M/T<X9G> (B) ID=19 L=28 		0-95235-856-0 02 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0604-1305
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (C) ID=20 L=50 		1-09700-679-1 01 1 1306-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 0604-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0604-
12 NUT; BATTERY CABLE CLIP
(A) M10 FLANGE 		0-91180-210-0 01 1 0604-1305
12 NUT; BATTERY CABLE CLIP
MJT7 M/T<Y9E> (A) M10 FLANGE 		0-91180-210-0 01 1 1306-
12 NUT; BATTERY CABLE CLIP
EXC. MIXER TRUCK<RA2> (B) M8 FLANGE 		0-91180-108-0 04 1 0604-
18 CLIP; BATTERY CABLE
MAL6 M/T<X9G> (C) ID=19 L=28 		0-95235-856-0 01 1 1306-
18 CLIP; BATTERY CABLE
(B) ID=18 L=54 		1-09701-106-0 01 1 0604-1305
18 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=18 L=54 		1-09701-106-0 01 1 1306-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
21 BOLT; CLIP CABLE
MAL6 M/T<X9G> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
21 BOLT; CLIP CABLE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0604-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 03 1 0604-
23 BRACKET; CABLE CLIP TO FRAME
EXC. MIXER TRUCK<RA2> (A) L=112 		1-47475-694-1 01 1 0604-0808
23 BRACKET; CABLE CLIP TO FRAME
EXC. ENGINE REAR PTO(SV1) (A) L=112 		1-47475-694-1 01 1 0809-
24 BOLT; BRKT TO FRAME
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28650-830-0 04 1 0604-0808
24 BOLT; BRKT TO FRAME
EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE 		0-28650-830-0 04 1 0809-
28 NUT; BRKT TO FRAME
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 0604-0808
28 NUT; BRKT TO FRAME
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 04 1 0809-
73 BRACKET; BATTERY CABLE
MAL6 M/T<X9G> 		1-82699-104-0 01 1 1306-
76 NUT; BATTERY CABLE
MAL6 M/T<X9G> (B) M10 FLANGE 		0-91180-210-0 01 1 1306-
76 NUT; BATTERY CABLE
DUMP TRUCK<RA1> (A) M8 FLANGE 		0-91180-108-0 07 1 0604-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 0604-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 0604-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0604-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0604-

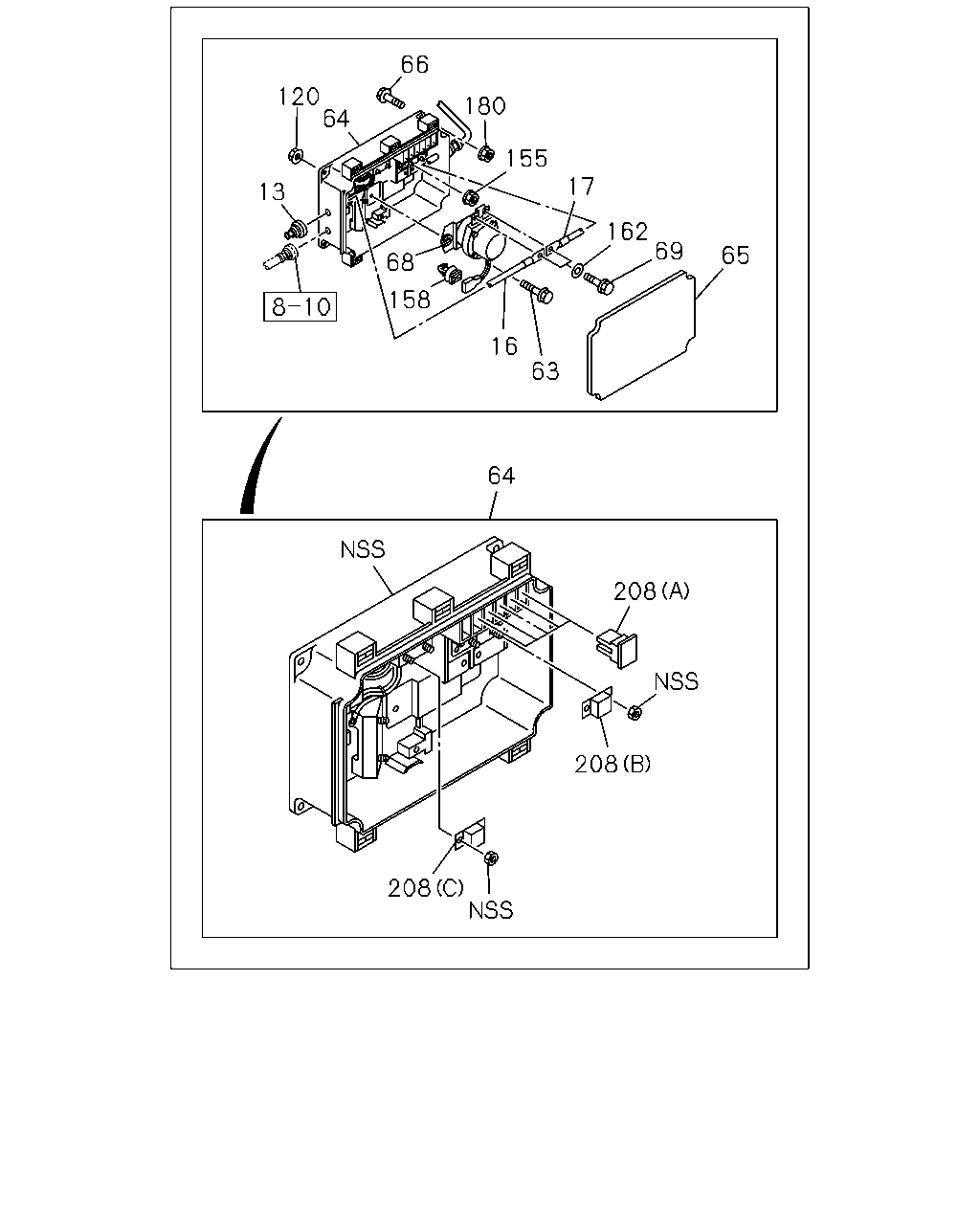

çizim 89989
66 120 64 180 155 17 13 162 69 65 68 158 16 63 64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0604-
16 CABLE; STARTER TO RELAY
MAL6 M/T<X9G> L=5600 		1-82653-002-0 01 1 1306-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0604-1305
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 1306-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 0604-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0604-
64 BOX; BATTERY RELAY 1-82510-648-0 01 1 0604-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0604-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0604-
68 RELAY; BATTERY 1-82550-313-0 01 1 0604-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0604-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0911-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0604-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0604-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0604-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0604-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 0604-
208 FUSE
(B) 100A 		1-82516-032-0 01 1 0604-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 05 1 0604-

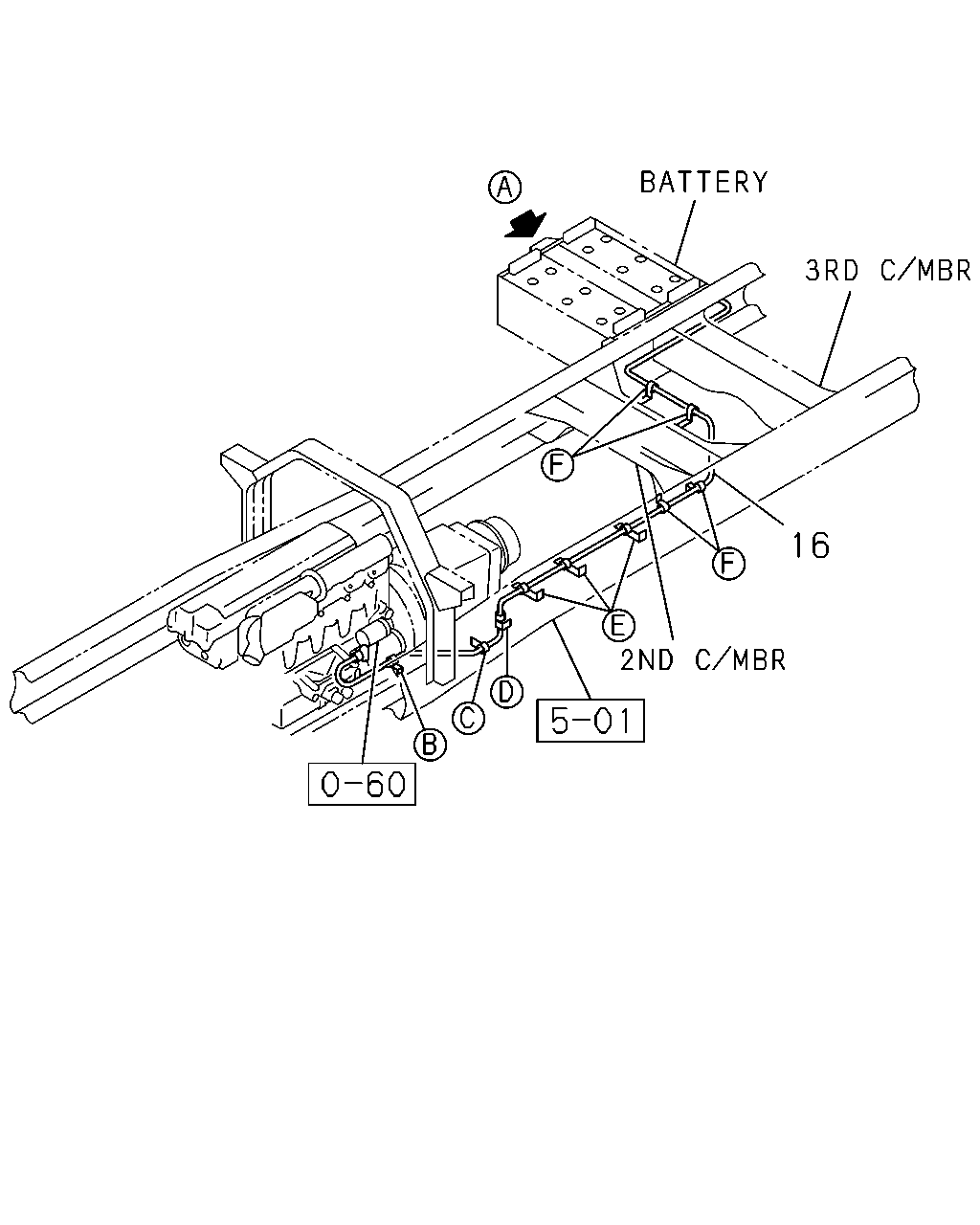

çizim 106469
16
BalonParca AdiParca NoAdetTipApplied Date
16 CABLE; STARTER TO RELAY
MAL6 M/T<X9G> L=5600 		1-82653-002-0 01 1 1306-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0604-1305
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 1306-

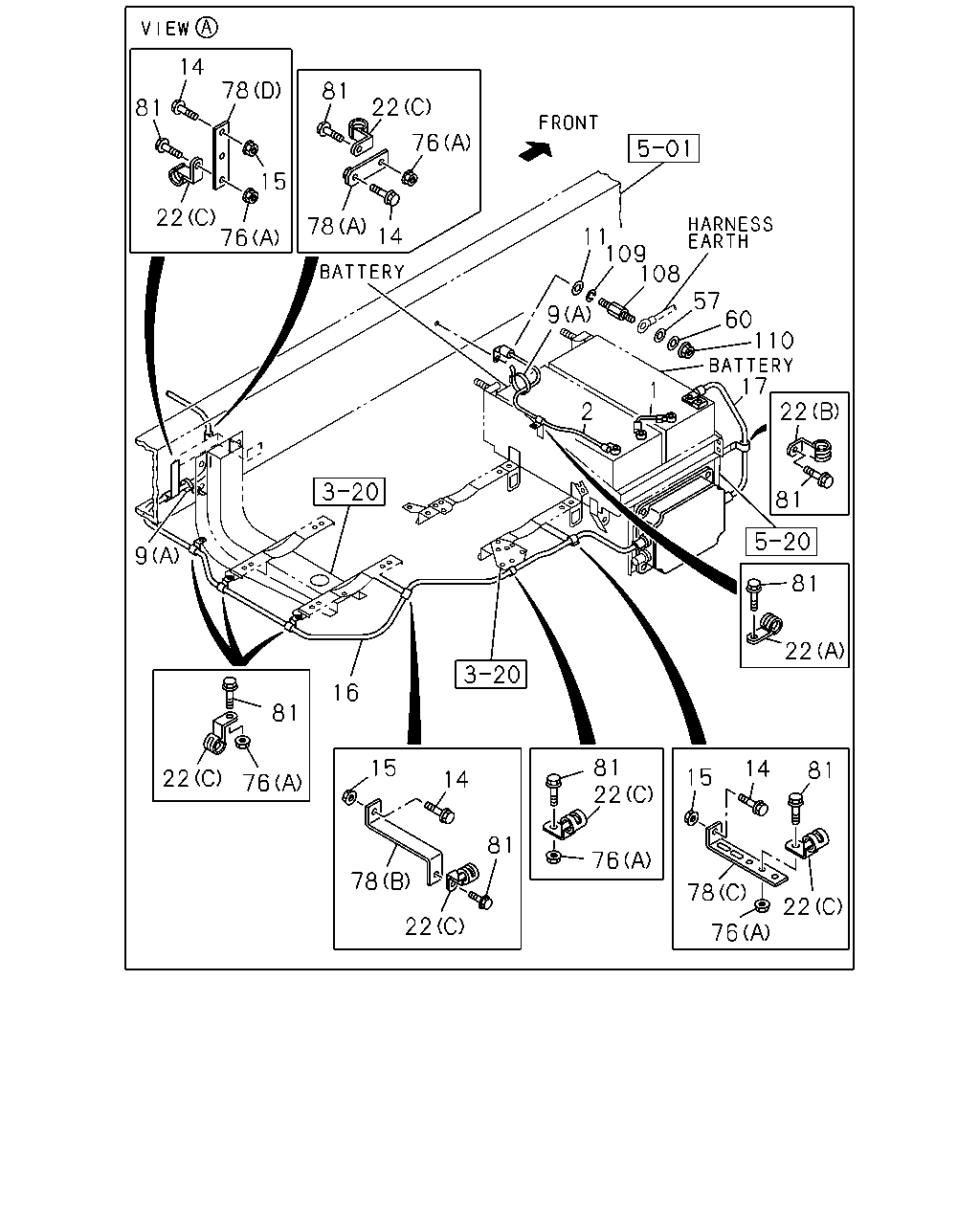

çizim 106470
81 22 81 14 15 78 76 76 22 81 14 15 78 22 22 81 22 76 16 9 22 14 81 78 11 9 109 2 1 17 110 60 57 108 81 22 81 22 76 14 15 76 78 81
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> L=265 		1-82650-388-1 01 1 0604-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> L=450 		1-82650-389-1 01 1 0604-
2 CABLE; BATTERY
DUMP TRUCK<RA1> L=720 		1-82650-384-1 01 1 0604-
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=19 L=28 		0-95235-856-0 01 1 1306-
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (D) ID=18 L=28 		1-09701-067-0 02 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0604-1305
9 CLIP; BATTERY CABLE
MAL6 M/T<X9G> (D) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0604-0606
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-1305
9 CLIP; BATTERY CABLE
MAL6 M/T<X9G> (B) ID=19 L=28 		0-95235-856-0 02 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0604-1305
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (C) ID=20 L=50 		1-09700-679-1 01 1 1306-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 0604-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0604-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
14 BOLT; BRKT CLIP
DUMP TRUCK<RA1> M8X20 FLANGE 		0-28650-820-0 04 1 0604-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0604-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 03 1 0604-
16 CABLE; STARTER TO RELAY
MAL6 M/T<X9G> L=5600 		1-82653-002-0 01 1 1306-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0604-1305
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 1306-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 0604-
22 CLIP; BATTERY CABLE
DUMP TRUCK<RA1> (C) ID=20 H=23 L=27 		1-09700-861-0 08 1 0604-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0604-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0604-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0604-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0604-0604
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
76 NUT; BATTERY CABLE
MAL6 M/T<X9G> (B) M10 FLANGE 		0-91180-210-0 01 1 1306-
76 NUT; BATTERY CABLE
DUMP TRUCK<RA1> (A) M8 FLANGE 		0-91180-108-0 07 1 0604-
78 BRACKET; CLIP BATTERY
DUMP TRUCK<RA1> (A) 		1-47476-396-1 01 1 0604-
78 BRACKET; CLIP BATTERY
DUMP TRUCK<RA1> (D) L=117 		1-47478-116-0 01 1 0604-
78 BRACKET; CLIP BATTERY
DUMP TRUCK<RA1> (B) L=110 		1-82699-589-0 01 1 0604-
78 BRACKET; CLIP BATTERY
(C) L=160 H=30 		1-47479-759-0 01 1 0604-
81 BOLT; BATTERY CABLE
DUMP TRUCK<RA1> M8X25 FLANGE 		0-28650-825-0 10 1 0604-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0604-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0604-0604
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0604-
