0-52 — OIL AND VACUUM PIPING; ENGINE (#31372) — 82 parça

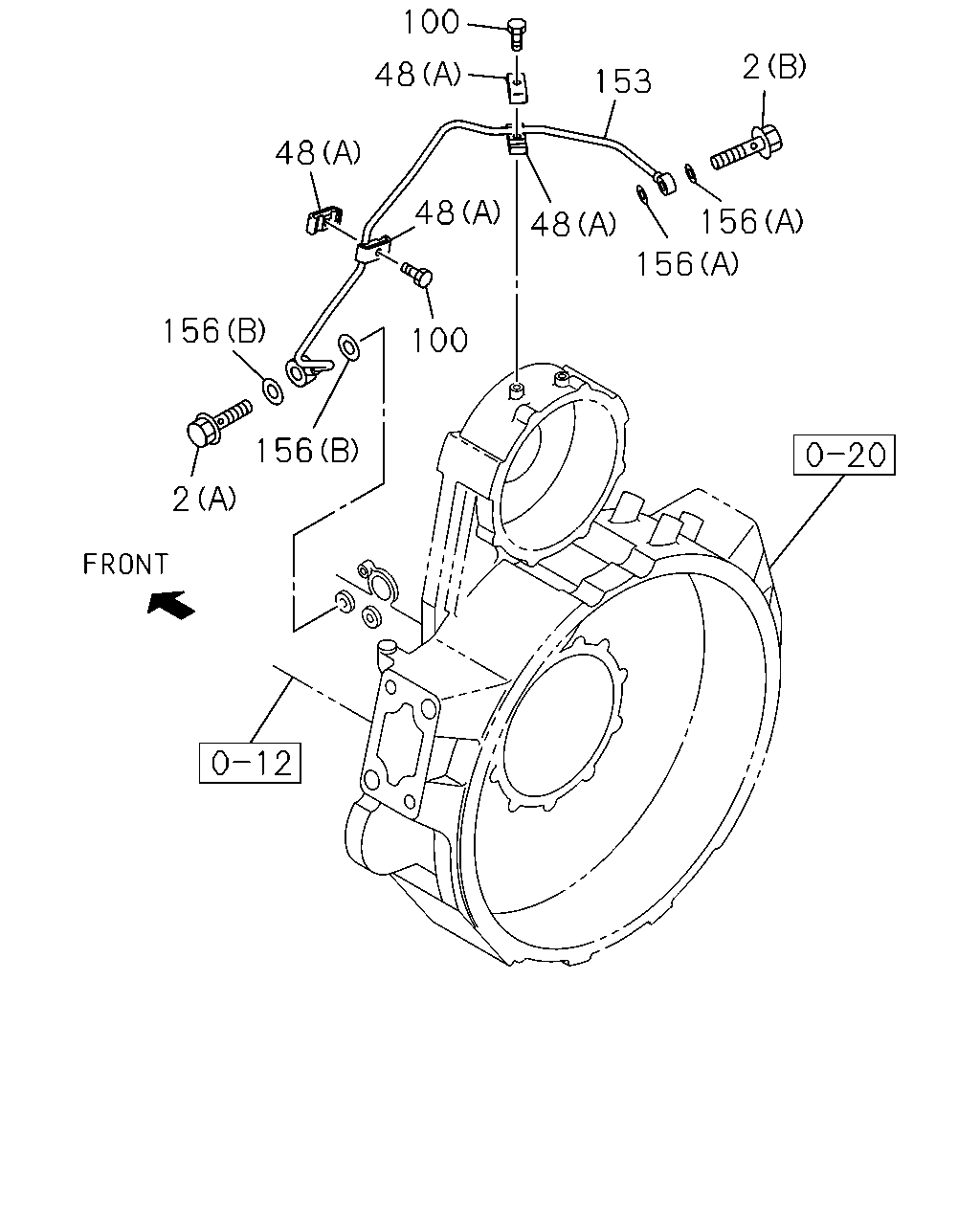

çizim 90017
100 2 48 153 48 48 156 48 156 156 100 156 2
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0604-0805
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806-
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-160-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
2 BOLT; EYE,OIL PIPE
(D) M10X28 FLANGE 		8-97149-995-0 01 1 0604-0710
2 BOLT; EYE,OIL PIPE
(D) M10X28 		8-98037-823-0 01 1 0711-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		1-09675-077-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
48 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0604-
48 CLIP; OIL PIPE
(C) ID=9 & 11 L=28 		1-09701-265-1 02 1 0604-
48 CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (A) 		1-09701-132-1 04 1 0604-1210
48 CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (A) 		1-09701-240-0 04 1 1211-
100 BOLT; CLIP
ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 02 1 0604-
153 PIPE; OIL,C/BL TO PTO
ENGINE REAR PTO(SV1) 		8-97610-104-0 01 1 0604-
156 GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0604-
156 GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0604-1312
156 GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-

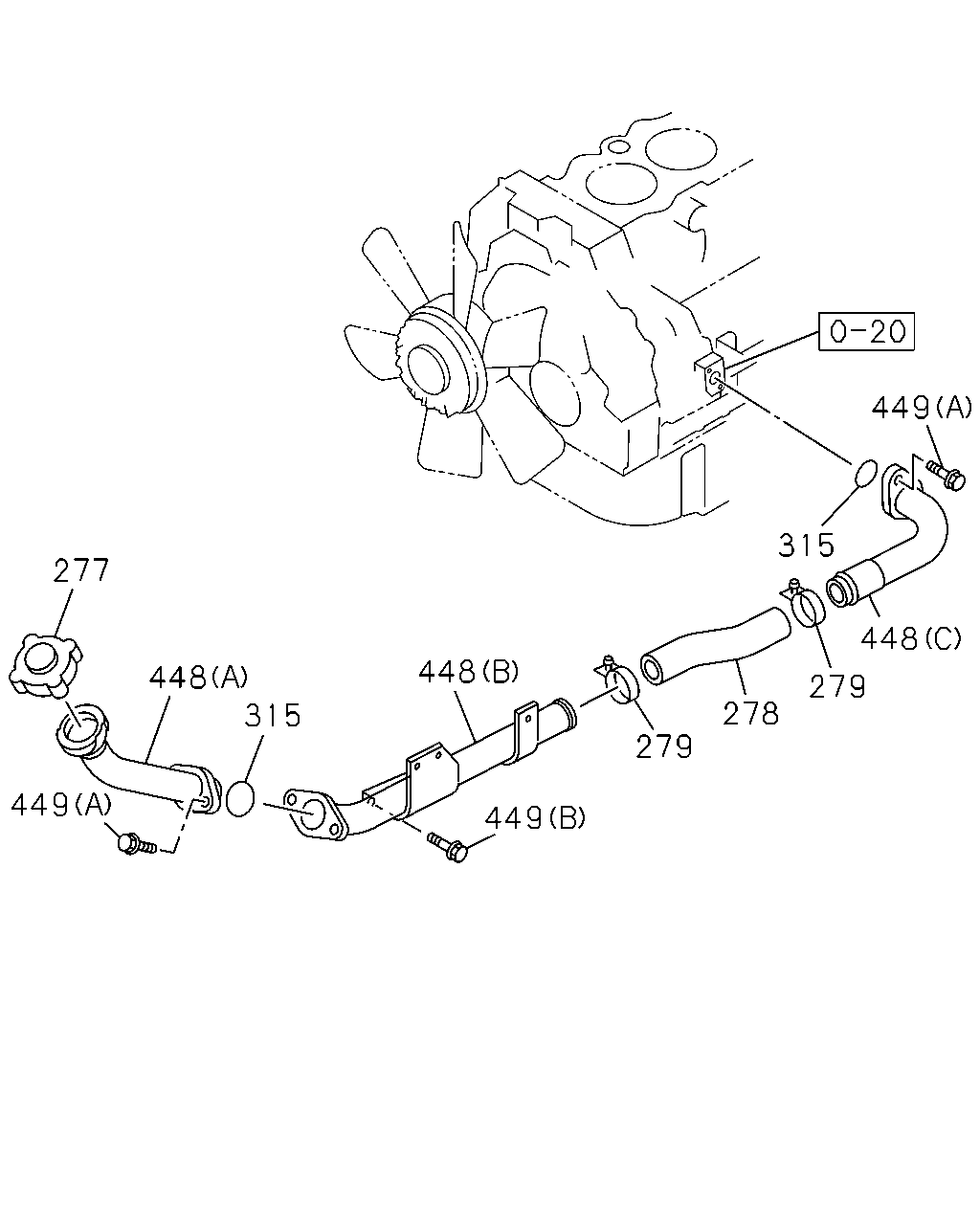

çizim 90040
449 315 277 448 448 448 315 279 278 279 449 449
BalonParca AdiParca NoAdetTipApplied Date
277 CAP; OIL FILLER 1-11750-020-0 01 1 0604-0611
277 CAP; OIL FILLER 1-11750-028-0 01 1 0612-
278 HOSE; RUBBER,OIL FILLER 1-11749-205-0 01 1 0604-
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0604-
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0604-
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0604-
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0604-
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0604-
448 FILLER; OIL
(B) 		1-11741-304-0 01 1 0604-
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0604-
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0604-
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0604-

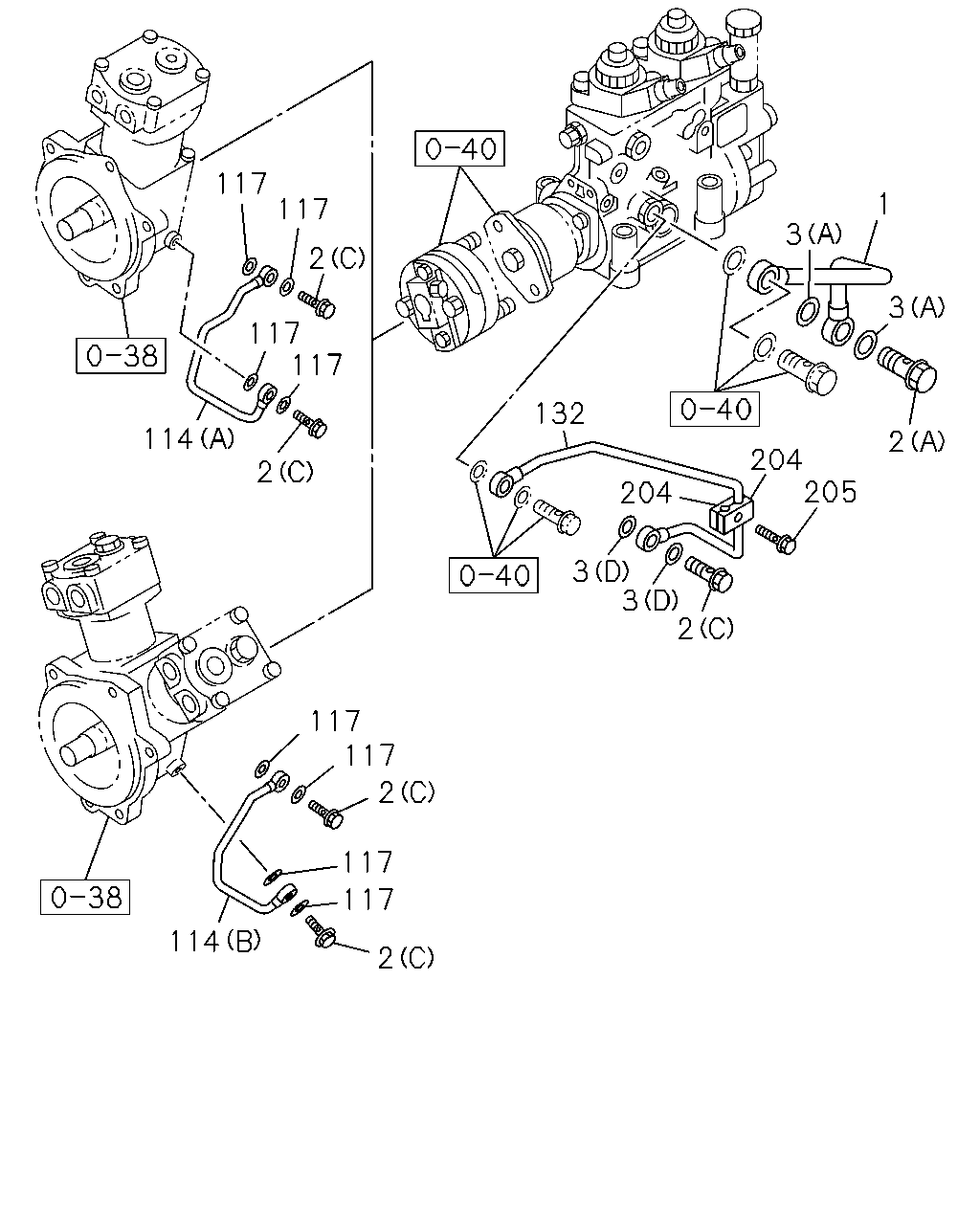

çizim 90041
117 117 1 3 2 3 117 117 132 114 2 204 205 2 204 3 3 2 117 117 2 117 117 2 114
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; OIL,INJ PUMP TO C/BL 1-13314-022-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0604-0805
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806-
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-160-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
2 BOLT; EYE,OIL PIPE
(D) M10X28 FLANGE 		8-97149-995-0 01 1 0604-0710
2 BOLT; EYE,OIL PIPE
(D) M10X28 		8-98037-823-0 01 1 0711-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		1-09675-077-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0604-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0604-1312
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0604-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0604-
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) 		1-13314-040-0 01 1 0604-
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) 		1-13314-027-0 01 1 0604-
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0604-
132 PIPE ASM; OIL,INJ PUMP FEED 1-13314-021-0 01 1 0604-
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0604-1210
204 CLIP; OIL PIPE 1-09701-240-0 02 1 1211-
205 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0604-

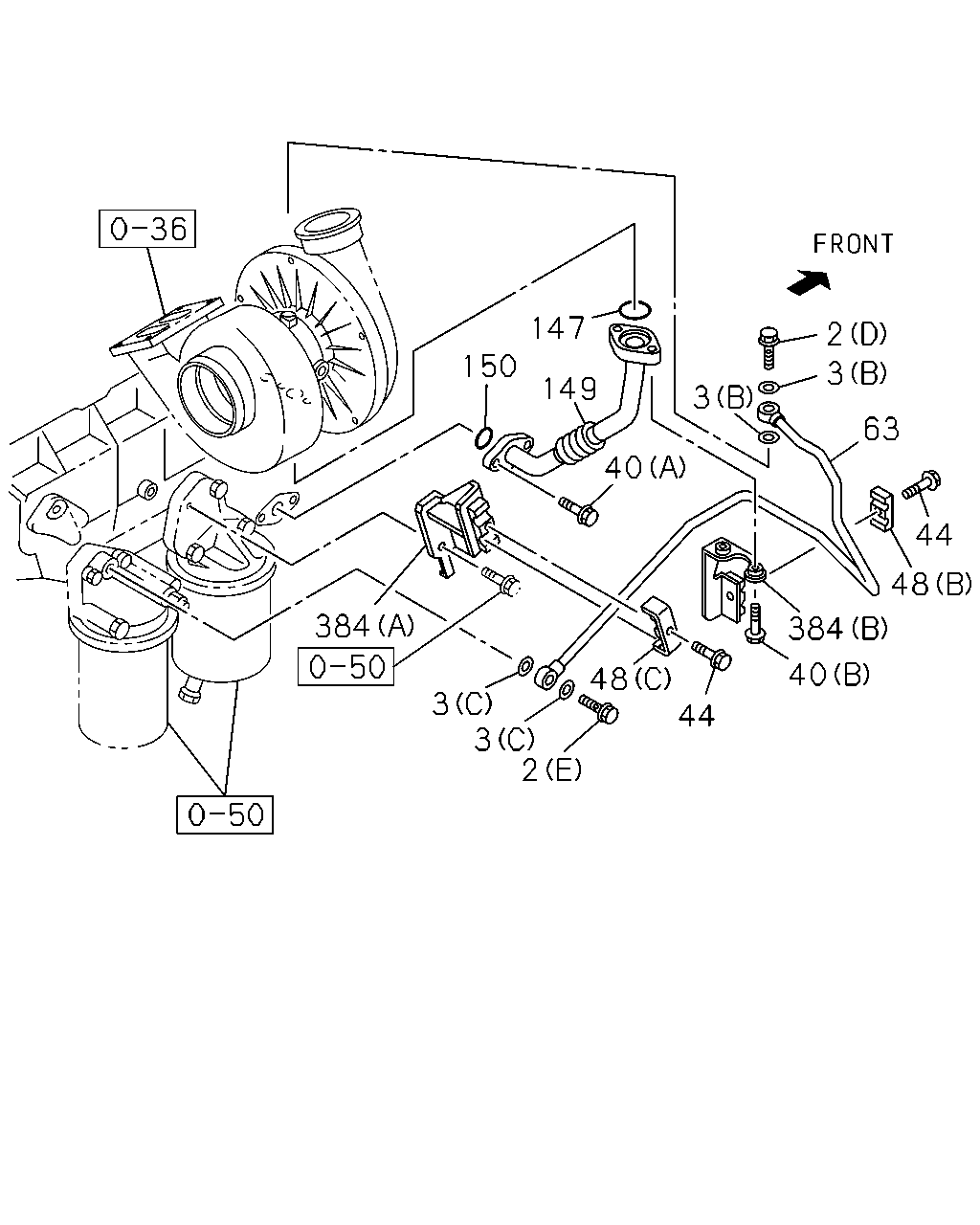

çizim 106464
147 2 3 150 149 3 63 40 44 48 384 384 40 48 44 3 3 2
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0604-
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0604-0805
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806-
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-160-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
2 BOLT; EYE,OIL PIPE
(D) M10X28 FLANGE 		8-97149-995-0 01 1 0604-0710
2 BOLT; EYE,OIL PIPE
(D) M10X28 		8-98037-823-0 01 1 0711-
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		1-09675-077-0 01 1 0604-0805
2 BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (B) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0604-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0604-1312
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0604-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0604-
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0604-
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0604-
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28050-630-0 02 1 0604-
48 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0604-
48 CLIP; OIL PIPE
(C) ID=9 & 11 L=28 		1-09701-265-1 02 1 0604-
48 CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (A) 		1-09701-132-1 04 1 0604-1210
48 CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (A) 		1-09701-240-0 04 1 1211-
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-734-0 01 1 0604-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0604-
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-735-2 01 1 0604-
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0604-
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0604-
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-201-0 01 1 0604-
