Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#31360) — 226 parça

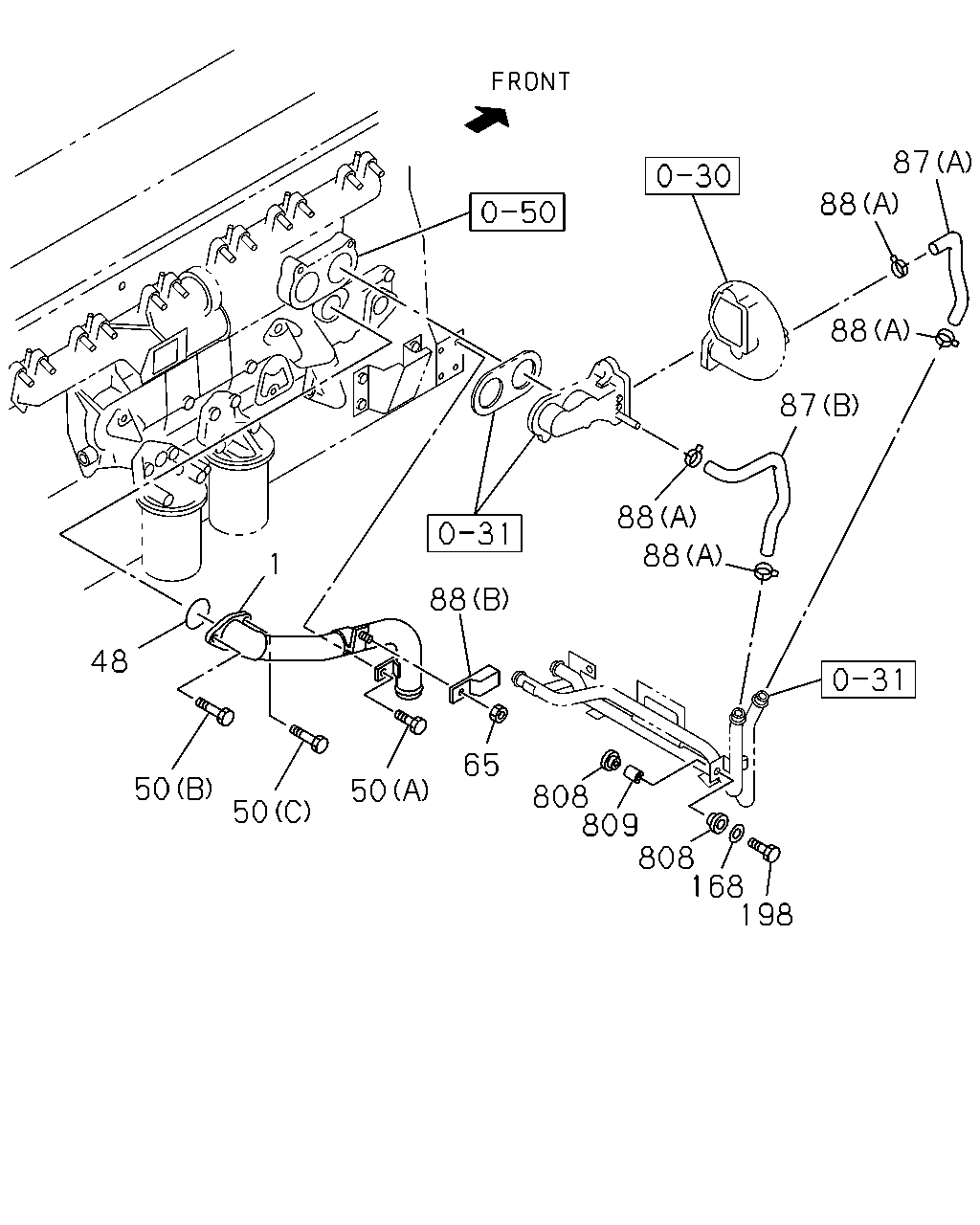

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0604-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0604-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0604-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0604-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0604-
65	NUT M10 FLANGE	0-91180-110-0	01	1	0604-
65	NUT M10 FLANGE	0-91150-110-0	01	1	0604-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0604-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0604-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0604-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0604-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
168	WASHER; PL,PIPE ID=10.5 OD=26	9-09164-710-0	02	1	0604-0605
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0606-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0604-
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0707-
808	RUBBER; MTG	1-09337-017-0	04	1	0604-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0604-

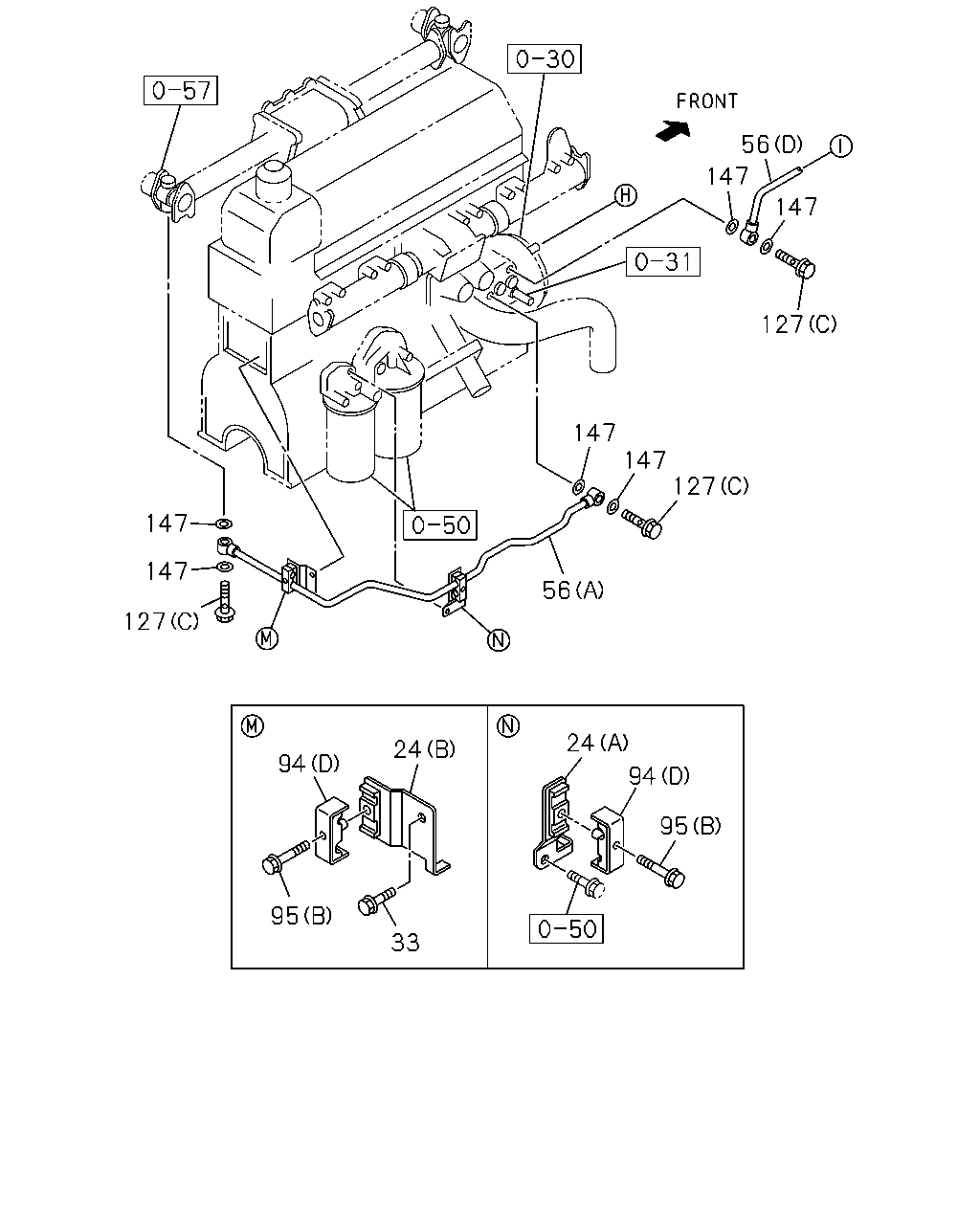

56 147 147 127 147 147 127 147 147 56 127 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0604-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0604-0706
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0604-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (B) ID=14 L=15	1-09701-282-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=14 L=15	1-09701-282-0	04	1	0707-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0604-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0604-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-

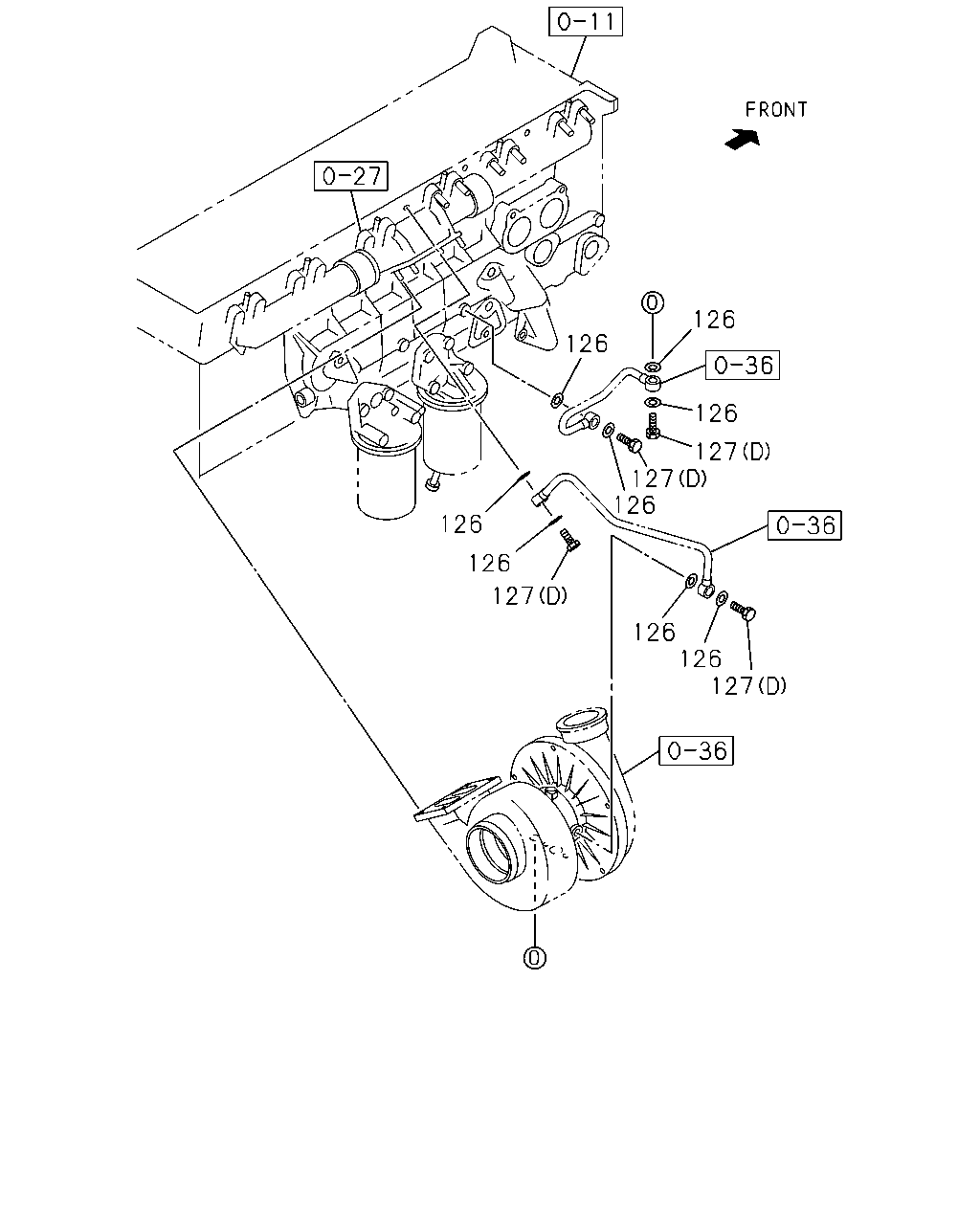

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0604-0703
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0604-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-

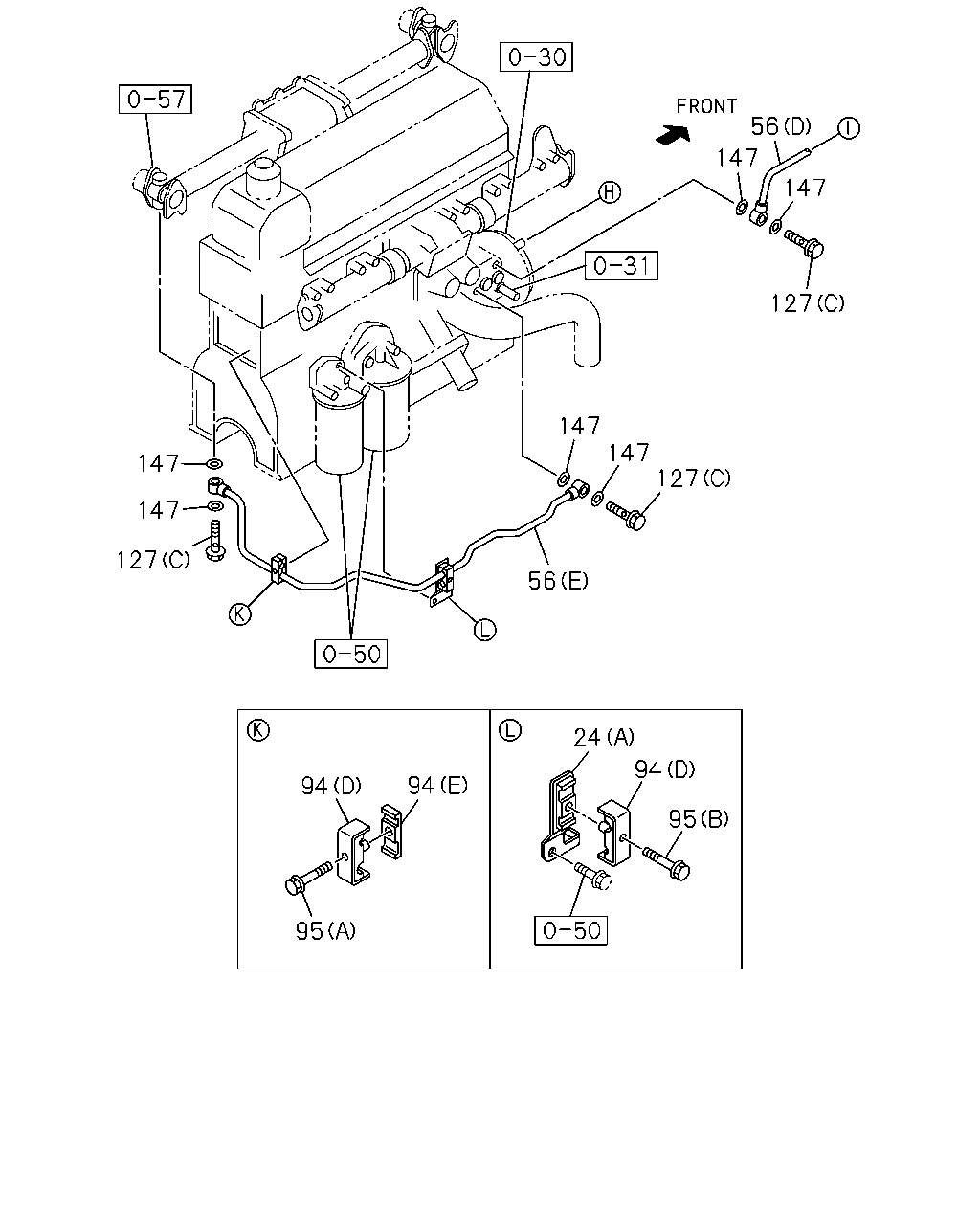

56 147 147 127 147 147 127 147 147 127 56 24 94 94 94 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0604-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0604-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (B) ID=14 L=15	1-09701-282-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=14 L=15	1-09701-282-0	04	1	0707-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0604-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0604-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-

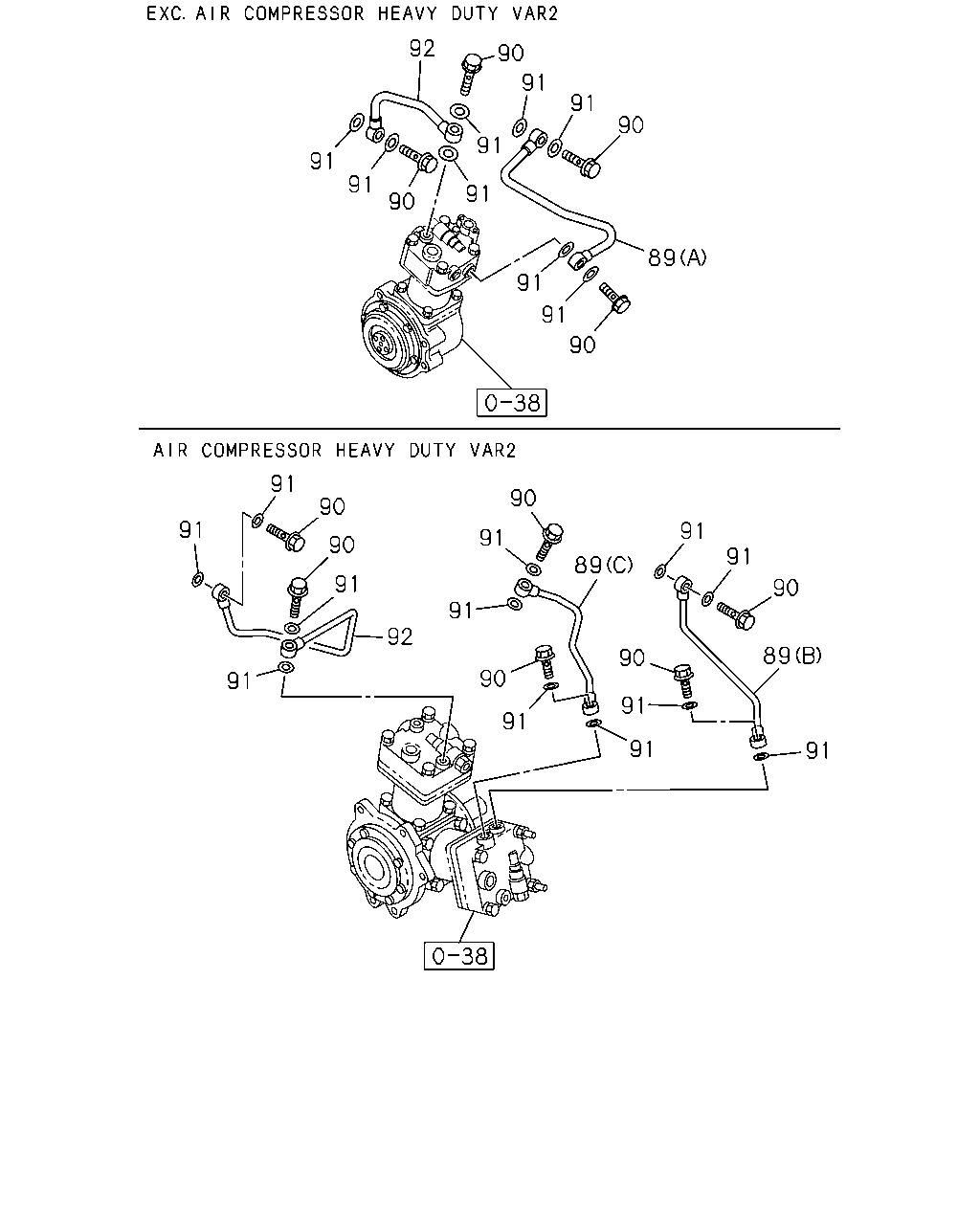

92 90 91 91 90 91 91 91 91 90 89 91 91 90 91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-13722-007-0	01	1	0604-
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-13722-008-0	01	1	0604-
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-13721-794-0	01	1	0604-
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0604-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0604-
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0604-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	04	1	0604-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0604-
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13722-009-0	01	1	0604-
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13722-003-0	01	1	0604-

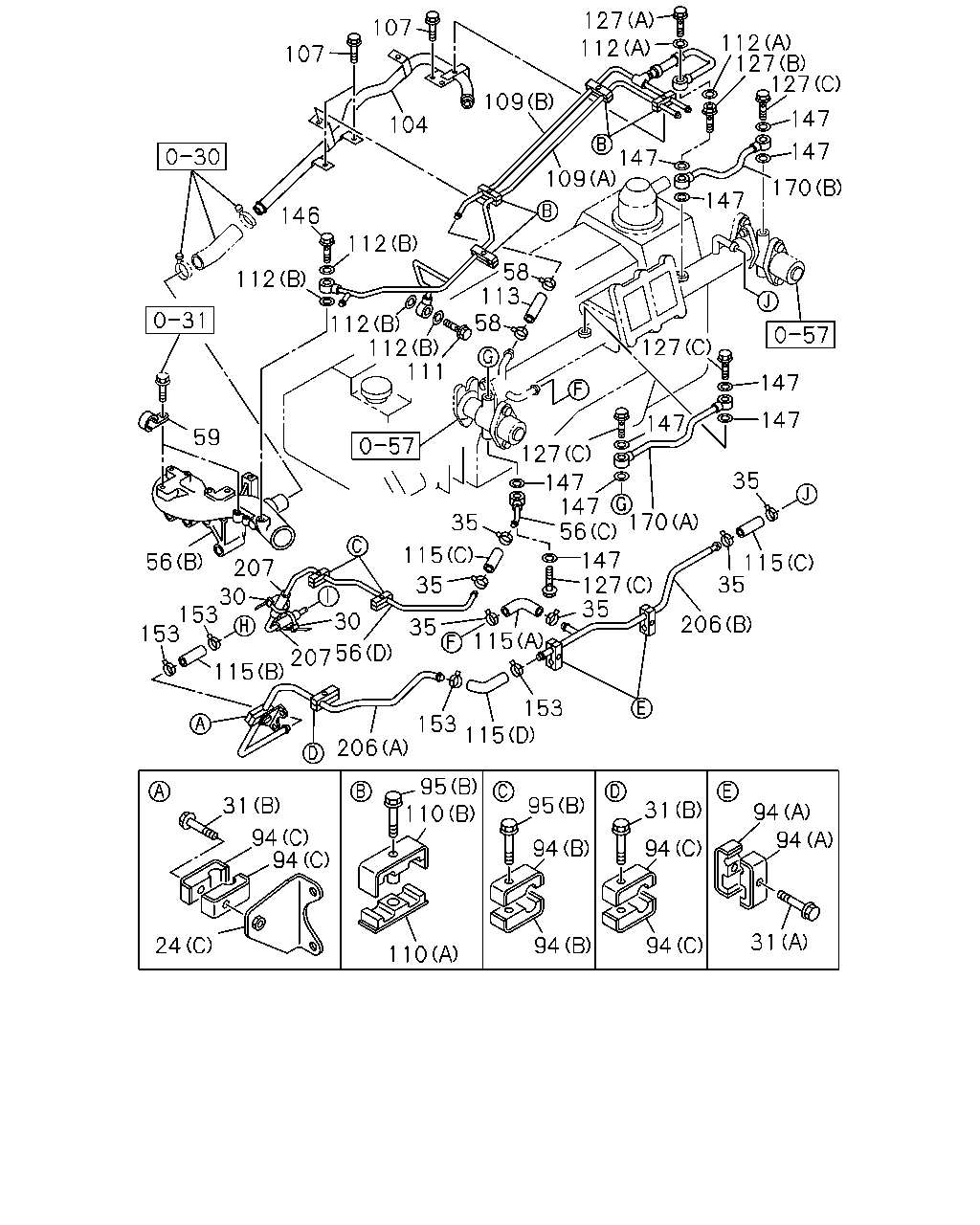

127 112 107 112 127 127 107 109 147 104 147 147 109 170 147 146 112 58 113 58 112 112 112 111 127 147 147 147 59 127 35 147 147 56 170 35 115 147 127 35 56 115 35 207 35 30 153 153 30 206 35 115 56 207 115 153 115 153 206 95 110 95 31 31 94 94 94 94 94 94 31 24 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0604-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0604-0706
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0604-1205
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-
31	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X70 FLANGE	0-28050-670-0	02	1	0604-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0604-0706
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M8X40 FLANGE	0-28050-840-0	02	1	0707-
31	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X40 FLANGE	0-28050-640-0	02	1	0604-0706
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X40 FLANGE	0-28050-640-0	02	1	0707-
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0604-0706
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX>	1-09707-143-0	06	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0604-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0604-0706
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0604-0706
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	0707-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0604-0606
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0607-
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (B) ID=14 L=15	1-09701-282-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=14 L=15	1-09701-282-0	04	1	0707-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0604-0706
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0604-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0604-0706
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0604-1208
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0604-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0604-0706
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (B)	1-13721-834-2	01	1	0707-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0604-0706
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (A)	8-97606-594-0	01	1	0707-0707
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0707-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0604-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0604-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0604-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0604-0706
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0707-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0604-
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0604-0706
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0707-
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0604-0706
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0707-
115	HOSE; RUBBER (D)	1-09361-081-1	01	1	0604-0706
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D)	1-09361-081-1	01	1	0707-
115	HOSE; RUBBER (C) L=60	1-09361-084-0	02	1	0604-0706
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C) L=60	1-09361-084-0	02	1	0707-
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0604-0706
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0604-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0604-0706
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0604-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0604-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0604-0706
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	0707-
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0604-0706
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (A)	1-13721-744-0	01	1	0707-
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0604-0706
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (B)	1-13721-745-0	01	1	0707-
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0604-0706
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (B)	1-13721-853-0	01	1	0707-
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0604-0706
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (A)	1-13721-899-0	01	1	0707-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
