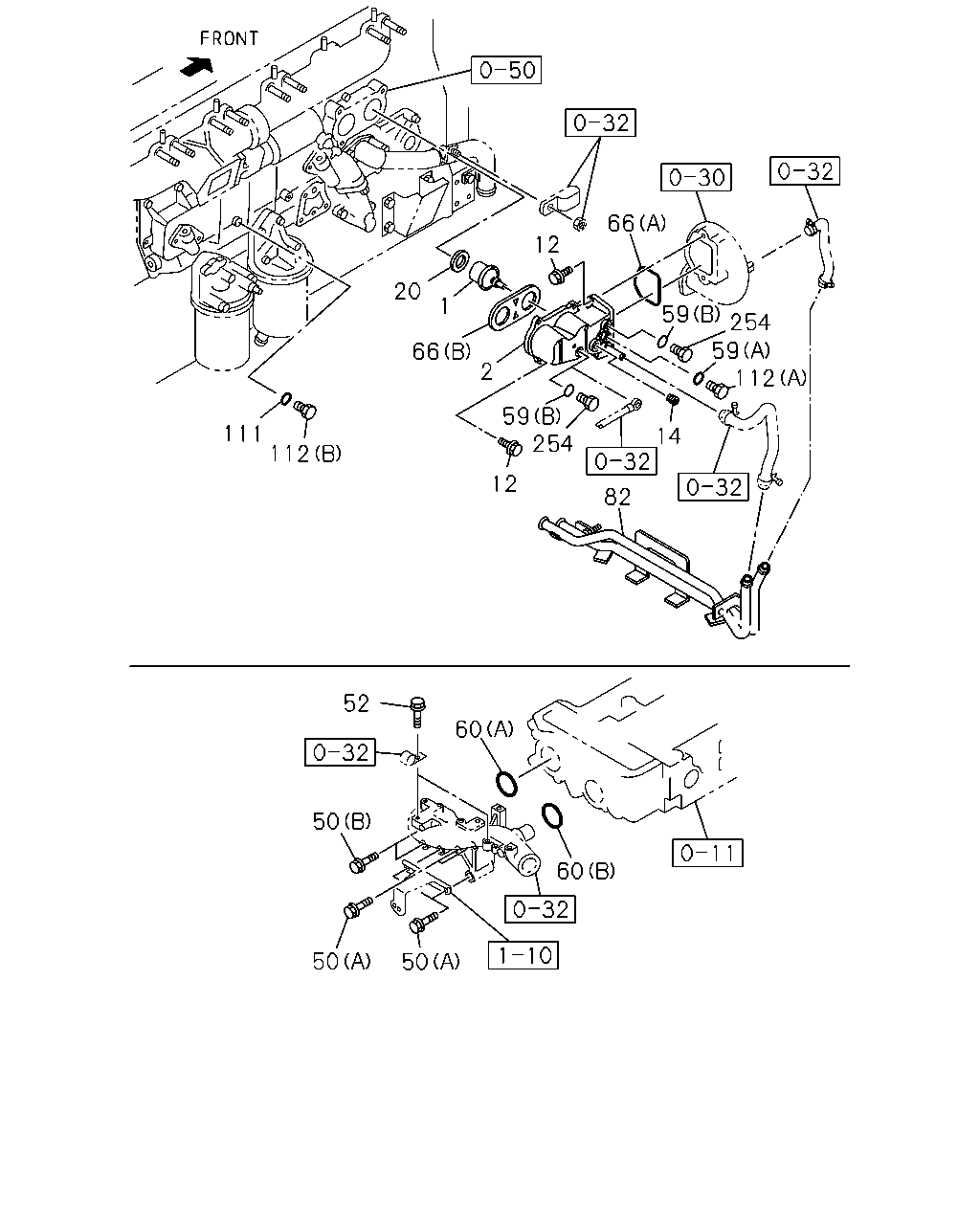

0-31 — THERMOSTAT AND HOUSING (#31359) — 28 parça

66 12 20 59 254 59 112 1 66 2 59 254 111 14 112 12 82 52 60 50 60 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	0604-1509
1	THERMOSTAT 82 CELSIUS	8-98319-254-0	02	1	1510-
2	HOUSING; THERMOSTAT	1-13710-550-1	01	1	0604-1012
2	HOUSING; THERMOSTAT	8-98173-668-0	01	1	1101-
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	0604-
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0604-
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	0604-
50	BOLT; OUTLET PIPE (A) M10X90 FLANGE	0-28151-090-0	02	1	0604-0606
50	BOLT; OUTLET PIPE (A) M10X90 FLANGE	0-28151-090-0	04	1	0607-
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	02	1	0604-0606
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-94399-863-1	02	1	0604-0805
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-97365-449-0	02	1	0806-
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0604-
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	0707-
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0604-1012
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	0604-
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	0604-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	0604-1111
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-98205-844-0	01	1	1112-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	0604-
82	PIPE; WATER,HTR	8-97612-229-0	01	1	0604-
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	01	1	0604-
112	PLUG (A) M12X9	1-09604-095-0	01	1	0604-0805
112	PLUG (A) M12X9	8-98047-054-0	01	1	0806-1012
112	PLUG (B) M14X9	9-99202-314-0	01	1	0604-0805
112	PLUG (B) M14X9	8-98042-944-0	01	1	0806-1009
112	PLUG (B) M14X14	9-09862-156-0	01	1	1010-
254	PLUG; HSG EURO2 SPECIFICATION<THN> M16X12	0-92002-416-0	02	1	0707-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
