Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

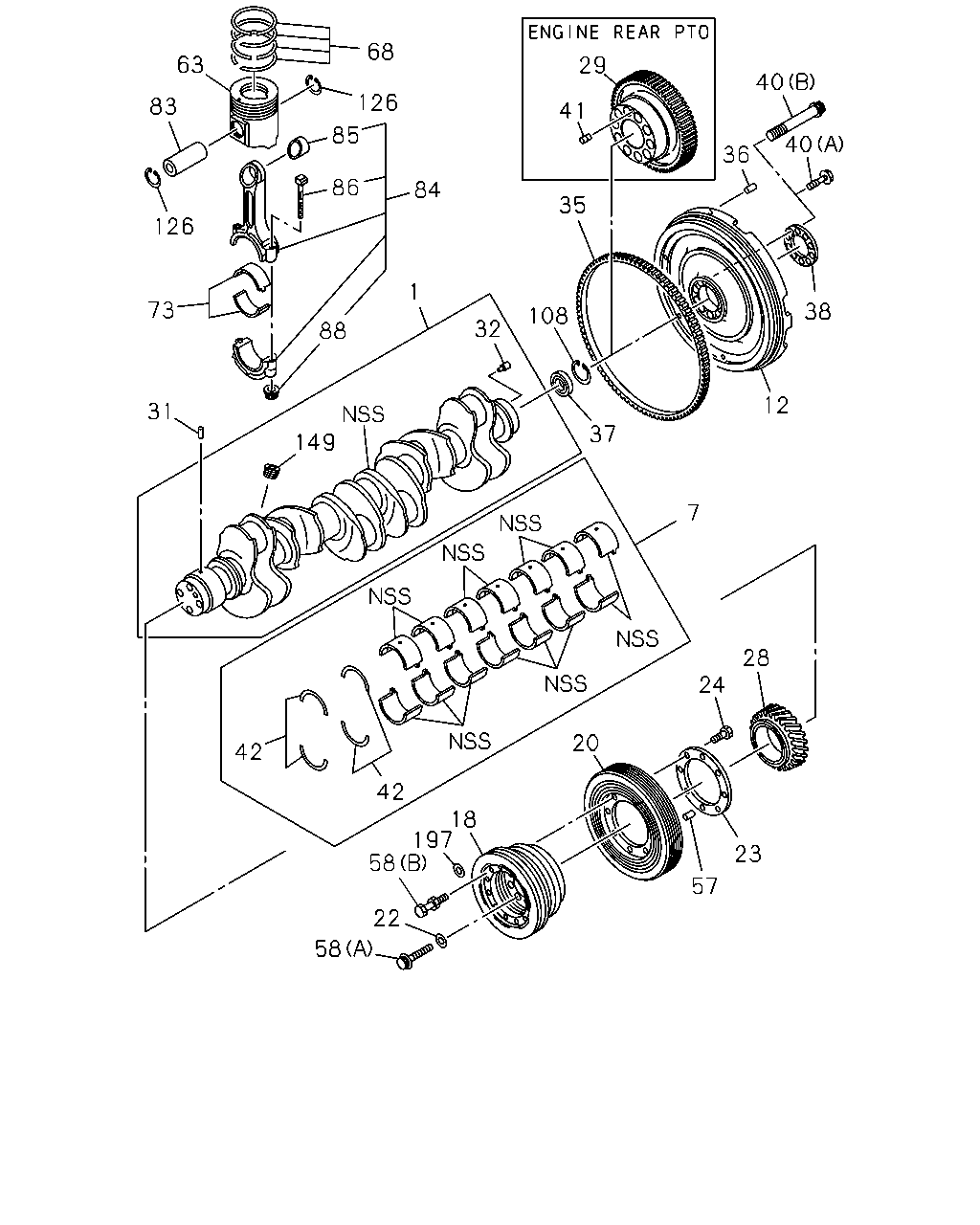

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#31352) — 41 parça
63
83
126
73
31
88
86
85
126
68
84
35
41
29
36
40
40
38
12
7
37
108
32
1
149
42
42
197
58
22
58
20
18
28
24
23
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
0604-
7
METAL KIT; CRANKSHAFT,STANDARD
8-97606-709-0
01
1
0604-1006
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1007-
12
FLYWHEEL
17INCH CLUTCH(RF3)
1-12331-425-0
01
1
0604-
12
FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)
1-12331-418-1
01
1
0604-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-444-3
01
1
0604-0910
18
PULLEY; CR/SHF
3-GROOVE
8-97606-321-0
01
1
0911-
20
DAMPER; CR/SHF
1-12375-214-2
01
1
0604-
22
PLATE; PULLEY
ID=18
9-09851-862-0
08
1
0604-
23
WASHER; DAMPER
1-12379-039-1
01
1
0604-
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
0604-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
0604-
29
GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1)
1-38261-041-0
01
1
0604-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
0604-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0604-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
0604-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0604-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
0604-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
0604-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
0604-
40
BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B)
1-09070-133-1
10
1
0604-
40
BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A)
1-09070-017-1
10
1
0604-
41
PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16
9-08150-816-0
01
1
0604-
42
WASHER; THRUST,CR/SHF
8-97606-710-0
02
1
0604-1006
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1007-
57
PIN; PULLEY
OD=8 L=20
9-08160-820-0
01
1
0604-
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
08
1
0604-
58
BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE
8-97603-593-0
06
1
0604-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12112-009-1
06
1
0604-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
0604-
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
0604-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
0604-
84
ROD ASM; CONN
1-12230-185-2
06
1
0604-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-037-4
06
1
0604-1004
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1005-
86
BOLT; CONNROD
1-12235-036-3
12
1
0604-
88
NUT; CONNROD
1-12239-005-1
12
1
0604-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
0604-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
0604-
149
PLUG
PT1
1-09605-021-1
06
1
0604-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
0604-
