Sayfa 0-40 - Isuzu EPC

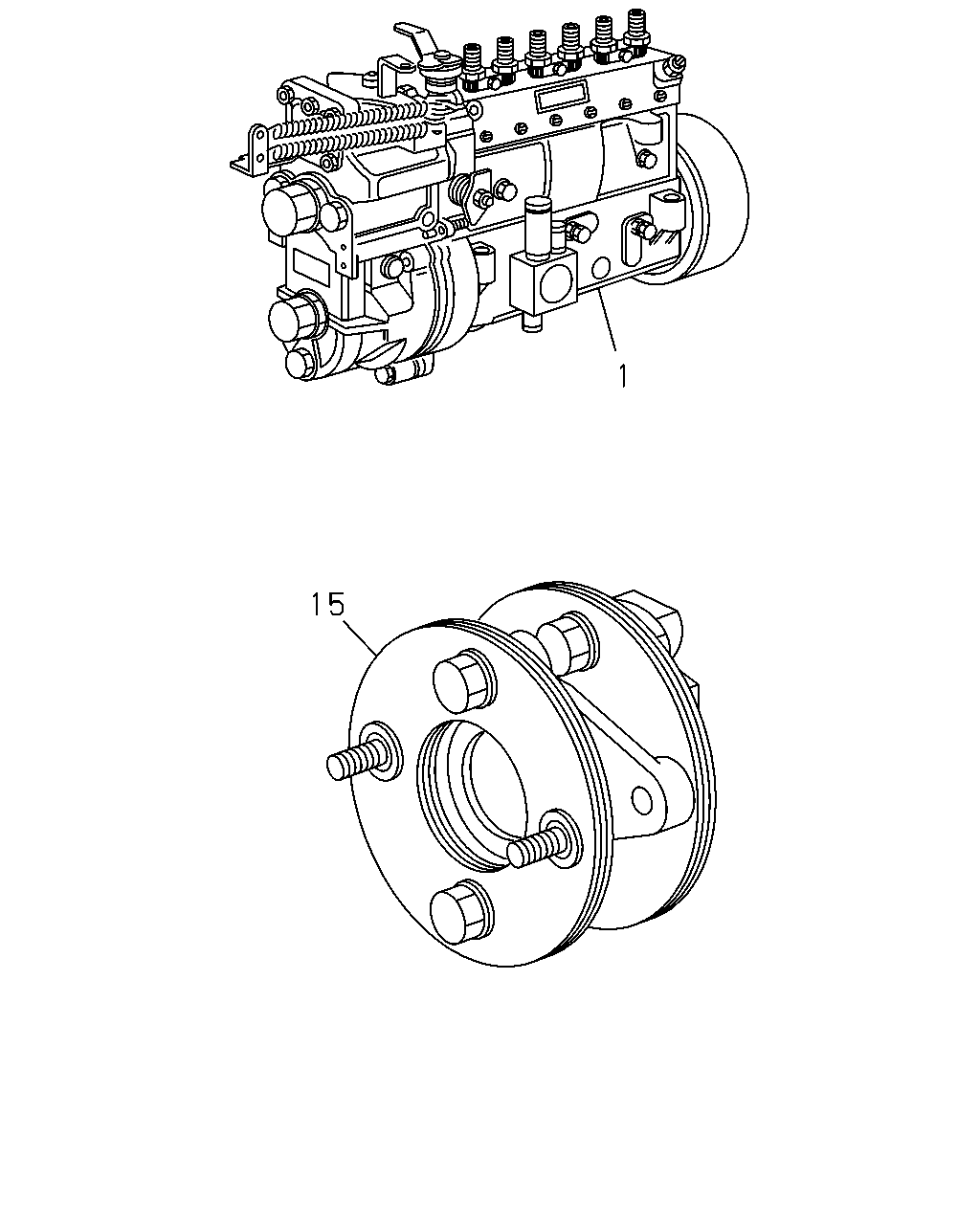

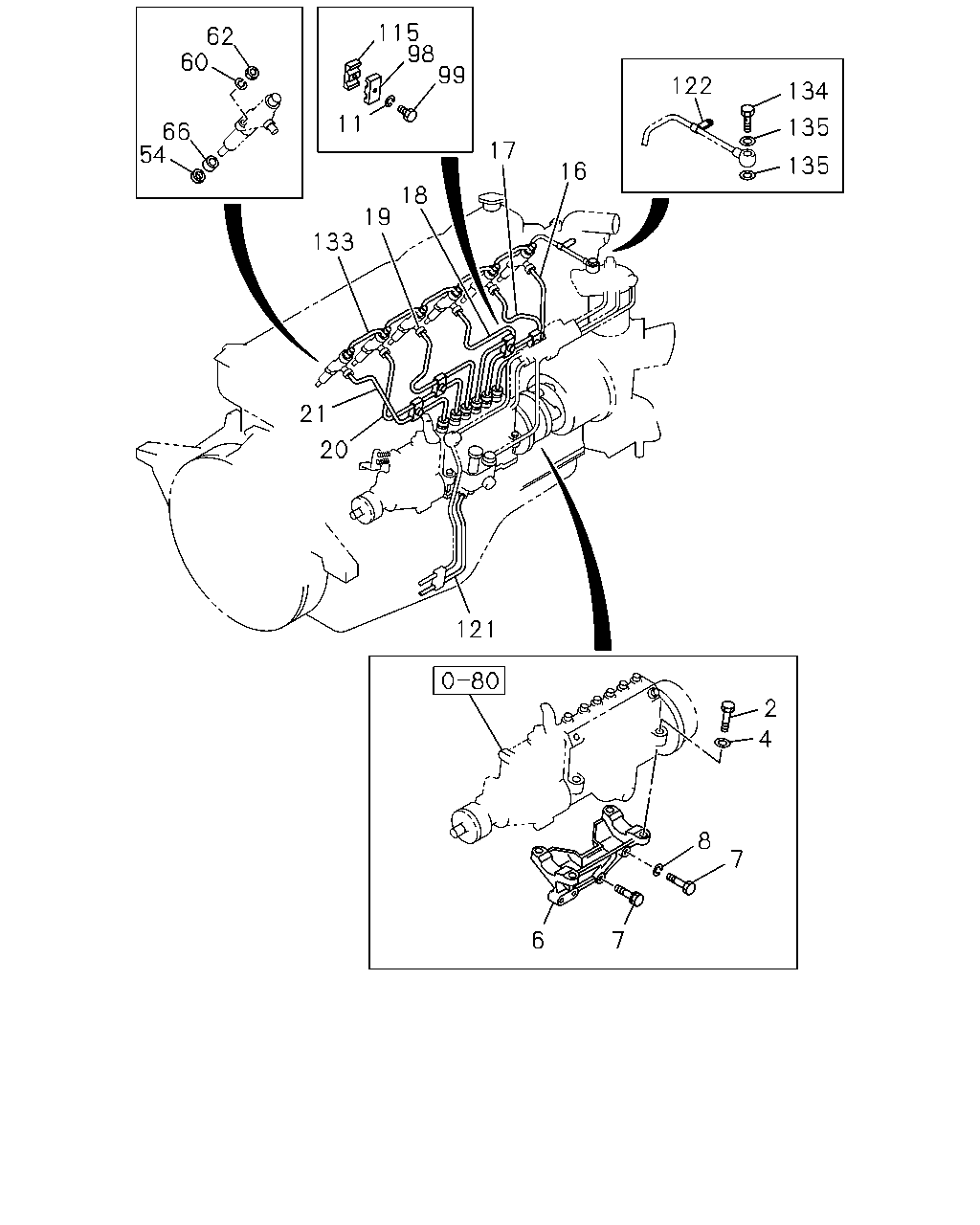

0-40 — FUEL INJECTION SYSTEM (#3134) — 97 parça

1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-221-4	01	1	9104-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-221-4	01	1	0108-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-089-2	01	1	9104-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-089-2	01	1	0108-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	9104-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	0108-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	9104-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	0108-

115 98 99 62 60 122 134 11 135 66 54 17 135 16 18 19 133 21 20 21 2 4 8 7 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9104-
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0108-
4	WASHER; INJ PUMP ID=8.5	9-09851-934-0	04	1	9104-
4	WASHER; INJ PUMP ID=8.5	9-09851-934-0	04	1	0108-
6	BRACKET; INJ PUMP TO C/BL	9-19751-104-1	01	1	9104-
6	BRACKET; INJ PUMP TO C/BL	9-19751-104-1	01	1	0108-
7	BOLT; INJ PUMP BRKT M10X80	0-10806-080-0	02	1	9104-
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	0-50041-040-0	02	1	9104-
7	BOLT; INJ PUMP BRKT M10X80	0-10806-080-0	02	1	0108-
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	0-50041-040-0	02	1	0108-
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	02	1	9104-9106
11	WASHER; INJ PUMP BRKT ID=10.5	9-09851-866-0	02	1	9107-
11	WASHER; INJ PUMP BRKT ID=10.5	9-09851-866-0	02	1	0108-
16	PIPE; INJ NO.1	1-15413-182-3	01	1	9104-
16	PIPE; INJ NO.1	1-15413-182-3	01	1	0108-
17	PIPE; INJ NO.2	1-15413-183-2	01	1	9104-
17	PIPE; INJ NO.2	1-15413-183-2	01	1	0108-
18	PIPE; INJ NO.3	1-15413-184-2	01	1	9104-
18	PIPE; INJ NO.3	1-15413-184-2	01	1	0108-
19	PIPE; INJ NO.4	1-15413-185-2	01	1	9104-
19	PIPE; INJ NO.4	1-15413-185-2	01	1	0108-
20	PIPE; INJ NO.5	1-15413-186-2	01	1	9104-
20	PIPE; INJ NO.5	1-15413-186-2	01	1	0108-
21	PIPE; INJ NO.6	1-15413-187-2	01	1	9104-
21	PIPE; INJ NO.6	1-15413-187-2	01	1	0108-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9104-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0108-
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	12	1	9104-
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	12	1	0108-
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	12	1	9104-
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	12	1	0108-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3	5-15315-003-0	06	1	9104-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3	5-15315-003-0	06	1	0108-
98	CLIP; "A",INJ PIPE	9-15419-613-0	04	1	9104-
98	CLIP; "A",INJ PIPE	9-15419-613-0	04	1	0108-
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	04	1	9104-
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	04	1	0108-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	9104-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	0108-
115	CLIP; "B",INJ PIPE	9-15419-614-0	04	1	9104-
115	CLIP; "B",INJ PIPE	9-15419-614-0	04	1	0108-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	9104-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	0108-
122	CLIP; LEAK OFF PIPE ID=6	9-09524-555-0	01	1	9104-
122	CLIP; LEAK OFF PIPE ID=6	9-09524-555-0	01	1	0108-
133	PIPE; INJ NOZZLE LEAK OFF	1-15412-471-1	01	1	9104-
133	PIPE; INJ NOZZLE LEAK OFF	1-15412-471-1	01	1	0108-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9104-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	0108-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9104-9305
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9306-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0108-

34 45 36 41 42 36 37 39 46 33 44 31 38 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-169-1	06	1	9104-
31	NOZZLE ASM; INJ	1-15300-169-1	06	1	0108-
32	HOLDER ASM; NOZZLE	1-15330-057-0	06	1	9104-9306
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	9307-
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	0108-
33	NOZZLE; INJ	5-15311-016-0	06	1	9104-
33	NOZZLE; INJ	5-15311-016-0	06	1	0108-
34	BOLT; EYE,NOZZLE HOLDER M8X19 FLANGE M8X19 FLANGE	1-09675-139-0	06	1	9104-9306
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9307-
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	0108-
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	06	1	9104-9306
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9307-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0108-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9104-9306
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9307-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	0108-
37	NUT; CAP,NOZZLE HOLDER	8-94169-504-0	06	1	9104-9306
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9307-
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	0108-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9307-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	0108-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9104-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	0108-
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9104-
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	0108-
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9104-
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0108-
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9104-
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0108-
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9104-
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	0108-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9104-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0108-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	9104-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	0108-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	9104-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-396-0	01	1	0108-
