◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#31334) — 15 parça

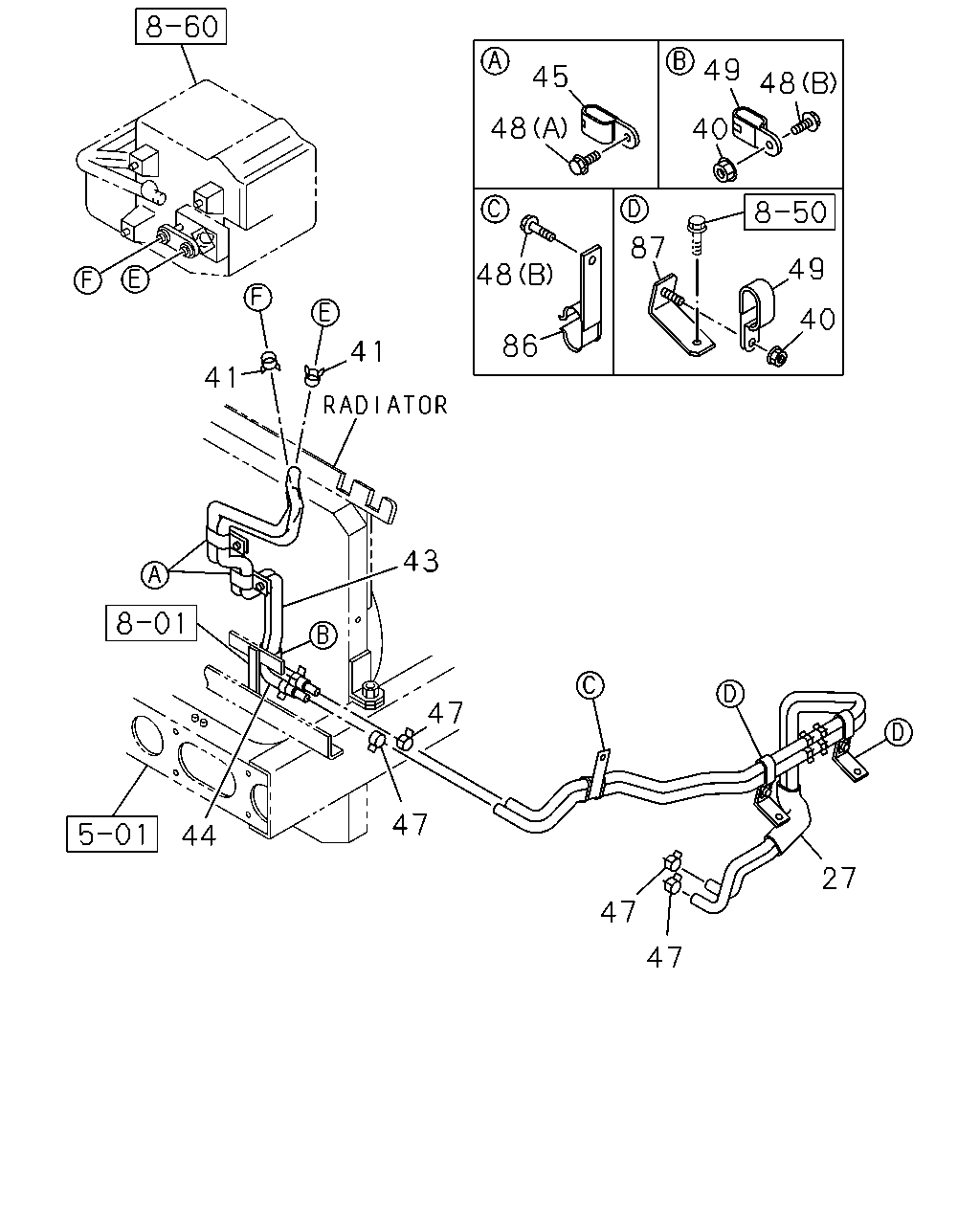

çizim 89812
49 45 48 48 40 87 49 48 40 86 41 41 43 47 47 44 27 47 47
BalonParca AdiParca NoAdetTipApplied Date
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82365-006-1 01 1 0603-
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 03 1 0603-0603
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 03 1 0603-
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 02 1 0603-0611
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-97359-141-0 02 1 0612-
43 HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-570-3 01 1 0603-
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-569-4 01 1 0603-
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-09701-238-0 02 1 0603-
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0603-0611
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-97359-141-0 04 1 0612-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0603-
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 03 1 0603-
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-076-0 01 1 0603-
87 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-251-1 02 1 0603-
