Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#31332) — 249 parça

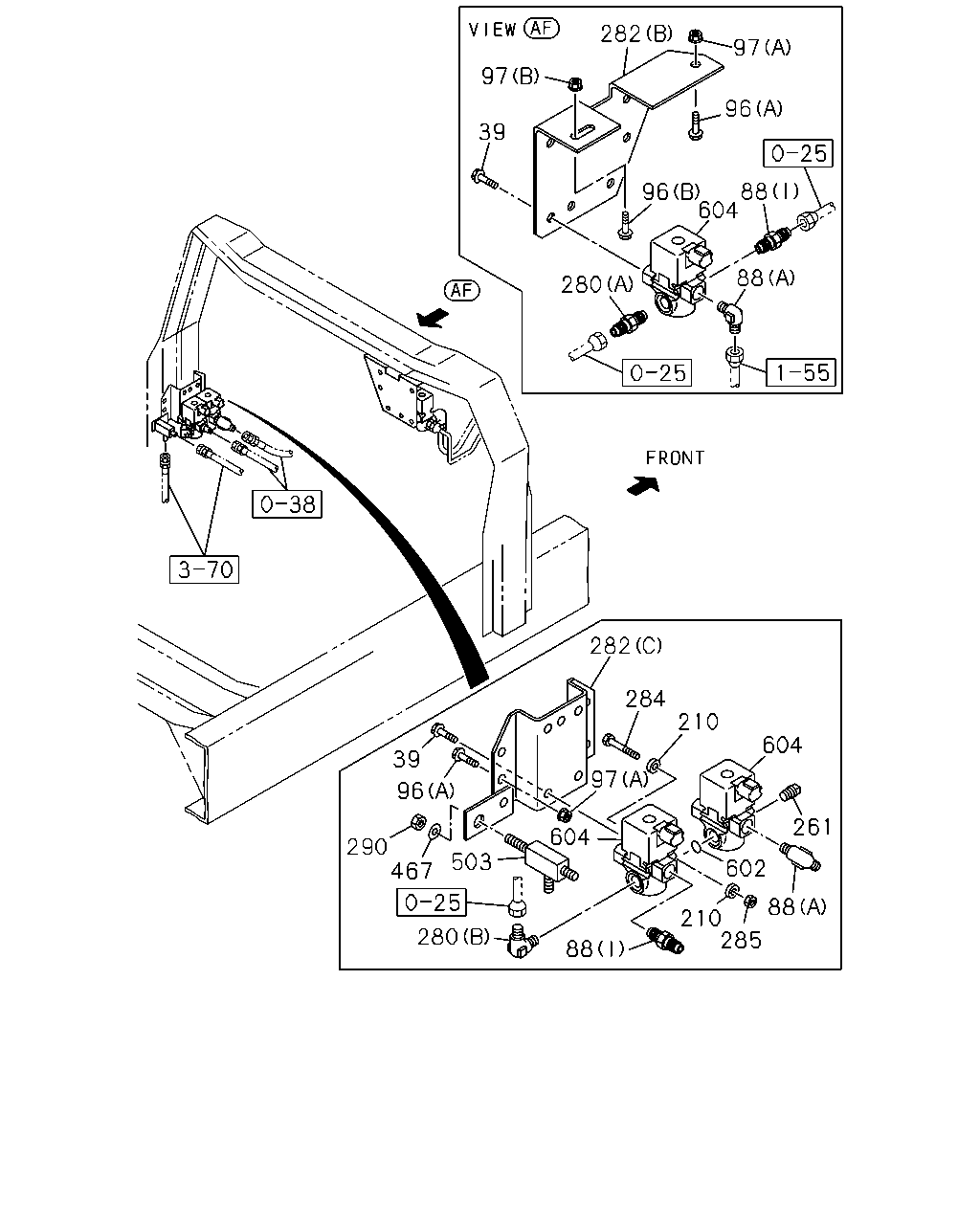

282 97 97 96 39 96 88 604 88 280 282 284 210 604 604 39 97 96 261 290 467 503 602 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0603-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0603-
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0603-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0603-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0603-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0603-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0603-
88	CONNECTOR; MAG VLV (P) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0603-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0603-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0603-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0603-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0603-0603
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0603-0603
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0603-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M12	0-91111-512-0	01	1	0603-
467	WASHER; LK,MAG VLV ID=12.2	9-09150-512-0	01	1	0603-0603
467	WASHER; LK,MAG VLV ID=12.2	0-91510-512-0	01	1	0604-
503	UNION M12 2WAY	1-09654-059-2	01	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0603-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0603-

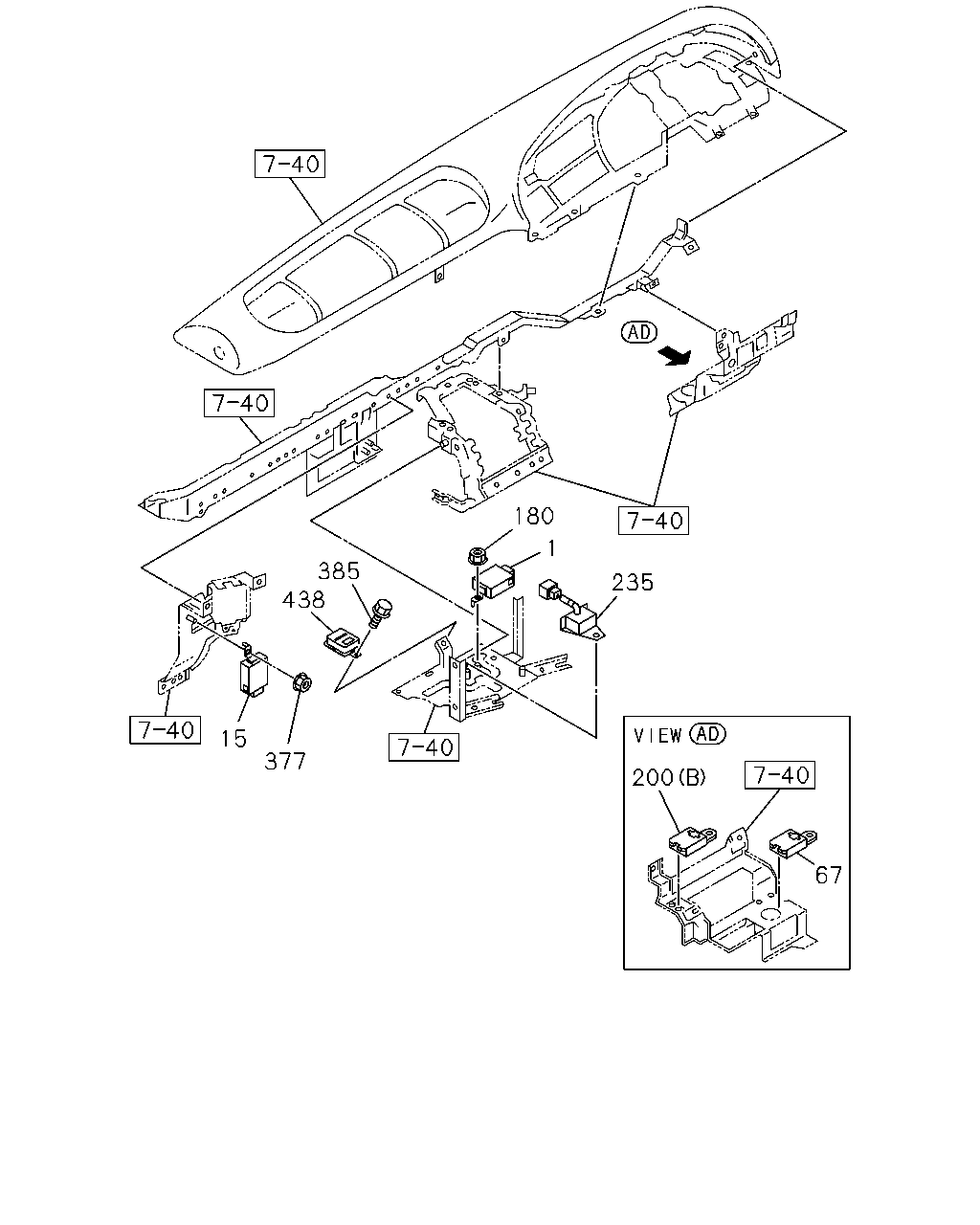

180 1 385 438 235 15 377 200 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0603-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0603-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0603-0603
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	0603-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	0603-
235	TIMER; AIR SUSPENSION	1-82540-068-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0603-0603
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0603-
438	UNIT; SPD CONTROL	1-82550-309-0	01	1	0603-

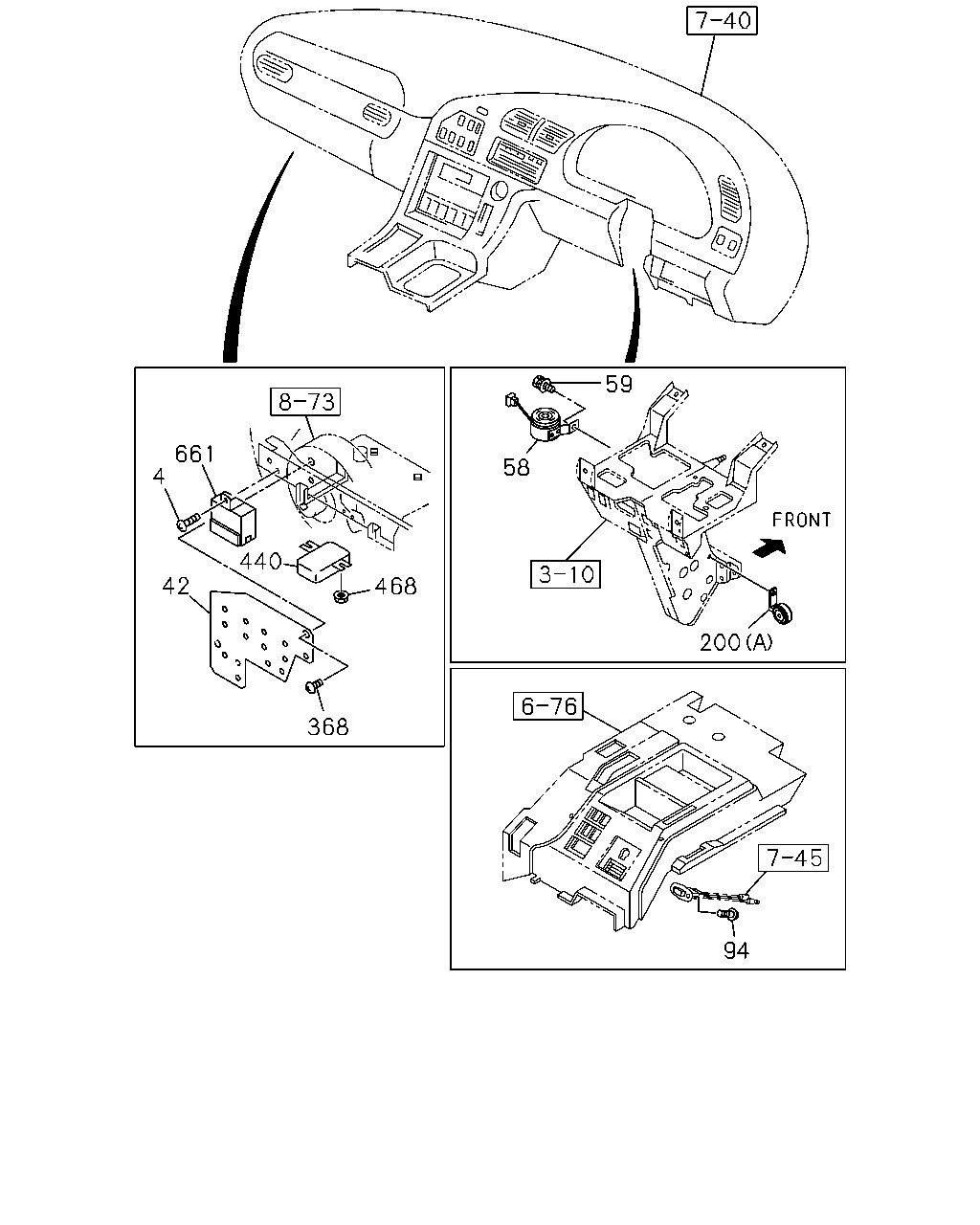

59 661 4 58 440 42 468 200 368 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0603-
42	BRACKET; RELAY	1-82698-351-1	01	1	0603-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0603-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0603-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0603-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	0603-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	0603-
368	SCREW; RELAY FIX M5X14	8-94279-325-0	03	1	0603-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0603-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0603-0603
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0603-

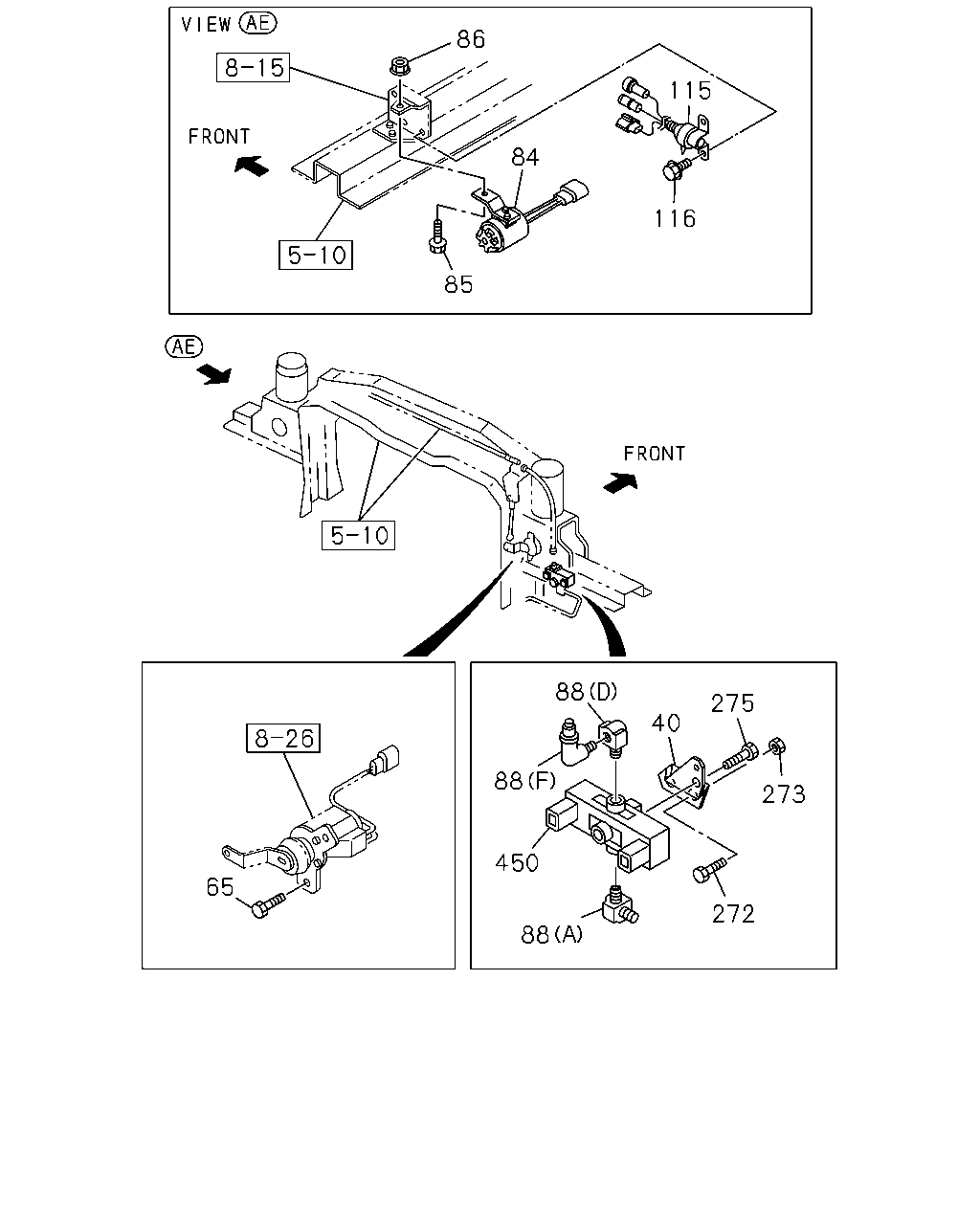

86 115 84 116 85 88 275 40 88 273 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16)	1-53458-380-0	01	1	0603-
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0603-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0603-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0603-0603
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0603-
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0603-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0603-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0603-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0603-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0603-
88	CONNECTOR; MAG VLV (P) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0603-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0603-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0603-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0603-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28651-035-0	02	1	0603-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0603-0603
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	02	1	0603-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0603-0603
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0603-
275	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0603-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0603-

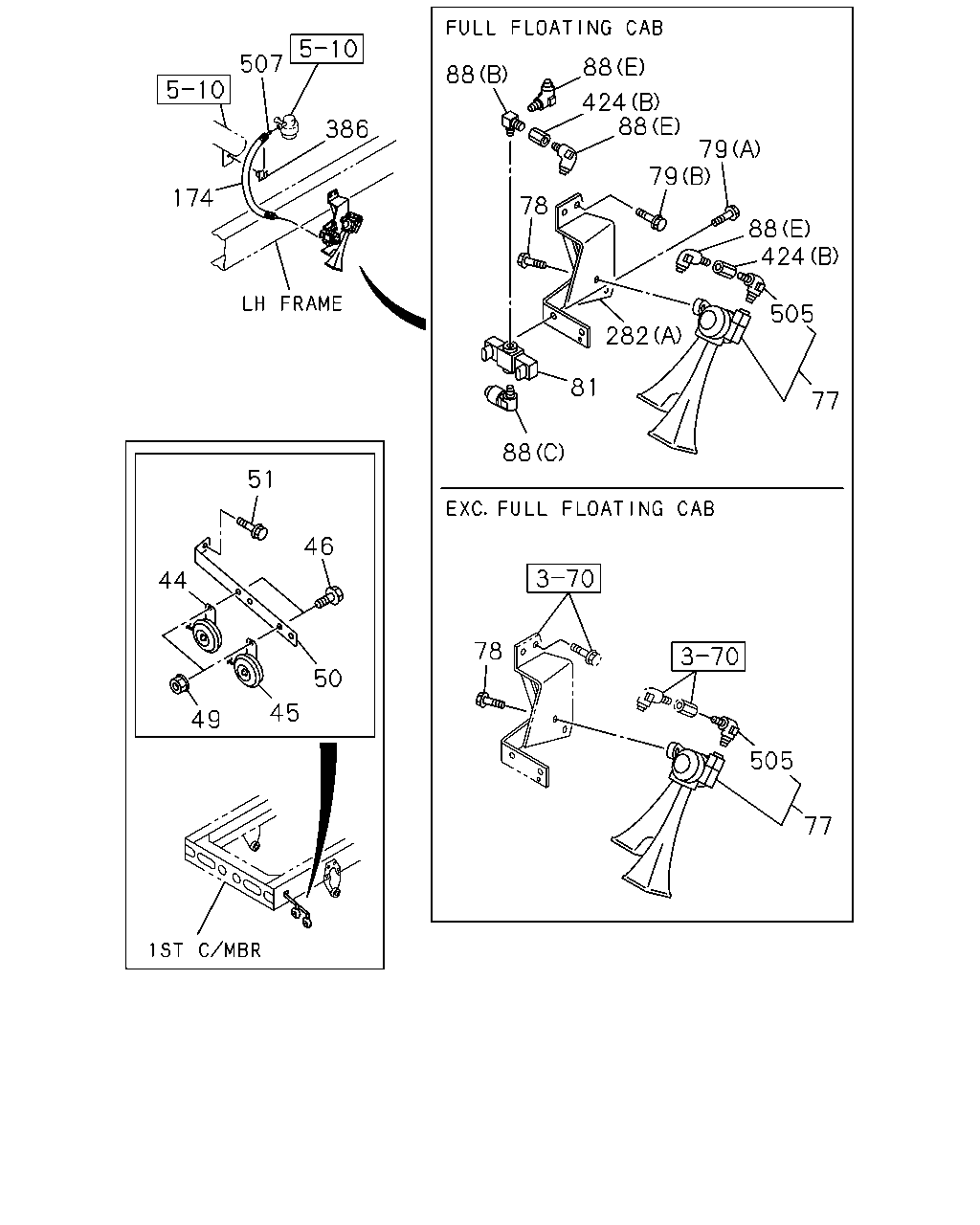

507 88 88 424 88 386 79 79 174 78 88 424 505 282 81 77 88 51 46 44 78 50 45 49 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0603-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0603-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0603-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0603-0603
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN	1-53457-196-0	01	1	0603-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
77	HORN ASM	1-83430-041-2	01	1	0603-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0603-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0603-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0603-
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0603-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0603-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0603-
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0603-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0603-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0603-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0603-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0603-
88	CONNECTOR; MAG VLV (P) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0603-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0603-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0603-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0603-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0603-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0603-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0603-
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0603-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0603-
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0603-

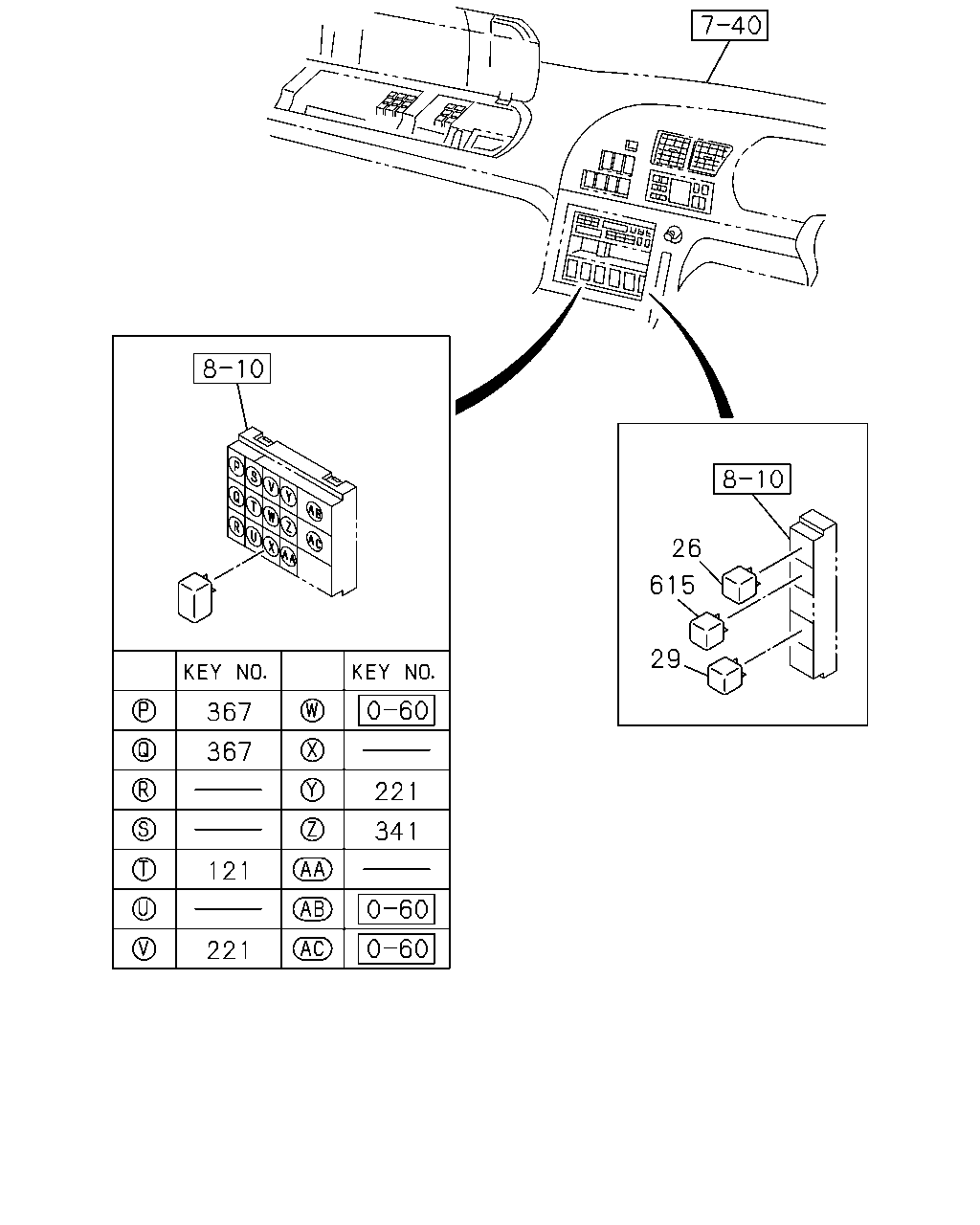

26 615 29 367 367 221 341 121 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0603-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-

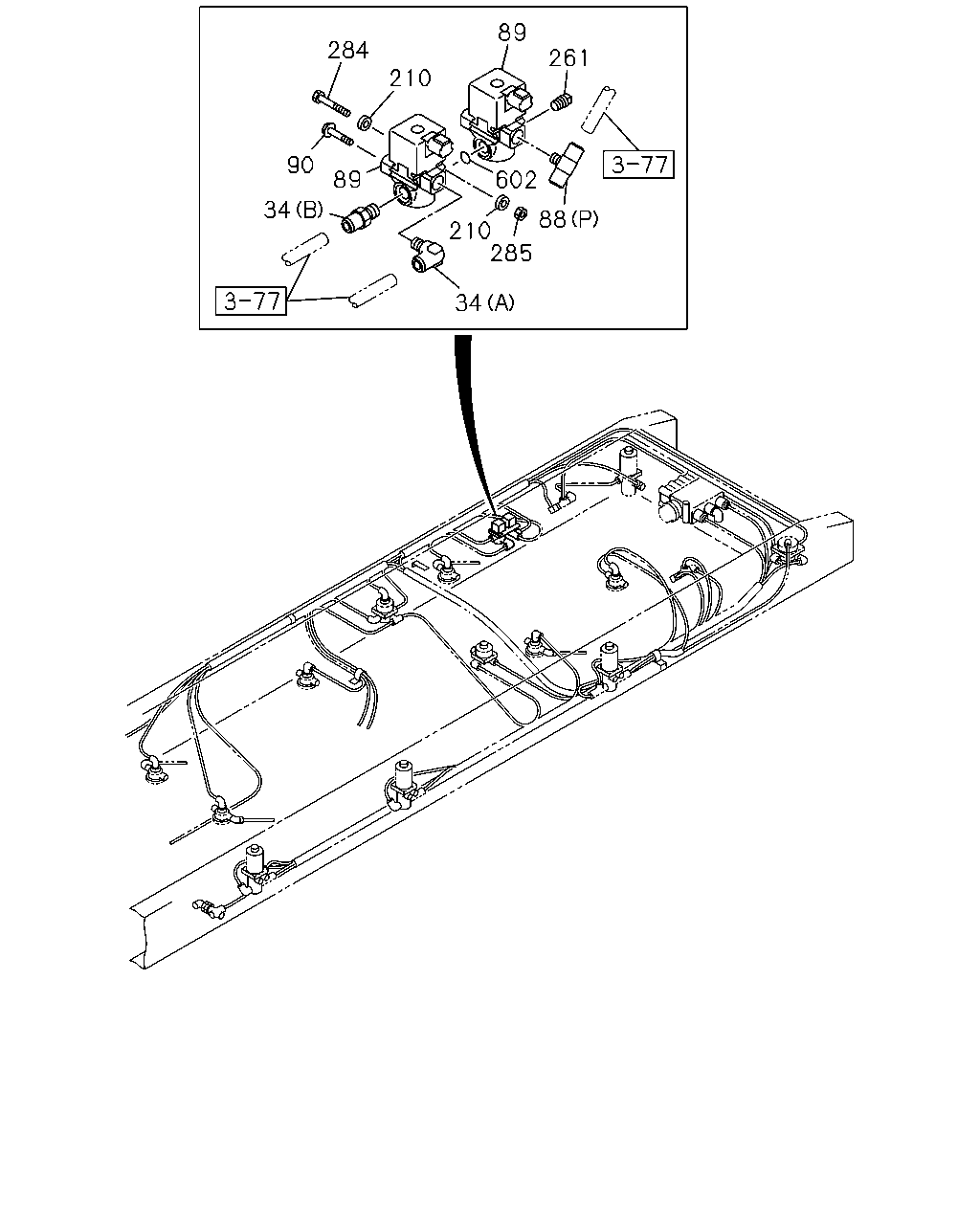

89 284 261 210 90 89 602 34 88 210 285 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0603-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0603-
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0603-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0603-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0603-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0603-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0603-
88	CONNECTOR; MAG VLV (P) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0603-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0603-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	02	1	0603-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-

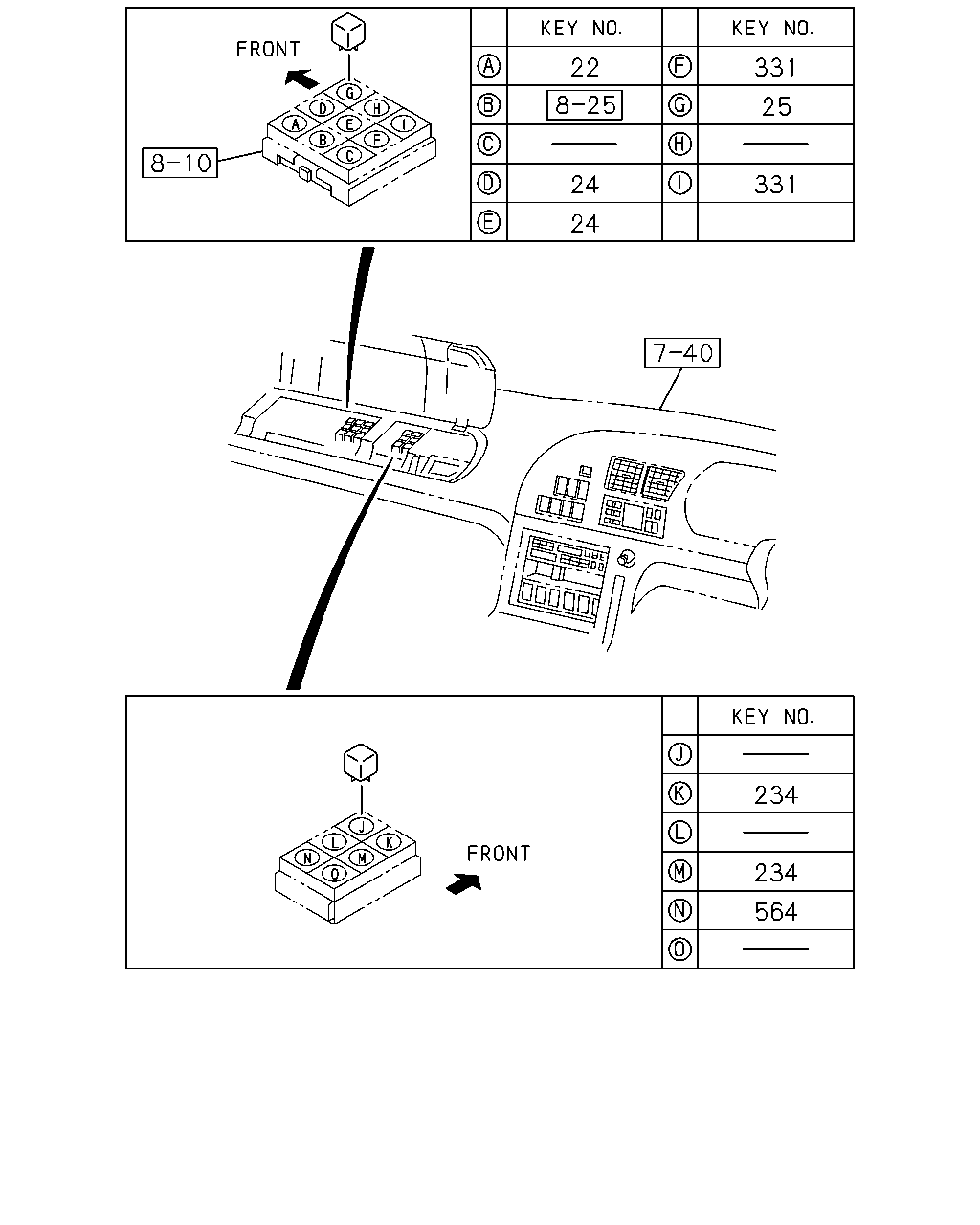

22 331 25 24 331 24 234 234 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
234	RELAY; AIR SUSPENSION 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-

120 617

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	120	SEAL	1-15739-008-0	01	1	0603-
	617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0603-

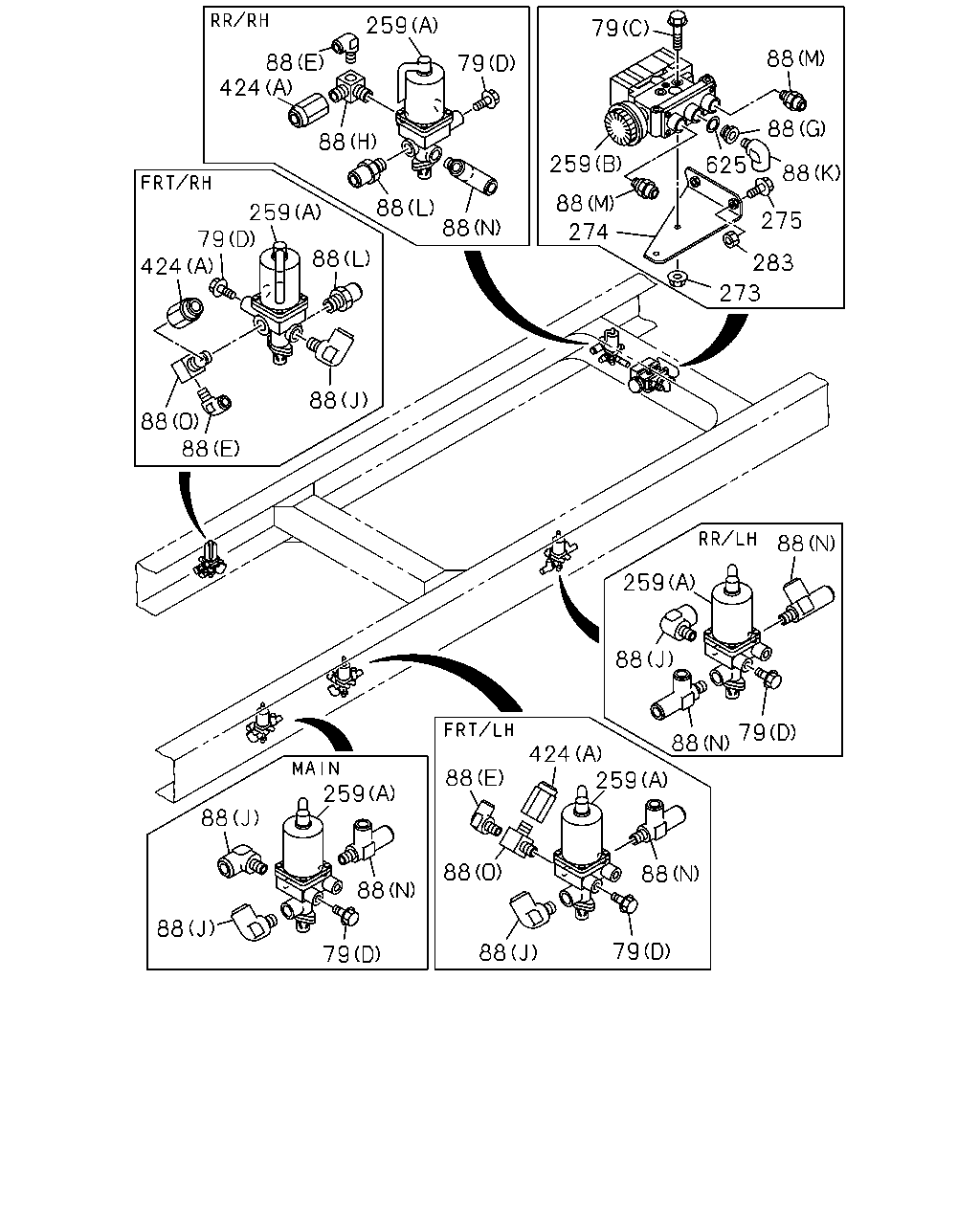

259 79 88 424 88 79 88 88 259 625 88 88 88 88 259 79 424 275 274 88 283 273 88 88 88 88 259 88 79 88 424 259 259 88 88 88 88 88 88 79 88 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0603-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0603-
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0603-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0603-
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0603-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0603-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0603-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0603-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0603-
88	CONNECTOR; MAG VLV (P) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0603-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0603-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
259	VALVE; MAG,AIR SUSP CONT (A)	1-82563-703-0	05	1	0603-
259	VALVE; MAG,AIR SUSP CONT (B)	1-82563-713-0	01	1	0603-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0603-0603
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	02	1	0603-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0603-0603
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
274	BRACKET; MAG VLV AIR SUSP	1-82569-289-0	01	1	0603-
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0603-
275	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0603-
283	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0603-0603
283	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0603-
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0603-
625	GASKET; CONNECTOR ID=22.5	9-09571-422-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
