◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#31327) — 292 parça
çizim 89874
38 242 313 38 313 38 516 38 150 38 242 38 313 38 38 239 88 358 239 38 88 38 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0603-0701
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28050-610-0 01 1 0702-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28050-825-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 03 1 0603-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 09 1 0603-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0603-1105
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0603-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0603-
150 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 01 1 0603-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0603-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0603-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0603-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0603-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-

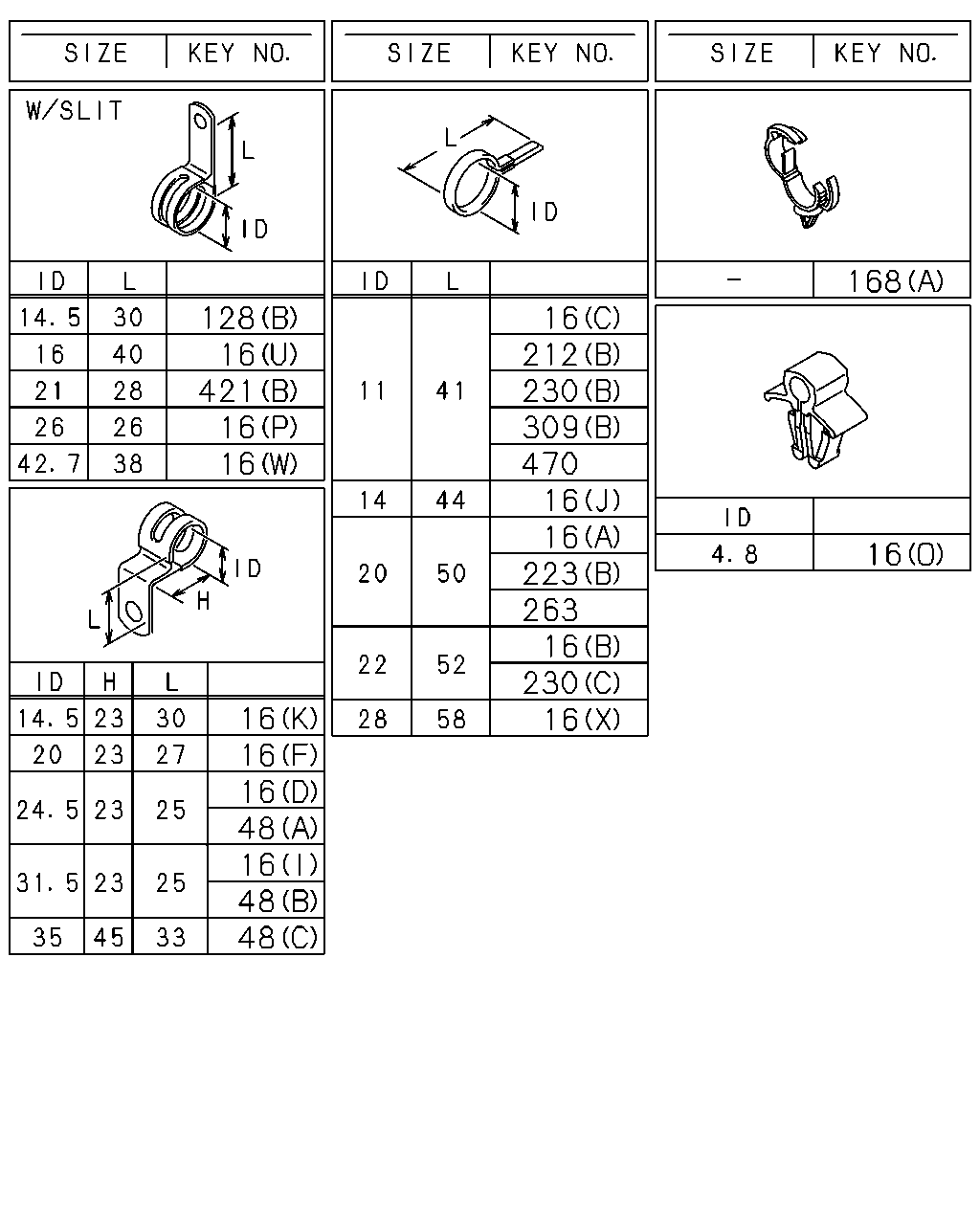

çizim 89904
168 128 16 421 16 16 16 212 230 309 470 16 16 223 263 16 230 16 16 16 16 16 48 16 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(N) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=20 		9-09525-032-0 01 1 0603-0606
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0603-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0603-
16 CLIP; HARNESS
(K) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0603-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0603-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0603-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0603-
16 CLIP; HARNESS
(W) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0603-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0603-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0603-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0603-0606
16 CLIP; HARNESS
(L) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(U) ID=16 L=40 		9-09525-576-0 01 1 0603-0606
16 CLIP; HARNESS
(U) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0603-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0603-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0603-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0603-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0603-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0603-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0603-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0603-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0603-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0603-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0603-
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0603-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0603-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0603-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0603-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-1 01 1 0603-
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0603-
230 CLIP; C/MBR HARNESS
(C) ID=22 L=52 		9-09917-431-0 02 1 0603-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0603-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0603-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0603-
421 CLIP; FLOOR HARNESS
(B) ID=21 L=28 		1-09700-673-1 02 1 0603-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0603-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0603-
çizim 89907
1 185 1 1 5 524 219 294 340 530 423 178 178 119 64 178 510
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0603-0603
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=25 		1-09337-052-0 01 1 0604-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0603-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0603-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0603-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0603-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0603-
178 GROMMET; HARNESS
(B) 		1-82699-891-0 01 1 0603-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0603-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0603-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0603-0603
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 09 1 0603-0603
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0603-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0603-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0603-0603
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 03 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0603-
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 0603-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-1 01 1 0603-

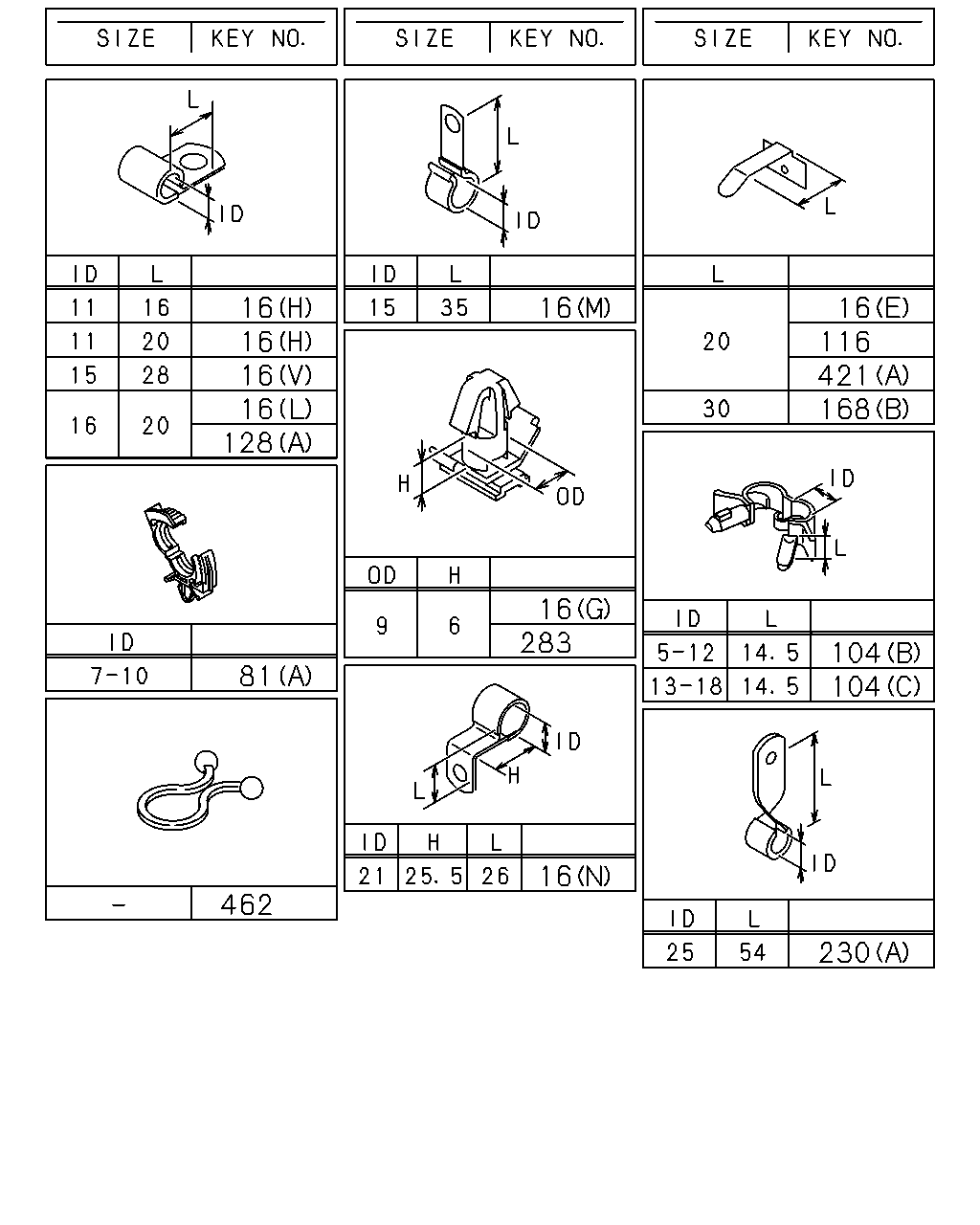

çizim 89912
16 16 16 16 128 16 16 116 421 168 16 283 104 104 81 16 462 230
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(N) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=20 		9-09525-032-0 01 1 0603-0606
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0603-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0603-
16 CLIP; HARNESS
(K) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0603-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0603-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0603-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0603-
16 CLIP; HARNESS
(W) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0603-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0603-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0603-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0603-0606
16 CLIP; HARNESS
(L) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(U) ID=16 L=40 		9-09525-576-0 01 1 0603-0606
16 CLIP; HARNESS
(U) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0603-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0603-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0603-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0603-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0603-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 0603-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 03 1 0603-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0603-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 12 1 0603-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 13 1 1410-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0603-1409
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0603-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0603-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0603-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0603-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-1 01 1 0603-
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0603-
230 CLIP; C/MBR HARNESS
(C) ID=22 L=52 		9-09917-431-0 02 1 0603-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0603-
421 CLIP; FLOOR HARNESS
(B) ID=21 L=28 		1-09700-673-1 02 1 0603-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0603-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0603-
çizim 105554
16 81 104 171 194 206 212 227 16 81 104 111 194 218 341 346 16 51 142 162 194 208 225 305 309 448 16 48 171 194 208 448 223 148
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(N) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=20 		9-09525-032-0 01 1 0603-0606
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 01 1 0603-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0603-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0603-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0603-
16 CLIP; HARNESS
(K) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0603-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0603-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0603-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0603-
16 CLIP; HARNESS
(W) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0603-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0603-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0603-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0603-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0603-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0603-0606
16 CLIP; HARNESS
(L) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(U) ID=16 L=40 		9-09525-576-0 01 1 0603-0606
16 CLIP; HARNESS
(U) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0603-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0603-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0603-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0603-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0603-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0603-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0603-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0603-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0603-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0603-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0603-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 0603-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 03 1 0603-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0603-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0603-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0603-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 01 1 1208-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0603-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0603-
171 CLIP; STARTER HARNESS
(A) L=350 		1-09707-183-0 01 1 0603-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 05 1 0603-
194 CLIP; BAND
(D) L=250 		5-09707-030-1 01 1 0607-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0603-
194 CLIP; BAND
(C) L=350 		1-09707-183-0 01 1 0603-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0603-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0603-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0603-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180 		1-09707-162-1 01 1 0603-
208 CLIP; HARNESS,MAG VLV
(B) L=350 		1-09707-183-0 01 1 0603-
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0603-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0603-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0603-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0603-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0603-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 04 1 0603-
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 0603-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0603-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0603-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0603-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0603-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0603-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0603-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0603-
448 CLIP; AIR SUSP HARNESS
(B) L=350 		1-09707-183-0 01 1 0603-
çizim 105558
312 312 312 312 342 334 375 342
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0603-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 02 1 0603-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-199-0 01 1 0603-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-82699-239-0 01 1 0603-
334 BRACKET 1-53458-362-0 01 1 0603-
342 BRACKET; HARNESS CAB MTG
(B) L=95 		1-82699-085-0 02 1 0603-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0603-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
