Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#31325) — 42 parça
◀

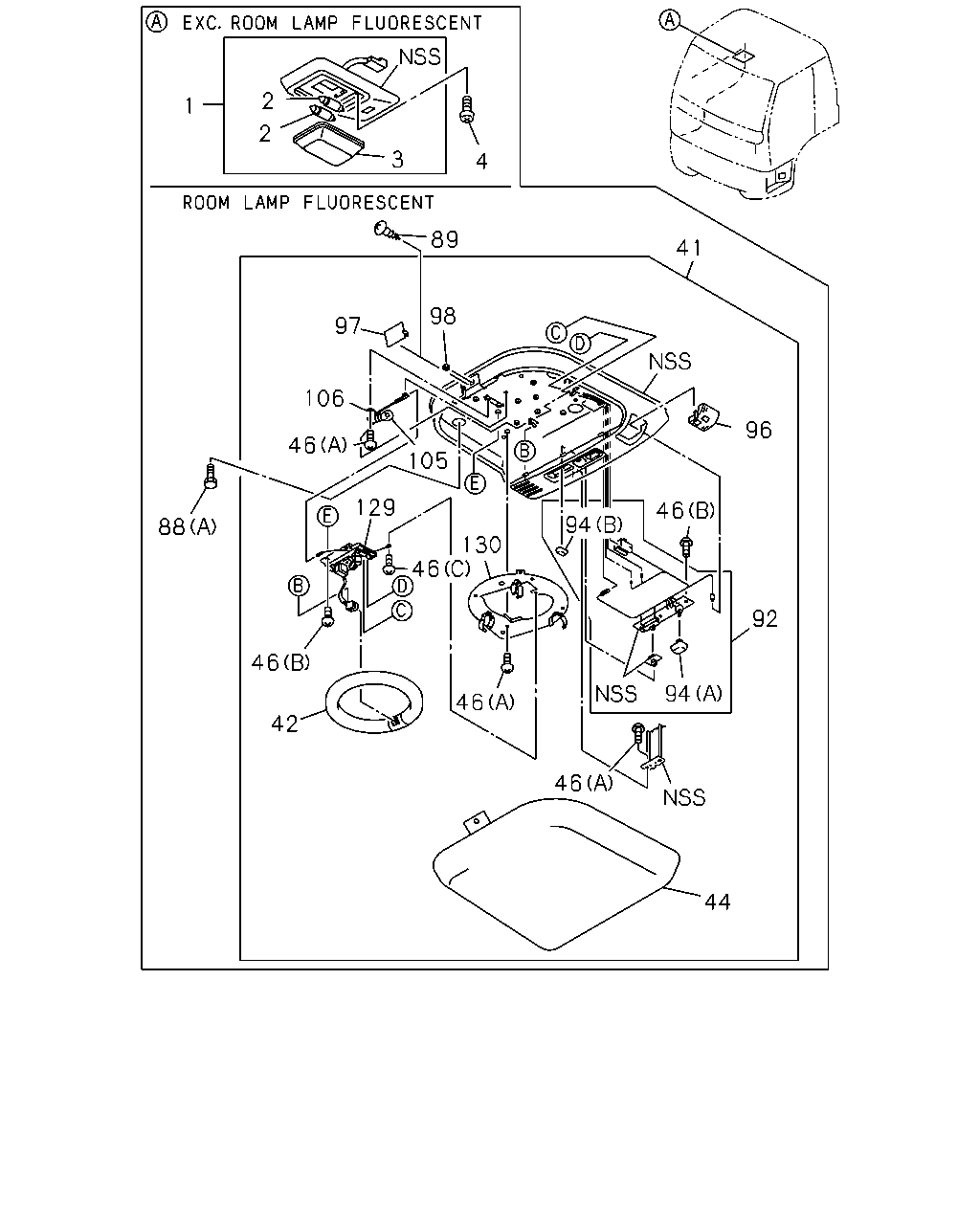

[805A] ROOM LAMP (25 parça)

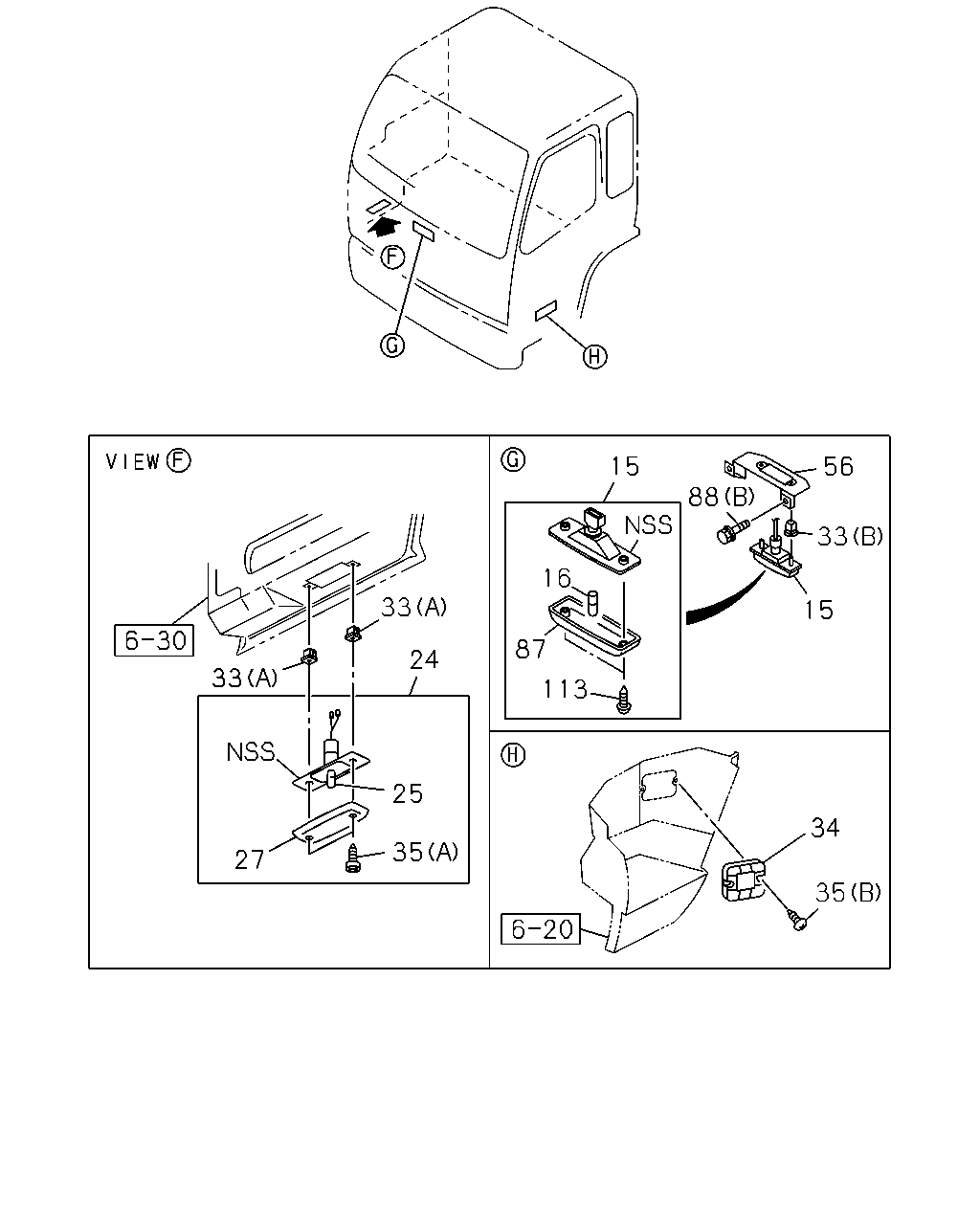

[805A] INSPECTION LAMP AND STEP LAMP (17 parça)
▶
2
1
2
3
4
89
41
98
97
106
96
46
105
129
46
94
88
130
46
92
46
94
46
42
46
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
EXC. ROOM LAMP FLUORESCENT<NGG>
1-82140-050-1
01
1
0603-
2
BULB; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W
1-82195-001-0
02
1
0603-
3
LENS; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG>
1-82145-020-0
01
1
0603-
4
SCREW; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING
9-07066-520-0
03
1
0603-0603
4
SCREW; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING
0-71040-520-0
03
1
0604-
41
LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-315-2
01
1
0603-
42
LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-094-1
01
1
0603-
44
LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-092-0
01
1
0603-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING
1-86830-095-0
08
1
0603-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12
1-86830-202-0
07
1
0603-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING
1-86830-336-0
01
1
0603-
88
BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0603-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0603-
89
SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING
9-07076-510-0
01
1
0603-0603
89
SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING
0-71240-510-0
01
1
0604-
92
SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-306-0
01
1
0603-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A)
1-86830-312-0
01
1
0603-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B)
1-86830-313-0
01
1
0603-
96
CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-385-0
01
1
0603-
97
CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-311-0
01
1
0603-
98
GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-102-0
01
1
0603-
105
BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W
1-86830-200-0
01
1
0603-
106
SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG>
1-86830-201-0
01
1
0603-
129
INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-338-0
01
1
0603-
130
PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-339-0
01
1
0603-
15
56
88
33
16
33
15
87
24
33
113
25
34
35
27
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
LAMP; INSPECTION
1-82140-052-1
01
1
0603-
16
BULB; INSPECTION LAMP
24V 5W
1-82194-042-0
01
1
0603-
24
LAMP; STEP
1-82140-052-1
01
1
0603-
25
BULB; STEP LAMP
24V 5W
1-82194-042-0
01
1
0603-
27
LENS; STEP LAMP
1-82145-019-0
01
1
0603-
33
GROMMET; SCREW,LAMP
(B)
1-09983-182-0
02
1
0603-
33
GROMMET; SCREW,LAMP
(A) M4
5-09470-002-0
02
1
0603-
34
COVER; STEP LAMP
1-71907-444-0
02
1
0603-
35
SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER
0-74310-420-0
04
1
0603-0604
35
SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0605-
35
SCREW; STEP LAMP
(A) M4X20
1-82149-006-0
02
1
0603-
56
BRACKET; LAMP
1-86830-302-1
01
1
0603-1103
56
BRACKET; LAMP
8-98121-191-0
01
1
1104-
87
LENS; INSPECTION LAMP
1-82145-019-0
01
1
0603-
88
BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0603-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0603-
113
SCREW; LAMP
M4X20
1-82149-006-0
02
1
0603-
