◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#31323) — 122 parça

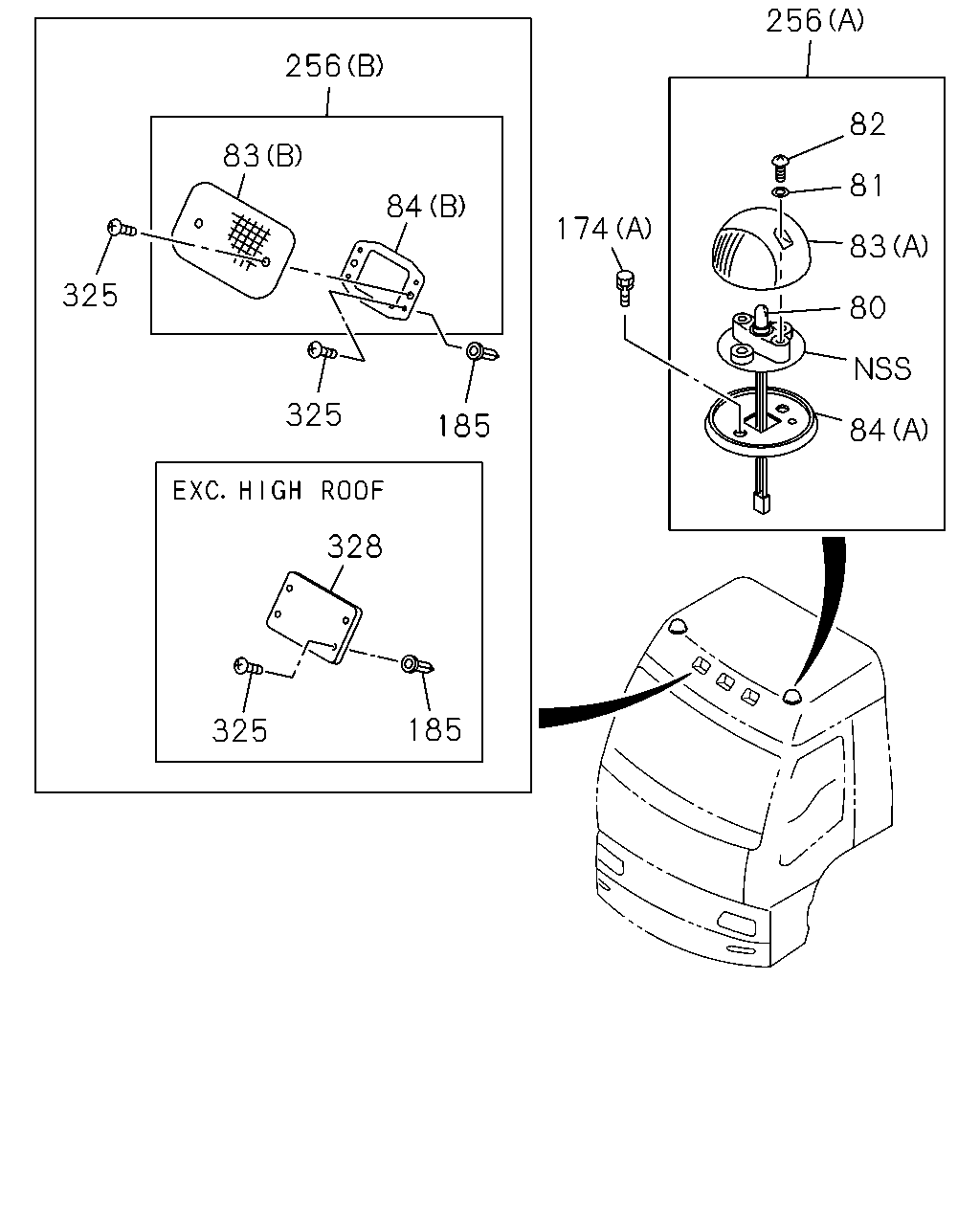

çizim 89462
256 256 82 83 81 84 174 83 325 80 325 185 84 328 185 325
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0603-
81 SEAT; SCREW 1-82219-012-0 04 1 0603-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0603-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-321-0 03 1 0603-
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 0603-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0603-
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 02 1 0603-
174 BOLT
(B) M6X20 FLANGE 		0-28650-620-0 04 1 0603-
174 BOLT
(A) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0603-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0603-
256 LAMP; MARKER
HIGH ROOF<S2F> (B) 		1-82210-230-0 03 1 0603-
256 LAMP; MARKER
(A) 		1-86830-242-3 02 1 0603-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0603-
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F> M5X14 TAPPING 		9-07066-514-0 12 1 0603-0603
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F> M5X14 TAPPING 		0-71040-514-0 12 1 0604-
328 COVER; LAMP
EXC. HIGH ROOF<S2F> 		1-76217-122-1 03 1 0603-
çizim 89690
1 12 340 14 4 13 23 202 5 202 18 13 211 307 338 339
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0603-0711
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0603-0711
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712-
4 HEADLAMP UNIT 1-82119-171-0 01 1 0603-
4 HEADLAMP UNIT 1-82119-172-0 01 1 0603-
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0603-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0603-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0603-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0603-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0603-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0603-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0603-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0603-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0603-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0603-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0603-0906
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0603-
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0603-
339 GASKET; LEVELING 1-86830-158-0 02 1 0603-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0603-

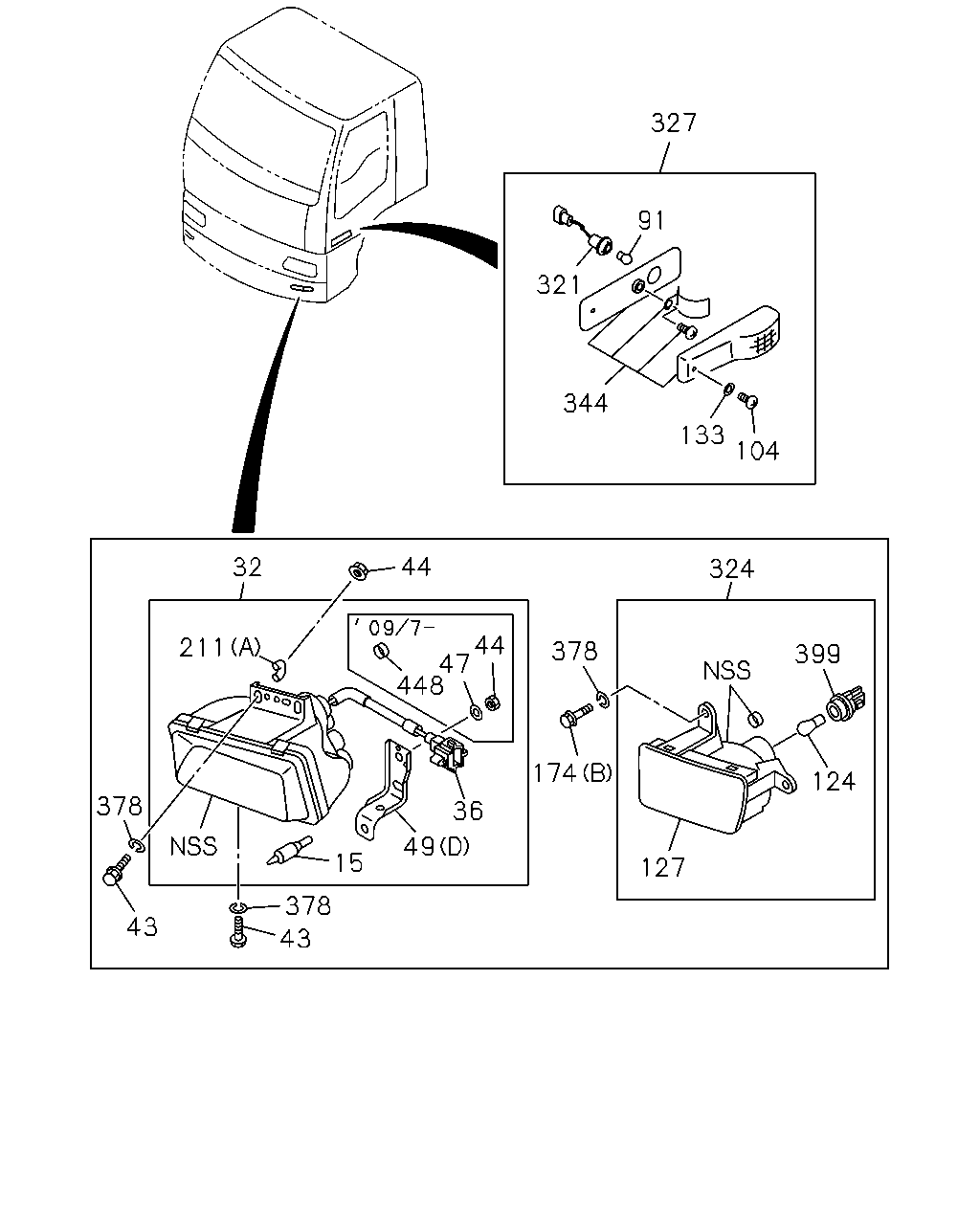

çizim 89906
327 91 321 344 133 104 324 399 124 127 378 174 44 44 47 448 32 211 378 43 43 378 15 49 36
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0603-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0603-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-454-0 01 1 0603-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
36 CORD; FOG LAMP 1-82118-015-0 01 1 0603-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0603-
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 0603-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 0907-
44 NUT; FOG LAMP
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
44 NUT; FOG LAMP
M8 FLANGE 		0-91180-108-0 04 1 0603-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 0907-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0603-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0603-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0603-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0603-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0603-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0603-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0603-
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0603-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0603-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0603-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0603-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0603-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0603-
174 BOLT
(B) M6X20 FLANGE 		0-28650-620-0 04 1 0603-
174 BOLT
(A) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0603-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0603-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0603-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0603-0906
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0603-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0603-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0603-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-2 01 1 0603-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-2 01 1 0603-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0603-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0603-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0603-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 06 1 0603-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 06 1 0606-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0603-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-

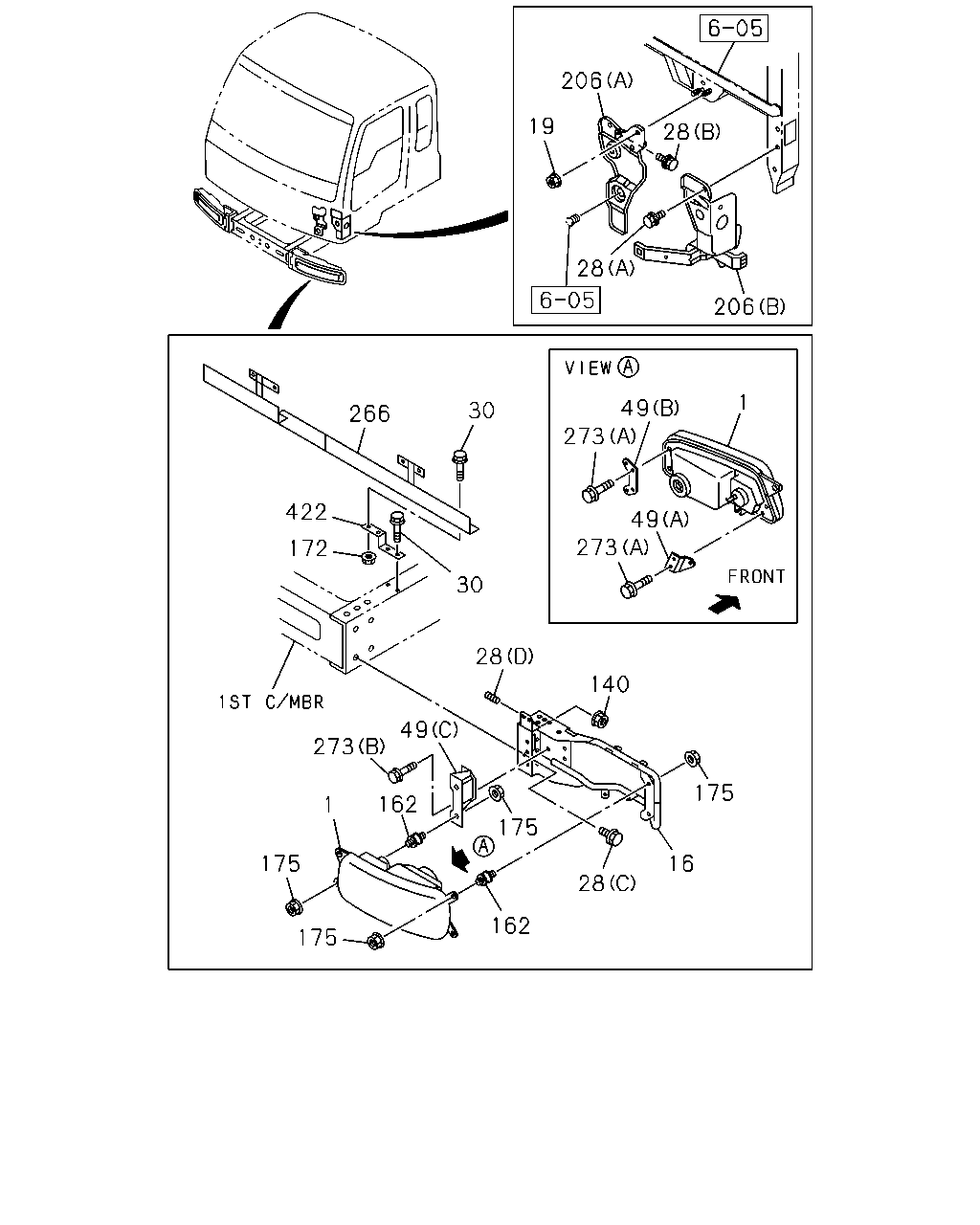

çizim 89938
206 19 28 28 206 1 49 30 266 273 422 49 273 172 30 28 140 49 273 175 162 1 175 16 175 28 162 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0603-0711
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0603-0711
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0603-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0603-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0603-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0603-
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0603-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0603-
30 BOLT; STAY
M10X25 FLANGE 		0-28651-025-0 06 1 0603-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0603-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0603-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0603-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0603-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0603-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0603-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0603-
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0603-0603
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0603-
172 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0603-0603
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0603-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0603-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0603-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0603-
266 STAY; BRKT,HEADLAMP 1-82117-187-0 01 1 0603-
273 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 0603-
273 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0603-
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 0603-
