◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#31319) — 81 parça

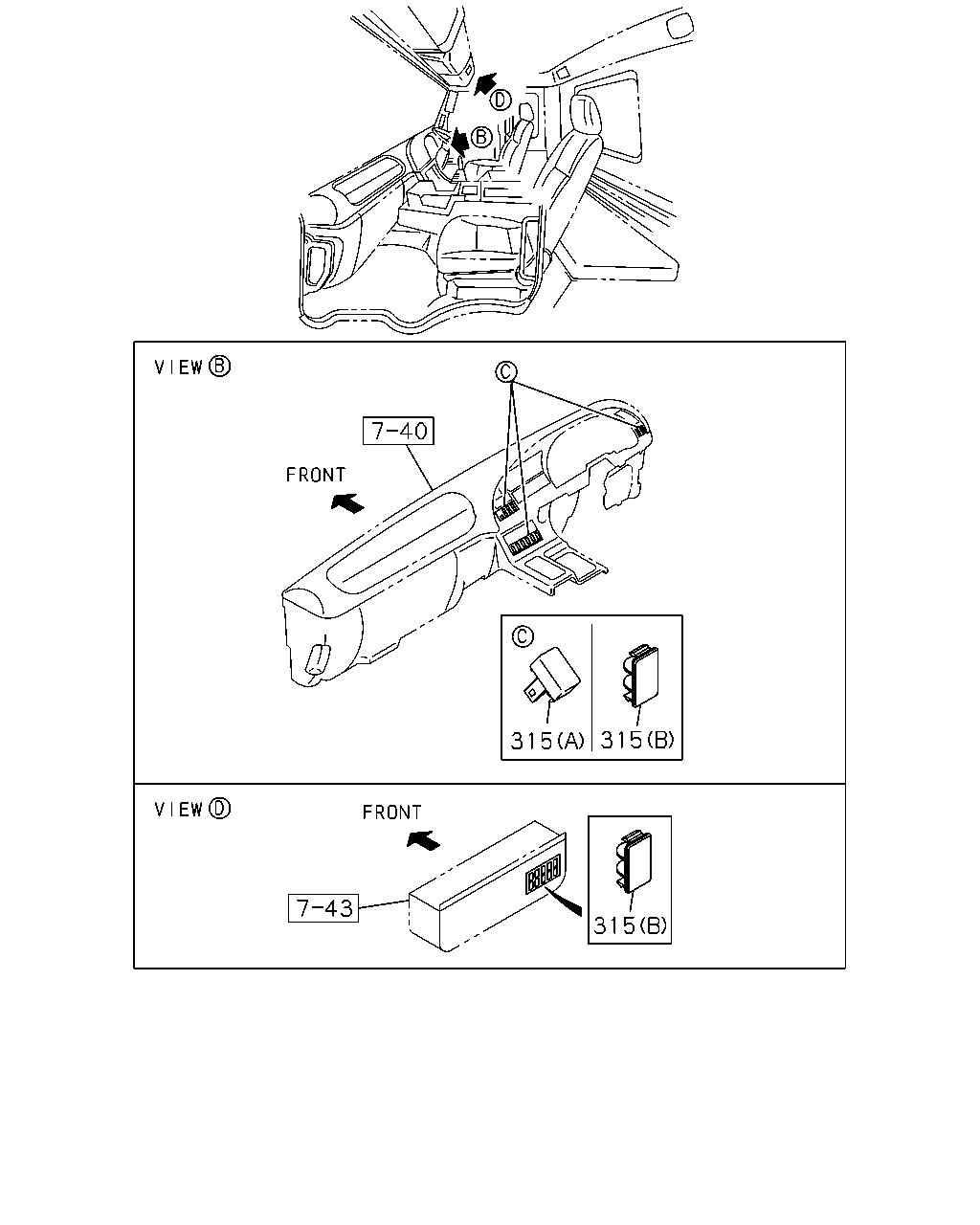

çizim 89745
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0603-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0603-

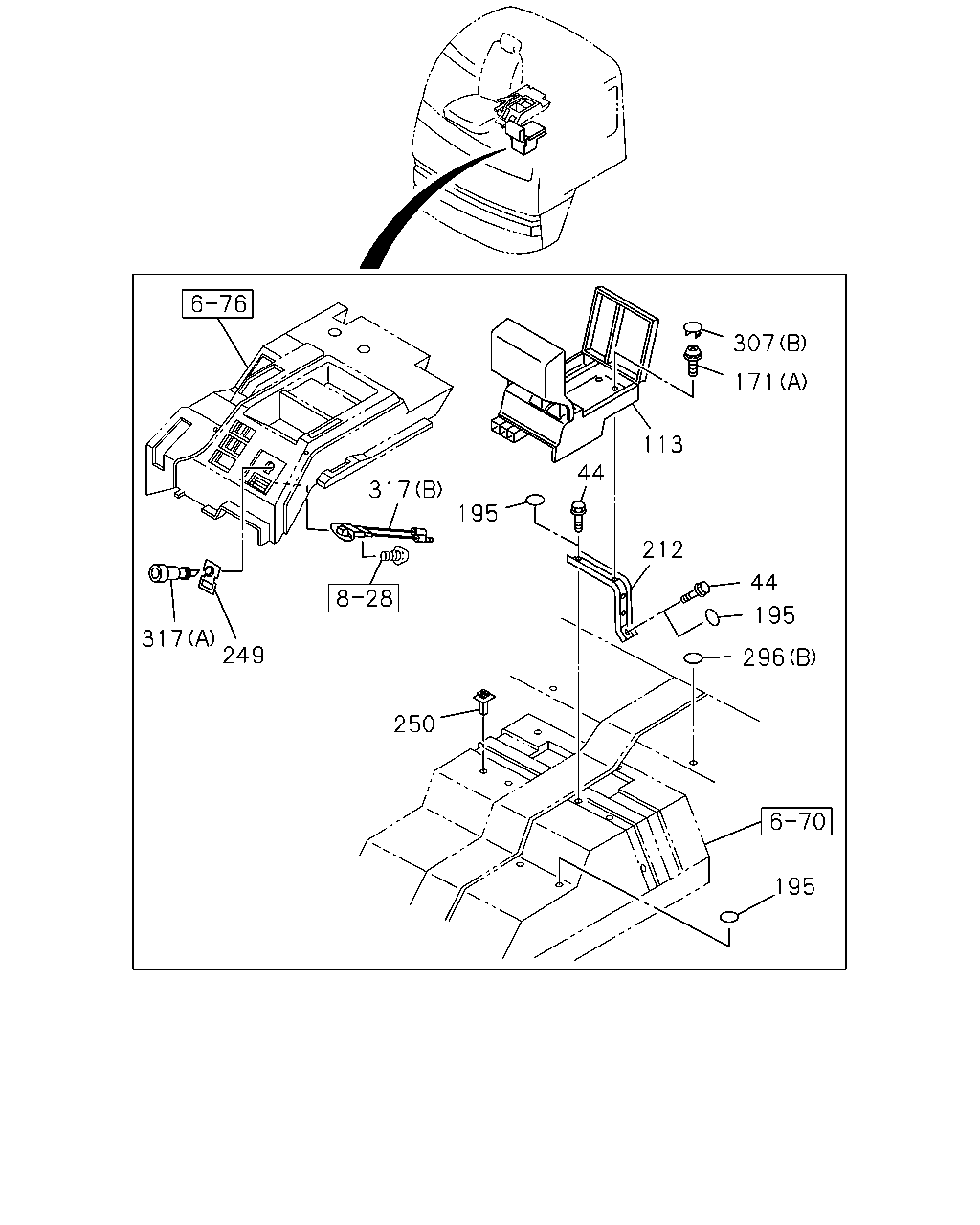

çizim 89747
307 171 113 44 317 195 212 44 195 317 249 296 250 195
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-323-1 01 1 0610-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 0610-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-330-1 01 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0603-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0603-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0603-
249 COVER 1-82529-001-0 01 1 0603-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0603-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0603-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0603-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0603-
317 CONSENT
(B) 		1-82523-020-2 01 1 0603-
317 CONSENT
(A) 		8-94382-451-1 01 1 0603-

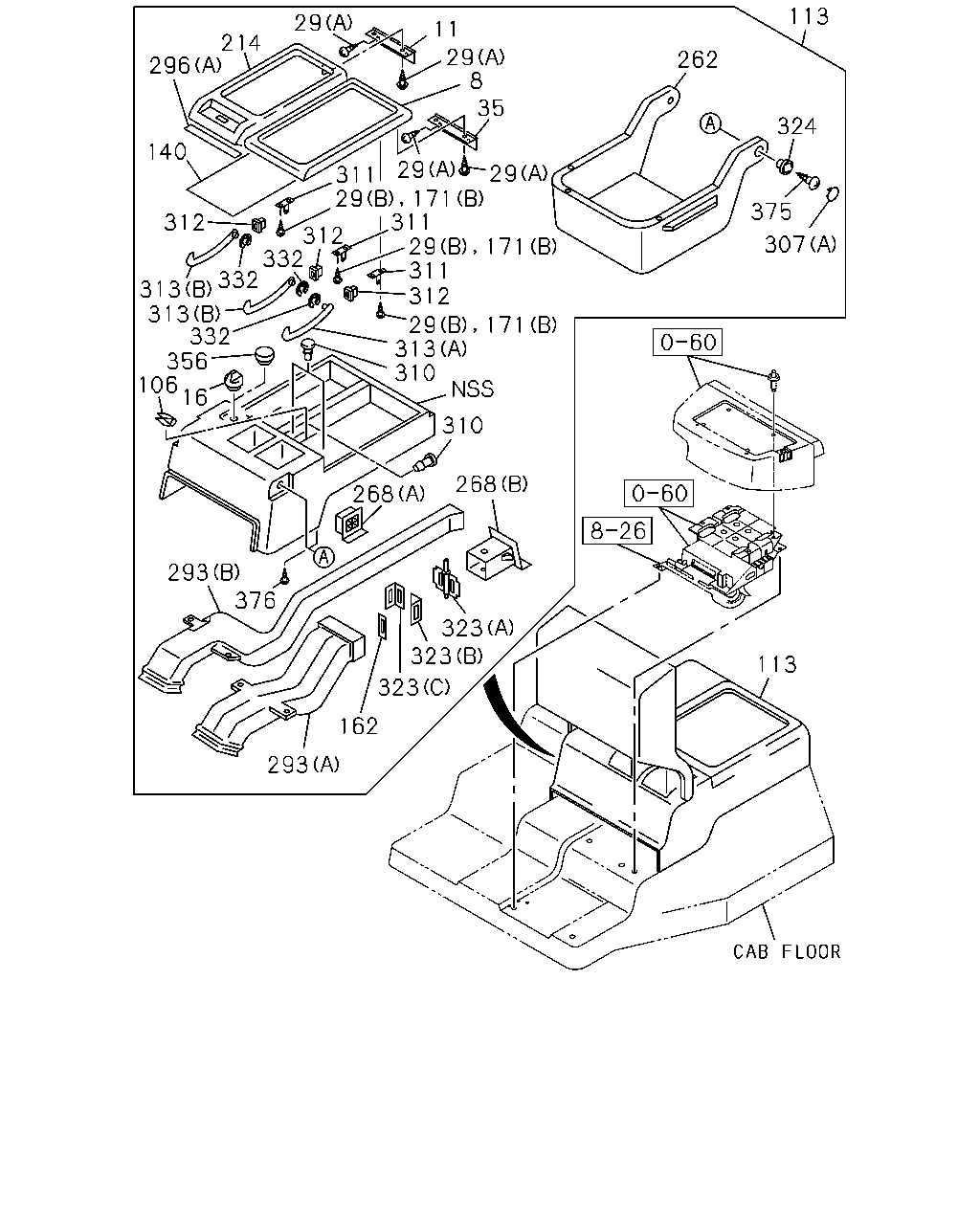

çizim 105478
113 29 11 214 29 8 35 262 296 324 140 29 311 29 29 171 311 29 311 312 375 312 312 332 332 313 313 332 356 106 16 307 171 29 313 310 171 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0603-0705
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-185-0 01 1 0603-0705
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0706-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0603-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0603-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0603-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0603-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0603-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0603-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-182-1 01 1 0603-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0603-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-079-0 02 1 0603-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-323-1 01 1 0610-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 0610-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0603-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-330-1 01 1 0610-
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0603-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0603-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0603-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0603-0705
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-186-0 01 1 0603-0705
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0706-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-339-0 01 1 0706-
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 0603-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0603-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 0603-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0603-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 0603-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0603-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0603-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0603-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0603-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0603-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0603-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-187-0 02 1 0603-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0603-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0603-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0603-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-186-1 03 1 0603-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0603-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-184-3 01 1 0603-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0603-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72538-185-3 02 1 0603-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0603-0705
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0706-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0603-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0603-
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0603-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0603-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-170-0 03 1 0603-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0603-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M6X20 		1-72537-319-0 02 1 0610-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610-
