Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#31313) — 16 parça
◀

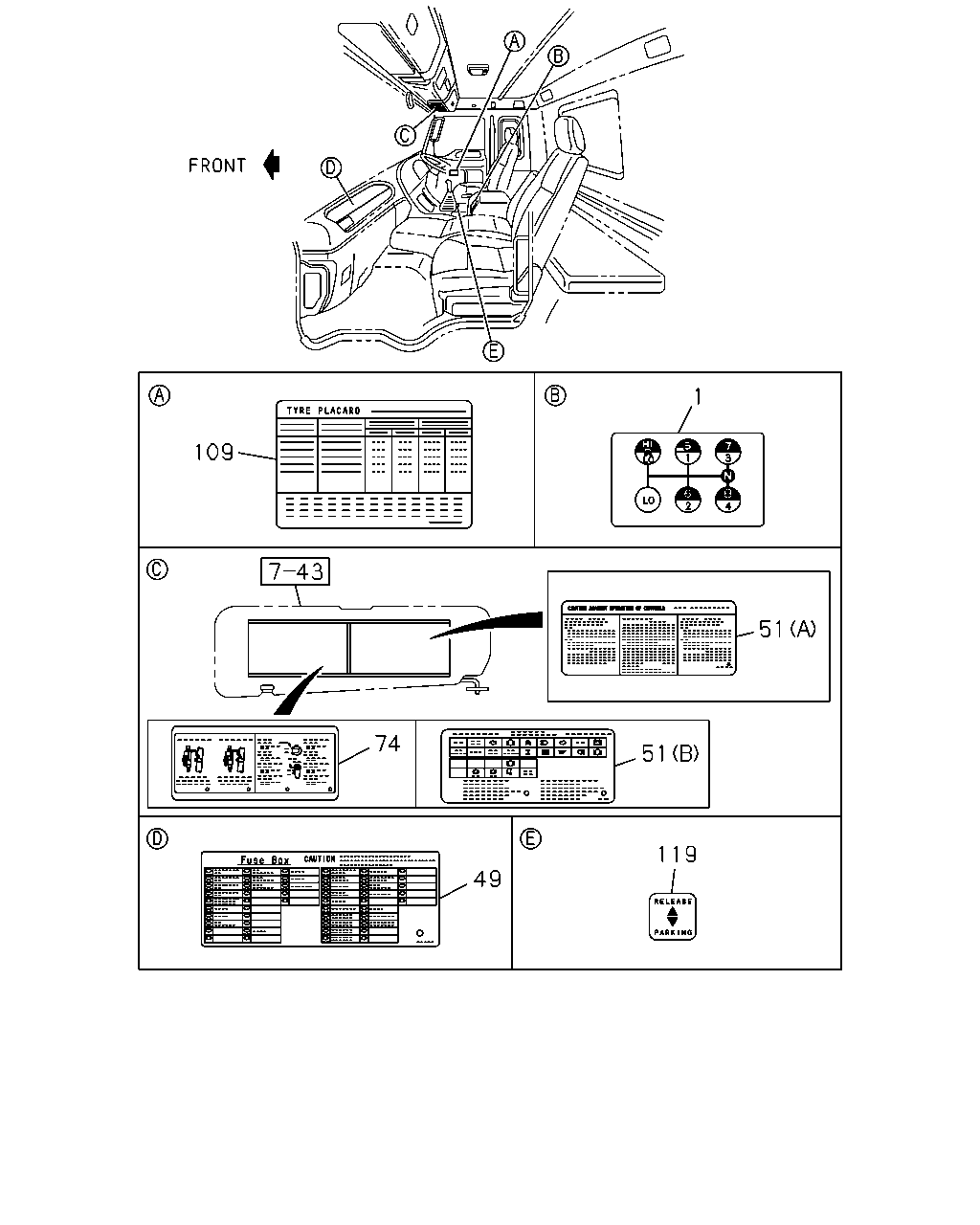

[710A] CAB INSIDE (8 parça)

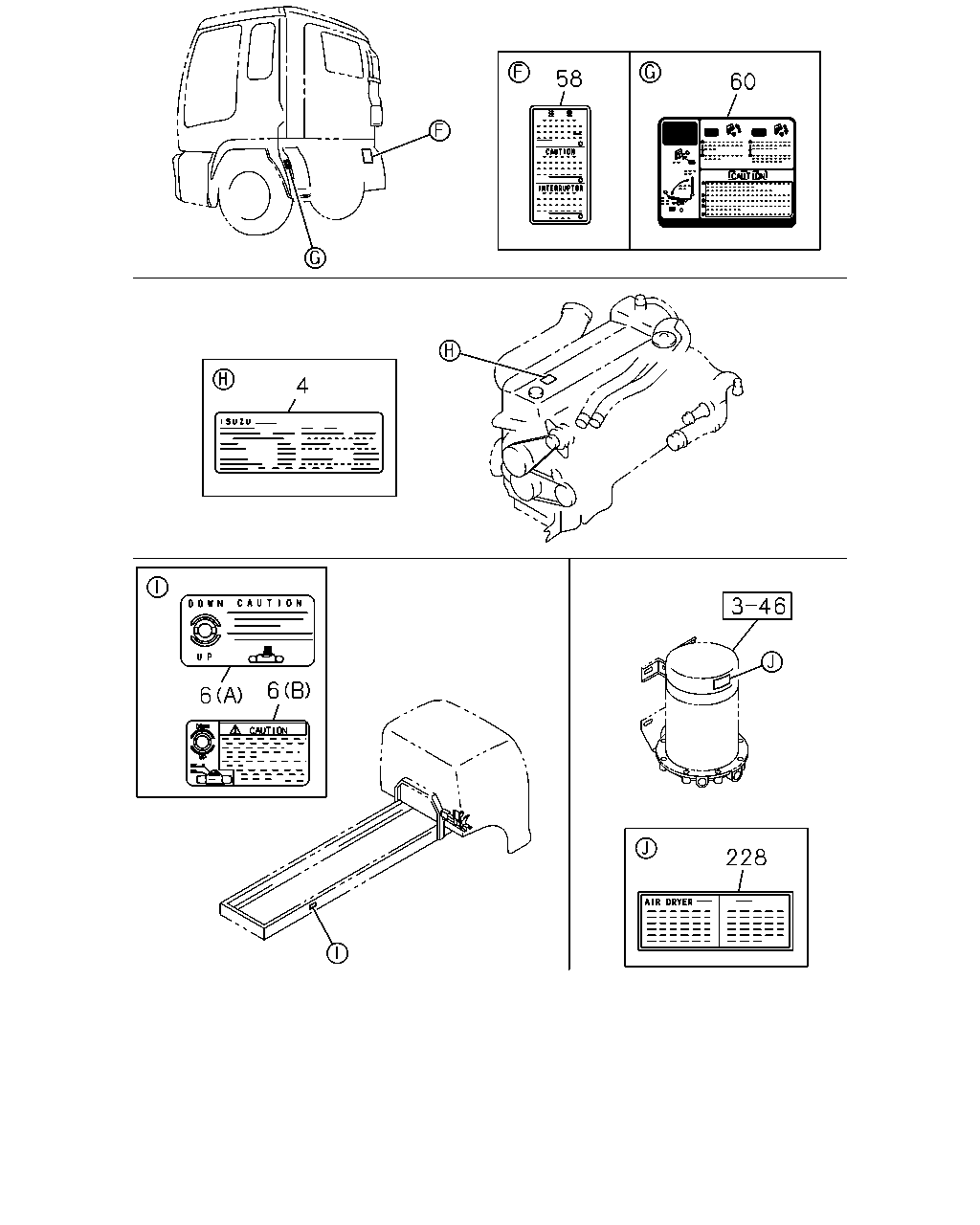

[710A] CAB OUTSIDE AND FRAME SIDE (6 parça)
[710A] AIR CLEANER (2 parça)
▶
1
109
51
74
51
119
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PLATE; CAUTION,SHIFT PATTERN
1-85881-519-0
01
1
0603-
49
PLATE; CAUTION,FUSE BOX
1-85878-393-0
01
1
0603-
51
PLATE; CAUTION,WARNING
(B)
1-85878-333-1
01
1
0603-
51
PLATE; CAUTION,WARNING
(A)
1-85880-725-0
01
1
0603-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 13(Y3R)
1-85881-845-0
01
1
0603-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S)
1-85881-846-0
01
1
0603-
109
PLATE; CAUTION,TIRE PLACARD
1-85881-932-0
01
1
0603-
119
PLATE; CAUTION,HAND BRK LEVER
1-85881-759-0
01
1
0603-
58
60
4
6
6
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
LABEL; ENG MAINTENANCE
1-85875-174-1
01
1
0603-
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53639-004-0
01
1
0603-0708
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98082-437-0
01
1
0709-
58
PLATE; CAUTION,ENG START
1-85887-457-0
01
1
0603-
60
PLATE; CAUTION,CAB TILT
1-85883-174-0
01
1
0603-
228
PLATE; CAUTION,AIR DRYER
1-85887-935-0
01
1
0603-1001
181
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
PLATE; CAUTION,AIR CLEANER
(A)
1-85886-796-1
01
1
0603-
181
PLATE; CAUTION,AIR CLEANER
(B)
1-85886-813-1
01
1
0603-
