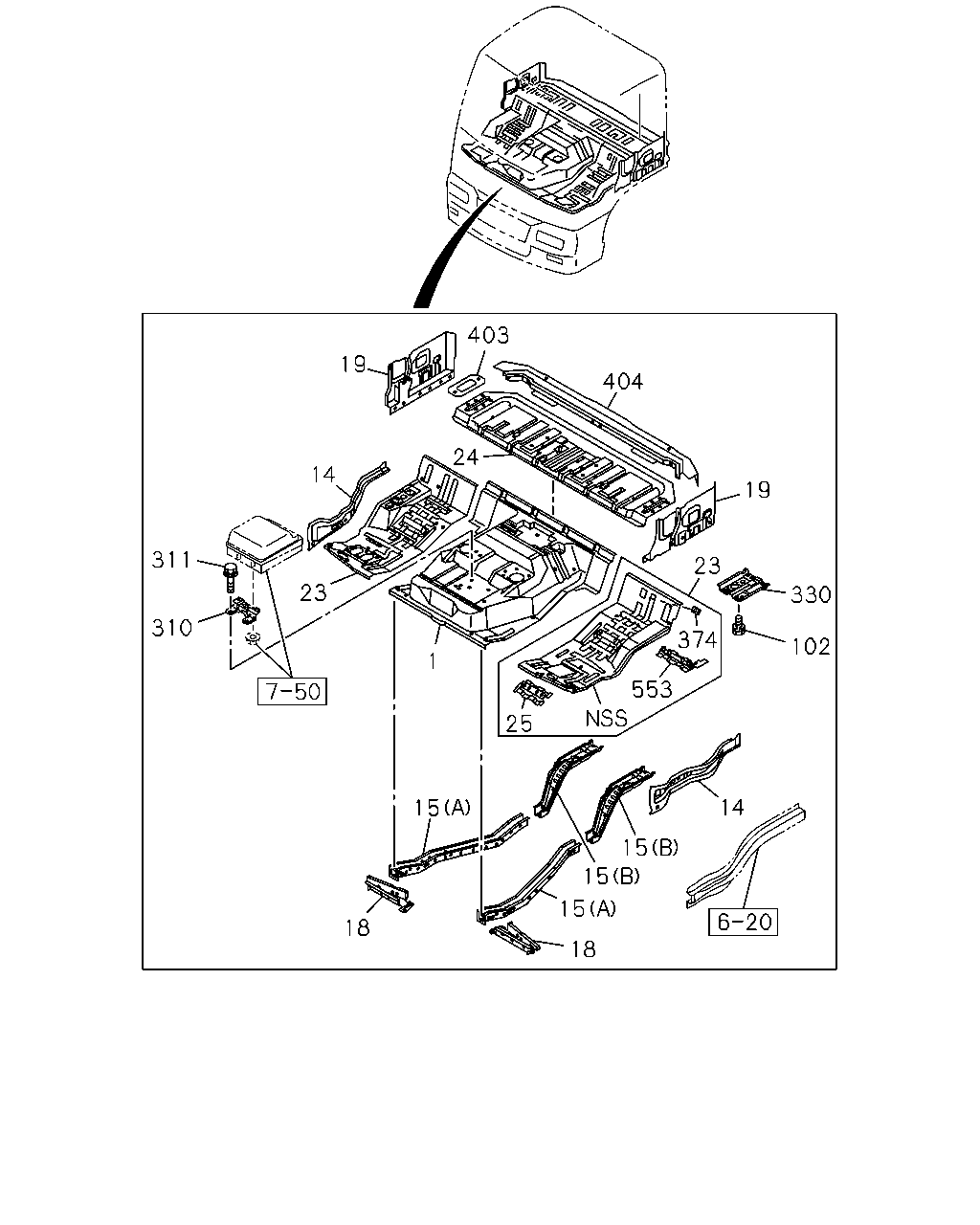

6-70 — FLOOR PANEL (#31303) — 26 parça

19 403 404 24 14 23 311 310 1 25 553 374 23 19 330 102 14 15 15 15 18 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL; FLOOR	1-62172-603-4	01	1	0603-
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	0603-
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	0603-
15	FRAME; UNDER (B)	1-62472-598-6	01	1	0603-
15	FRAME; UNDER (A)	1-62472-603-9	01	1	0603-
15	FRAME; UNDER (B)	1-62472-680-1	01	1	0603-
15	FRAME; UNDER (A)	1-62472-766-1	01	1	0603-
18	FRAME; FLOOR,CENTER SIDE	1-62482-997-6	01	1	0603-
18	FRAME; FLOOR,CENTER SIDE	1-62483-168-3	01	1	0603-
19	PANEL; FLOOR SIDE,REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-62472-615-4	01	1	0603-
19	PANEL; FLOOR SIDE,REAR	1-62472-659-2	01	1	0603-
19	PANEL; FLOOR SIDE,REAR EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-62472-660-2	01	1	0603-
23	PANEL; FLOOR,SIDE	1-62172-791-0	01	1	0603-
23	PANEL; FLOOR,SIDE	1-62172-798-0	01	1	0603-
24	PANEL; BED PAN	1-62172-540-9	01	1	0603-
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62182-926-4	01	1	0603-
102	BOLT; FLOOR BOARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0603-0904
102	BOLT; FLOOR BOARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
310	BRACKET; SEAT STAND EXC. CENTER SEAT DELETE(SP9)	1-76397-015-0	01	1	0603-
311	BOLT; BRKT EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904
311	BOLT; BRKT EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
330	REINFORCEMENT; FLOOR	1-62172-585-5	01	1	0603-
374	NUT; FLOOR M6	1-09984-110-0	01	1	0603-
403	PATCH; FIRE EXTINGUSHER	1-62172-569-0	01	1	0603-
404	RAIL ASM; MTG,RR	1-62472-596-8	01	1	0603-
553	REINFORCEMENT; SEAT STAND RR	1-62172-795-0	01	1	0603-
