Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

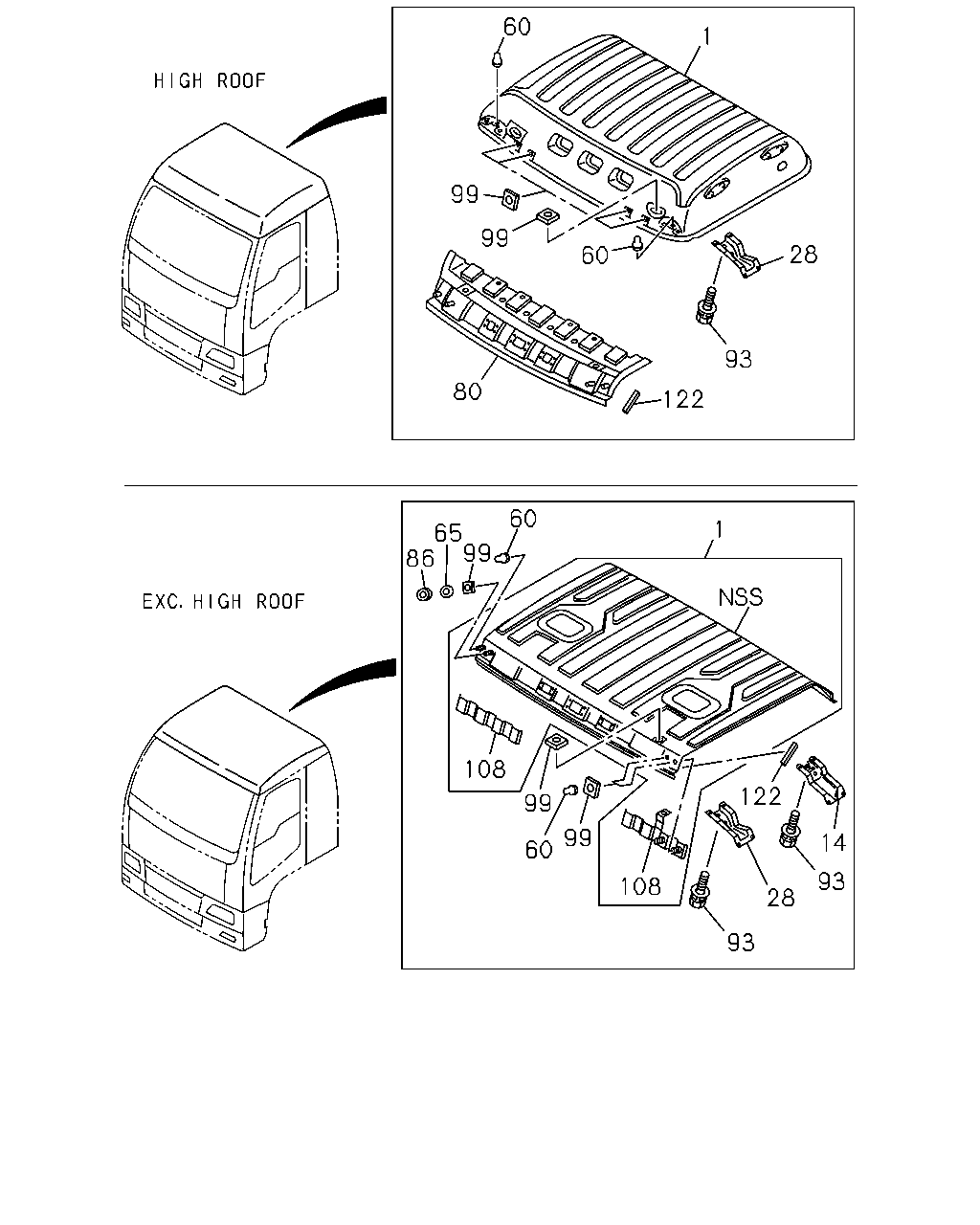

6-60 — ROOF PANEL
(#31301) — 24 parça
60
1
99
99
28
60
93
80
122
60
1
65
99
86
108
122
99
99
14
60
93
108
28
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
HIGH ROOF<S2F>
1-61170-821-1
01
1
0603-
1
PANEL; ROOF
EXC. HIGH ROOF<S2F>
1-61170-861-0
01
1
0603-
14
SUPPORT; ROOF
EXC. HIGH ROOF<S2F>
1-73318-595-3
02
1
0603-
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0603-
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0603-
60
COVER; ROOF
1-79998-922-3
05
1
0603-
65
WASHER; PL
EXC. HIGH ROOF<S2F> ID=8 T=2.3
8-94368-403-1
02
1
0603-0701
65
WASHER; PL
EXC. HIGH ROOF<S2F> ID=8 T=2.3
8-98073-399-0
02
1
0702-
80
PANEL; HEADER,ROOF
HIGH ROOF<S2F>
1-61170-845-0
01
1
0603-
86
NUT; ROOF
EXC. HIGH ROOF<S2F> M8 LOCK NUT
9-09131-508-0
02
1
0603-0603
86
NUT; ROOF
EXC. HIGH ROOF<S2F> M8 LOCK NUT
0-91370-008-0
02
1
0604-
93
BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0603-
93
BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0603-
99
SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=1.0
1-61270-920-1
09
1
0603-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
0603-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
10
1
0603-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
08
1
0603-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
0603-
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-1
02
1
0603-
99
SEAL; BODY,METAL
EXC. HIGH ROOF<S2F> 75X50 ID=36
1-61281-458-1
02
1
0603-
108
PATCH; MIRROR
EXC. HIGH ROOF<S2F>
1-61170-772-3
01
1
0603-
108
PATCH; MIRROR
EXC. HIGH ROOF<S2F>
1-61170-862-1
01
1
0603-
122
SEAL; FRT UPR
1-61270-919-0
02
1
0603-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
