Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#31283) — 256 parça

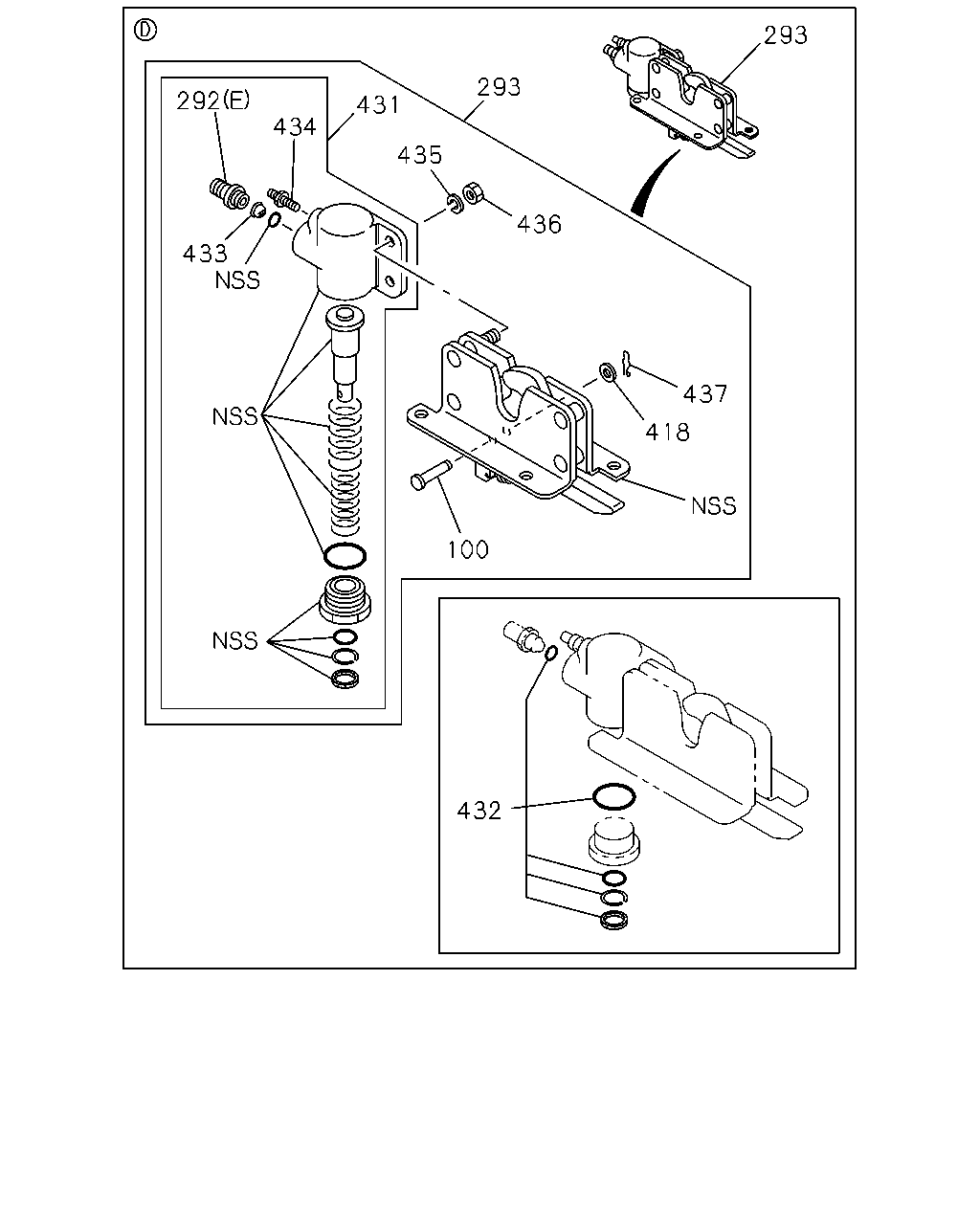

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0603-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0603-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0603-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0603-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0603-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0603-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0603-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0603-
436	NUT; AIR CYL	1-53458-528-0	02	1	0603-
437	PIN; SNAP	1-53458-526-0	01	1	0603-

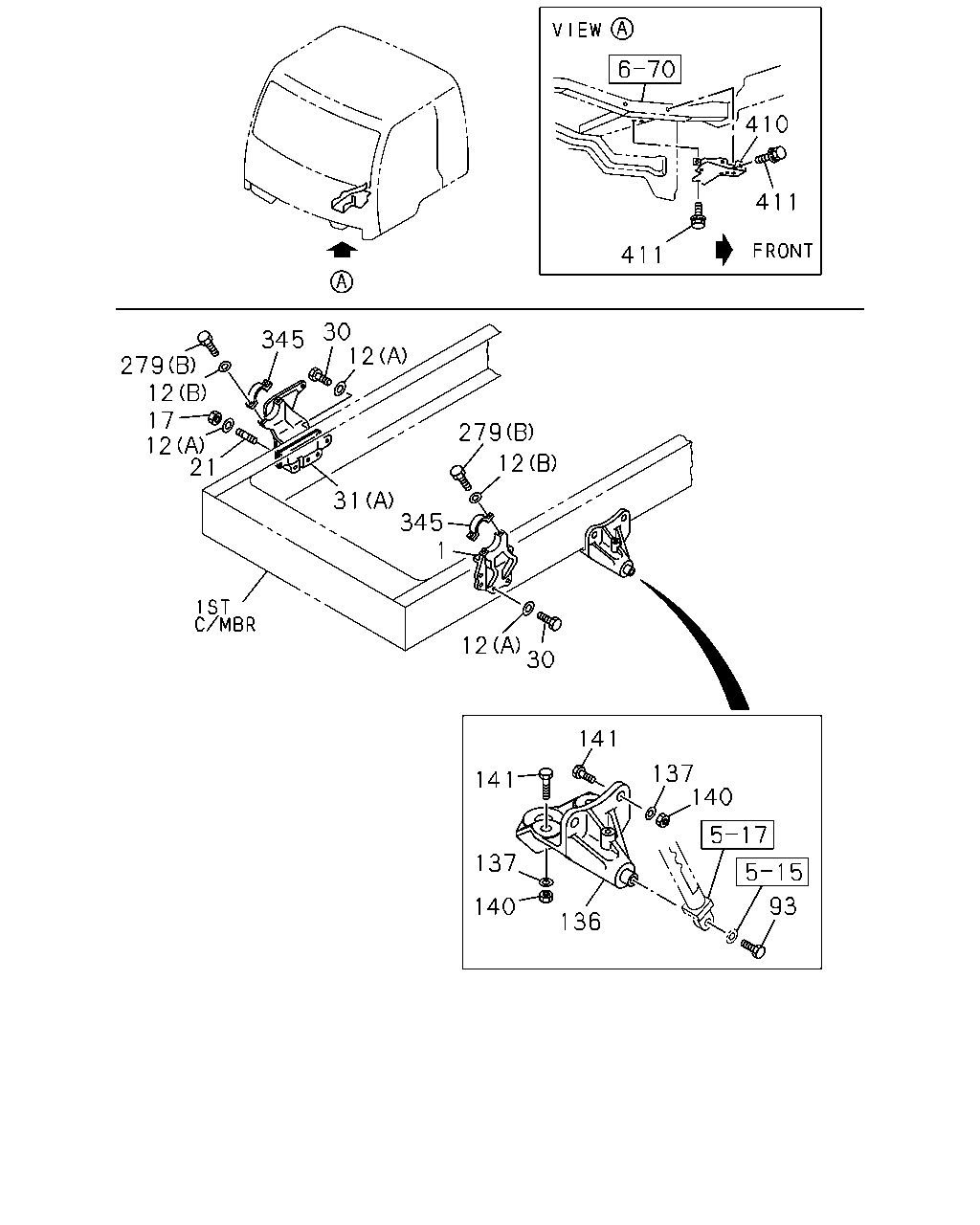

410 411 411 30 12 345 279 12 17 12 21 279 12 31 345 1 12 30 141 137 140 141 137 93 140 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-312-0	01	1	0603-0802
1	BRACKET; CAB MTG	8-98094-536-0	01	1	0803-
12	WASHER; LK,BRKT (B) ID=15	9-09651-069-0	04	1	0603-1201
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1202-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-223-0	11	1	0603-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0603-
21	STUD; BRKT,CAB TILT M16X50 L=74	1-09300-117-0	01	1	0603-
30	BOLT; CAB FRT FOOT M14X60	0-20951-460-0	02	1	0603-
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	02	1	0603-
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	10	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0603-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-2	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0603-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0603-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0603-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0603-1201
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1202-
140	NUT; BRKT M14	0-91110-514-0	02	1	0603-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0603-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0603-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0603-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0603-
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0603-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0603-
345	CAP; CAB	1-53458-336-3	02	1	0603-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0603-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0603-0904
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0603-

202 202 203 204 205 294 204 203 201 173 203 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-2	01	1	0603-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0603-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0603-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0603-
174	OUTRIGGER	1-53456-277-3	01	1	0603-1003
174	OUTRIGGER	8-98158-645-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0603-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	0603-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0603-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0603-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0603-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0603-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0603-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0603-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0603-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0603-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0603-

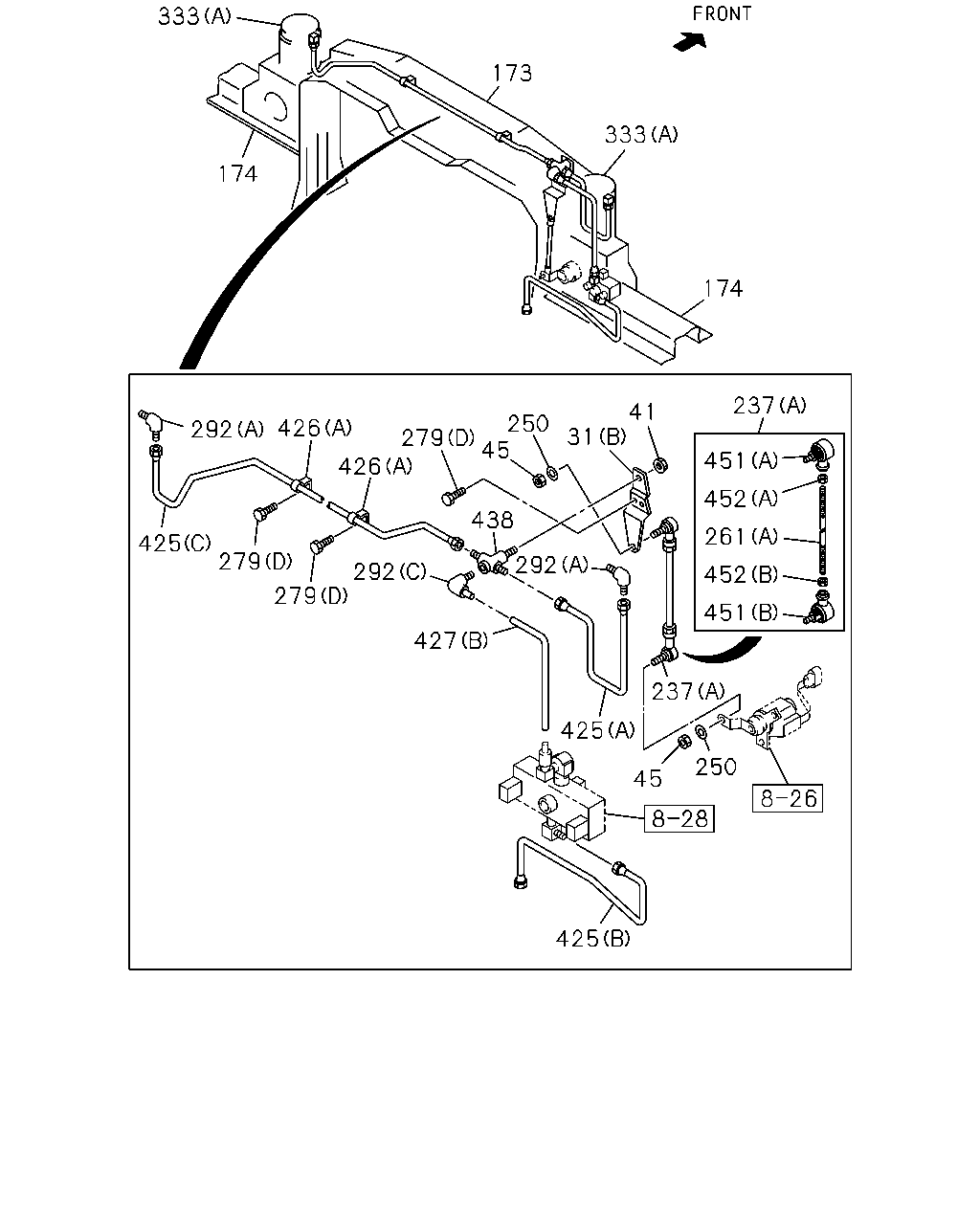

333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 451 427 237 425 250 45 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0603-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-2	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0603-
41	NUT FULL FLOATING CAB(W16) M12 FLANGE	0-91150-212-0	01	1	0603-0603
41	NUT FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	01	1	0603-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0603-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0603-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0603-
174	OUTRIGGER	1-53456-277-3	01	1	0603-1003
174	OUTRIGGER	8-98158-645-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0603-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0603-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0603-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0603-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0603-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0603-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0603-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0603-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0603-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0603-
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0603-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0603-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0603-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0603-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0603-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	0603-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B)	1-49124-890-0	01	1	0603-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0603-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0603-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	0603-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0603-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0603-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0603-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0603-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-2	02	1	0603-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-2	02	1	0603-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0603-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0603-

202 69 72 204 205 70 65 204 203 202 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0603-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0603-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0603-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0603-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0603-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0603-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0603-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0603-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0603-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0603-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0603-

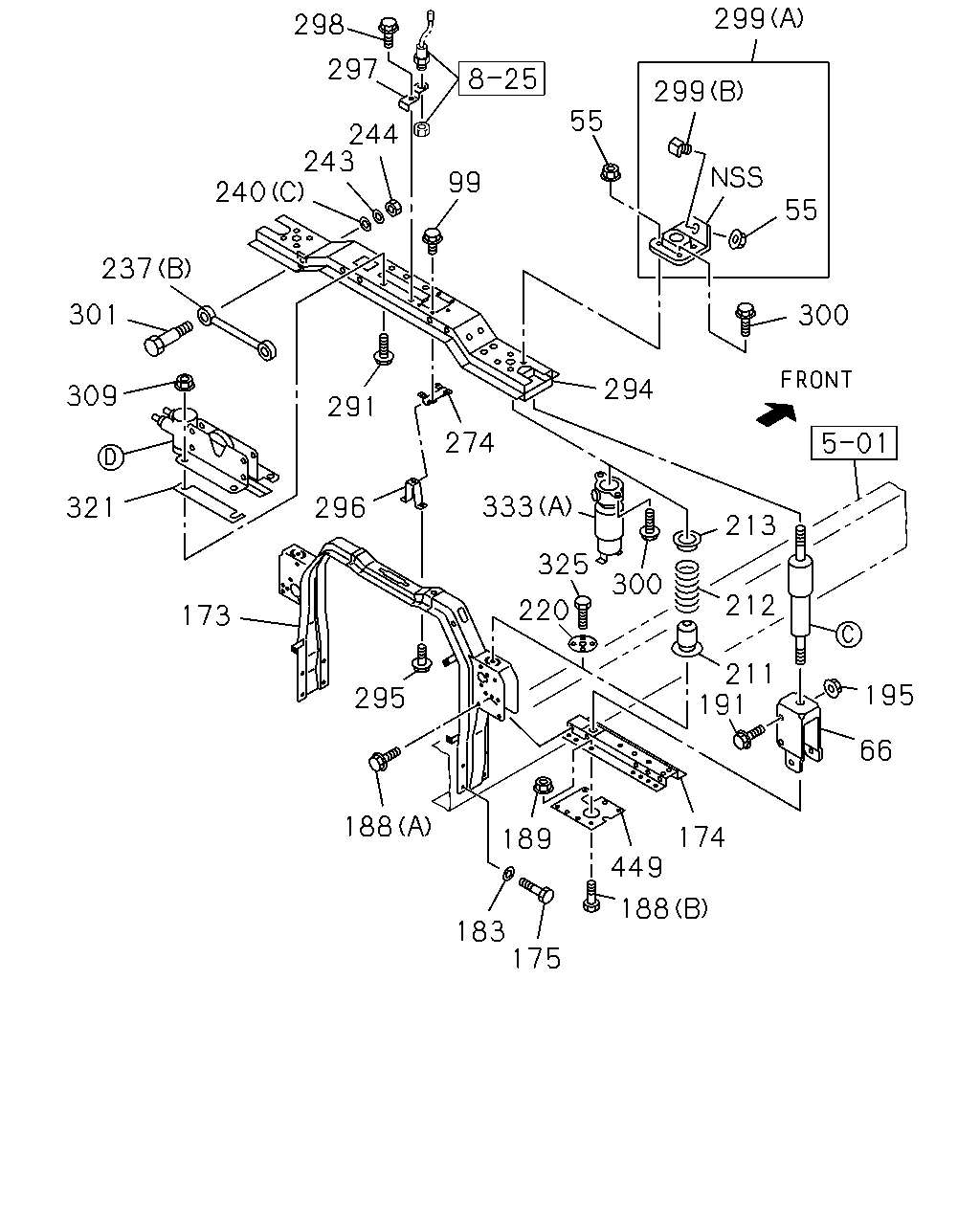

299 298 297 299 55 244 243 240 99 55 237 301 300 294 309 291 274 333 321 296 213 325 300 212 220 173 211 191 195 295 449 66 188 174 189 188 183 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0603-0603
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-
66	BRACKET; S/ABS	1-53458-755-2	01	1	0603-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0603-
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0603-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-665-0	01	1	0603-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0603-
174	OUTRIGGER	1-53456-277-3	01	1	0603-1003
174	OUTRIGGER	8-98158-645-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0603-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0603-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0603-1201
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1202-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	08	1	0603-0907
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	0908-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0603-
189	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	08	1	0603-0603
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	08	1	0603-0907
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	0908-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0603-
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0603-0603
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0603-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0603-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0603-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0603-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0603-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0603-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0603-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0603-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0603-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0603-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0603-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0603-0603
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0604-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0603-
274	PIN	1-53458-996-0	01	1	0603-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0603-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0603-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0603-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0603-
296	STOPPER; UPR	1-53458-973-1	01	1	0603-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0603-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0603-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0603-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0603-0812
299	RUBBER; MTG (A)	1-53366-194-0	02	1	0901-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28050-816-0	04	1	0603-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0603-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0603-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0603-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0603-0603
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0603-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0603-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0603-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0603-
449	BRACKET; OUTRIGGER	1-53456-279-0	02	1	0603-0907
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0908-

237 451 452 261 452 451 279 333 146 292 144 240 145 31 192 427 278 45 72 73 250 69 72 71 105 112 45 250 279 72 73 426 71 426 69 72 105 279 67 240 426 98 192 279 292 112 333 31 120 31 279 118 27 146 144 315 145 118 27 315 113 113 237 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0603-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0603-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0603-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-2	01	1	0603-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0603-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0603-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0603-0603
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0603-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0603-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0603-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0603-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0603-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0603-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-2	01	1	0603-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-7	01	1	0603-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	0603-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0603-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0603-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0603-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0603-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0603-
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	0603-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0603-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0603-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0603-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0603-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0603-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0603-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0603-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0603-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0603-
278	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0603-1105
278	COVER FULL FLOATING CAB(W16) L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0603-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0603-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0603-
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0603-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0603-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0603-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0603-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0603-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0603-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0603-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0603-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	0603-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0603-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0603-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0603-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-2	02	1	0603-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-2	02	1	0603-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0603-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
