5-01 — FRAME AND OTHER PARTS
(#31282) — 42 parça
◀

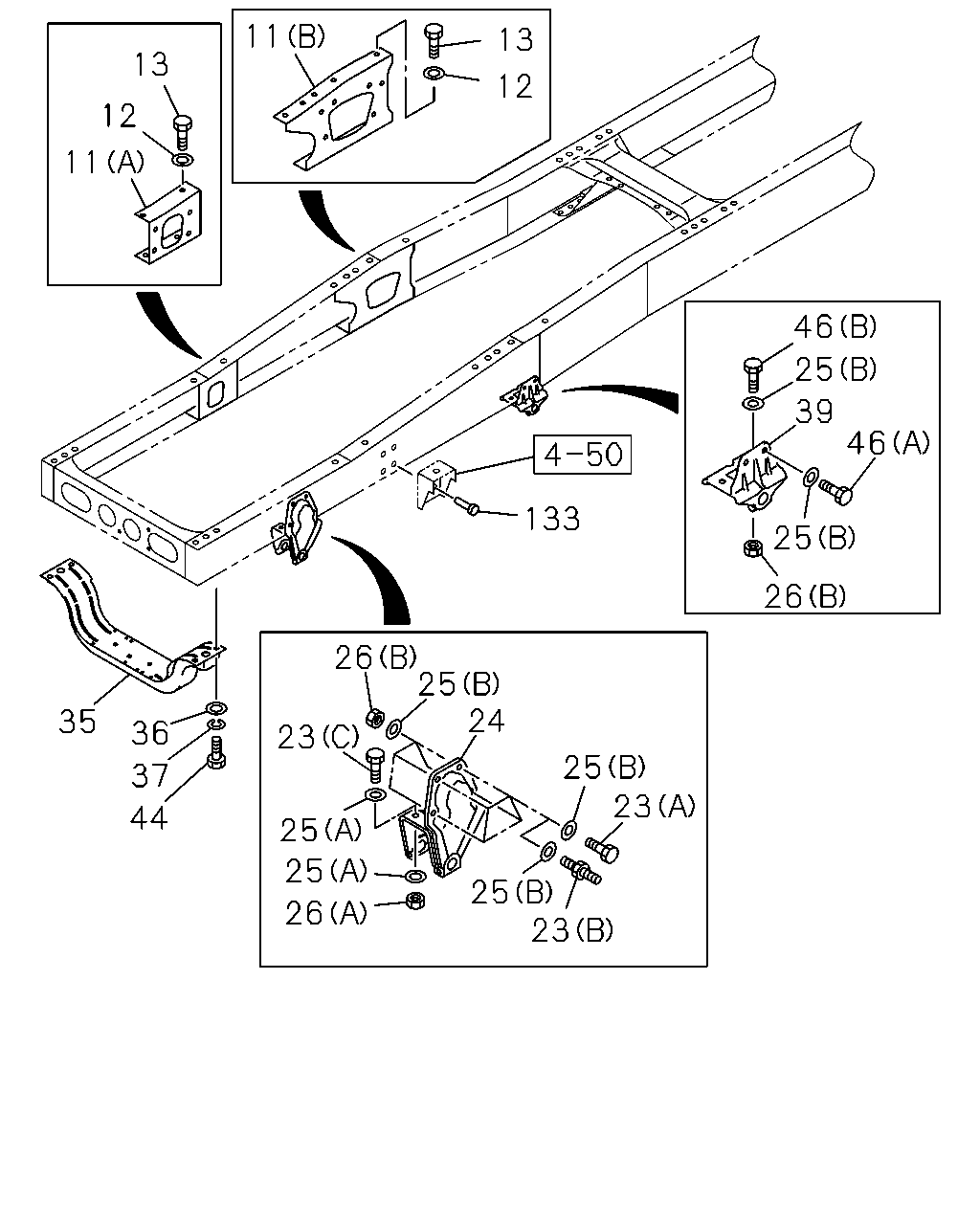

[501A] BRACKET AND UNDER MEMBER (28 parça)

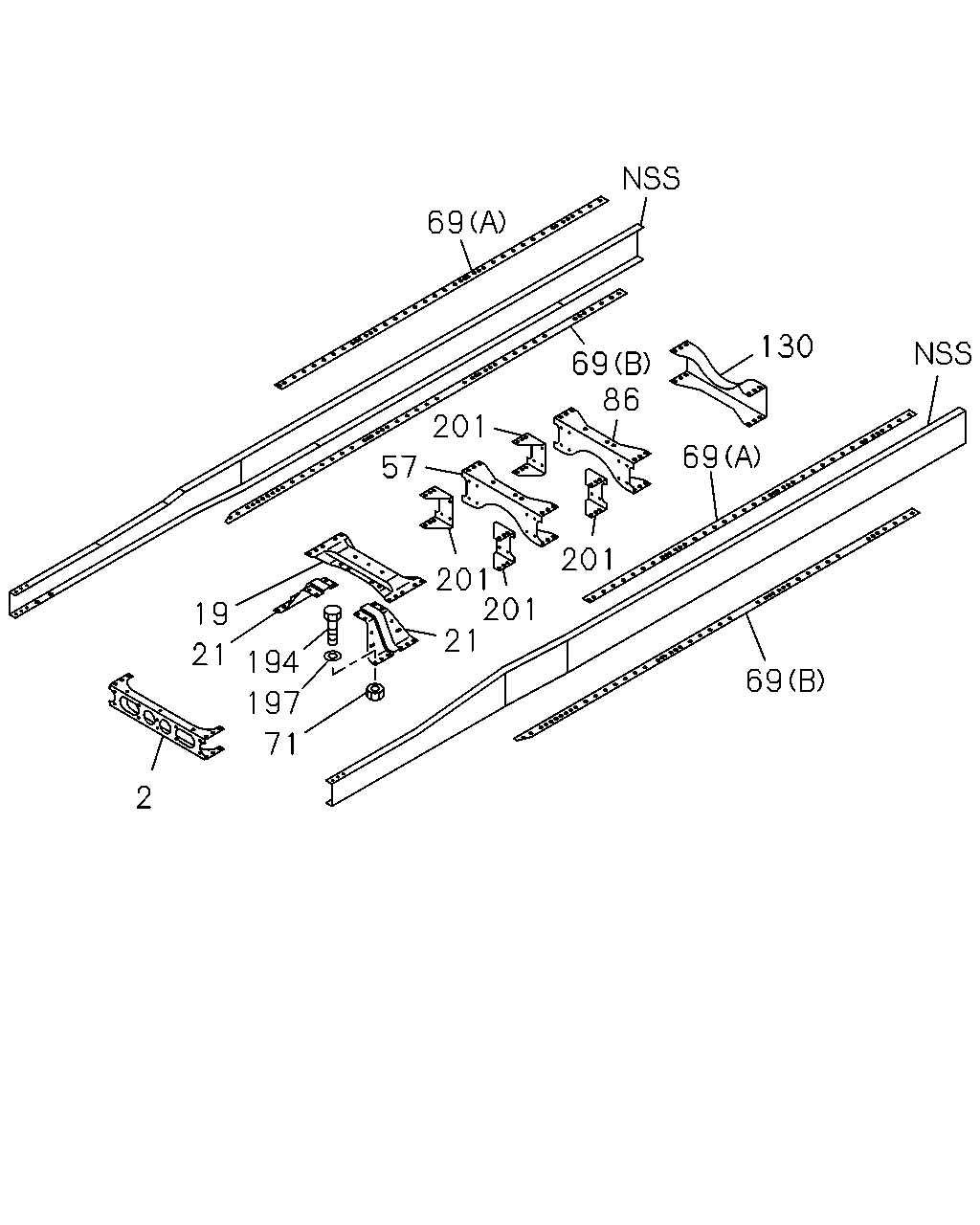

[501A] CROSS MEMBER (14 parça)
▶
11
13
13
12
12
11
46
25
39
46
25
133
26
26
25
24
35
23
36
25
23
37
44
25
25
23
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-777-1
01
1
0603-
11
BRACKET; ENG MTG
(A)
1-53219-778-1
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53219-941-0
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53219-942-1
01
1
0603-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
04
1
0603-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
04
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0603-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
0603-
23
BOLT; BRKT,SPR
(C) M16X50
0-20951-650-0
04
1
0603-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
04
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0603-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
08
1
0603-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
24
1
0603-1201
25
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
(B) M14
0-91110-514-0
10
1
0603-
26
NUT; BRKT,SPR
(A) M16
0-91110-516-0
04
1
0603-
35
MEMBER; UNDER
1-53174-263-2
01
1
0603-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0603-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
04
1
0603-0603
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0604-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0603-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0603-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
04
1
0603-1402
44
BOLT; UNDER MBR
M16X45
0-20951-645-0
04
1
1403-
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
04
1
0603-
46
BOLT; BRKT FIX
(B) M14X50
0-20951-450-0
04
1
0603-
133
RIVET; BRKT
D13X36 PLATED TAPER END
1-09730-087-0
08
1
0603-
69
130
69
86
201
57
201
201
201
21
69
19
21
194
69
197
71
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0603-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0603-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0603-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0603-
57
MEMBER; CROSS,RR SUSP FRT
1-53181-937-3
01
1
0603-
69
GUSSET; RR SUSP,UPR
(A)
1-53161-803-0
02
1
0603-
69
GUSSET; RR SUSP,UPR
(B)
1-53161-804-2
02
1
0603-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0603-
86
MEMBER; CROSS,RR SUSP RR
1-53181-937-3
01
1
0603-
130
MEMBER; CROSS,END
1-53181-875-1
01
1
0603-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
0603-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0603-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
201
GUSSET; C/MBR
1-53167-544-1
04
1
0603-
