Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

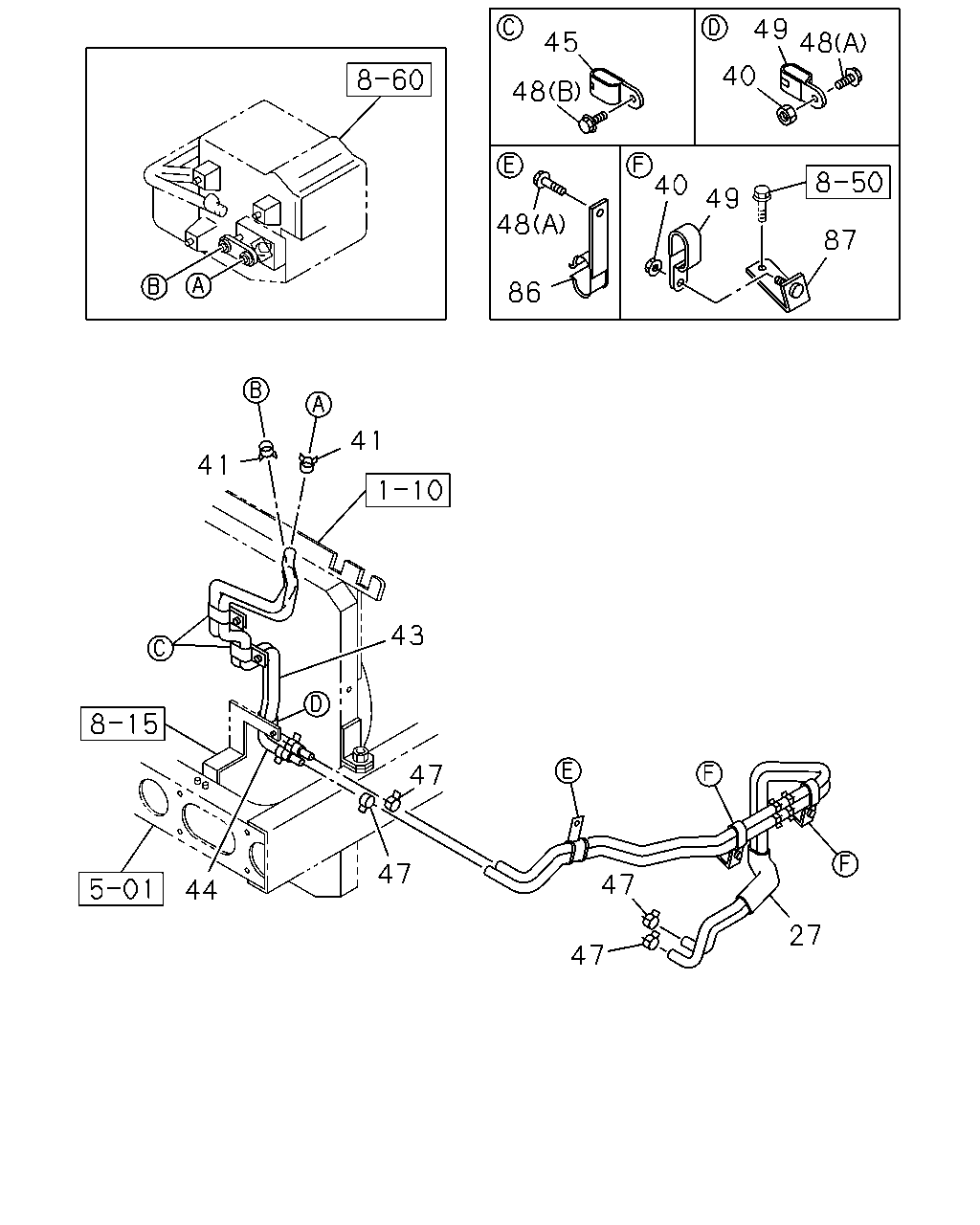

8-45 — HEATER PIPING
(#31281) — 16 parça
49
45
40
48
40
49
48
87
86
41
41
43
47
47
47
44
27
47
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-802-3
01
1
0603-
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0603-0603
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
0603-0611
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
0612-
43
HOSE; WATER,OUTLET,HTR
1-83565-570-3
01
1
0603-
44
HOSE; WATER,HTR,INL
1-83565-569-4
01
1
0603-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
0603-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0603-0611
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0603-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
03
1
0603-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0603-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0603-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0603-
87
BRACKET; HTR HOSE CLIP
1-83573-251-1
02
1
0603-
