8-52 — PIPING; AIR CONDITIONING (#31272) — 76 parça

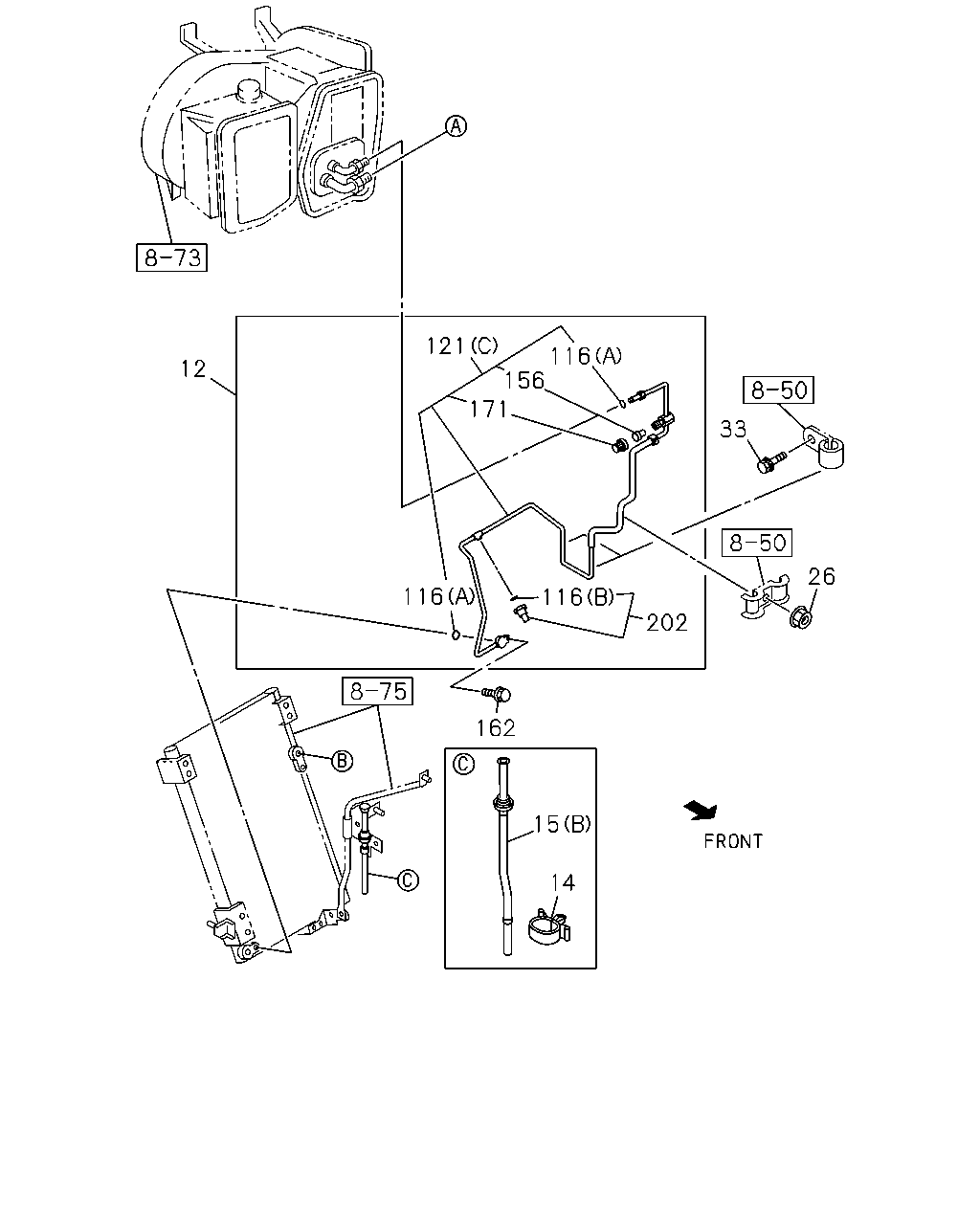

çizim 88724
12 121 171 156 116 33 26 202 116 116 162 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 0511-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0511-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0511-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0511-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 04 1 0511-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 04 1 0603-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0511-0904
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0511-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0511-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98204-808-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98204-810-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 0511-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-1 01 1 0511-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-83572-801-1 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-1 01 1 0511-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		1-83572-802-1 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-066-0 01 1 0511-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-067-0 01 1 0511-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0511-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0511-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0511-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0511-
çizim 103572
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0511-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0511-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		9-09575-397-0 01 1 0511-0610

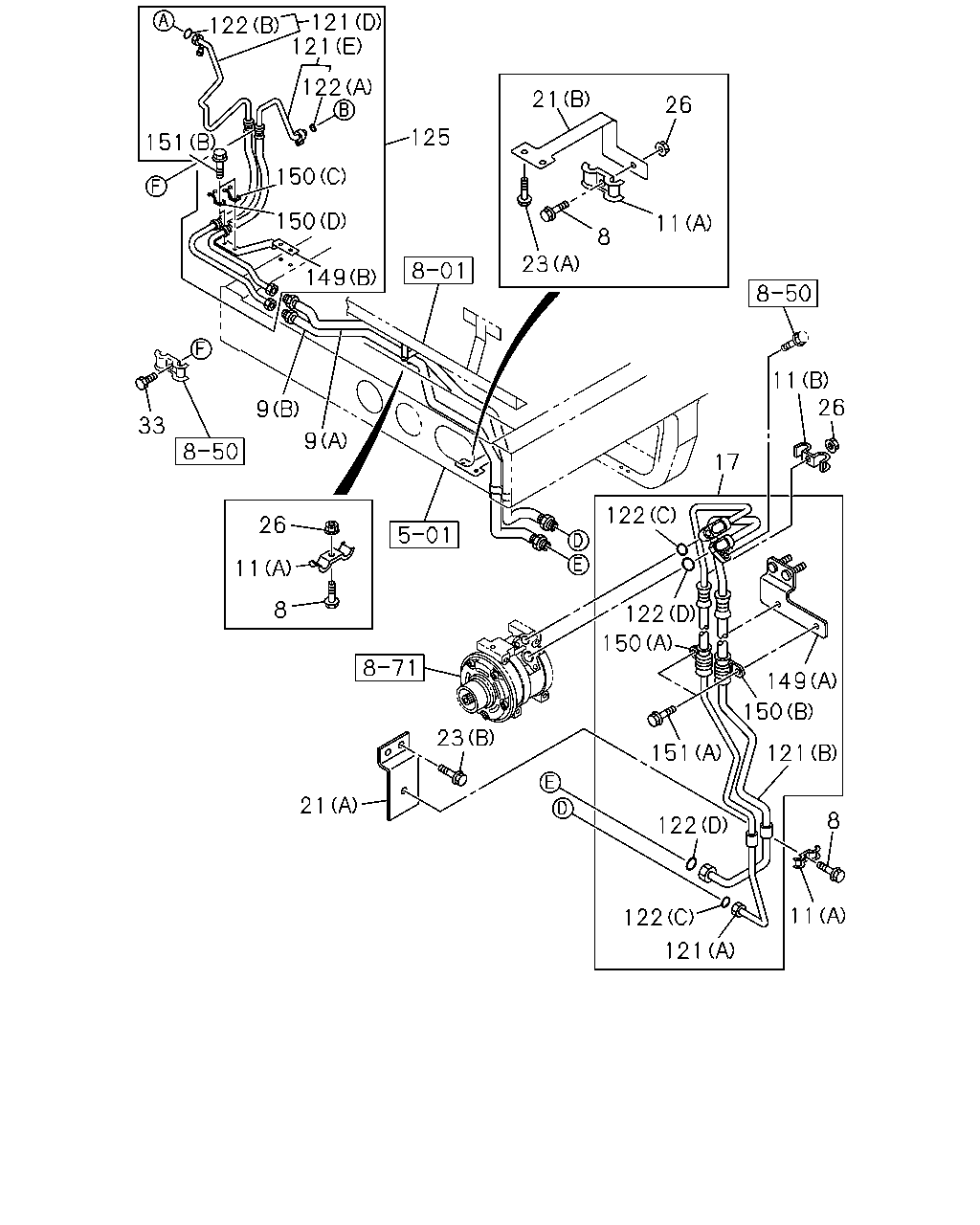

çizim 103700
121 121 122 122 21 26 125 151 150 150 11 8 149 23 11 26 9 33 9 17 122 26 11 8 122 23 150 149 150 151 121 21 8 122 11 122 121
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 03 1 0511-0512
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-059-0 01 1 0511-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-060-0 01 1 0511-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 03 1 0511-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0511-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-058-1 01 1 0511-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-202-0 01 1 0511-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-295-0 01 1 0511-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0511-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0511-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 04 1 0511-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 04 1 0603-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0511-0904
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98204-808-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98204-810-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 0511-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-1 01 1 0511-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-83572-801-1 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-1 01 1 0511-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		1-83572-802-1 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-066-0 01 1 0511-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-067-0 01 1 0511-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0511-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=11.7 		1-83539-317-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0511-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=14.5 		1-83539-324-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		8-97095-907-0 02 1 0511-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		8-97095-908-0 02 1 0511-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		8-97095-908-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (D) ID=14.5 		8-97095-908-0 02 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> 		8-98192-080-0 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-704-1 01 1 0511-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-83572-704-2 01 1 1110-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98204-812-0 01 1 1110-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-0 01 1 0511-1109
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) 		1-83573-206-1 01 1 1110-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0511-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0511-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-254-0 01 1 0511-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-255-0 01 1 0511-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0511-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0511-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0511-
