8-50 — AIR CONDITIONING SYSTEM; FRONT (#31271) — 46 parça

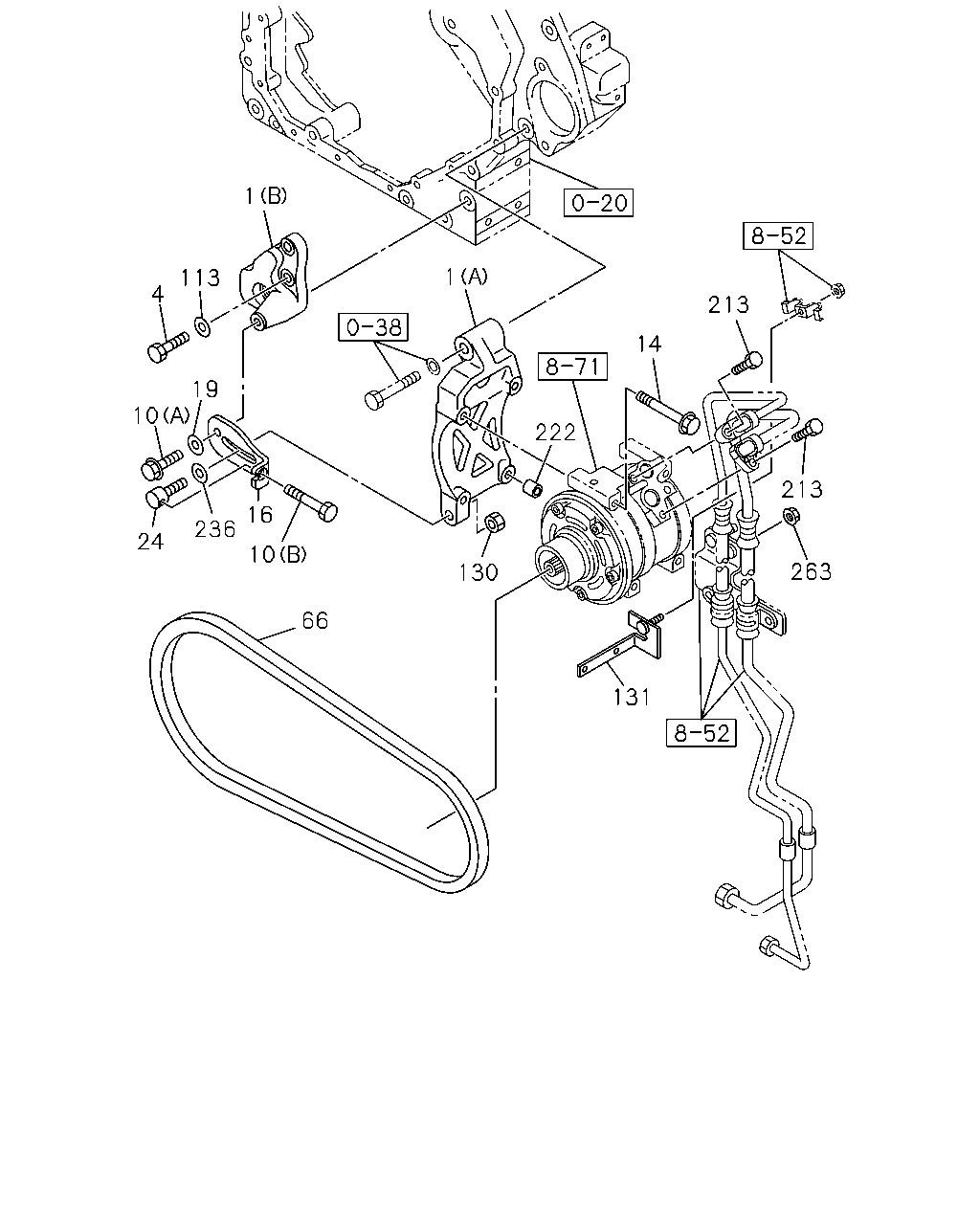

çizim 88725
1 1 113 4 213 14 19 10 222 213 16 236 24 10 263 130 66 131
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
(B) 		1-83573-119-0 01 1 0511-
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-095-2 01 1 0511-0610
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-095-3 01 1 0611-
4 BOLT; A/C CMPR BRKT
M14X135 		1-09020-055-0 03 1 0511-
10 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE 		0-28781-235-0 01 1 0511-0512
10 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE 		0-28751-235-0 01 1 0601-0610
10 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE 		0-28751-235-0 01 1 0611-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE 		0-28181-240-0 01 1 0511-0610
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE 		0-28181-240-0 01 1 0611-0804
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE 		0-28151-240-0 01 1 0805-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 0511-0610
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 0611-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28080-880-0 04 1 0511-0512
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28050-880-0 04 1 0601-0610
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28050-880-0 04 1 0611-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-293-1 01 1 0511-0610
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-293-2 01 1 0611-
19 WASHER; PL,ADJ PLATE TO CMPR
HEATER & DEFROSTER(C41) ID=12.5 OD=32 		9-09160-712-0 01 1 0511-0610
19 WASHER; PL,ADJ PLATE TO CMPR
HEATER & DEFROSTER(C41) ID=12.5 OD=32 		9-09160-712-0 01 1 0611-
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 0511-0610
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 0611-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-103-0 01 1 0911-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1196 		1-13671-464-1 01 1 0511-0610
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1196 		1-13671-464-1 01 1 0611-0910
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1189 		8-97604-138-1 01 1 0911-
113 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 03 1 0511-
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 0511-0602
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 0603-0610
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 0611-
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-244-0 01 1 0511-0610
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-244-0 01 1 0611-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0511-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19 		5-11779-001-0 02 1 0511-0610
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19 		5-11779-001-0 02 1 0611-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 0511-0610
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 0611-
263 NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0511-0602
263 NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-

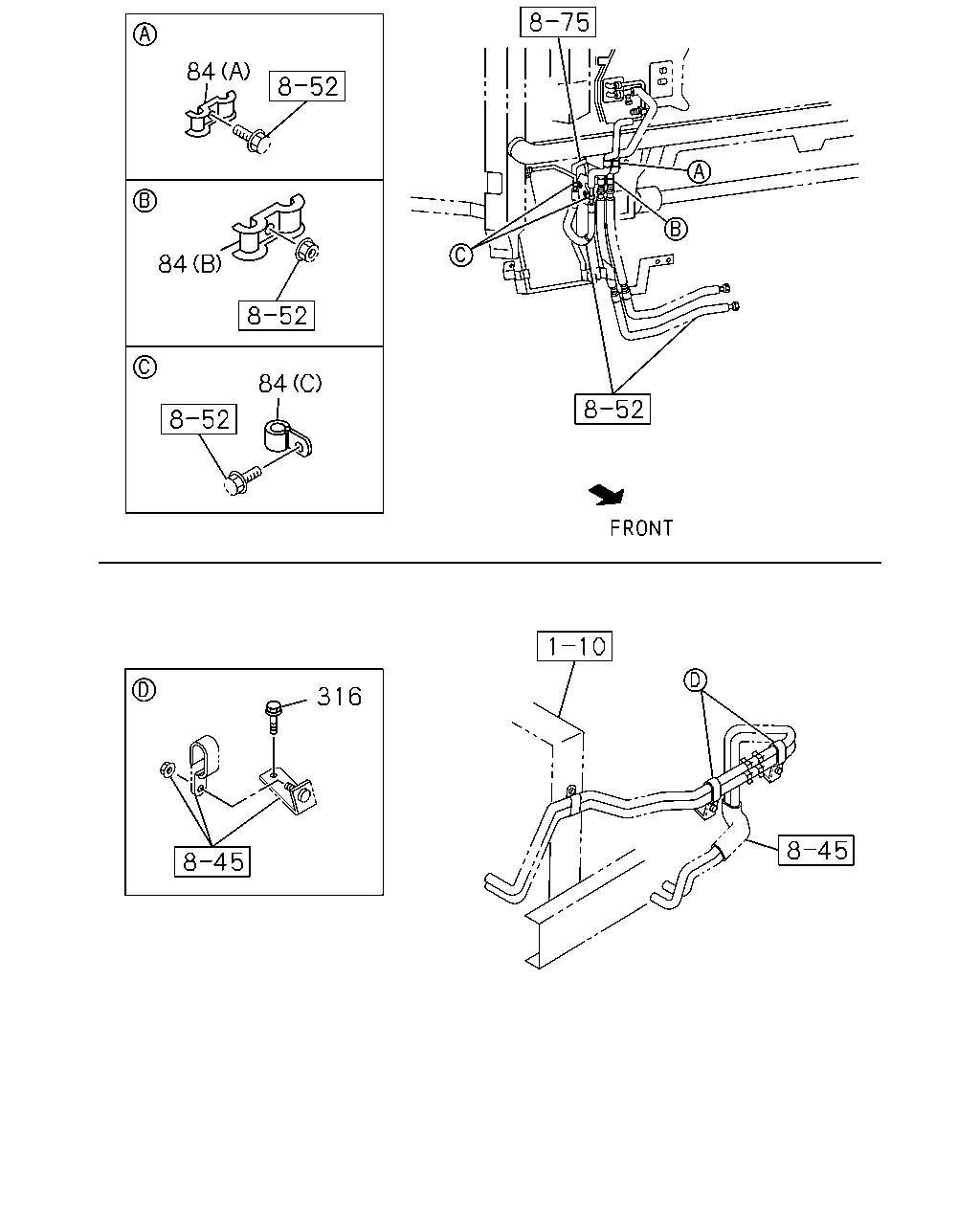

çizim 88792
84 84 84 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0511-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 0511-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 01 1 0511-0606
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		0-95234-835-0 01 1 0607-1006
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		0-95234-835-0 02 1 1007-
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
316 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
