◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#31268) — 225 parça
çizim 88718
91 284 90 34 282 603 34 261 89
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0511-0611
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0612-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0511-0611
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0511-
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0511-1205
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0511-0512
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28680-840-0 02 1 0511-0512
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28650-840-0 02 1 0601-
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX> PT1/4 		9-99204-513-0 01 1 0707-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0511-0706
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (E) 		1-82569-367-1 01 1 0707-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0511-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0511-0706
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0511-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0511-0706
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707-
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28080-650-0 01 1 0511-0512
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28050-650-0 01 1 0601-0706
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> M6X50 FLANGE 		0-28050-650-0 01 1 0707-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0511-0706
603 PROTECTOR; MAG VLV
(A) 		1-47471-046-0 01 1 0707-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0707-
603 PROTECTOR; MAG VLV
(B) 		1-47471-044-0 01 1 0511-0706

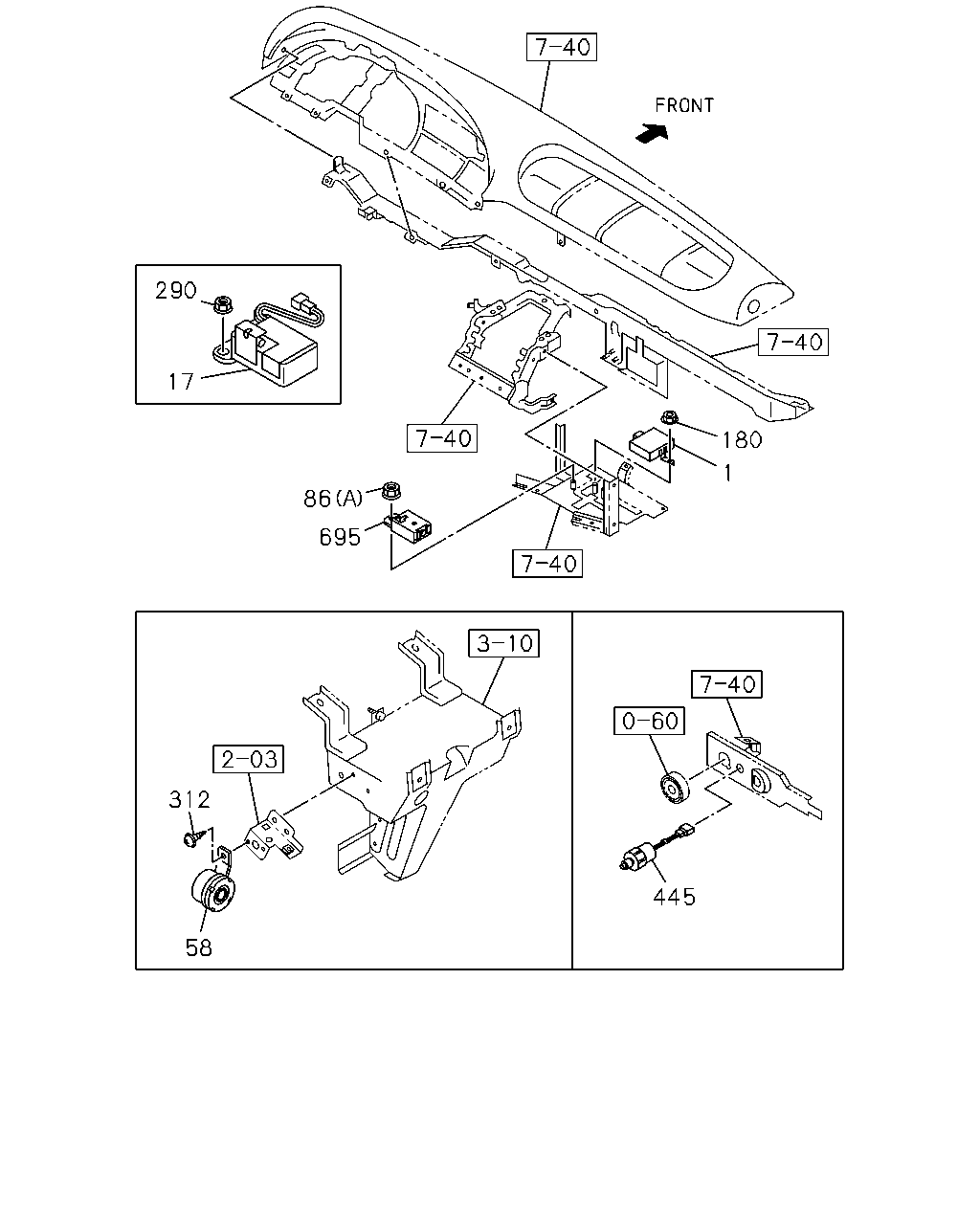

çizim 88720
290 17 180 1 86 695 312 445 58
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-060-1 01 1 0511-
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 0812-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0511-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0701-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0511-0602
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0603-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0511-0602
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603-
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE 		0-91180-106-0 01 1 0812-
290 NUT
MIXER TRUCK<RA2> M12 		9-99111-412-0 01 1 0511-0512
290 NUT
MIXER TRUCK<RA2> M12 		0-91111-512-0 01 1 0601-0706
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M12 		0-91111-512-0 01 1 0707-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0511-
445 SWITCH; ENG STOP 1-82340-443-0 01 1 0511-0706
445 SWITCH; ENG STOP 8-97621-409-0 01 1 0707-0711
445 SWITCH; ENG STOP 8-98106-482-0 01 1 0712-0811
445 SWITCH; ENG STOP
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) 		8-98106-482-0 01 1 0812-1306
445 SWITCH; ENG STOP
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) 		8-98106-482-0 01 1 1307-
445 SWITCH; ENG STOP
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> VIN MODEL YEAR 2013(VZD) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) 		8-98138-305-0 01 1 1307-
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0511-

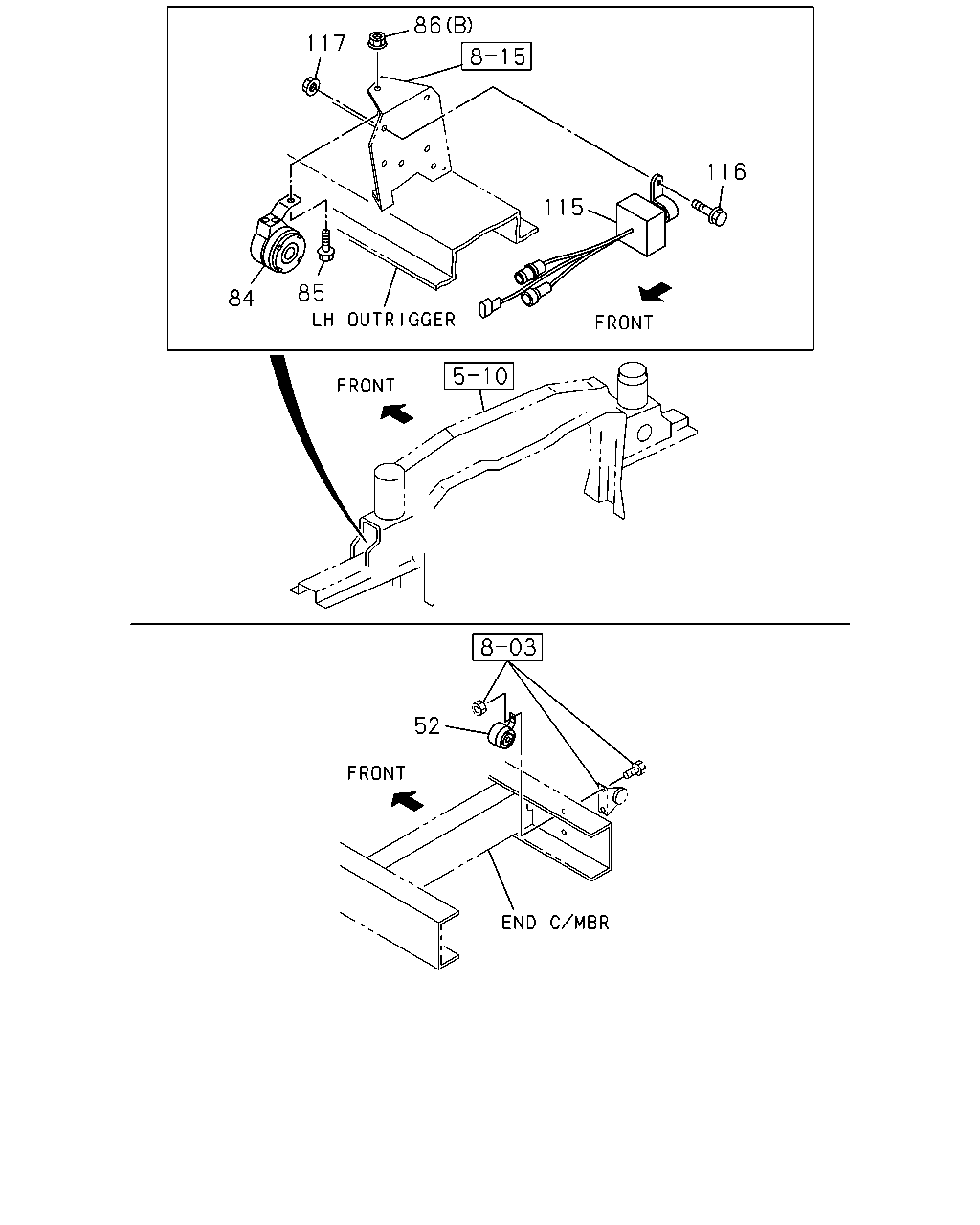

çizim 88722
86 117 116 115 85 84 52
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) METRO DENSO 		1-83460-083-0 01 1 0611-0612
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) METRO DENSO 		8-98069-861-0 01 1 0701-0811
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) METRO DENSO 		8-98069-861-0 01 1 0812-
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0511-0612
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0701-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0511-0602
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0603-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0511-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0511-0512
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-

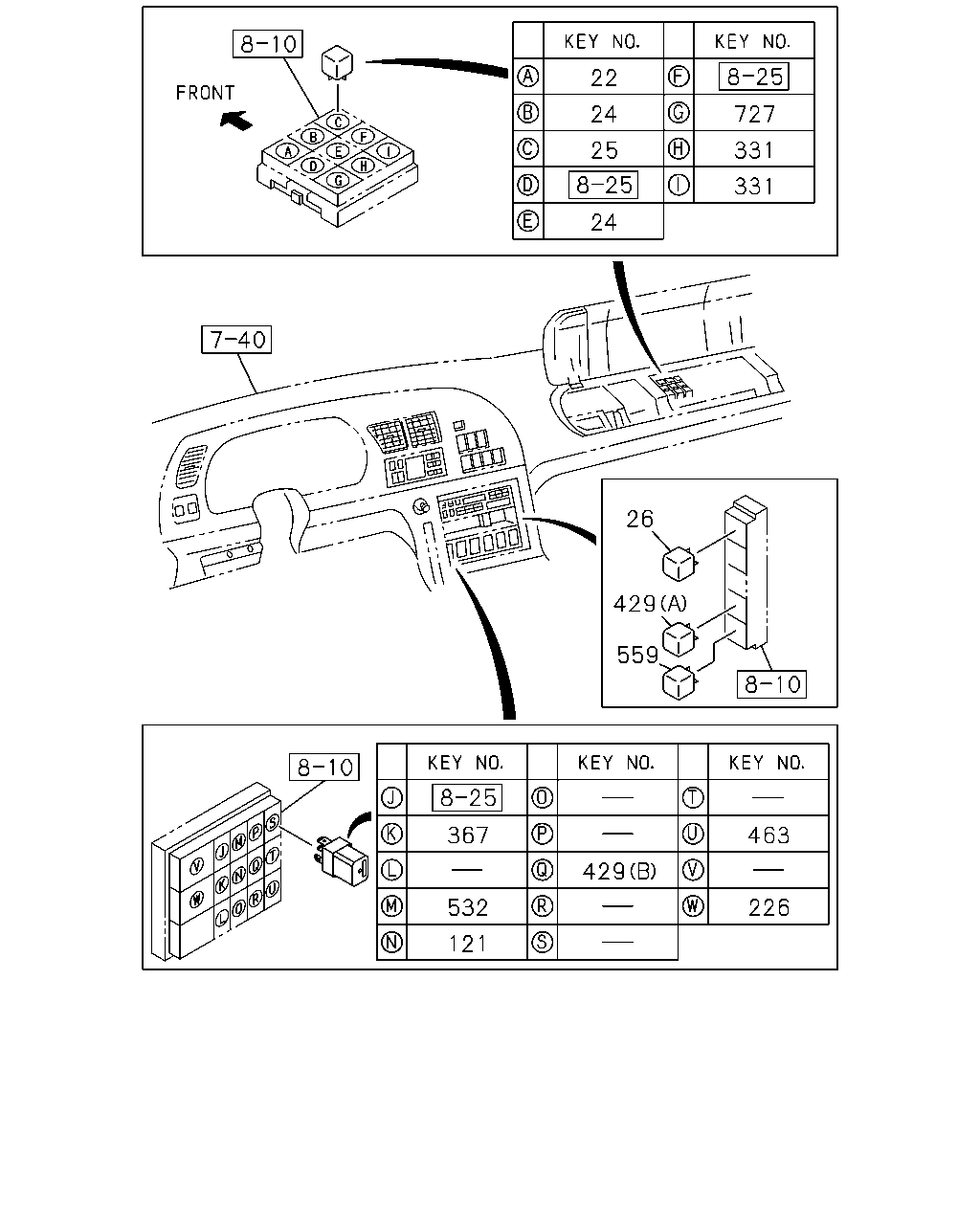

çizim 88791
22 24 727 25 331 331 24 26 429 559 367 463 429 532 226 121
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0511-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0511-
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0511-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0511-
429 RELAY; POWER CUT
(A) 24V 12.5A MITUBA 		1-82550-326-0 01 1 0511-0811
429 RELAY; POWER CUT
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 24V 12.5A MITUBA 		1-82550-326-0 01 1 0812-
429 RELAY; POWER CUT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0511-0805
429 RELAY; POWER CUT
(B) 24V 10A PANASONIC 		8-97173-035-1 02 1 0806-0811
429 RELAY; POWER CUT
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 24V 10A PANASONIC 		8-97173-035-1 02 1 0812-
463 RELAY; ABS SIGNAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0511-
532 RELAY; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 24V 10A PANASONIC 		8-97173-035-1 01 1 0812-
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-0706
559 RELAY; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0511-0706
727 RELAY; START CUT
ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
çizim 88827
34 33 261 39 282 41 34 603 84
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0511-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0511-0611
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0612-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0511-0611
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0511-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE 		0-28680-825-0 04 1 0511-0512
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0706
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0706
39 BOLT; BRKT,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 04 1 0511-0602
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 04 1 0603-
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0511-0612
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0701-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX> PT1/4 		9-99204-513-0 01 1 0707-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0511-0706
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (E) 		1-82569-367-1 01 1 0707-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0511-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0511-0706
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0511-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0511-0706
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0511-0706
603 PROTECTOR; MAG VLV
(A) 		1-47471-046-0 01 1 0707-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0707-
603 PROTECTOR; MAG VLV
(B) 		1-47471-044-0 01 1 0511-0706

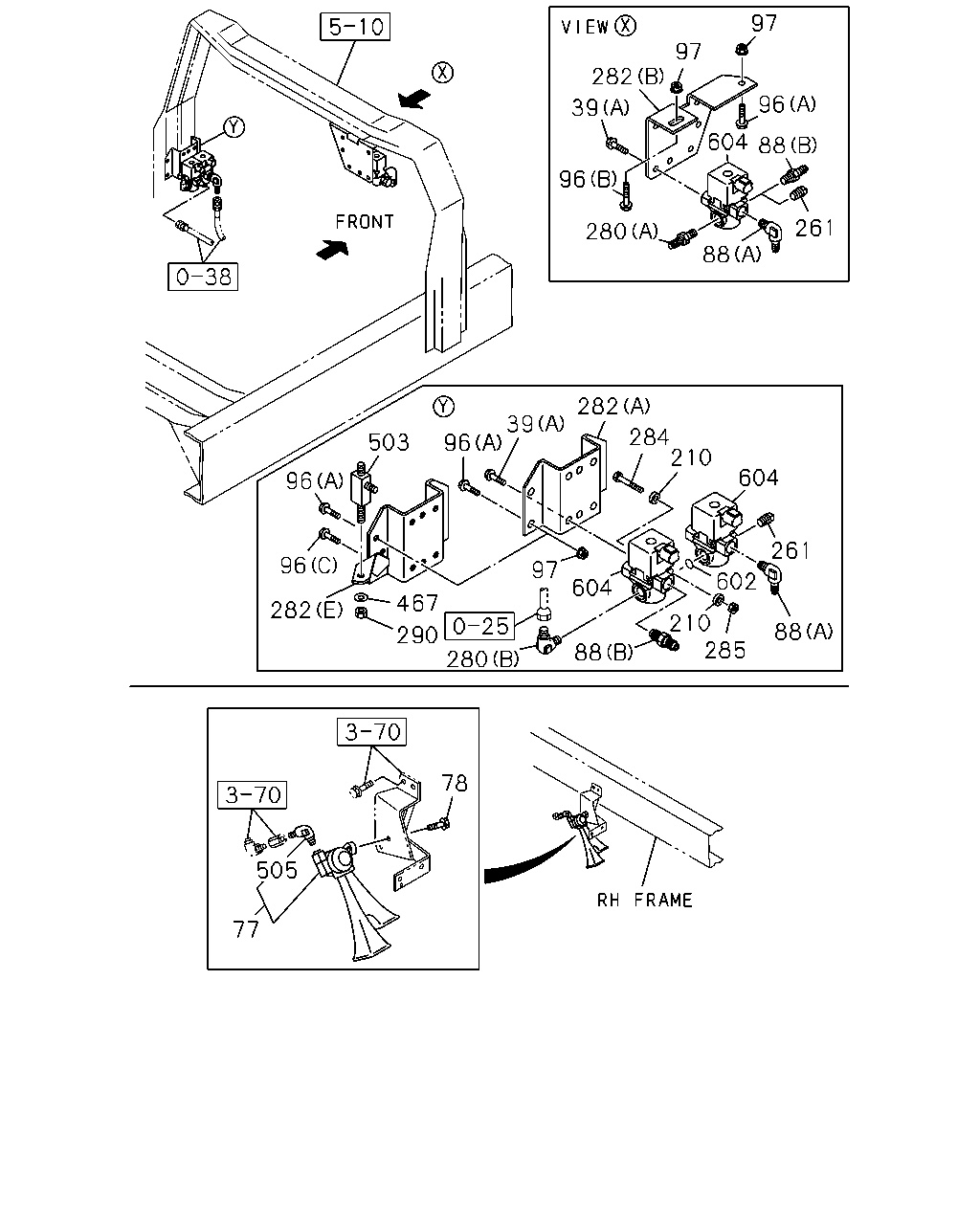

çizim 103575
97 97 282 96 39 604 88 96 261 280 88 282 39 284 210 503 96 604 96 602 210 285 261 96 97 604 467 282 88 290 280 88 78 505 77
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE 		0-28680-825-0 04 1 0511-0512
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0706
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0706
39 BOLT; BRKT,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
77 HORN ASM
EXC. CHINA EQUIPMENT(YT2) 		1-83430-041-2 01 1 0611-0809
77 HORN ASM
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		1-83430-041-2 01 1 0810-
77 HORN ASM 1-83430-041-2 01 1 0511-0609
77 HORN ASM 1-83430-043-0 01 1 0610-0610
77 HORN ASM
CHINA EQUIPMENT(YT2) 		1-83430-043-0 01 1 0611-0809
77 HORN ASM
RUSSIA COUNTRY<CZ3> 		1-83430-043-0 01 1 0810-
77 HORN ASM
CHINA EQUIPMENT(YT2) 		1-83430-043-0 01 1 0810-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0511-0706
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0511-0706
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707-
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707-
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0511-0706
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0511-0706
88 CONNECTOR; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707-
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707-
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0612-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (C) M8X25 FLANGE 		0-28680-825-0 01 1 0511-0512
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0511-0512
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
96 BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28680-820-0 05 1 0511-0512
96 BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0511-0602
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0511-0706
210 WASHER; PL,BRKT
EURO3 SPECIFICATION<NJX> 		1-82569-266-0 02 1 0707-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0511-0706
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707-
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX> PT1/4 		9-99204-513-0 01 1 0707-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0511-0706
280 CONNECTOR; IN,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707-
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0511-0706
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0511-0706
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (E) 		1-82569-367-1 01 1 0707-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0511-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0511-0706
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> (B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0511-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0511-0706
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707-
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28080-650-0 01 1 0511-0512
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28050-650-0 01 1 0601-0706
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> M6X50 FLANGE 		0-28050-650-0 01 1 0707-
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0511-0602
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603-0706
285 NUT; MAG VLV
EURO3 SPECIFICATION<NJX> M6 FLANGE 		0-91180-106-0 01 1 0707-
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE 		0-91180-106-0 01 1 0812-
290 NUT
MIXER TRUCK<RA2> M12 		9-99111-412-0 01 1 0511-0512
290 NUT
MIXER TRUCK<RA2> M12 		0-91111-512-0 01 1 0601-0706
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M12 		0-91111-512-0 01 1 0707-
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> ID=12.2 		9-09150-512-0 01 1 0511-0603
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0604-0706
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0707-
503 UNION
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0511-0706
503 UNION
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M12 2WAY 		1-09654-059-2 01 1 0707-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0511-0809
505 JOINT; AIR HORN
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		1-83439-006-0 01 1 0810-
505 JOINT; AIR HORN
RUSSIA COUNTRY<CZ3> 		1-83439-006-0 01 1 0810-
505 JOINT; AIR HORN
CHINA EQUIPMENT(YT2) 		1-83439-006-0 01 1 0810-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0511-0706
602 GASKET; MAG VLV
EURO3 SPECIFICATION<NJX> ID=16.8 		9-09565-117-0 01 1 0707-
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0511-0706
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX> 		1-82563-871-2 02 1 0707-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0511-0706
604 VALVE; MAG,ENG CONT
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> 		1-82563-871-2 01 1 0707-
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX> 		1-82563-871-2 01 1 0707-

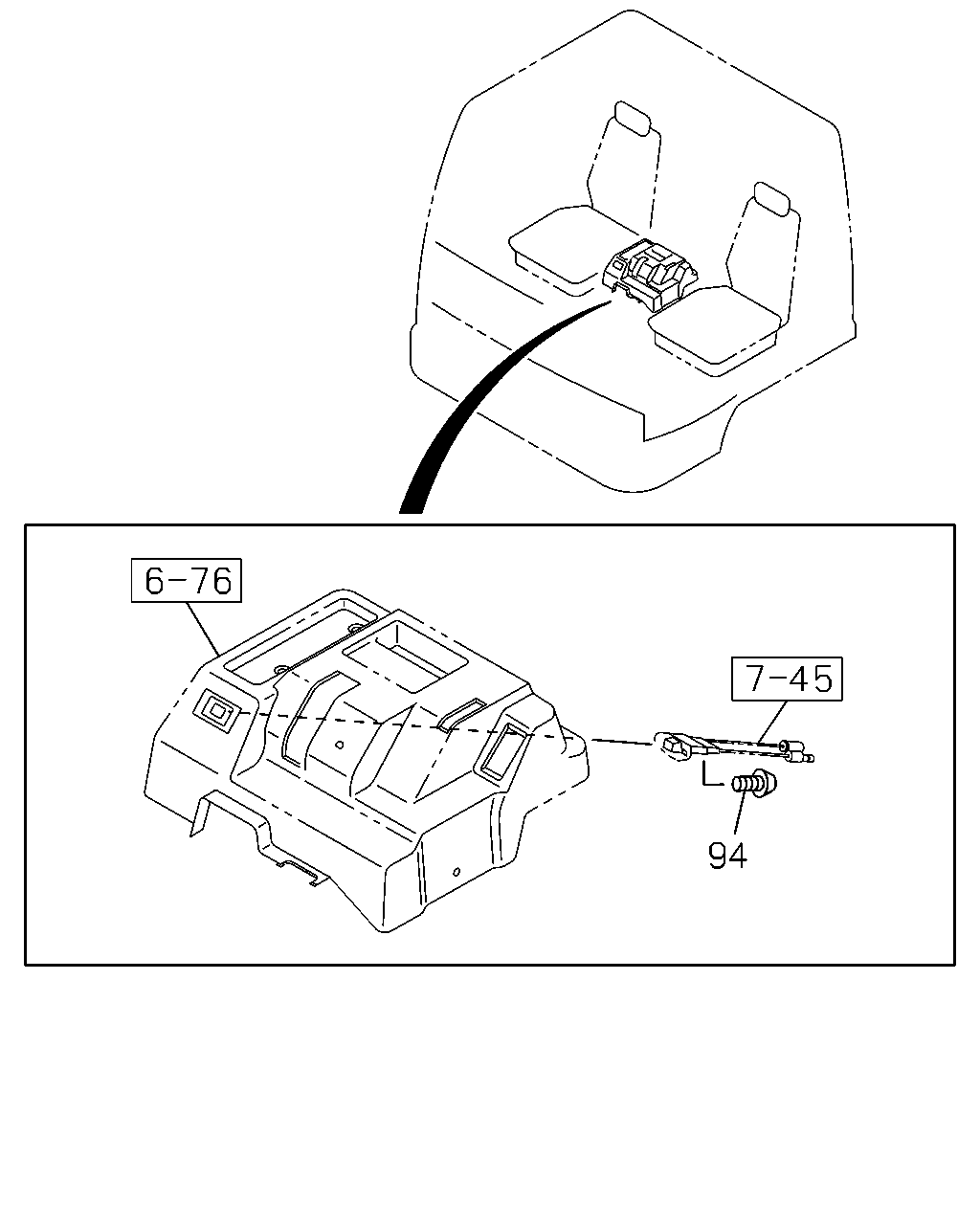

çizim 103576
94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0611-0811
94 SCREW; CONSENT TO BLIND PNL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
