Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#31263) — 522 parça

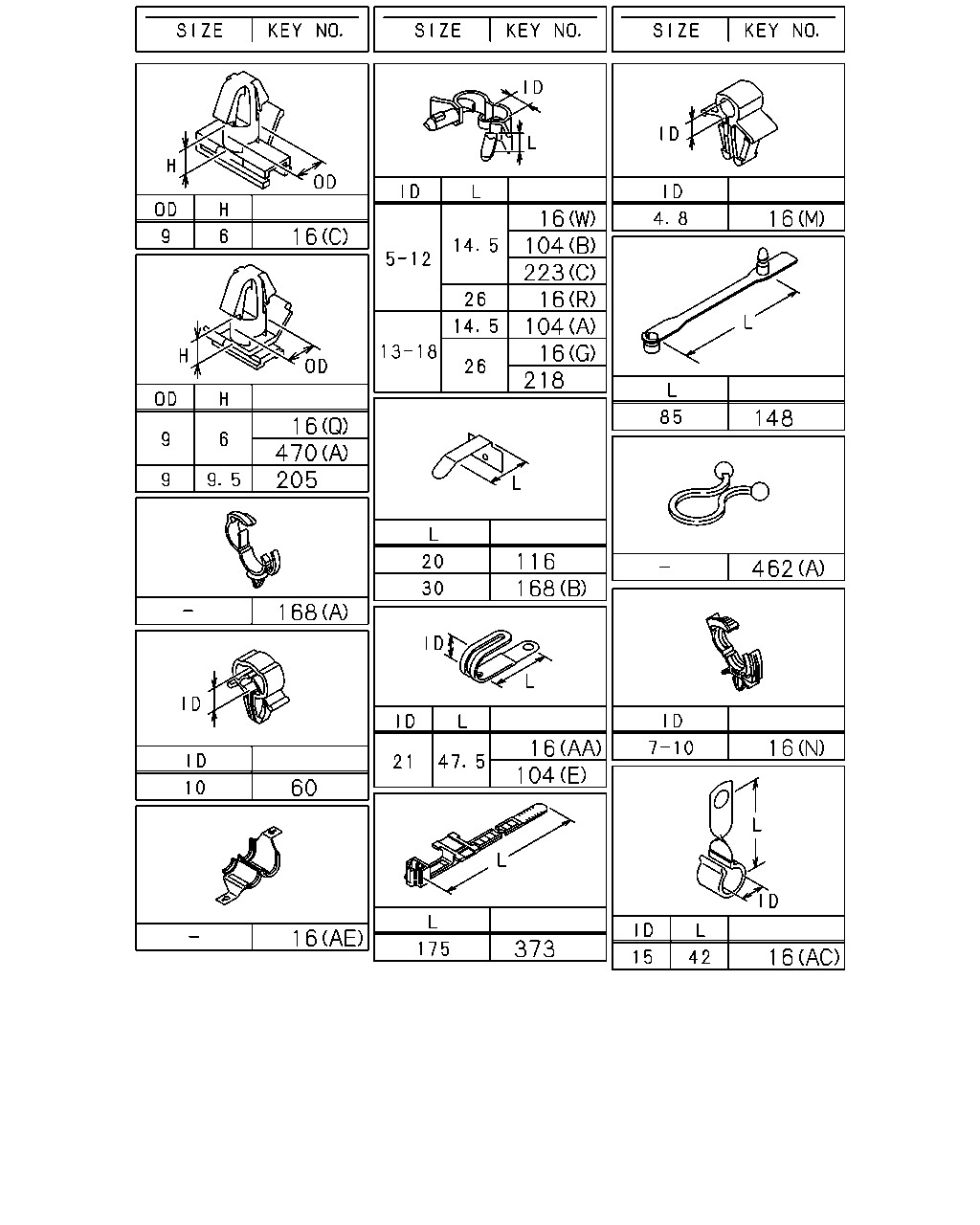

16 104 223 16 104 16 218 16 16 148 16 470 205 116 168 462 168 16 16 104 60 16 373 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AI) ID=31 H=30 L=35	1-09700-994-0	01	1	1104-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AJ) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1104-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54	1-09700-392-1	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32	1-09701-107-1	01	1	0906-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	0707-1208
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	05	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	06	1	0905-
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0511-0809
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	12	1	0810-
16	CLIP; HARNESS (V) ID=19 H=70 L=25	8-97360-209-0	01	1	0511-
16	CLIP; HARNESS (AA) ID=21 L=47.5	8-94178-108-0	02	1	0511-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (AB) ID=19 L=20	9-09525-832-0	01	1	0511-0606
16	CLIP; HARNESS (AB) ID=19 L=20	0-95235-832-0	01	1	0607-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0511-
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	10	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0905-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32	1-09700-126-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32	1-09700-126-1	01	1	0906-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0511-0606
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	0607-
16	CLIP; HARNESS (AC) ID=15 L=42	1-09700-479-0	02	1	0511-0904
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0511-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50	1-09700-679-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50	1-09700-679-1	01	1	0906-
16	CLIP; HARNESS (S) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0511-
16	CLIP; HARNESS (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0707-0905
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0511-1002
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0511-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0511-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0511-1103
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38	1-09701-313-0	01	1	1104-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0511-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0511-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0511-
16	CLIP; HARNESS (AE) WO/SPONGE RUBBER	1-09709-103-1	02	1	0511-0904
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0511-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0511-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26	1-09709-289-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	01	1	0807-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0511-0806
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	07	1	0511-
16	CLIP; HARNESS (B) L=140	5-09707-031-1	02	1	0511-
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0511-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6	8-97368-793-0	01	1	0807-
16	CLIP; HARNESS (AF) ID=11 L=16	9-09525-025-0	02	1	0511-0606
16	CLIP; HARNESS (AF) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0511-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0511-0606
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0607-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	12	1	0511-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52	9-09917-431-0	02	1	0707-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0511-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0511-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0511-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0511-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	0511-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	0511-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0511-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0511-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	0511-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	0511-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0511-
205	CLIP; BACK LAMP HARNESS OD=9 H=9.5	1-09709-179-0	01	1	0511-
218	CLIP; BAND,RR COMB ID=13-18 L=26	1-09709-293-0	05	1	0511-
218	CLIP; BAND,RR COMB ID=13-18 L=26	1-09709-293-0	05	1	0511-
223	CLIP; AIR TANK HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0511-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0511-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	5-09700-351-0	04	1	0511-0707
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0511-
373	CLIP; BAND,GEN HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175	1-09707-176-1	01	1	0906-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0511-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0511-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0511-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0511-

5 224 1 224 1 178 178 178 178 178 510 530 292 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=25	1-09337-052-0	01	1	0511-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0511-
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	0511-1103
5	GUIDE; HARNESS EXC. CHINA EQUIPMENT(YT2) L=360	1-82699-476-1	01	1	1104-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0511-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	04	1	0511-0606
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	03	1	0607-
178	GROMMET; HARNESS (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	0511-0610
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	0611-0806
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	0807-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=26	1-09332-132-0	01	1	0511-
178	GROMMET; HARNESS (E)	1-82699-891-0	01	1	0511-
224	SLEEVE; RUBBER,HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (A) ID=23 OD=27 L=40	1-09337-015-0	01	1	1104-
224	SLEEVE; RUBBER,HARNESS (B) ID=6 L=30	5-09360-352-0	01	1	0511-
292	CAP; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82691-239-0	02	1	0707-
503	CONNECTOR POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>	1-82690-666-0	01	1	0812-
503	CONNECTOR POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> SAUDI ARABIA EQUIPMENT(WH1)	1-82690-666-0	01	1	0812-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	0511-0706
510	GROMMET; SCREW ENGINE CONTROL COMMON RAIL(Q4R) D=9.7X9.7 L=8	8-94222-314-0	01	1	0707-1202
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	0511-0706
530	SEAL; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) 180X40	1-72498-019-1	04	1	0707-
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	0511-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	0511-

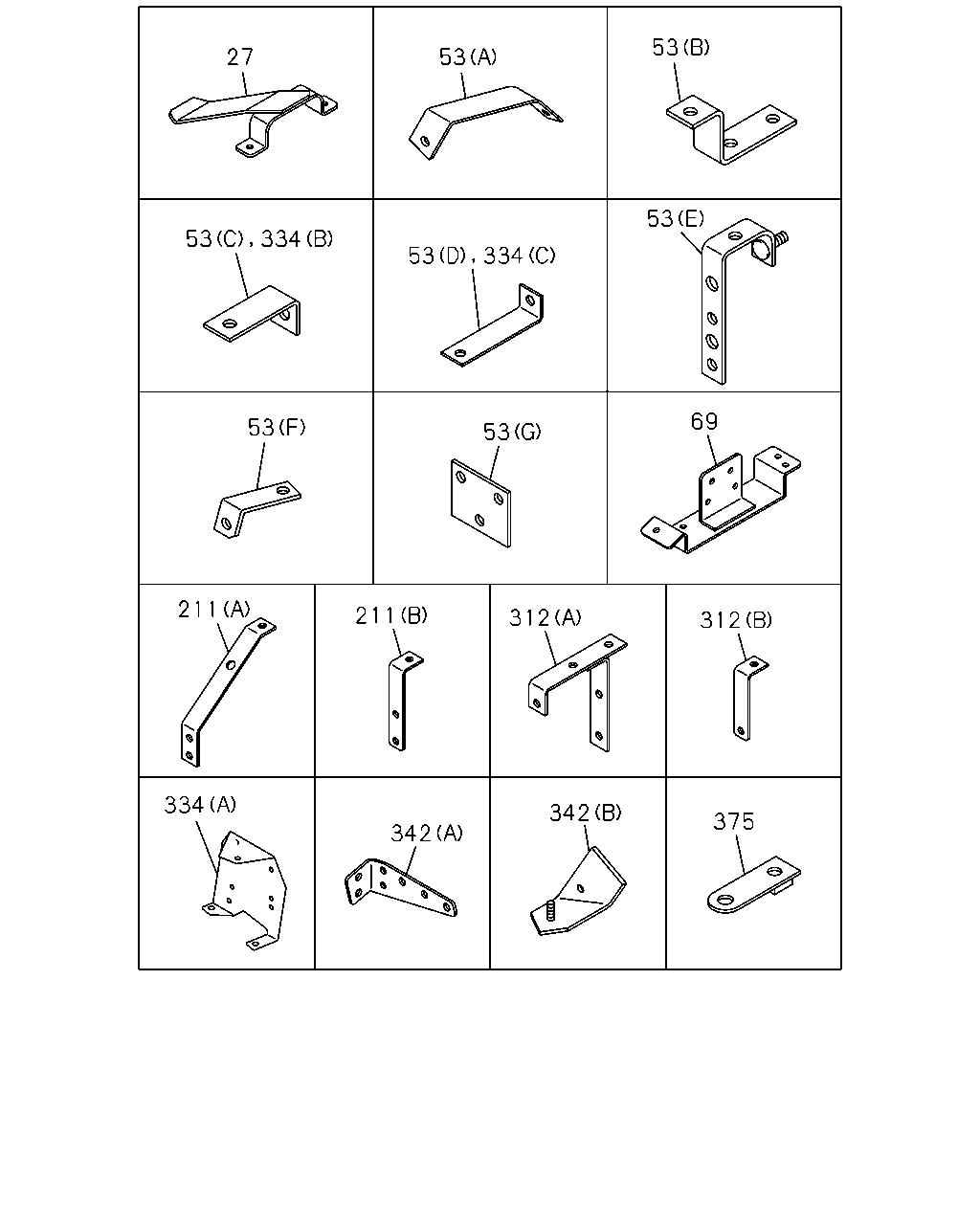

53 27 53 53 69 53 53 211 211 312 312 334 342 375 342 53 334 53 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PROTECTOR; EDGE	8-97618-028-0	01	1	0701-
27	PROTECTOR; EDGE	8-97618-028-0	01	1	0701-
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	0511-
53	BRACKET; HARNESS (C) L=50	1-47475-663-1	01	1	0511-
53	BRACKET; HARNESS (D) L=59 B=20	1-47479-048-0	04	1	0511-
53	BRACKET; HARNESS (E)	1-47479-333-0	01	1	0511-0603
53	BRACKET; HARNESS (D) L=30	1-47479-481-0	04	1	0511-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0511-0610
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B)	1-82698-382-0	01	1	0611-0806
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B)	8-98124-778-0	01	1	0807-0807
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-778-0	01	1	0807-
53	BRACKET; HARNESS (F)	1-82698-440-0	01	1	0511-1204
53	BRACKET; HARNESS (G)	1-82698-469-0	01	1	0511-
69	BRACKET; CLIP ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2)	8-98171-829-0	01	1	1104-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	02	1	0511-0605
211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	0511-
312	BRACKET; CLIP HARNESS (B)	1-82698-440-0	01	1	0511-1204
312	BRACKET; CLIP HARNESS (A)	1-82698-479-0	01	1	0511-
334	BRACKET (B) L=55	1-47476-177-0	02	1	0511-
334	BRACKET (A)	1-53458-709-1	01	1	0511-
334	BRACKET (C) L=95	1-82699-085-0	01	1	0511-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0511-
342	BRACKET; HARNESS CAB MTG EXC. MIXER TRUCK<RA2> (B)	1-47479-974-0	01	1	0511-0606
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0511-

24 524 24 219 294 340 515 515 119 64 255 522 423 520 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS (A) M6	9-09110-406-0	01	1	0512-0512
24	NUT; HARNESS (A) M6	0-91110-506-0	01	1	0601-
24	NUT; HARNESS (B) M8 FLANGE	0-91150-108-0	01	1	0511-0602
24	NUT; HARNESS (B) M8 FLANGE	0-91180-108-0	01	1	0603-0706
24	NUT; HARNESS (B) M8 FLANGE	0-91180-108-0	01	1	0603-0706
24	NUT; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) M8 FLANGE	0-91180-108-0	01	1	0707-1103
24	NUT; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91180-108-0	02	1	1104-
24	NUT; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M8 FLANGE	0-91180-108-0	01	1	1104-
43	WASHER; LK,HARNESS ID=6.1	9-09150-506-0	01	1	0512-0603
43	WASHER; LK,HARNESS ID=6.1	0-91510-506-0	01	1	0604-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0511-0706
64	SCREW; CLIP ENGINE CONTROL COMMON RAIL(Q4R) M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0707-1202
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	1006-
219	NUT M8 FLANGE	0-91150-108-0	19	1	0511-0602
219	NUT M8 FLANGE	0-91180-108-0	19	1	0603-
219	NUT M8 FLANGE	0-91180-108-0	19	1	0603-
219	NUT M8 FLANGE	0-91150-108-0	01	1	0511-0602
219	NUT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0511-0602
219	NUT M8 FLANGE	0-91180-108-0	01	1	0603-0606
219	NUT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-0606
219	NUT M8 FLANGE	0-91180-108-0	01	1	0607-0610
219	NUT M8 FLANGE	0-91180-108-0	01	1	0607-0610
219	NUT FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE	0-91180-108-0	01	1	0611-0806
219	NUT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE	0-91180-108-0	01	1	0807-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74305-620-0	02	1	0511-0604
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74365-620-0	02	1	0605-0904
294	NUT M8 FLANGE	0-91150-108-0	14	1	0511-0602
294	NUT M8 FLANGE	0-91180-108-0	14	1	0603-0605
294	NUT M8 FLANGE	0-91180-108-0	12	1	0606-
294	NUT M8 FLANGE	0-91180-108-0	12	1	0606-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	02	1	0511-0602
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	05	1	0511-
515	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	03	1	0511-0602
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0603-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0603-
515	NUT; BRKT (B) M10 FLANGE	0-91150-110-0	02	1	0511-0602
515	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0603-
515	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0603-
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	0511-0811
520	WASHER; PL,EARTH CABLE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) ID=8.4	1-09503-264-0	01	1	0812-
522	WASHER; PL,HARNESS ID=6.4	9-09160-506-0	02	1	0512-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	02	1	0511-0602
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	0603-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	0603-

38 150 242 150 38 313 38 38 150 242 386 38 242 86 139 242 313 38 242 19 239 38 386 88 133 313 358 239 516 38 358 386 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0701-0904
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
38	BOLT; CLIP,HARNESS MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	06	1	0607-
38	BOLT; CLIP,HARNESS (B) M6X10 FLANGE	0-28080-610-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS (B) M6X10 FLANGE	0-28050-610-0	01	1	0601-0905
38	BOLT; CLIP,HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) M6X10 FLANGE	0-28050-610-0	01	1	0906-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28080-820-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	04	1	0511-0512
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	05	1	0511-0512
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-0606
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0607-1103
38	BOLT; CLIP,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28650-820-0	01	1	1104-
38	BOLT; CLIP,HARNESS EXC. CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28650-820-0	01	1	1104-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	02	1	0511-0512
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0601-
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28781-020-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	0601-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0511-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0511-1201
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0511-0512
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0511-1007
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0511-1007
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0511-
139	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0511-0512
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-0605
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	0606-
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	0606-
150	BOLT; CLIP CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) (C) M8X20 FLANGE	0-28650-820-0	01	1	1104-
150	BOLT; CLIP EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	01	1	0707-0811
150	BOLT; CLIP GENERAL EXPORT EQUIPMENT(TAA) (B) M8X16 FLANGE	0-28050-816-0	01	1	0812-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	03	1	0511-0512
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0601-1208
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1209-
150	BOLT; CLIP (A) M6X12 FLANGE	0-28080-612-0	02	1	0511-0512
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0511-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS MIXER TRUCK<RA2> (C) M8X30 FLANGE	0-28680-830-0	01	1	0511-0512
242	BOLT; BRKT,HARNESS MIXER TRUCK<RA2> (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-0606
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28080-812-0	01	1	0511-0512
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
242	BOLT; BRKT,HARNESS (E) M8X25 FLANGE	0-28680-825-0	01	1	0511-0512
242	BOLT; BRKT,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0601-
242	BOLT; BRKT,HARNESS (D) M10X25 FLANGE	0-28681-025-0	02	1	0511-0512
242	BOLT; BRKT,HARNESS (D) M10X25 FLANGE	0-28651-025-0	02	1	0601-
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (C) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1104-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	04	1	0511-0512
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-0610
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-0610
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE	0-28650-830-0	01	1	0611-0806
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) M8X30 FLANGE	0-28650-830-0	01	1	0807-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	01	1	0511-0512
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-1204
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-1204
313	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0511-0512
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0511-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0511-
386	BOLT; GRAND HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1104-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
386	BOLT; GRAND HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	01	1	0707-1103
386	BOLT; GRAND HARNESS ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28650-820-0	02	1	1104-
386	BOLT; GRAND HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0511-0811
386	BOLT; GRAND HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0812-1201
386	BOLT; GRAND HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
516	BOLT; HARNESS VIN MODEL YEAR 2013(VZD) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	1307-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0511-1306
516	BOLT; HARNESS EXC. VIN MODEL YEAR 2013(VZD) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1307-

235 16 380 16 16 223 16 16 128 16 421 48 16 16 16 212 223 470 16 16 263 16 16 16 380 16 128 16 16 223 16 48 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AI) ID=31 H=30 L=35	1-09700-994-0	01	1	1104-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AJ) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1104-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54	1-09700-392-1	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32	1-09701-107-1	01	1	0906-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	0707-1208
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	05	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	06	1	0905-
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0511-0809
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	12	1	0810-
16	CLIP; HARNESS (V) ID=19 H=70 L=25	8-97360-209-0	01	1	0511-
16	CLIP; HARNESS (AA) ID=21 L=47.5	8-94178-108-0	02	1	0511-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (AB) ID=19 L=20	9-09525-832-0	01	1	0511-0606
16	CLIP; HARNESS (AB) ID=19 L=20	0-95235-832-0	01	1	0607-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0511-
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	10	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0905-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32	1-09700-126-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32	1-09700-126-1	01	1	0906-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0511-0606
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	0607-
16	CLIP; HARNESS (AC) ID=15 L=42	1-09700-479-0	02	1	0511-0904
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0511-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50	1-09700-679-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50	1-09700-679-1	01	1	0906-
16	CLIP; HARNESS (S) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0511-
16	CLIP; HARNESS (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0707-0905
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0511-1002
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0511-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0511-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0511-1103
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38	1-09701-313-0	01	1	1104-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0511-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0511-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0511-
16	CLIP; HARNESS (AE) WO/SPONGE RUBBER	1-09709-103-1	02	1	0511-0904
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0511-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0511-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26	1-09709-289-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	01	1	0807-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0511-0806
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	07	1	0511-
16	CLIP; HARNESS (B) L=140	5-09707-031-1	02	1	0511-
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0511-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6	8-97368-793-0	01	1	0807-
16	CLIP; HARNESS (AF) ID=11 L=16	9-09525-025-0	02	1	0511-0606
16	CLIP; HARNESS (AF) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0511-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0511-0606
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0607-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	12	1	0511-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52	9-09917-431-0	02	1	0707-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0511-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	08	1	0511-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0511-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0511-
48	CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	06	1	0511-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0511-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0511-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0511-
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	01	1	0511-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0511-
223	CLIP; AIR TANK HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0511-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0511-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	5-09700-351-0	04	1	0511-0707
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0511-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	0511-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0511-
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0511-0706
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0707-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0511-0706
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) L=250	5-09707-030-1	03	1	0707-1103
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (C) ID=11 L=20	0-95235-035-0	01	1	1104-
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	0511-0706
421	CLIP; FLOOR HARNESS ENGINE CONTROL COMMON RAIL(Q4R) ID=21 L=28	1-09700-673-1	02	1	0707-1202
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0511-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0511-

16 51 104 171 206 212 305 453 462 14 14 16 48 104 171 194 227 228 305 369 380 305 14 16 48 102 194 212 16 51 142 162 194 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0511-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0511-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0511-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	0511-0511
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0512-0605
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	03	1	0606-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	03	1	0606-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	03	1	0511-0605
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AI) ID=31 H=30 L=35	1-09700-994-0	01	1	1104-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AJ) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1104-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54	1-09700-392-1	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32	1-09701-107-1	01	1	0906-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	0707-1208
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS (AG) ID=21 L=24	8-94176-807-1	01	1	0702-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	05	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26	1-09709-293-0	06	1	0905-
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0511-0809
16	CLIP; HARNESS WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26	1-09709-293-0	12	1	0810-
16	CLIP; HARNESS (V) ID=19 H=70 L=25	8-97360-209-0	01	1	0511-
16	CLIP; HARNESS (AA) ID=21 L=47.5	8-94178-108-0	02	1	0511-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0511-0606
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (AB) ID=19 L=20	9-09525-832-0	01	1	0511-0606
16	CLIP; HARNESS (AB) ID=19 L=20	0-95235-832-0	01	1	0607-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0511-
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	10	1	0511-0904
16	CLIP; HARNESS WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26	1-09709-293-0	11	1	0905-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32	1-09700-126-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32	1-09700-126-1	01	1	0906-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0511-0606
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	0607-
16	CLIP; HARNESS (AC) ID=15 L=42	1-09700-479-0	02	1	0511-0904
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0511-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0511-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50	1-09700-679-1	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50	1-09700-679-1	01	1	0906-
16	CLIP; HARNESS (S) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0511-
16	CLIP; HARNESS (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0707-0905
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0906-
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0511-1002
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0511-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0511-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0511-1103
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38	1-09701-313-0	01	1	1104-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0511-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0511-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0511-
16	CLIP; HARNESS (AE) WO/SPONGE RUBBER	1-09709-103-1	02	1	0511-0904
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0511-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0511-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26	1-09709-289-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	01	1	0807-
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0511-0806
16	CLIP; HARNESS (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (R) ID=5-12 L=26	1-09709-289-0	03	1	0807-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	07	1	0511-
16	CLIP; HARNESS (B) L=140	5-09707-031-1	02	1	0511-
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0511-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0511-0610
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0611-0806
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6	8-97368-793-0	01	1	0807-
16	CLIP; HARNESS (AF) ID=11 L=16	9-09525-025-0	02	1	0511-0606
16	CLIP; HARNESS (AF) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0511-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0511-0606
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0607-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	12	1	0511-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	0511-0706
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52	9-09917-431-0	02	1	0707-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0511-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-0701
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-0806
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-0905
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	08	1	0511-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0511-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0511-
48	CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	06	1	0511-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0511-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0511-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0511-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0511-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0511-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	0511-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	0511-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0511-0710
142	CLIP; HARNESS,ENG L=180	1-09707-162-1	02	1	0511-1207
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	02	1	1208-
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	0511-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	03	1	0511-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	06	1	0511-
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0511-1001
194	CLIP; BAND (B) L=350	1-09707-183-0	09	1	0511-0804
194	CLIP; BAND (B) L=350	1-09707-183-0	10	1	0805-
194	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0511-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0511-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0511-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0511-
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	01	1	0511-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0511-
227	CLIP; FOG LAMP HARNESS L=250	5-09707-030-1	01	1	0511-
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	0511-1112
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1201-
305	CLIP; ENG HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (A) L=382	1-09707-196-0	01	1	1104-
305	CLIP; ENG HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (B) L=250	5-09707-030-1	01	1	1104-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	0511-
369	CLIP; BAND EDS HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	0707-
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0511-0706
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0707-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0511-0706
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) L=250	5-09707-030-1	03	1	0707-1103
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (C) ID=11 L=20	0-95235-035-0	01	1	1104-
453	CLIP; CABLE HARNESS L=140	5-09707-031-1	01	1	0511-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0511-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0511-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
