Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#31262) — 442 parça

255 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

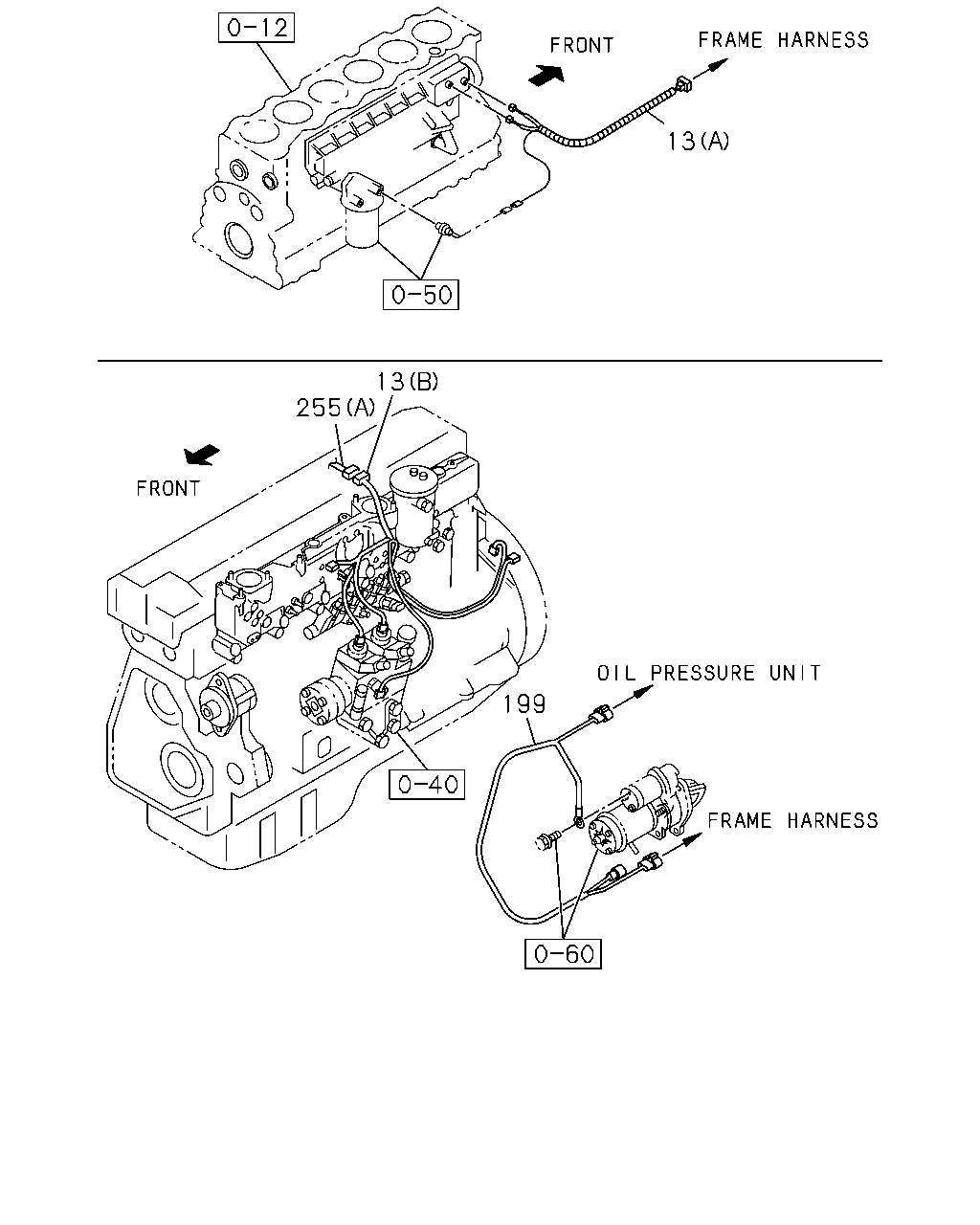

255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (A)	8-98181-558-0	01	1	1104-1104
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98181-558-0	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-97641-992-1	01	1	1203-
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-98189-948-0	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-97642-186-1	01	1	1203-
255	HARNESS; ELEC GOV (A)	1-82662-241-2	01	1	0511-0706
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-82662-241-2	01	1	0707-1103
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (A)	1-82662-241-2	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (A)	8-97642-187-1	01	1	1203-
255	HARNESS; ELEC GOV (B)	1-82662-741-1	01	1	0511-0706
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-741-1	01	1	0707-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (B)	8-97641-997-0	01	1	1203-
533	CLIP ID=26 L=26	1-09701-236-0	02	1	0511-0706
533	CLIP ENGINE CONTROL COMMON RAIL(Q4R) ID=26 L=26	1-09701-236-0	02	1	0707-0907
533	CLIP ENGINE CONTROL COMMON RAIL(Q4R) ID=25 L=40	1-09700-215-1	02	1	0908-
534	BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0511-0706
534	BOLT ENGINE CONTROL COMMON RAIL(Q4R) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0707-

467 558 467 4 265 41 4 5 5 467 62 62 62 62 431 314 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5AX21	1-82510-420-0	01	1	0807-0811
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 15AX22 25AX3	8-98126-046-0	02	1	0807-0811
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 15AX22 25AX3	8-98126-046-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 15AX22 25AX3	8-98126-046-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 15AX22 25AX3	8-98126-046-0	01	1	0901-
4	BOX ASM; FUSE,HARNESS (A) 7.5AX20	1-82510-410-0	01	1	0511-0602
4	BOX ASM; FUSE,HARNESS (A) 7.5AX21	1-82510-420-0	01	1	0603-0706
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5AX21	1-82510-420-0	01	1	0707-0806
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5AX21	1-82510-420-0	02	1	0807-0811
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5AX21	1-82510-420-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5AX21	1-82510-420-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5AX21	1-82510-420-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5AX21	1-82510-420-0	01	1	0812-0812
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5AX21	1-82510-420-0	01	1	0901-
4	BOX ASM; FUSE,HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5AX21	1-82510-420-0	01	1	0901-
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5AX21	1-82510-420-0	01	1	0901-
4	BOX ASM; FUSE,HARNESS (B) 15AX21 25AX2	1-82510-513-0	01	1	0511-0706
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) 15AX21 25AX2	1-82510-513-0	01	1	0707-0806
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 15AX21 25AX2	1-82510-513-0	01	1	0807-0811
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 15AX21 25AX2	1-82510-513-0	01	1	0812-
4	BOX ASM; FUSE,HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) 15AX21 25AX2	1-82510-513-0	01	1	0812-
4	BOX ASM; FUSE,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 15AX21 25AX2	1-82510-513-0	01	1	0812-
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5A BROWN	8-94159-007-0	21	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 15A BLUE	5-82516-003-0	21	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 15A BLUE	5-82516-003-0	22	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 15A BLUE	5-82516-003-0	22	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 15A BLUE	5-82516-003-0	22	1	0901-
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 25A CLEAR	5-82516-005-0	02	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 25A CLEAR	5-82516-005-0	03	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 25A CLEAR	5-82516-005-0	03	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 25A CLEAR	5-82516-005-0	03	1	0901-
5	FUSE; FACIA HARNESS (B) 15A BLUE	5-82516-003-0	21	1	0511-0706
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) 15A BLUE	5-82516-003-0	21	1	0707-0806
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 15A BLUE	5-82516-003-0	44	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 15A BLUE	5-82516-003-0	21	1	0812-
5	FUSE; FACIA HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) 15A BLUE	5-82516-003-0	21	1	0812-
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 15A BLUE	5-82516-003-0	21	1	0812-
5	FUSE; FACIA HARNESS (B) 25A CLEAR	5-82516-005-0	02	1	0511-0706
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) 25A CLEAR	5-82516-005-0	02	1	0707-0806
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 25A CLEAR	5-82516-005-0	06	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 25A CLEAR	5-82516-005-0	02	1	0812-
5	FUSE; FACIA HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) 25A CLEAR	5-82516-005-0	02	1	0812-
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 25A CLEAR	5-82516-005-0	02	1	0812-
5	FUSE; FACIA HARNESS (A) 7.5A BROWN	8-94159-007-0	20	1	0511-0602
5	FUSE; FACIA HARNESS (A) 7.5A BROWN	8-94159-007-0	21	1	0603-0706
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5A BROWN	8-94159-007-0	21	1	0707-0806
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5A BROWN	8-94159-007-0	42	1	0807-0811
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5A BROWN	8-94159-007-0	21	1	0812-0812
5	FUSE; FACIA HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5A BROWN	8-94159-007-0	21	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 7.5A BROWN	8-94159-007-0	21	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5A BROWN	8-94159-007-0	21	1	0812-0812
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5A BROWN	8-94159-007-0	21	1	0901-
5	FUSE; FACIA HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 7.5A BROWN	8-94159-007-0	21	1	0901-
5	FUSE; FACIA HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 7.5A BROWN	8-94159-007-0	21	1	0901-
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> L=25.3 B=11.5	8-94121-482-0	01	1	0807-0811
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0511-0706
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) L=25.3 B=11.5	8-94121-482-0	01	1	0707-0806
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> L=25.3 B=11.5	8-94121-482-0	02	1	0807-0811
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) L=25.3 B=11.5	8-94121-482-0	01	1	0812-0812
41	PULLER; FUSE SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) L=25.3 B=11.5	8-94121-482-0	01	1	0812-0812
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> L=25.3 B=11.5	8-94121-482-0	01	1	0812-0812
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) L=25.3 B=11.5	8-94121-482-0	01	1	0812-0812
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) L=25.3 B=11.5	8-94121-482-0	01	1	0901-
41	PULLER; FUSE SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) L=25.3 B=11.5	8-94121-482-0	01	1	0901-
41	PULLER; FUSE ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) L=25.3 B=11.5	8-94121-482-0	01	1	0901-
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) BLACK 10P	1-82699-703-0	02	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0901-0907
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	06	1	0908-
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	06	1	0908-
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0806-0806
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (D) BLACK 3P-1.5A	8-94422-640-1	02	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0901-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0511-0706
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) BLACK 10P	1-82699-703-0	02	1	0707-0806
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) BLACK 10P	1-82699-703-0	04	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) BLACK 10P	1-82699-703-0	02	1	0812-0812
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) BLACK 10P	1-82699-703-0	02	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) BLACK 10P	1-82699-703-0	02	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) BLACK 10P	1-82699-703-0	02	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) BLACK 10P	1-82699-703-0	02	1	0901-
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) BLACK 10P	1-82699-703-0	02	1	0901-
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) BLACK 10P	1-82699-703-0	02	1	0901-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0511-0706
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0707-0806
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (C) BLACK 3P-1.5A	8-94416-438-1	08	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0812-0812
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0812-0812
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0901-
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0901-
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0901-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0511-0706
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0707-0805
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0806-0806
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) BLACK 2P-1.5A	8-94422-639-1	20	1	0807-0811
62	DIODE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0812-0907
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0812-0907
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0908-1211
62	DIODE; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A	8-94422-639-1	05	1	1212-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0511-
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BLUE	1-82691-204-0	01	1	0807-0811
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0511-0706
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) BLUE	1-82691-204-0	01	1	0707-0806
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> BLUE	1-82691-204-0	02	1	0807-0811
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	0812-0812
314	RESISTOR; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) BLUE	1-82691-204-0	01	1	0812-0812
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> BLUE	1-82691-204-0	01	1	0812-0812
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	0812-0812
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	0901-1306
314	RESISTOR; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) BLUE	1-82691-204-0	01	1	0901-1306
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	0901-1306
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	1307-
314	RESISTOR; HARNESS SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) BLUE	1-82691-204-0	01	1	1307-
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) BLUE	1-82691-204-0	01	1	1307-
314	RESISTOR; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> BLUE	1-82691-204-0	01	1	1307-
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 10P BROWN	1-82699-601-0	02	1	0807-0811
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 4P	8-97376-776-0	03	1	0807-0811
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 4P	8-97376-776-0	03	1	0812-0812
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	0812-0812
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	0901-0907
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	0908-1306
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	0908-1306
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	1307-
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	1307-
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> (B) 4P	8-97376-776-0	03	1	1307-
431	CONNECTOR; JOINT (A) 10P BROWN	1-82699-601-0	02	1	0511-0706
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) (A) 10P BROWN	1-82699-601-0	02	1	0707-0806
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 10P BROWN	1-82699-601-0	04	1	0807-0811
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	0812-0812
431	CONNECTOR; JOINT SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 10P BROWN	1-82699-601-0	02	1	0812-0812
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (A) 10P BROWN	1-82699-601-0	02	1	0812-0812
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	0812-0812
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	0901-1306
431	CONNECTOR; JOINT SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 10P BROWN	1-82699-601-0	02	1	0901-1306
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	0901-1306
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	1307-
431	CONNECTOR; JOINT SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (A) 10P BROWN	1-82699-601-0	02	1	1307-
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A) 10P BROWN	1-82699-601-0	02	1	1307-
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> (A) 10P BROWN	1-82699-601-0	02	1	1307-
431	CONNECTOR; JOINT (B) 4P	8-97376-776-0	02	1	0511-0706
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) (B) 4P	8-97376-776-0	02	1	0707-0805
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) (B) 4P	8-97376-776-0	03	1	0806-0806
431	CONNECTOR; JOINT ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B) 4P	8-97376-776-0	06	1	0807-0811
431	CONNECTOR; JOINT SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B) 4P	8-97376-776-0	02	1	0812-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-266-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3> (A)	8-97695-263-0	01	1	1307-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-265-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-1	01	1	0901-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-972-3	01	1	0908-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-1	01	1	0901-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98142-971-3	01	1	0908-
467	HARNESS; FACIA SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-743-4	01	1	0812-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0611-0706
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0707-0805
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	0908-1306
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>,VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1),FUE L SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	1307-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0511-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-1306
467	HARNESS; FACIA VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3>,POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3>,VIN MODEL YEAR 2013(VZD) (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA (B)	1-82662-744-3	01	1	0511-0610
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-744-3	01	1	0611-0706
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-744-3	01	1	0707-0805
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	8-97625-938-0	01	1	0806-0806
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0812-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	0908-1306
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	1307-
558	CONNECTOR; HARNESS 4P	1-82629-690-0	01	1	0511-0610
558	CONNECTOR; HARNESS 4P	1-82629-690-0	01	1	0611-

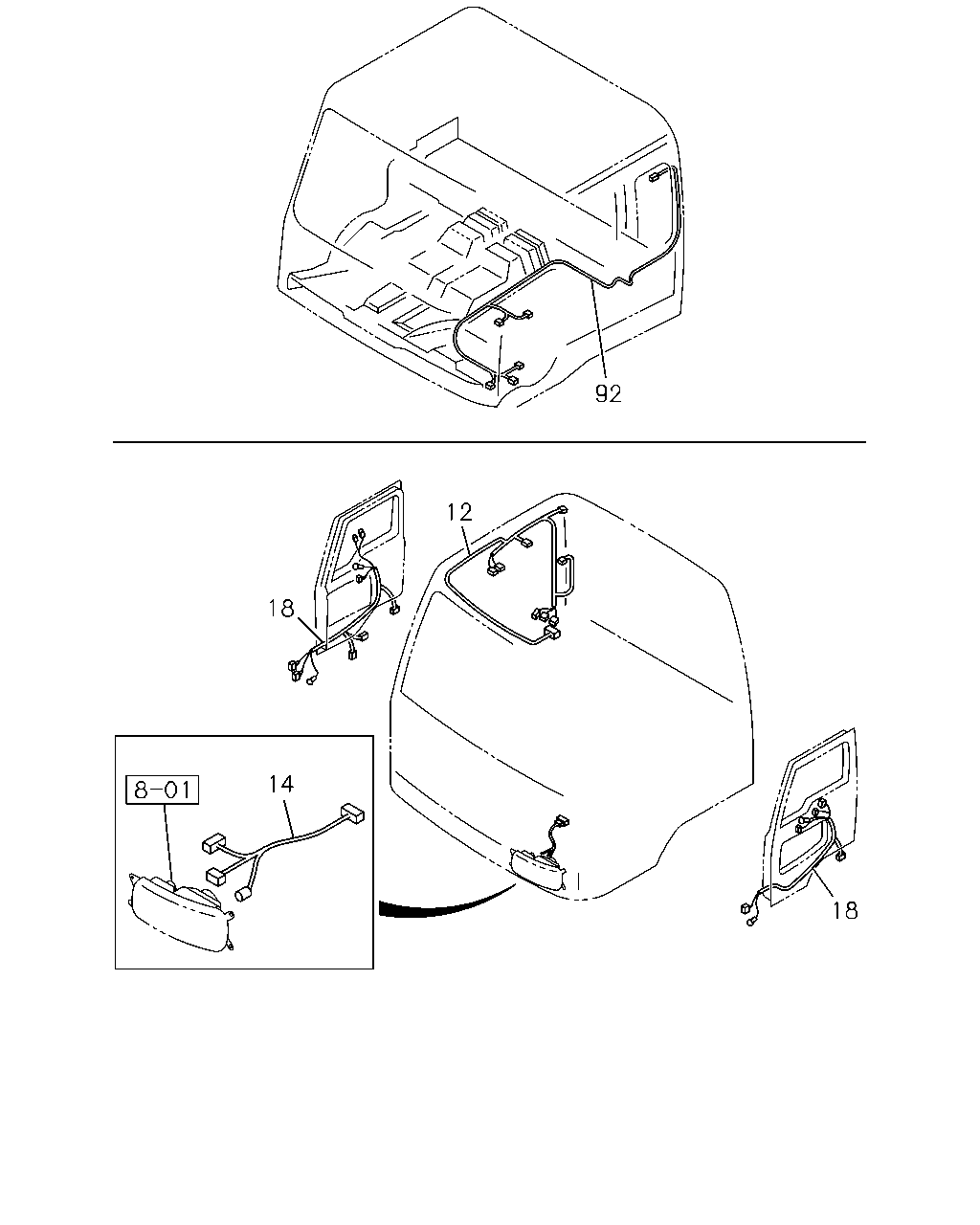

92 12 18 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF ROOF MARKER LAMP<U01>	8-98131-062-0	01	1	0810-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	1-82629-920-2	01	1	0611-0809
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01>	1-82629-920-2	01	1	0810-
12	HARNESS; ROOF	1-82629-921-2	01	1	0511-0610
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	1-82629-921-2	01	1	0611-
14	HARNESS; HEADLAMP RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC>	8-98013-990-0	02	1	0810-0811
14	HARNESS; HEADLAMP	1-82677-628-3	02	1	0511-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	1-82628-582-0	01	1	0511-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	1-82628-584-0	01	1	0511-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	1-82662-032-0	01	1	0511-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	1-82662-037-0	01	1	0511-
92	HARNESS; FLOOR ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1)	8-98093-664-0	01	1	0812-
92	HARNESS; FLOOR	1-82662-036-2	01	1	0511-0706
92	HARNESS; FLOOR ENGINE CONTROL COMMON RAIL(Q4R)	1-82662-036-2	01	1	0707-0811
92	HARNESS; FLOOR ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-82662-036-2	01	1	0812-

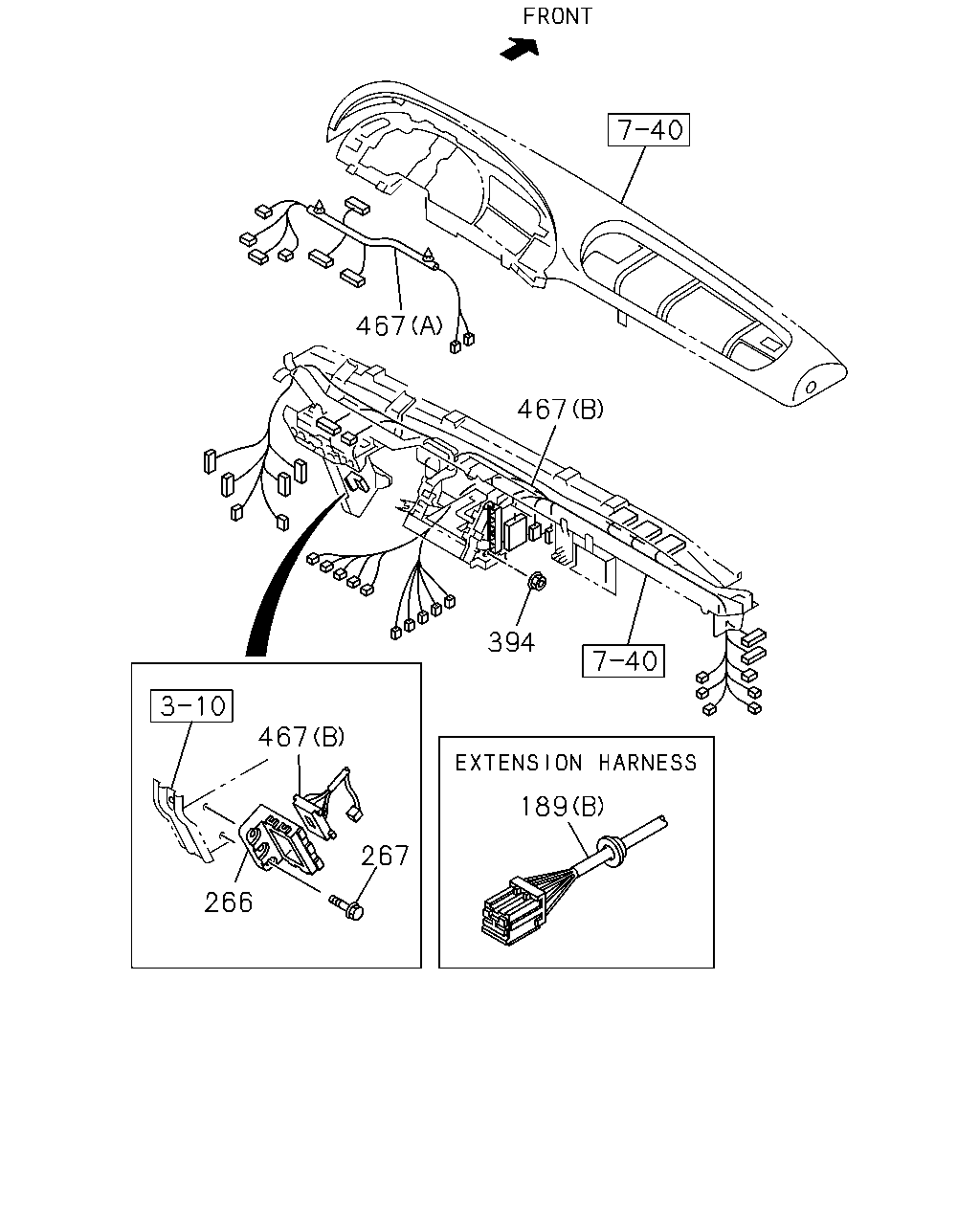

467 467 394 467 189 267 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C)	1-82673-735-0	08	1	0810-
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-066-0	01	1	0810-
189	HARNESS; EXT CHINA EQUIPMENT(YT2) (B)	8-97625-952-0	01	1	0806-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0511-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0511-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91150-106-0	01	1	0511-0602
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0603-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-266-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3> (A)	8-97695-263-0	01	1	1307-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-265-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-1	01	1	0901-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-972-3	01	1	0908-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-1	01	1	0901-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98142-971-3	01	1	0908-
467	HARNESS; FACIA SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-743-4	01	1	0812-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0611-0706
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0707-0805
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	0908-1306
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>,VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1),FUE L SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	1307-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0511-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-1306
467	HARNESS; FACIA VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3>,POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3>,VIN MODEL YEAR 2013(VZD) (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA (B)	1-82662-744-3	01	1	0511-0610
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-744-3	01	1	0611-0706
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-744-3	01	1	0707-0805
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	8-97625-938-0	01	1	0806-0806
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0812-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	0908-1306
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	1307-

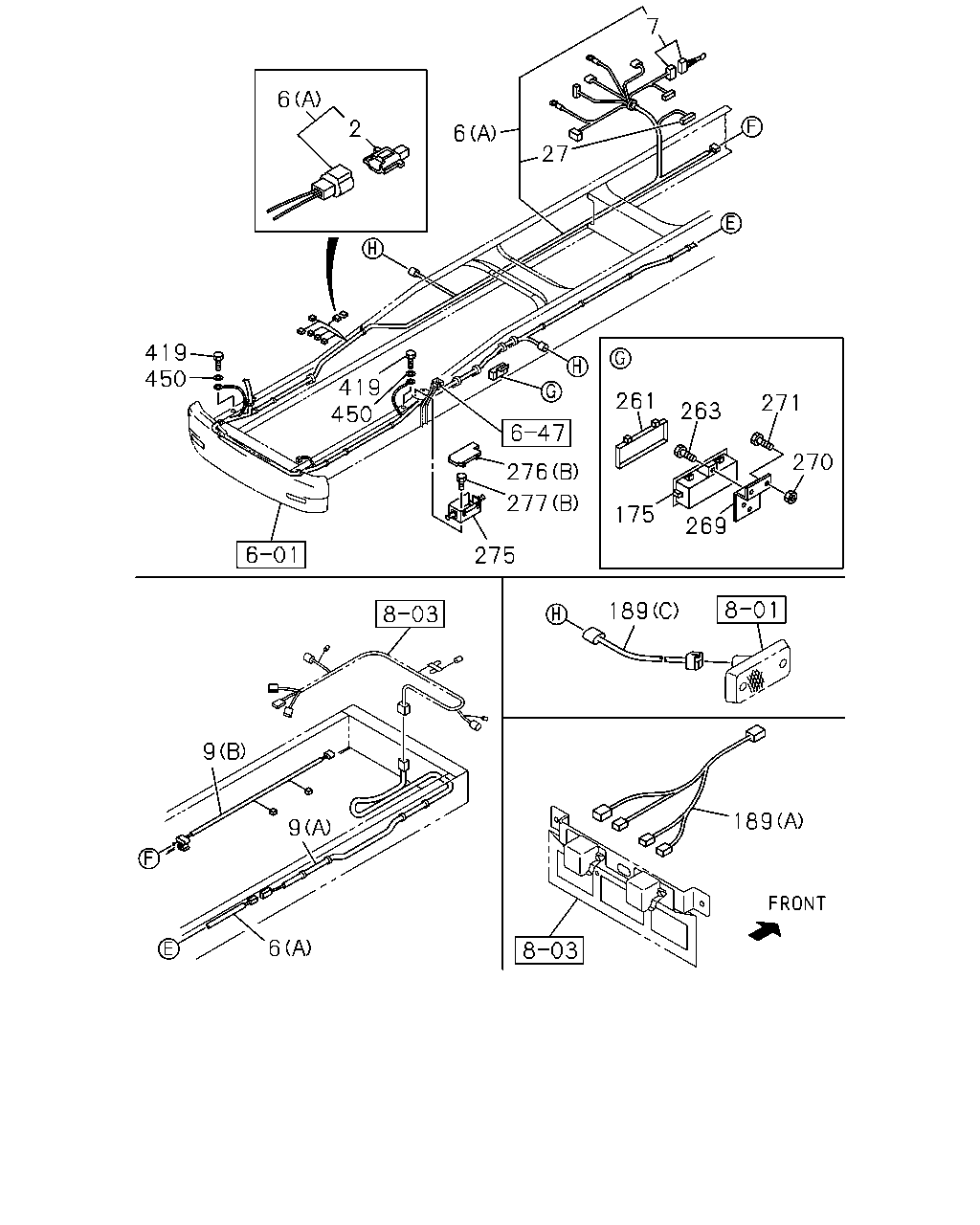

6 2 6 27 419 450 419 450 276 277 261 263 271 175 269 270 275 9 9 6 189 189 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0511-
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97633-685-0	01	1	0906-
6	HARNESS; FRAME SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82678-131-2	01	1	0812-
6	HARNESS; FRAME SAUDI ARABIA EQUIPMENT(WH1) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82678-131-2	01	1	0812-
6	HARNESS; FRAME FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98124-617-0	01	1	0807-0811
6	HARNESS; FRAME FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98124-617-0	01	1	0812-
6	HARNESS; FRAME (A)	1-82678-131-1	01	1	0511-0805
6	HARNESS; FRAME (A)	8-97625-929-0	01	1	0806-0806
6	HARNESS; FRAME EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0807-0811
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0812-0905
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU),SAUDI ARABIAEQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0906-1103
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU),SAUDI ARABIAEQUIPMENT(WH1),LOW DECK WO/REAR BODY VAR2<XR8>,FUE L SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-2	01	1	1104-
6	HARNESS; FRAME WHEEL BASE 7700MM(77W) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-98189-953-2	01	1	1104-
6	HARNESS; FRAME (B)	1-82677-378-3	01	1	0511-0706
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82677-378-3	01	1	0707-1103
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (B)	1-82677-378-3	01	1	1104-
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (B)	8-98181-560-0	01	1	1104-1104
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98181-560-0	01	1	1104-
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B)	8-98189-955-0	01	1	1104-
7	LINK ASM; FUSIBLE SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	1-82659-224-0	01	1	0812-1103
7	LINK ASM; FUSIBLE SAUDI ARABIA EQUIPMENT(WH1) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	1-82659-224-0	01	1	0812-1103
7	LINK ASM; FUSIBLE EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1)	1-82659-224-0	01	1	0812-1103
7	LINK ASM; FUSIBLE	1-82659-224-0	01	1	1104-
7	LINK ASM; FUSIBLE	1-82659-224-0	01	1	0511-
9	HARNESS; FRAME,RR WHEEL BASE 7400MM(74W) (A)	1-82678-227-0	01	1	0511-0805
9	HARNESS; FRAME,RR WHEEL BASE 7400MM(74W) (A)	8-97625-935-0	01	1	0806-
9	HARNESS; FRAME,RR WHEEL BASE 7400MM(74W) (B)	1-82678-228-0	01	1	0511-
9	HARNESS; FRAME,RR WHEEL BASE 6300MM(63W) (A)	1-82678-132-0	01	1	0511-0805
9	HARNESS; FRAME,RR WHEEL BASE 6300MM(63W) (A)	8-97625-934-0	01	1	0806-
9	HARNESS; FRAME,RR WHEEL BASE 6300MM(63W) (B)	1-82678-134-0	01	1	0511-
9	HARNESS; FRAME,RR WHEEL BASE 7700MM(77W) (A)	1-82678-133-0	01	1	0511-0805
9	HARNESS; FRAME,RR WHEEL BASE 7700MM(77W) (A)	8-97625-936-0	01	1	0806-
9	HARNESS; FRAME,RR WHEEL BASE 7700MM(77W) (B)	1-82678-135-1	01	1	0511-
27	FUSE UNIT 7.5A BROWN	8-94159-007-0	01	1	1104-
27	FUSE UNIT 7.5A BROWN	8-94159-007-0	01	1	0511-
175	BOX; CONNECTOR	1-82699-467-0	01	1	0511-
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C)	1-82673-735-0	08	1	0810-
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-066-0	01	1	0810-
189	HARNESS; EXT CHINA EQUIPMENT(YT2) (B)	8-97625-952-0	01	1	0806-
261	COVER; CONNECTOR BOX	1-82699-320-0	01	1	0511-
263	BOLT; CONNECTOR BOX M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0511-
269	BRACKET; CONNECTOR BOX	1-82698-424-0	01	1	0511-
270	NUT; BRKT,CONNECTOR BOX M8 FLANGE	0-91150-108-0	02	1	0511-0602
270	NUT; BRKT,CONNECTOR BOX M8 FLANGE	0-91180-108-0	02	1	0603-
271	BOLT; BRKT CONNECTOR BOX M8X30 FLANGE	0-28680-830-0	02	1	0511-0512
271	BOLT; BRKT CONNECTOR BOX M8X30 FLANGE	0-28650-830-0	02	1	0601-
275	BOX ASM; FRAME HARNESS	1-82699-474-2	01	1	0511-1103
275	BOX ASM; FRAME HARNESS EXC. CHINA EQUIPMENT(YT2)	1-82699-474-2	01	1	1104-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0511-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0511-1103
276	COVER; BOX,FRAME HARNESS EXC. CHINA EQUIPMENT(YT2) (B)	1-82699-475-2	01	1	1104-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0511-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0511-1103
277	BOLT; BOX ASM FIX EXC. CHINA EQUIPMENT(YT2) (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1104-
419	BOLT; CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0707-1201
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0511-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0707-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0511-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0707-1201
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X18.5 W/PL WASHER	8-98141-255-0	05	1	1202-
450	WASHER; PL,CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	02	1	0707-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	0511-0706
450	WASHER; PL,CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	03	1	0707-

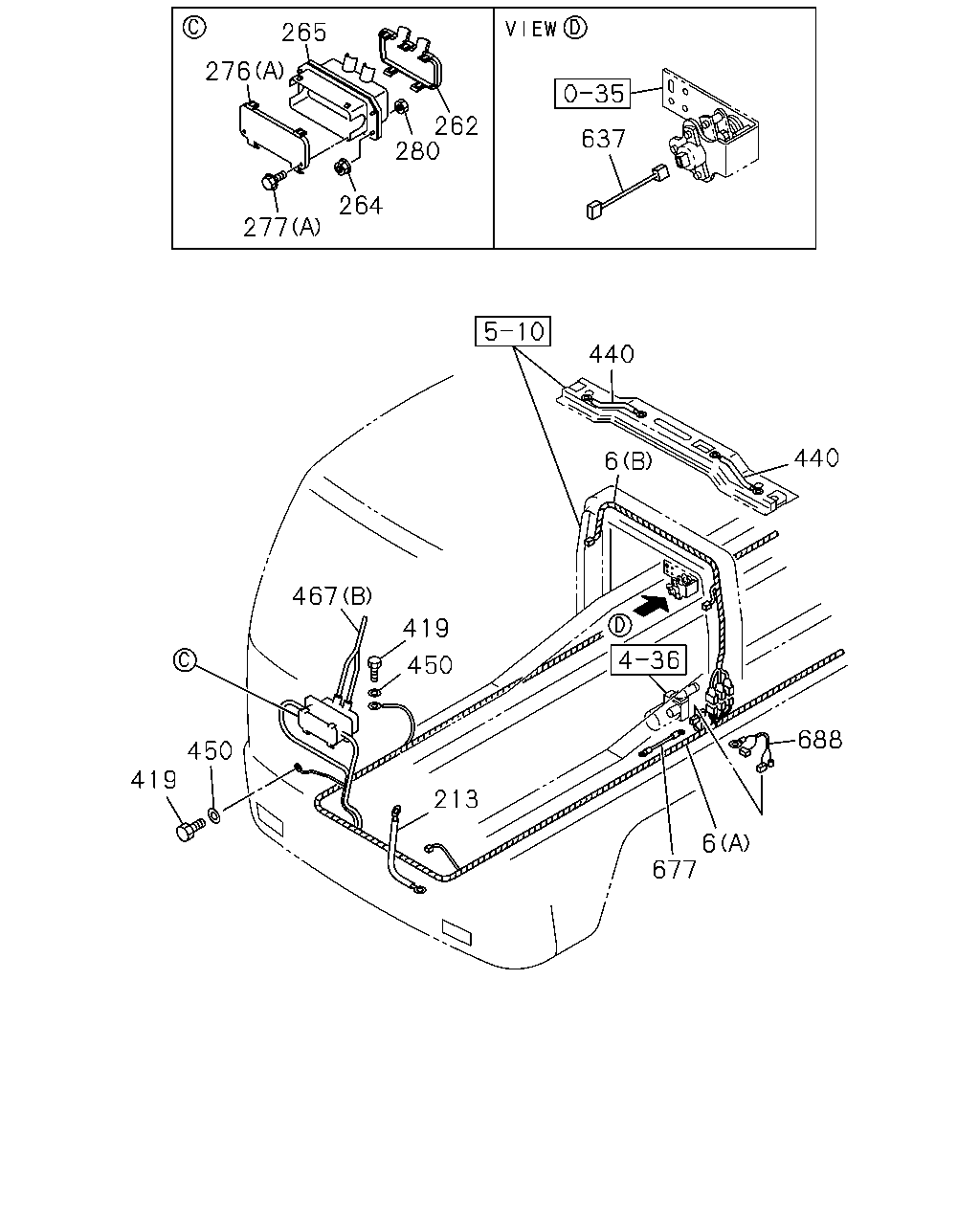

265 276 262 280 637 264 277 440 440 6 467 419 450 688 450 419 213 6 677

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97633-685-0	01	1	0906-
6	HARNESS; FRAME SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82678-131-2	01	1	0812-
6	HARNESS; FRAME SAUDI ARABIA EQUIPMENT(WH1) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82678-131-2	01	1	0812-
6	HARNESS; FRAME FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98124-617-0	01	1	0807-0811
6	HARNESS; FRAME FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98124-617-0	01	1	0812-
6	HARNESS; FRAME (A)	1-82678-131-1	01	1	0511-0805
6	HARNESS; FRAME (A)	8-97625-929-0	01	1	0806-0806
6	HARNESS; FRAME EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0807-0811
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0812-0905
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU),SAUDI ARABIAEQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-0	01	1	0906-1103
6	HARNESS; FRAME EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU),SAUDI ARABIAEQUIPMENT(WH1),LOW DECK WO/REAR BODY VAR2<XR8>,FUE L SEDIMENTER WITH HEATER<6HU> (A)	8-97625-929-2	01	1	1104-
6	HARNESS; FRAME WHEEL BASE 7700MM(77W) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-98189-953-2	01	1	1104-
6	HARNESS; FRAME (B)	1-82677-378-3	01	1	0511-0706
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82677-378-3	01	1	0707-1103
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (B)	1-82677-378-3	01	1	1104-
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (B)	8-98181-560-0	01	1	1104-1104
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98181-560-0	01	1	1104-
6	HARNESS; FRAME ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B)	8-98189-955-0	01	1	1104-
213	CABLE; EARTH,CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2)	8-98189-958-0	01	1	1104-
213	CABLE; EARTH,CAB TO FRAME	1-82677-900-1	01	1	0511-0706
213	CABLE; EARTH,CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R)	1-82677-900-1	01	1	0707-1103
213	CABLE; EARTH,CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-82677-900-1	01	1	1104-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0511-
264	NUT; CONNECTOR BOX M8 FLANGE	0-91150-108-0	01	1	0511-0602
264	NUT; CONNECTOR BOX M8 FLANGE	0-91180-108-0	01	1	0603-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0511-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0511-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0511-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0511-1103
276	COVER; BOX,FRAME HARNESS EXC. CHINA EQUIPMENT(YT2) (B)	1-82699-475-2	01	1	1104-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0511-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0511-1103
277	BOLT; BOX ASM FIX EXC. CHINA EQUIPMENT(YT2) (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1104-
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0511-
419	BOLT; CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0707-1201
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0511-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0707-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0511-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0707-1201
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X18.5 W/PL WASHER	8-98141-255-0	05	1	1202-
440	CABLE; EARTH	1-82678-273-0	02	1	0511-0706
440	CABLE; EARTH ENGINE CONTROL COMMON RAIL(Q4R)	1-82678-273-0	02	1	0707-
450	WASHER; PL,CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	02	1	0707-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	0511-0706
450	WASHER; PL,CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	03	1	0707-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-266-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3> (A)	8-97695-263-0	01	1	1307-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) VIN MODEL YEAR 2013(VZD) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97695-265-0	01	1	1307-
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-0	01	1	0812-0812
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98124-609-1	01	1	0901-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-972-3	01	1	0908-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-0	01	1	0812-0812
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98124-608-1	01	1	0901-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1) (B)	8-98142-971-3	01	1	0908-
467	HARNESS; FACIA SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-743-4	01	1	0812-
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0611-0706
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-743-3	01	1	0707-0805
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0807-0811
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-937-0	01	1	0812-0907
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDIARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	0908-1306
467	HARNESS; FACIA ENGINE CONTROL COMMON RAIL(Q4R) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ,SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>,VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1),FUE L SEDIMENTER WITH HEATER<6HU> (B)	8-98142-969-3	01	1	1307-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0511-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-1306
467	HARNESS; FACIA VIN MODEL YEAR 2013(VZD) EXC. RUSSIA COUNTRY<CZ3>,POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3>,VIN MODEL YEAR 2013(VZD) (A)	1-82662-742-1	01	1	1307-
467	HARNESS; FACIA (B)	1-82662-744-3	01	1	0511-0610
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-82662-744-3	01	1	0611-0706
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-744-3	01	1	0707-0805
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) (B)	8-97625-938-0	01	1	0806-0806
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0807-0811
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97625-938-0	01	1	0812-0907
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	0908-1306
467	HARNESS; FACIA POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ENGINE CONTROL COMMON RAIL(Q4R) EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, VIN MODEL YEAR 2013(VZD),SAUDI ARABIA EQUIPMENT(WH1) ,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-970-3	01	1	1307-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0511-
677	HARNESS; EARTH,P/S PUMP	1-82677-535-2	01	1	0511-0811
677	HARNESS; EARTH,P/S PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA>, SAUDI ARABIA EQUIPMENT(WH1)	1-82677-535-2	01	1	0812-
688	HARNESS; P/S PUMP	1-82678-264-0	01	1	0512-

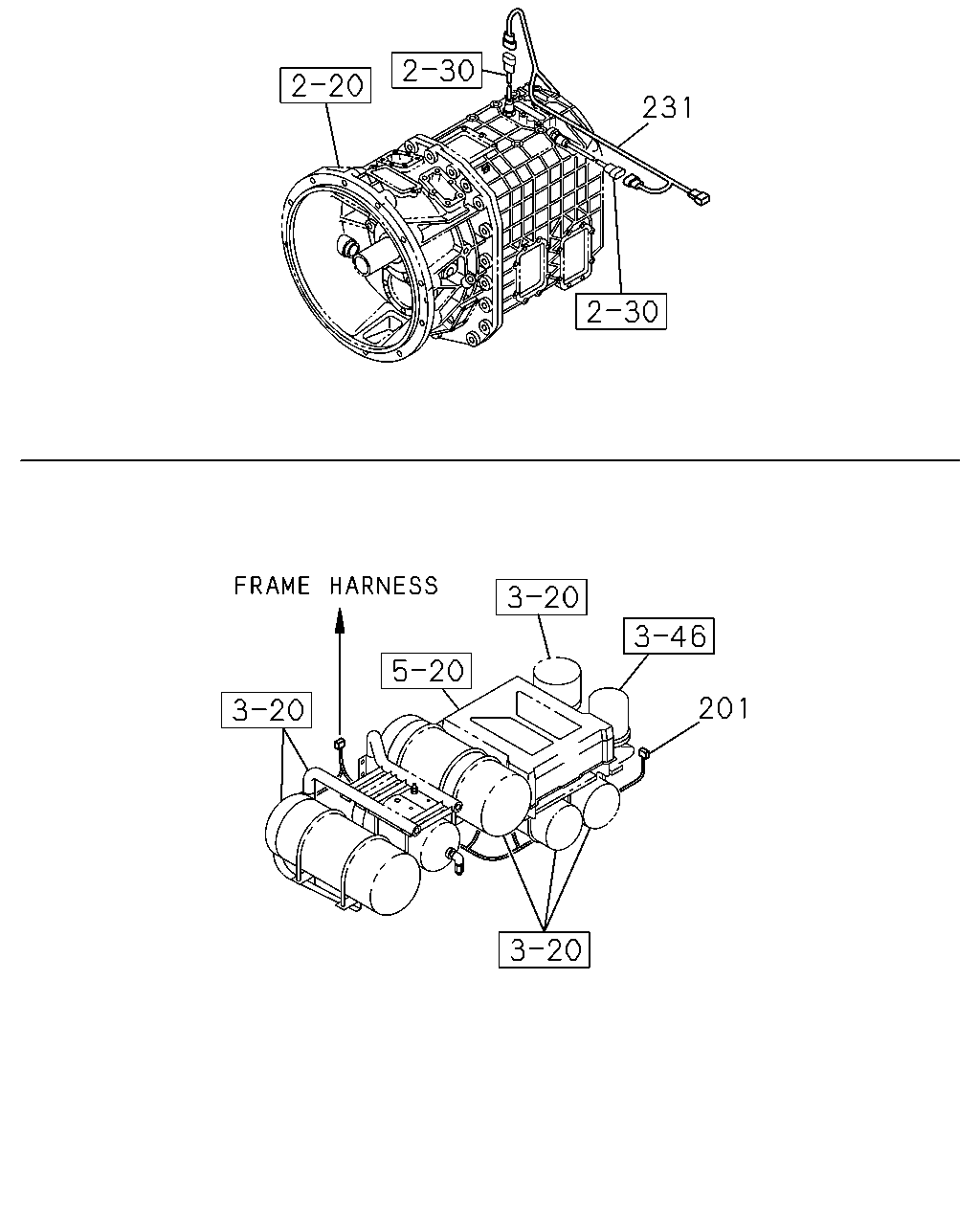

231 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	HARNESS; AIR TANK	1-82678-222-1	01	1	0511-
231	HARNESS; TRANS	1-82676-366-4	01	1	0511-0609
231	HARNESS; TRANS	8-97615-725-1	01	1	0610-

13 13 255 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	1-82641-345-0	01	1	0511-0612
13	HARNESS; ENG (B)	8-97617-395-0	01	1	0701-1004
13	HARNESS; ENG (B)	8-98169-641-0	01	1	1005-1103
13	HARNESS; ENG GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98169-641-0	01	1	1104-
13	HARNESS; ENG CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B)	8-98169-641-0	01	1	1104-
13	HARNESS; ENG CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) (B)	8-98180-788-0	01	1	1104-
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0511-
199	HARNESS; STARTER CONCRETE PUMP<RA5>	8-98209-247-0	01	1	1204-
199	HARNESS; STARTER	1-82641-329-3	01	1	0511-1203
199	HARNESS; STARTER EXC. CONCRETE PUMP<RA5>	1-82641-329-3	01	1	1204-
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (A)	8-98181-558-0	01	1	1104-1104
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98181-558-0	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-97641-992-1	01	1	1203-
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-98189-948-0	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A)	8-97642-186-1	01	1	1203-
255	HARNESS; ELEC GOV (A)	1-82662-241-2	01	1	0511-0706
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-82662-241-2	01	1	0707-1103
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (A)	1-82662-241-2	01	1	1104-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) EXC. CHINA EQUIPMENT(YT2) (A)	8-97642-187-1	01	1	1203-
255	HARNESS; ELEC GOV (B)	1-82662-741-1	01	1	0511-0706
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-82662-741-1	01	1	0707-1202
255	HARNESS; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) (B)	8-97641-997-0	01	1	1203-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
