Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

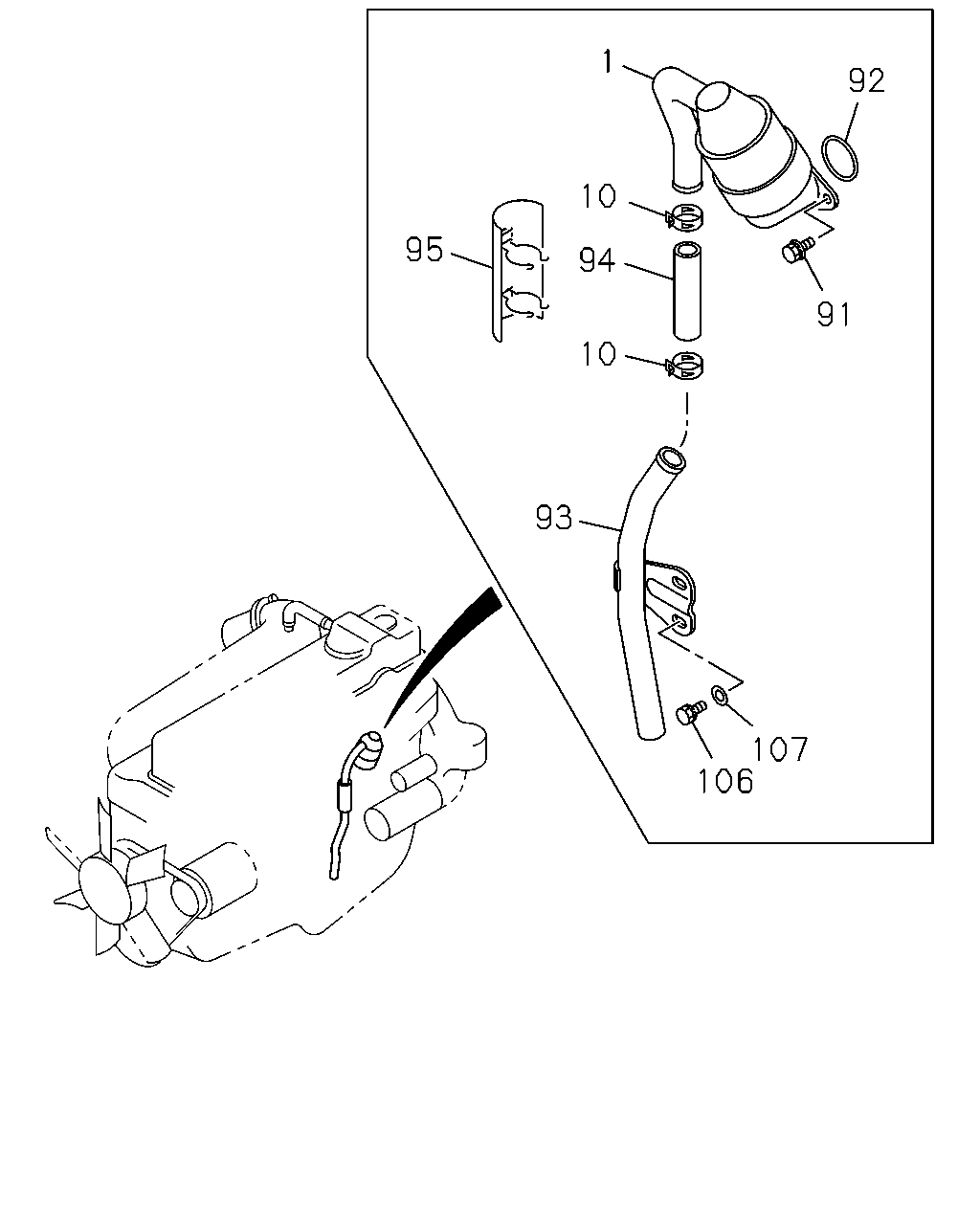

0-28 — VENTILATION SYSTEM
(#3126) — 18 parça
1
92
10
95
94
91
10
93
107
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-168-1
01
1
9104-
1
BREATHER; AIR
1-11740-168-1
01
1
0108-
10
CLIP; AIR BREATHER
ID=28
1-09707-124-0
02
1
9104-
10
CLIP; AIR BREATHER
ID=28
1-09707-124-0
02
1
0108-
91
BOLT; AIR BREATHER
M8X22 W/LK&PL WASHER
0-50140-822-0
02
1
9104-
91
BOLT; AIR BREATHER
M8X22 W/LK&PL WASHER
0-50140-822-0
02
1
0108-
92
GASKET; AIR BREATHER TO PIPE
ID=38.7
1-09623-184-0
01
1
9104-
92
GASKET; AIR BREATHER TO PIPE
ID=38.7
1-09623-184-0
01
1
0108-
93
PIPE; DRAIN
1-11742-029-1
01
1
9104-
93
PIPE; DRAIN
1-11742-029-1
01
1
0108-
94
HOSE; BREATHER TO PIPE
L=100
0-02825-100-0
01
1
9104-
94
HOSE; BREATHER TO PIPE
L=100
0-02825-100-0
01
1
0108-
95
PROTECTOR; HEAT,RUBBER HOSE
1-14181-175-0
01
1
9104-
95
PROTECTOR; HEAT,RUBBER HOSE
1-14181-175-0
01
1
0108-
106
BOLT; DRAIN PIPE
M10X20 W/LK WASHER
0-50041-020-0
02
1
9104-
106
BOLT; DRAIN PIPE
M10X20 W/LK WASHER
0-50041-020-0
02
1
0108-
107
WASHER; PL,DRAIN PIPE
ID=10.5 OD=22
9-09164-610-0
02
1
9104-
107
WASHER; PL,DRAIN PIPE
ID=10.5 OD=22
9-09164-610-0
02
1
0108-
