◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#31259) — 226 parça
çizim 88602
1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-190-1 01 1 0801-
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-191-1 01 1 0801-
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0511-0612
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0511-0612
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0511-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0511-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712-
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-212-0 01 1 0511-
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-213-0 01 1 0511-
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-175-0 01 1 0511-
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-176-0 01 1 0511-
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0511-0610
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0611-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0511-0610
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0611-
13 CLIP; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 02 1 0511-0711
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 04 1 0511-0711
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0511-0610
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0611-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0511-0610
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0611-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0511-0610
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0611-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0511-0610
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0611-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0511-0610
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0611-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0511-0906
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0511-0610
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0611-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0511-0610
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0611-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
338 LEVELING; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98010-256-0 02 1 0511-
339 GASKET; LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-86830-158-0 02 1 0511-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0511-0610
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0611-

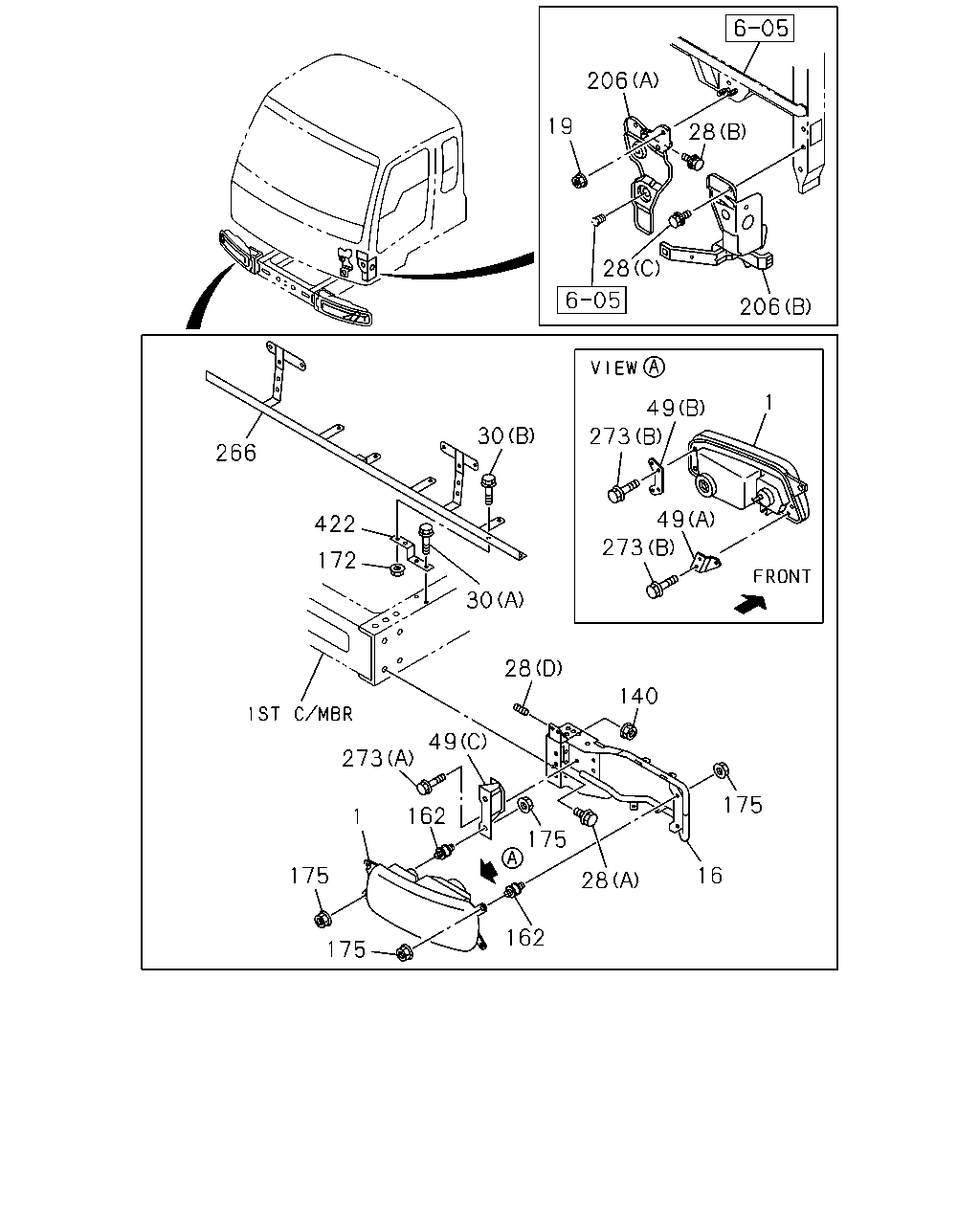

çizim 89456
206 19 28 28 206 1 49 30 266 49 422 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-190-1 01 1 0801-
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-191-1 01 1 0801-
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0511-0612
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0511-0612
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0511-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0511-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0511-0610
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0611-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0511-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0511-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0511-
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28681-030-0 06 1 0511-0512
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0511-
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0511-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0511-
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0511-0512
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28681-025-0 04 1 0511-0512
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0601-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0511-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0511-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0511-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0511-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0511-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0511-
49 BRACKET; LAMP
(C) 		8-97609-836-0 01 1 0511-
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0511-0602
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0511-
172 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0511-0602
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0511-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0511-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0511-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0511-
266 STAY; BRKT,HEADLAMP 1-82117-163-2 01 1 0511-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0511-0512
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28680-616-0 08 1 0511-0512
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0601-
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 0511-

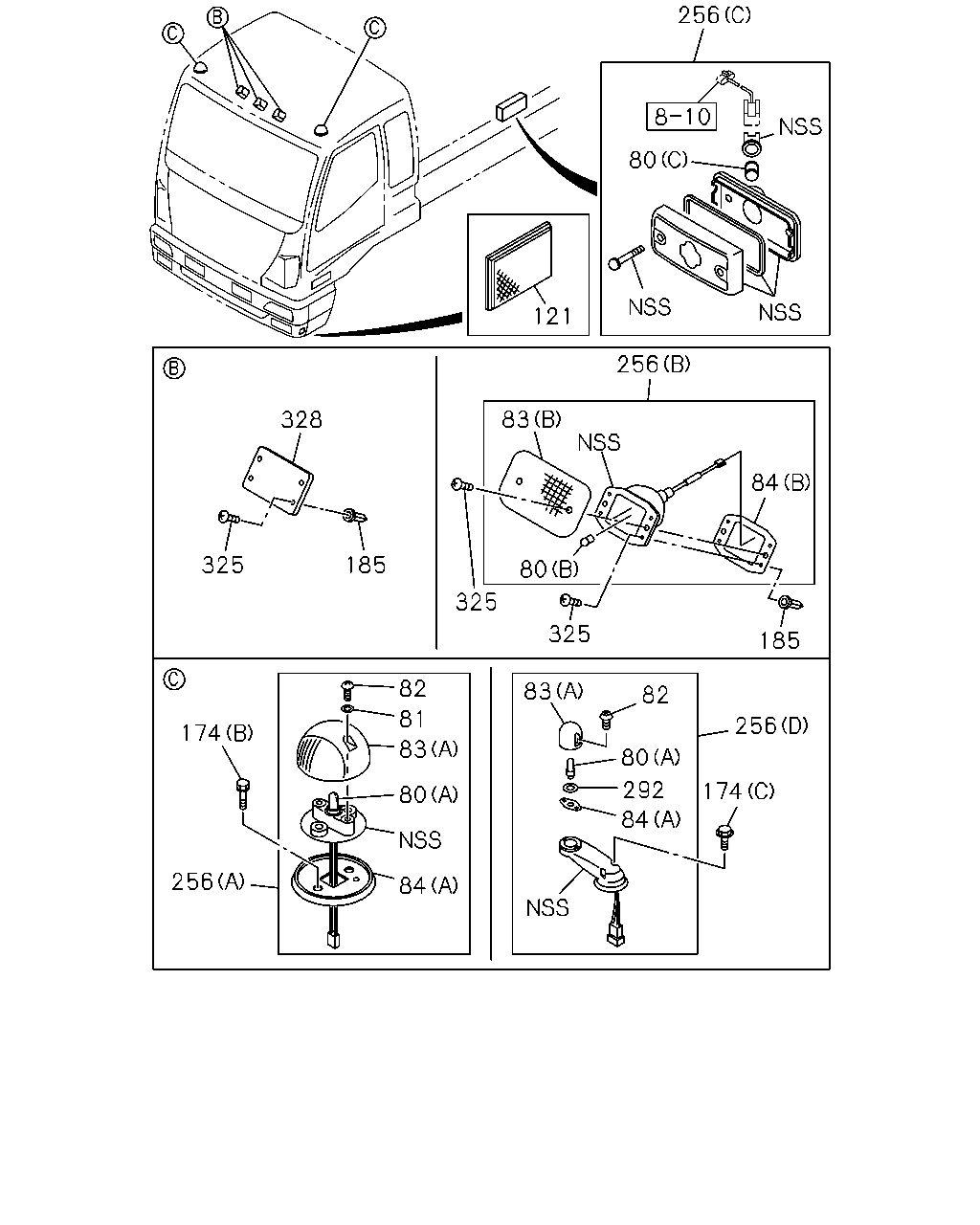

çizim 89514
256 80 121 256 83 328 84 325 185 80 325 325 185 82 83 82 81 256 174 83 80 292 174 80 84 256 84
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C) 24V 3W 		1-82219-035-0 08 1 0810-
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 24V 12W 		9-82691-302-0 03 1 0810-
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 0511-
81 SEAT; SCREW 1-82219-012-0 04 1 0511-1103
81 SEAT; SCREW
EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-82219-012-0 04 1 1104-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0511-
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 0810-
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 0511-
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 0810-
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 02 1 0511-1103
84 GASKET; MARKER LAMP
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-86830-288-0 02 1 1104-
84 GASKET; MARKER LAMP
LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-86830-288-0 04 1 1104-
121 REFLECTOR; REFLEX
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> 		8-98013-990-1 02 1 0812-
174 BOLT
LOW DECK WO/REAR BODY VAR2<XR8> (C) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1104-
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0511-0512
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0602-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0511-1103
174 BOLT
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1104-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0511-
256 LAMP; MARKER
LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-86830-292-0 01 1 1104-
256 LAMP; MARKER
LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-86830-293-0 01 1 1104-
256 LAMP; MARKER
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C) 		1-82210-244-0 08 1 0810-
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (B) 		1-86830-170-0 03 1 0810-
256 LAMP; MARKER
(A) 		1-86830-242-2 02 1 0511-1103
256 LAMP; MARKER
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-86830-242-3 02 1 1104-
292 WASHER; MARKER LAMP
LOW DECK WO/REAR BODY VAR2<XR8> 		1-82219-012-0 04 1 1104-
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> M5X20 TAPPING 		0-71090-520-0 18 1 0812-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0511-0603
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0604-0811
325 SCREW; SPD INDICATOR LAMP
EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING 		0-71040-514-0 12 1 0812-
328 COVER; LAMP 1-76217-122-1 03 1 0511-0809
328 COVER; LAMP
EXC. ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 0810-

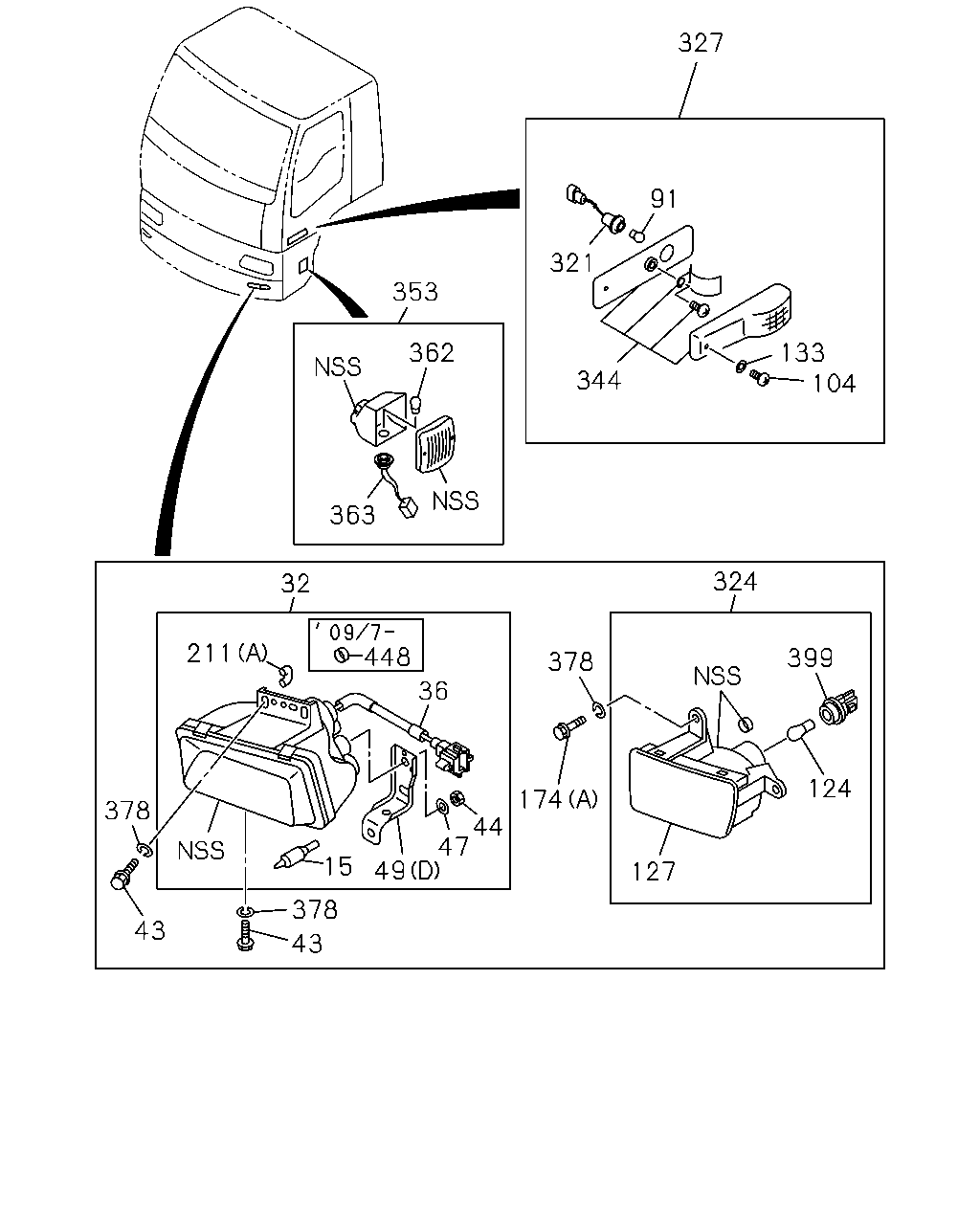

çizim 89515
353 362 363 327 91 321 344 133 104 32 324 211 378 43 378 43 15 49 47 44 36 378 174 127 399 124 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0511-
32 LAMP ASM; FOG
CHINA EQUIPMENT(YT2) 		1-82110-475-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
32 LAMP ASM; FOG
CHINA EQUIPMENT(YT2) 		1-82110-476-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0511-0612
32 LAMP ASM; FOG
EXC. CHINA EQUIPMENT(YT2) 		1-82110-453-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-454-0 01 1 0511-0612
32 LAMP ASM; FOG
EXC. CHINA EQUIPMENT(YT2) 		1-82110-454-0 01 1 0701-0712
36 CORD; FOG LAMP 1-82118-015-0 01 1 0511-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0511-
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50140-620-0 06 1 0511-0512
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0601-0601
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 0602-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0511-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0511-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0511-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0511-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0511-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0511-
49 BRACKET; LAMP
(C) 		8-97609-836-0 01 1 0511-
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0611-0811
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0812-
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0511-0610
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0611-0811
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0812-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0511-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0511-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0511-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0511-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0511-0610
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0611-0811
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0812-
174 BOLT
LOW DECK WO/REAR BODY VAR2<XR8> (C) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1104-
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0511-0512
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0602-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0511-1103
174 BOLT
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1104-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0511-0906
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0511-0610
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0611-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0511-0610
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0611-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0611-0811
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0812-
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0511-0610
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0611-0811
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0812-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0511-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0511-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0611-0811
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0812-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0611-0811
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0812-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-1 01 1 0511-0610
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0611-0811
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0812-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-1 01 1 0511-0610
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0611-0811
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0812-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0611-0811
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0812-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0611-0811
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0812-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0511-0610
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0611-0811
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0812-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0511-0610
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0611-0811
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0812-
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-2 01 1 0611-0811
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-2 01 1 0812-
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0611-0811
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0812-
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0611-0811
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0812-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0602-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 06 1 0602-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 06 1 0606-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0511-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
