◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#31257) — 35 parça

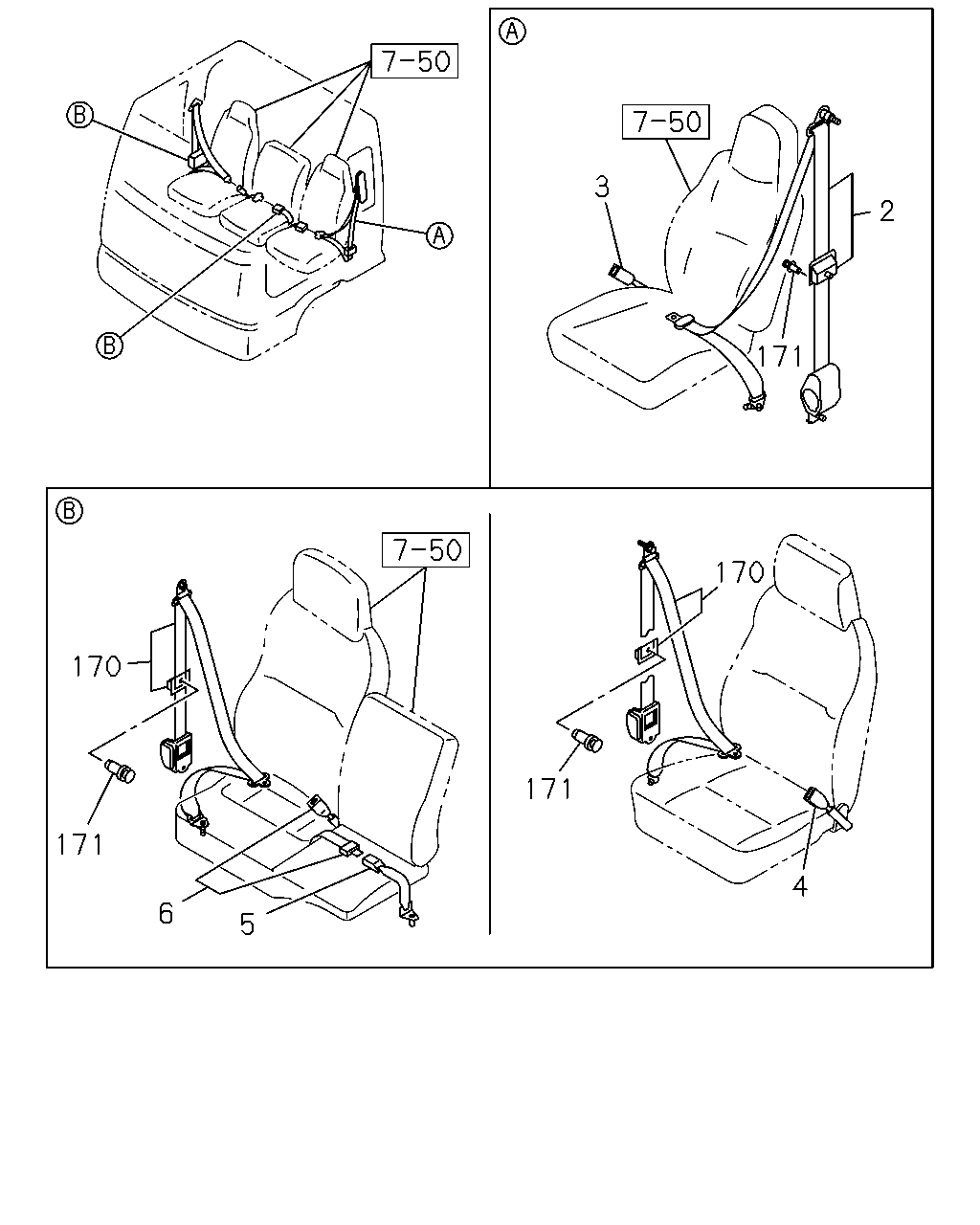

çizim 89455
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
RUSSIA COUNTRY<CZ3> 		8-98119-037-1 01 1 0810-
2 BELT; SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-75618-909-5 01 1 0611-0806
2 BELT; SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98120-810-0 01 1 0807-0809
2 BELT; SEAT,TONGUE SIDE
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		8-98120-810-0 01 1 0810-0811
2 BELT; SEAT,TONGUE SIDE
EXC. RUSSIA COUNTRY<CZ3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-98120-810-0 01 1 0812-
2 BELT; SEAT,TONGUE SIDE 8-97382-647-2 01 1 0511-0610
2 BELT; SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) 		8-97382-647-2 01 1 0611-0811
2 BELT; SEAT,TONGUE SIDE
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-97382-647-3 01 1 0812-
3 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(WH1) 		1-75617-545-0 01 1 0812-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0511-0811
3 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-914-0 01 1 0812-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 0611-
5 BELT; CENTER SEAT,BUCKLE SIDE
RUSSIA COUNTRY<CZ3> 		8-98127-493-0 01 1 0810-
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0511-0610
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0611-0808
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 0809-0809
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) EXC. RUSSIA COUNTRY<CZ3> 		1-75617-553-1 01 1 0810-
6 BELT; CENTER SEAT,TONGUE SIDE
RUSSIA COUNTRY<CZ3> 		8-98119-039-0 01 1 0810-
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) EXC. CHINA EQUIPMENT(YT2) 		1-75618-915-4 01 1 0611-0809
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		1-75618-915-4 01 1 0810-0811
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) EXC. RUSSIA COUNTRY<CZ3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-75618-915-4 01 1 0812-
6 BELT; CENTER SEAT,TONGUE SIDE 8-97382-652-1 01 1 0511-0610
6 BELT; CENTER SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) EXC. CENTER SEAT DELETE(SP9) 		8-97382-652-1 01 1 0611-0811
6 BELT; CENTER SEAT,TONGUE SIDE
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. CENTER SEAT DELETE(SP9) 		8-97382-652-1 01 1 0812-
170 BELT; PASSENGER SEAT,TONGUE SIDE
RUSSIA COUNTRY<CZ3> 		8-98119-038-1 01 1 0810-
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-75618-912-5 01 1 0611-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98120-818-0 01 1 0807-0809
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		8-98120-818-0 01 1 0810-0811
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. RUSSIA COUNTRY<CZ3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-98120-818-0 01 1 0812-
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-97382-650-2 01 1 0511-0610
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) 		8-97382-650-2 01 1 0611-0811
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-97382-650-2 01 1 0812-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0511-

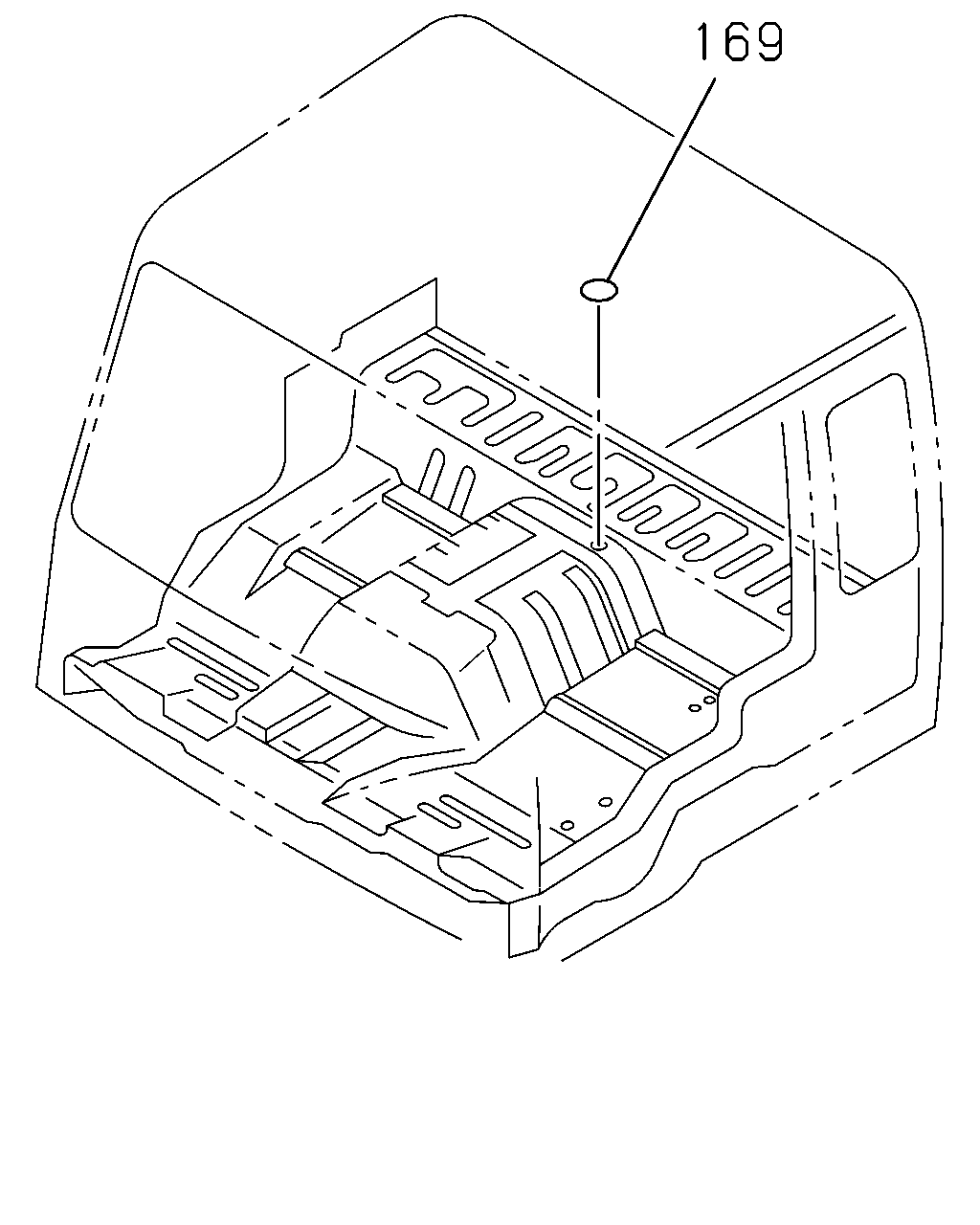

çizim 105088
169
BalonParca AdiParca NoAdetTipApplied Date
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0611-
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
