7-50 — FRONT SEAT (#31256) — 511 parça

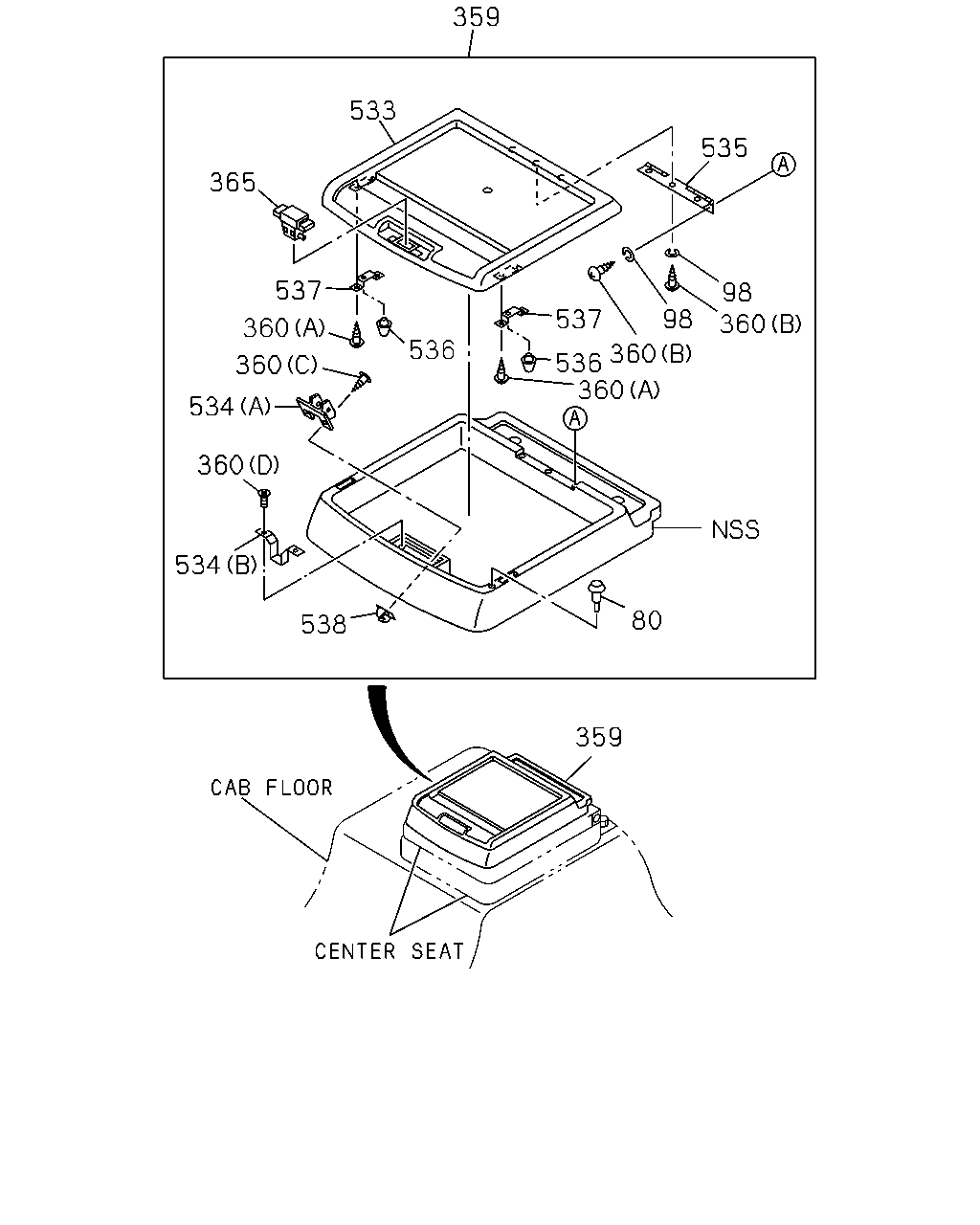

çizim 88573
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 0911-1306
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1307-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-175-1 01 1 0810-0910
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 0911-1306
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1307-
80 RUBBER; STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007-
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0511-0610
98 WASHER; HINGE
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0611-0809
98 WASHER; HINGE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0810-
359 BOX; PARCEL 1-72538-275-3 01 1 0511-0610
359 BOX; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-3 01 1 0611-0809
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0810-1006
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0611-0612
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0810-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0611-0612
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0810-1104
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0611-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0810-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0511-0610
365 LOCK ASM; SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0611-0809
365 LOCK ASM; SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0810-
533 LID; PARCEL BOX 1-72538-277-0 01 1 0511-0610
533 LID; PARCEL BOX
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-0 01 1 0611-0809
533 LID; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0810-1006
533 LID; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0511-0610
534 STRIKER; PARCEL BOX
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0611-0809
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0810-1006
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0511-0610
535 HINGE; PARCEL BOX
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0611-0809
535 HINGE; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0810-
536 RUBBER; CUSHION 5-09983-002-1 02 1 0511-0610
536 RUBBER; CUSHION
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0611-0809
536 RUBBER; CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0810-1006
537 BRACKET; RUBBER 1-72548-057-1 02 1 0511-0610
537 BRACKET; RUBBER
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0611-0809
537 BRACKET; RUBBER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0810-1006
538 GROMMET; SCREW 1-09983-165-0 02 1 0511-0610
538 GROMMET; SCREW
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0611-0809
538 GROMMET; SCREW
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0810-1006

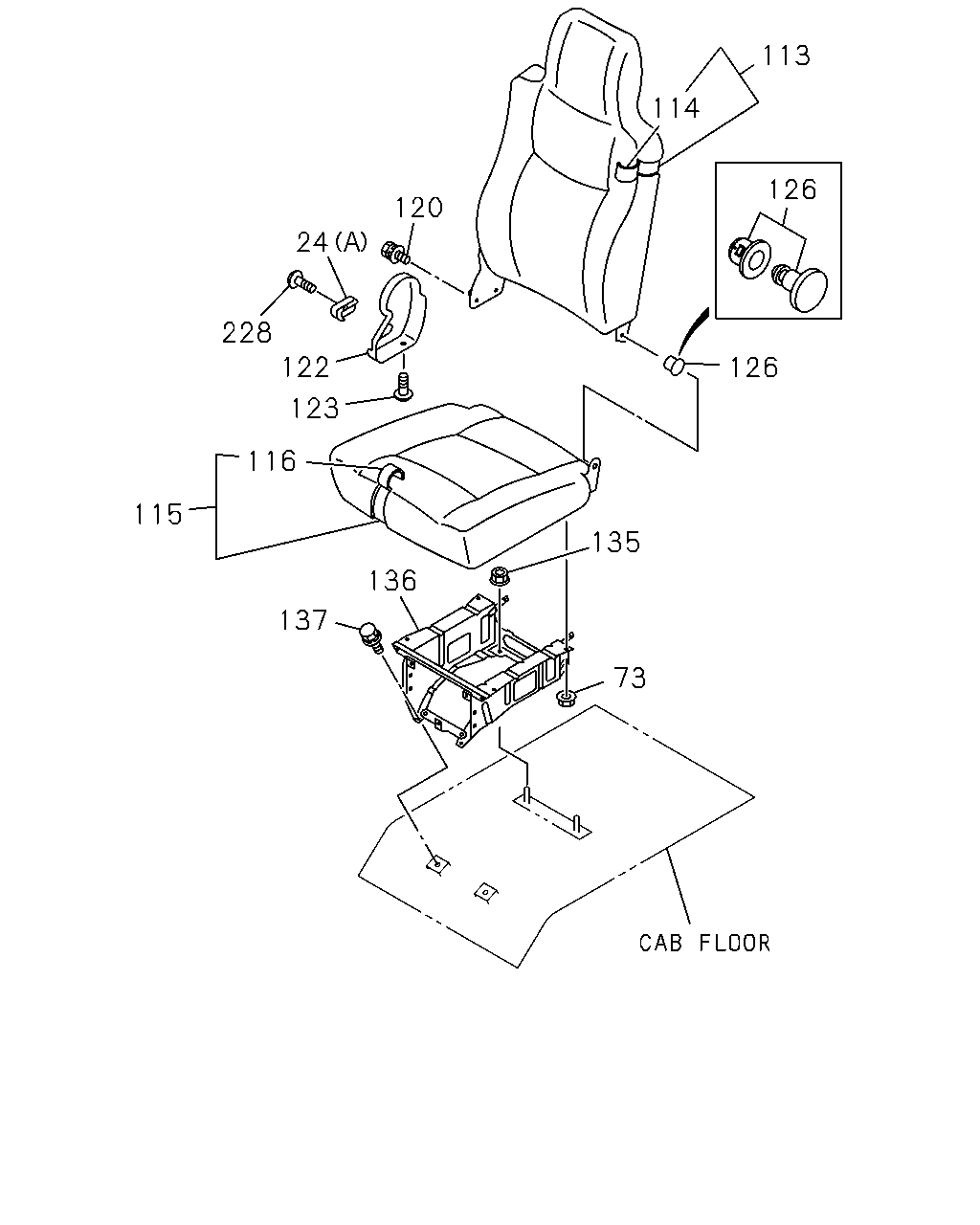

çizim 88604
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 0911-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1307-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1307-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0511-0610
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0611-0710
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) 		1-75418-067-0 01 1 0711-0809
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-067-0 01 1 0810-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) 		1-75418-067-0 01 1 0810-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0511-0610
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 0611-0809
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0810-0910
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 0911-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1307-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0511-0610
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 04 1 0611-0809
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 0810-
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-119-0 01 1 0911-1306
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-119-0 01 1 1307-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-118-0 01 1 0911-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-297-0 01 1 1012-1306
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-297-0 01 1 1307-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-654-2 01 1 0810-0910
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75207-654-2 01 1 0911-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-275-0 01 1 1012-1306
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-275-0 01 1 1307-
113 BACK ASM; SEAT 1-75208-241-2 01 1 0511-0610
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75208-241-2 01 1 0611-0910
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75208-241-2 01 1 0911-1306
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75208-241-2 01 1 1307-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-123-0 01 1 0911-1306
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-123-0 01 1 1307-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-122-0 01 1 0911-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-298-0 01 1 1012-1306
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-298-0 01 1 1307-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-173-1 01 1 0810-0910
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-173-1 01 1 0911-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-292-0 01 1 1012-1306
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-292-0 01 1 1307-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-742-1 01 1 0511-0610
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75116-742-1 01 1 0611-0910
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75116-742-1 01 1 0911-1306
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75116-742-1 01 1 1307-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 0810-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT 1-75207-367-1 01 1 0511-0610
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-367-1 01 1 0611-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 0810-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-133-1 01 1 0511-0610
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-133-1 01 1 0611-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0511-0610
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0611-0809
120 BOLT; RECLINING ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 0810-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0511-0610
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97867-020-0 01 1 0611-0809
122 COVER; ADJ,RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97867-020-0 01 1 0810-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0511-0610
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0611-0809
123 SCREW; COVER,RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0810-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0511-0610
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83) 		8-97854-087-0 01 1 0611-0809
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 0810-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0511-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0511-0610
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		1-75558-602-3 01 1 0611-0809
136 STAND; PASSENGER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75558-602-3 01 1 0810-1305
136 STAND; PASSENGER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0511-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0711-0809
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 0810-0910
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0810-0910
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0511-0610
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0809
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0810-0910
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1307-

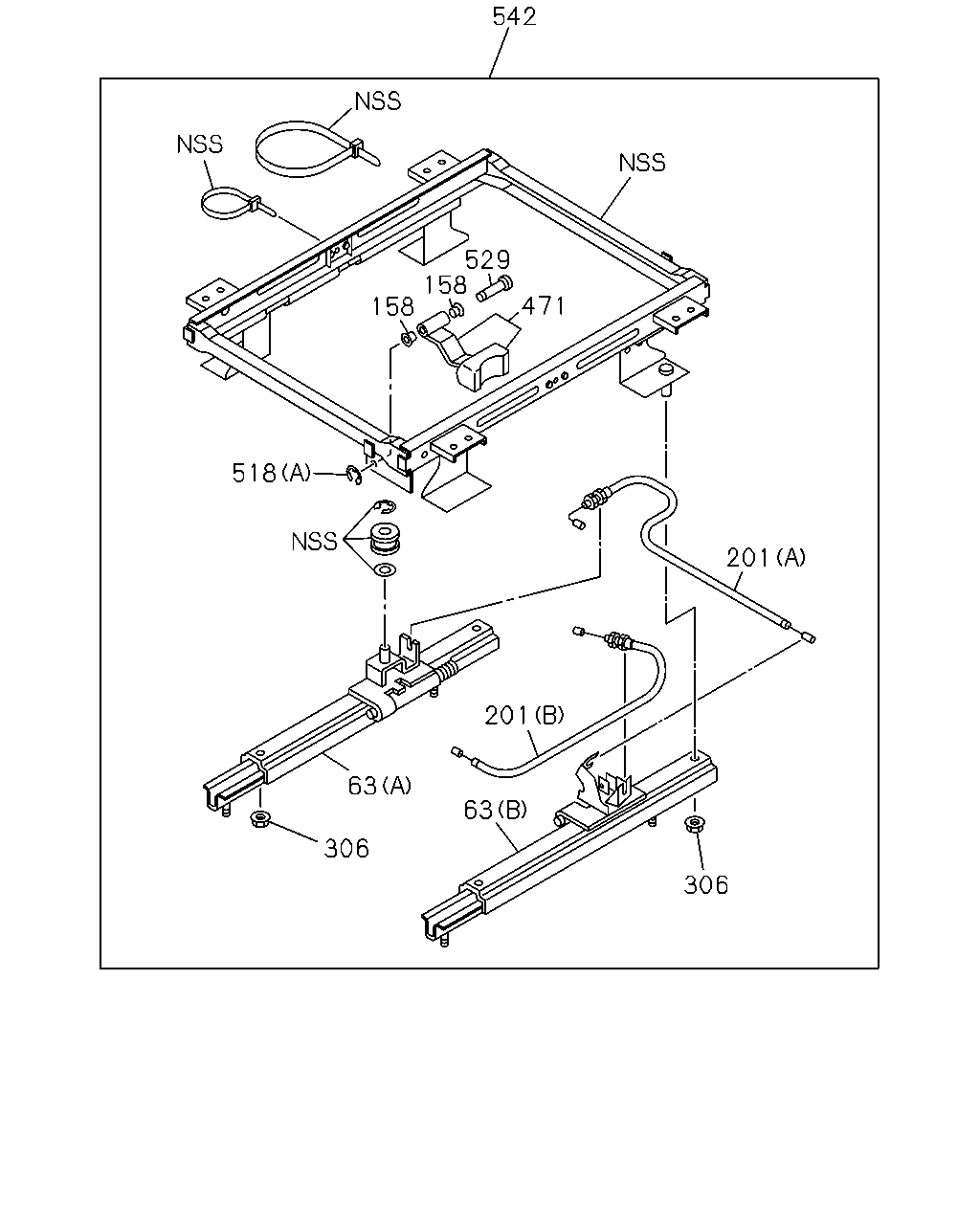

çizim 88605
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0611-0809
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0810-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0810-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-227-1 01 1 0611-0809
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0810-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-227-1 01 1 0810-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0611-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0511-0610
158 BUSHING; LINK ARM
VINYL SEAT(A83) 		1-75518-209-0 02 1 0611-0809
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0810-
158 BUSHING; LINK ARM
VINYL SEAT(A83) 		1-75518-209-0 02 1 0810-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0511-0610
201 CABLE; ADJ
VINYL SEAT(A83) (A) L=667 		1-75518-288-0 01 1 0611-0809
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0810-
201 CABLE; ADJ
VINYL SEAT(A83) (A) L=667 		1-75518-288-0 01 1 0810-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0511-0610
201 CABLE; ADJ
VINYL SEAT(A83) (B) L=605 		1-75518-289-1 01 1 0611-0809
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0810-
201 CABLE; ADJ
VINYL SEAT(A83) (B) L=605 		1-75518-289-1 01 1 0810-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0611-0809
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0611-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0511-0610
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		1-75518-290-0 01 1 0611-0710
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		8-98107-870-0 01 1 0711-0809
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98107-870-0 01 1 0810-
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		8-98107-870-0 01 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 		1-75518-264-0 04 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 FLANGE 		8-94152-886-0 04 1 0810-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) (A) 		1-75518-263-0 01 1 0611-0809
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0810-
518 NUT; TILT ADJ
VINYL SEAT(A83) (A) 		1-75518-263-0 01 1 0810-
529 PIN; LINK 1-75518-262-0 01 1 0511-0610
529 PIN; LINK
VINYL SEAT(A83) 		1-75518-262-0 01 1 0611-0809
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0810-
529 PIN; LINK
VINYL SEAT(A83) 		1-75518-262-0 01 1 0810-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-2 01 1 0511-0610
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0611-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503-

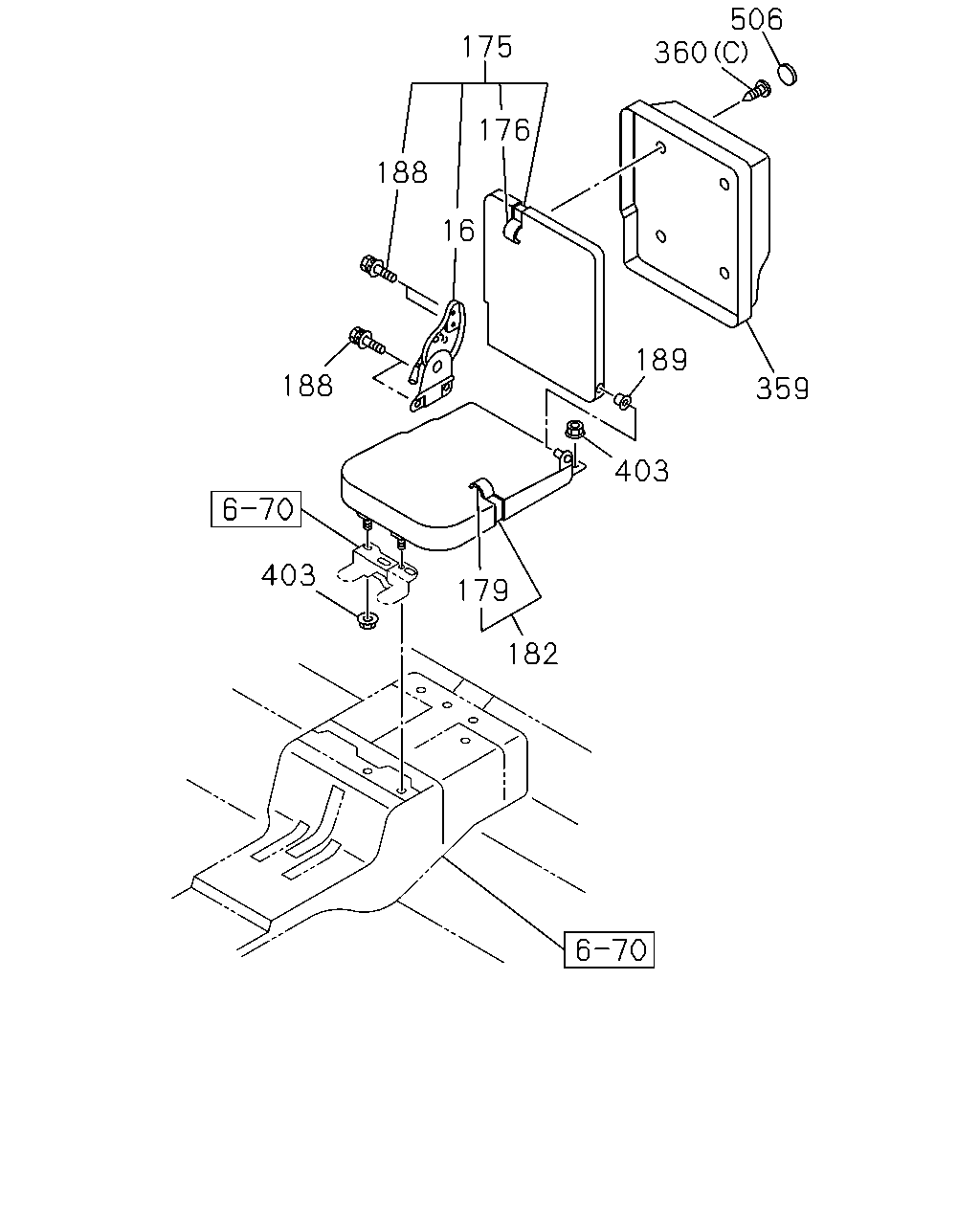

çizim 88631
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 0511-0610
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0611-0809
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0810-
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-602-3 01 1 0810-1011
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-328-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-856-3 01 1 0511-0610
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0611-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-156-2 01 1 0810-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-331-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-710-1 01 1 0511-0610
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0611-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-164-1 01 1 0810-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-325-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75127-127-1 01 1 0511-0610
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75127-127-1 01 1 0611-
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-644-1 01 1 0810-1011
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-317-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT 1-75207-009-4 01 1 0511-0610
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75207-009-4 01 1 0611-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0511-0610
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0611-0809
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0810-
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0511-0610
189 BUSHING; HINGE,CENTER SEAT BACK
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0611-0809
189 BUSHING; HINGE,CENTER SEAT BACK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0810-
359 BOX; PARCEL 1-72538-275-3 01 1 0511-0610
359 BOX; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-3 01 1 0611-0809
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0810-1006
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0611-0612
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0810-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0611-0612
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0810-1104
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0511-0610
360 SCREW; PARCEL
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0611-0809
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0810-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0511-0610
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0611-0703
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX 1-09983-180-2 04 1 0511-0610
506 CAP; PARCEL BOX
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-2 04 1 0611-0809
506 CAP; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0810-1006
506 CAP; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-

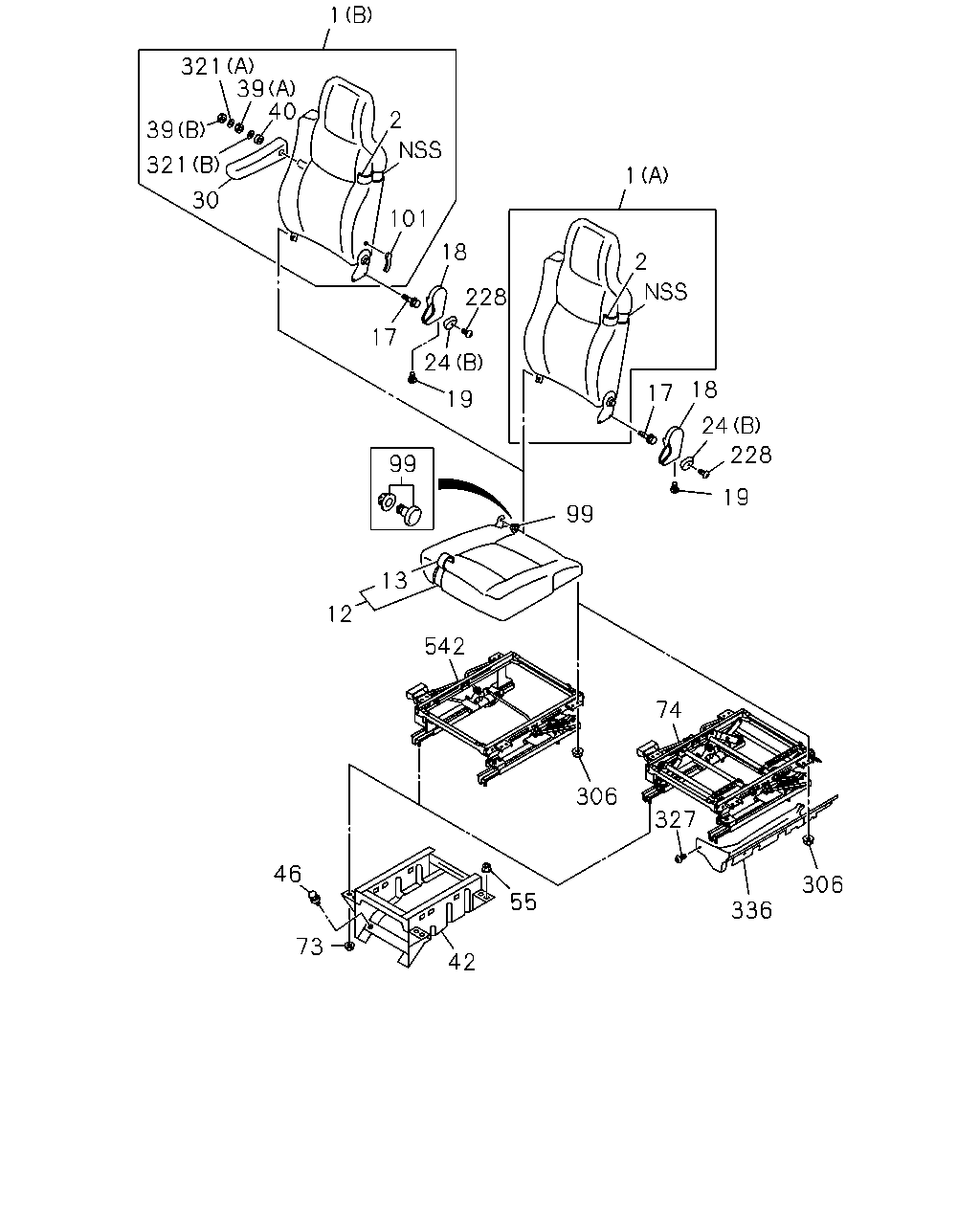

çizim 104970
1 39 321 39 321 30 40 2 101 228 18 17 19 24 1 2 17 18 24 228 19 99 99 13 12 542 306 74 327 336 306 42 55 73 46
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98124-117-0 01 1 0911-1306
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98124-117-0 01 1 1307-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98124-116-0 01 1 0911-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-073-0 01 1 1012-1306
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-073-0 01 1 1307-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75207-648-2 01 1 0810-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		8-98135-637-0 01 1 0902-0910
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98135-637-0 01 1 0911-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-065-0 01 1 1012-1306
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-065-0 01 1 1307-
1 BACK ASM; SEAT
(A) 		1-75207-728-2 01 1 0511-0610
1 BACK ASM; SEAT
VINYL SEAT(A83) (A) 		1-75207-728-2 01 1 0611-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) (A) 		8-98135-638-0 01 1 0902-0910
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98135-638-0 01 1 0911-1306
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98135-638-0 01 1 1307-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-121-0 01 1 0911-1306
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-121-0 01 1 1307-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-120-0 01 1 0911-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-090-0 01 1 1012-1306
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-090-0 01 1 1307-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-167-1 01 1 0810-0910
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-167-1 01 1 0911-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-084-0 01 1 1012-1306
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-084-0 01 1 1307-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-183-1 01 1 0511-0610
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) 		1-75127-183-1 01 1 0611-0910
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-183-1 01 1 0911-1306
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-183-1 01 1 1307-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-640-2 01 1 0810-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98168-044-0 01 1 1012-
12 CUSHION; SEAT,FRT 1-75207-006-2 01 1 0511-0610
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-006-3 01 1 0611-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-160-2 01 1 0810-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98168-075-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-104-1 01 1 0511-0610
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-104-1 01 1 0611-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0511-0610
17 BOLT; RECLINING
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0611-0809
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0810-
17 BOLT; RECLINING
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0810-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0511-0610
18 COVER; RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 0611-0809
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DARK GRAY 		8-97859-018-0 01 1 0810-
18 COVER; RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 0810-
19 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0511-0610
19 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0611-0809
19 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0810-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0810-
19 SCREW; COVER
EXC. RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0511-0610
19 SCREW; COVER
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0611-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 0911-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1307-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1307-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0511-0610
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0611-0710
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) 		1-75418-067-0 01 1 0711-0809
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-067-0 01 1 0810-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) 		1-75418-067-0 01 1 0810-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0511-0610
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 0611-0809
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0810-0910
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 0911-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1012-1306
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1307-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 0911-1306
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1307-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-175-1 01 1 0810-0910
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 0911-1306
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1307-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 		1-75147-657-0 01 1 0810-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M10 		9-09110-410-0 01 1 0810-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0810-
42 STAND; DRIVER SEAT 1-75558-604-1 01 1 0511-0610
42 STAND; DRIVER SEAT
VINYL SEAT(A83) 		1-75558-604-1 01 1 0611-0809
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-2 01 1 0810-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) 		1-75558-604-2 01 1 0810-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0511-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0511-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0511-0610
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 04 1 0611-0809
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 0810-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-2 01 1 0511-0610
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-2 01 1 0611-0809
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0810-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-3 01 1 0810-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98291-646-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0511-0610
99 BUSHING; SEAT BACK
VINYL SEAT(A83) 		8-97854-087-0 01 1 0611-0809
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0810-
99 BUSHING; SEAT BACK
VINYL SEAT(A83) 		8-97854-087-0 01 1 0810-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0902-0910
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		5-75190-138-0 01 1 0911-1306
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		5-75190-138-0 01 1 1307-
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0711-0809
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 0810-0910
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0810-0910
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0911-1011
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1012-1306
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1307-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0511-0610
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0809
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0810-0910
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 0911-1011
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1012-1306
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1307-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0611-0809
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0611-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=10.5 OD=22 		9-09160-610-0 01 1 0810-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=8.4 OD=22 		9-09164-708-0 01 1 0810-
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 01 1 0511-0610
327 CLIP; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 01 1 0611-0809
327 CLIP; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 01 1 0810-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-273-0 01 1 0810-
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-313-0 01 1 0511-0610
336 COVER; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-313-0 01 1 0611-0809
336 COVER; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-313-0 01 1 0810-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-313-0 01 1 0810-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-2 01 1 0511-0610
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0611-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503-

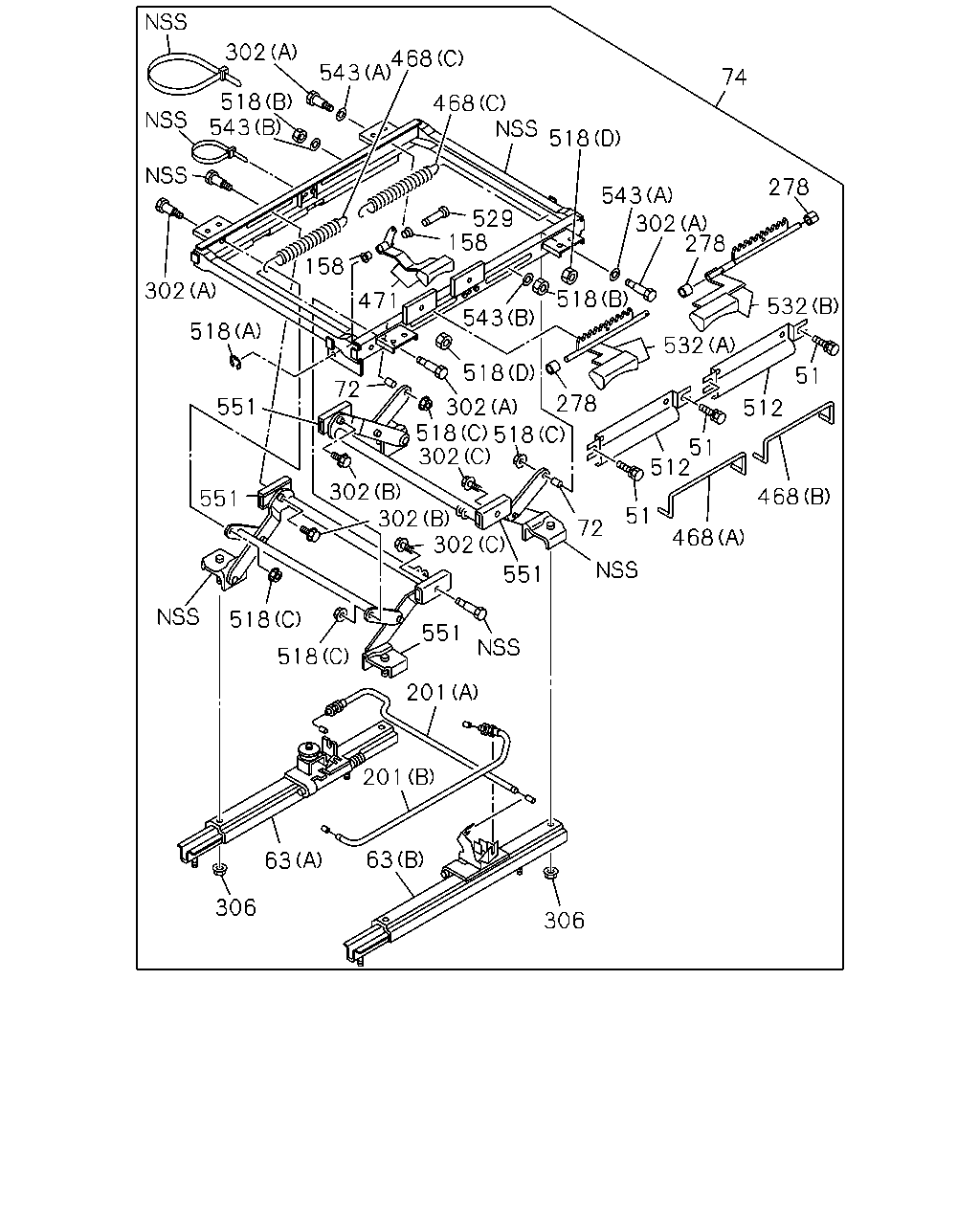

çizim 105089
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 0511-0610
51 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 0611-0809
51 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 0810-
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-1 04 1 0810-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0611-0809
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0810-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0810-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-227-1 01 1 0611-0809
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0810-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-227-1 01 1 0810-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0511-0610
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0611-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 0511-0610
72 SPACER; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 0611-0809
72 SPACER; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 0810-1502
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-334-1 02 1 0810-1502
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98291-668-0 02 1 1503-
72 SPACER; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-2 01 1 0511-0610
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-2 01 1 0611-0809
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0810-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-3 01 1 0810-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98291-646-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0511-0610
158 BUSHING; LINK ARM
VINYL SEAT(A83) 		1-75518-209-0 02 1 0611-0809
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0810-
158 BUSHING; LINK ARM
VINYL SEAT(A83) 		1-75518-209-0 02 1 0810-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0511-0610
201 CABLE; ADJ
VINYL SEAT(A83) (A) L=667 		1-75518-288-0 01 1 0611-0809
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0810-
201 CABLE; ADJ
VINYL SEAT(A83) (A) L=667 		1-75518-288-0 01 1 0810-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0511-0610
201 CABLE; ADJ
VINYL SEAT(A83) (B) L=605 		1-75518-289-1 01 1 0611-0809
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0810-
201 CABLE; ADJ
VINYL SEAT(A83) (B) L=605 		1-75518-289-1 01 1 0810-
278 COLLAR; FRT SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 0511-0610
278 COLLAR; FRT SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 0611-0809
278 COLLAR; FRT SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 0810-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0810-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 0511-0610
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 0611-0809
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 0810-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-2 02 1 0810-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 0511-0610
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 0611-0809
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 0810-1502
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-1 04 1 0810-1502
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 0511-0610
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 0611-0809
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 0810-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-1 02 1 0810-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0611-0809
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 14 1 0810-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0511-0610
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0611-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 0511-0610
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 0611-0809
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 0810-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0810-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 0511-0610
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 0611-0809
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 0810-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0810-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 0511-0610
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 0611-0809
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 0810-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0810-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0511-0610
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		1-75518-290-0 01 1 0611-0710
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		8-98107-870-0 01 1 0711-0809
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98107-870-0 01 1 0810-
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		8-98107-870-0 01 1 0810-
512 COVER; LEVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-245-1 02 1 0511-0610
512 COVER; LEVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-245-1 02 1 0611-0809
512 COVER; LEVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-245-1 02 1 0810-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-1 02 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 		1-75518-264-0 04 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0810-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0611-0809
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0810-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 FLANGE 		8-94152-886-0 04 1 0810-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0511-0610
518 NUT; TILT ADJ
VINYL SEAT(A83) (A) 		1-75518-263-0 01 1 0611-0809
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0810-
518 NUT; TILT ADJ
VINYL SEAT(A83) (A) 		1-75518-263-0 01 1 0810-
529 PIN; LINK 1-75518-262-0 01 1 0511-0610
529 PIN; LINK
VINYL SEAT(A83) 		1-75518-262-0 01 1 0611-0809
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0810-
529 PIN; LINK
VINYL SEAT(A83) 		1-75518-262-0 01 1 0810-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-221-0 01 1 0511-0610
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-221-0 01 1 0611-0809
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-221-0 01 1 0810-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0810-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-222-1 01 1 0511-0610
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-222-1 01 1 0611-0809
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-222-1 01 1 0810-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0810-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 0511-0610
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 0611-0809
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 0810-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=8.4 		9-09160-508-0 04 1 0810-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 0511-0610
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 0611-0809
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 0810-1502
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-335-0 02 1 0810-1502
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 0511-0610
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 0611-0809
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 0810-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0810-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
