7-40 — INSTRUMENT PANEL AND BOX (#31253) — 137 parça

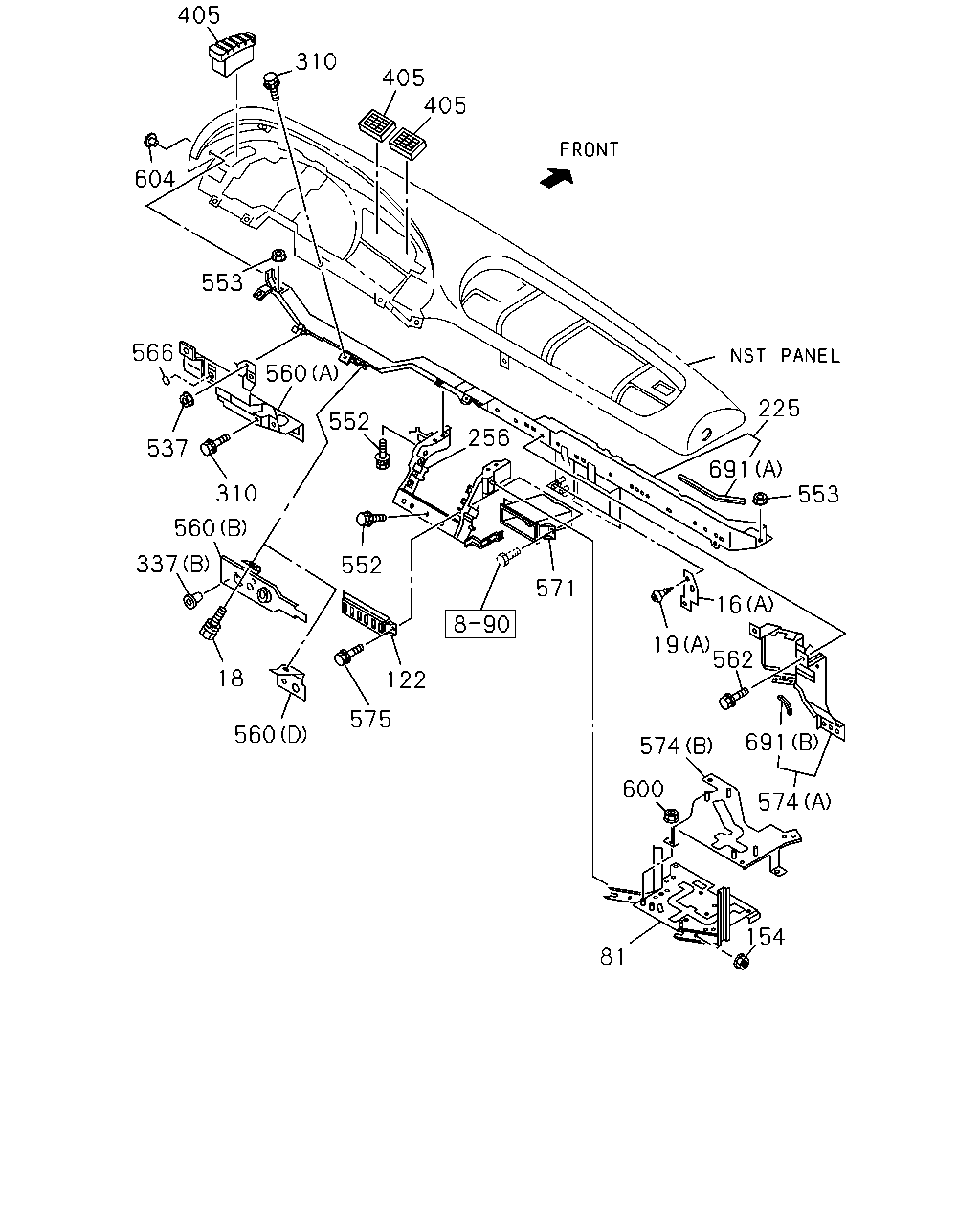

çizim 90378
405 310 405 604 405 553 560 566 537 310 560 337 18 560 575 571 16 19 562 691 574 600 574 553 225 691 154 122 552 256 552 81
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 0511-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 0511-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0511-1306
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1307-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0511-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0511-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0511-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0511-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0511-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
225 FRAME; FACIA
ECE R29<EFE> 		8-98228-413-1 01 1 1307-
225 FRAME; FACIA 1-65671-727-5 01 1 0511-1306
225 FRAME; FACIA
EXC. ECE R29<EFE> 		1-65671-727-5 01 1 1307-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0511-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0511-
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1307-
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1307-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0511-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0511-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0511-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0511-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0511-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0511-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0511-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0511-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1307-
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1307-
560 BRACKET
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-243-0 01 1 0812-
560 BRACKET
(B) 		1-65671-787-2 01 1 0511-1306
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65671-787-2 01 1 1307-
560 BRACKET
(A) 		1-65681-216-0 01 1 0511-0811
560 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-216-0 01 1 0812-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0511-
566 PLUG; HOLE
SPECIAL SPECIFICATION FOR LATIN AMERICA<NAA> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0812-
566 PLUG; HOLE
SAUDI ARABIA EQUIPMENT(WH1) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0812-
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0611-
571 BEZEL; POCKET 1-72438-151-3 01 1 0511-0806
571 BEZEL; POCKET 1-72438-151-3 01 1 0807-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 0807-
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0511-0703
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 0704-
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 0511-1108
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0511-
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0511-0602
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0511-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1006-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0511-

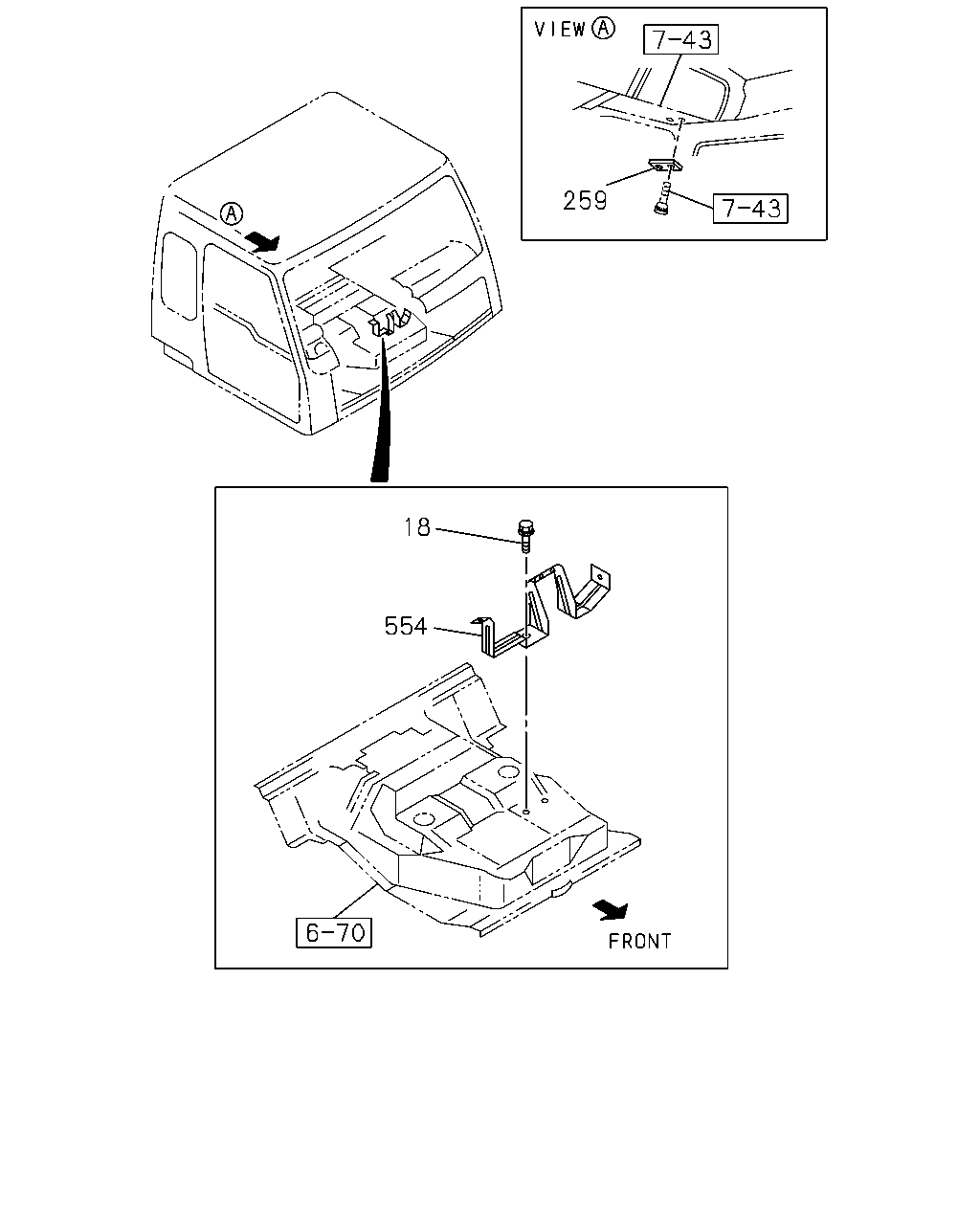

çizim 104968
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0511-1306
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 0511-0811
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0812-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0511-

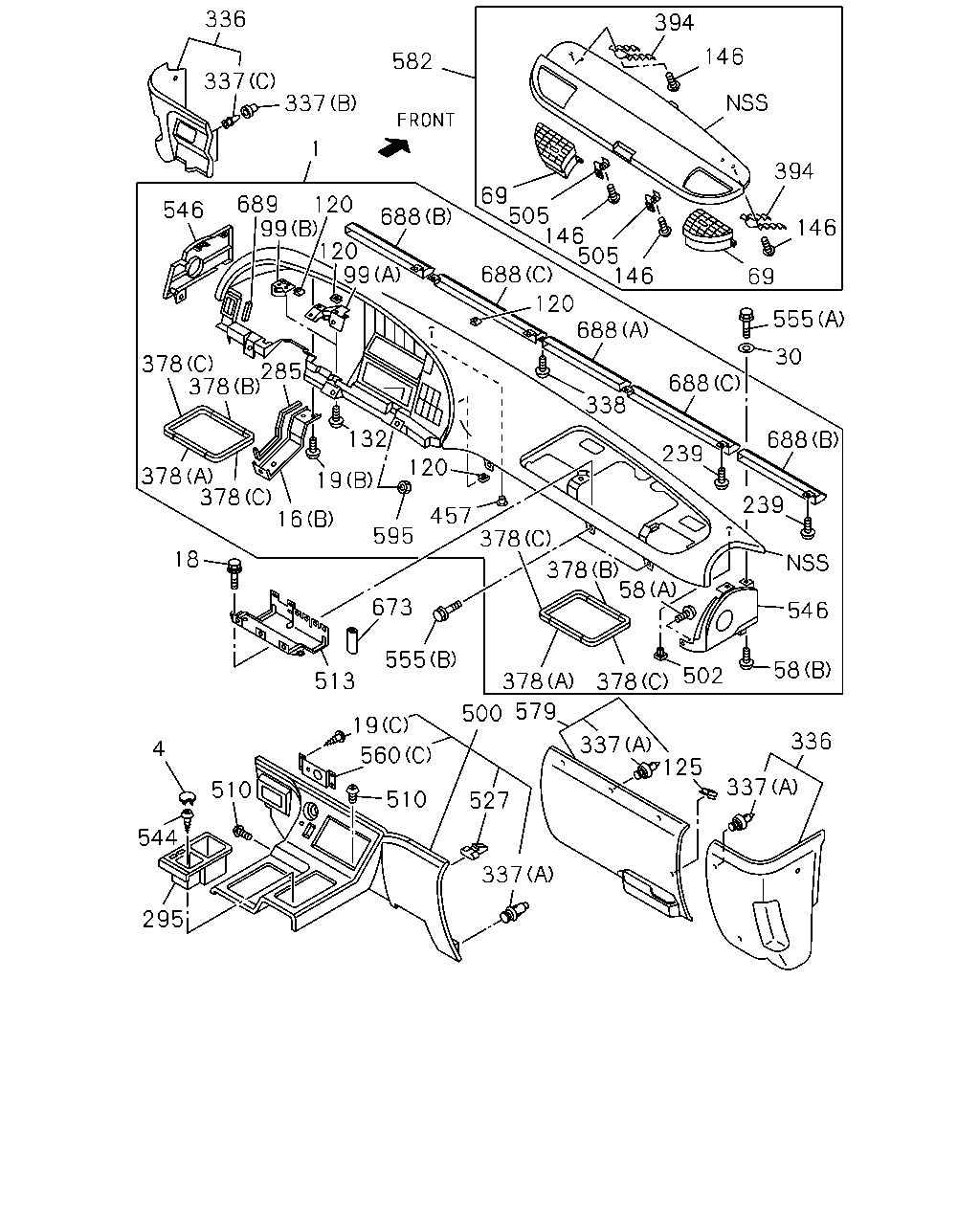

çizim 105091
336 337 1 337 582 394 146 394 69 146 505 146 505 69 146 555 30 688 688 239 546 58 378 378 502 58 378 378 457 120 132 16 378 378 378 546 689 120 120 99 99 688 688 688 120 338 378 19 595 555 673 513 18 19 560 510 527 500 337 125 336 579 337 337 510 4 544 295 285 239
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-352-9 01 1 0511-0603
1 PANEL; INST 1-72317-370-2 01 1 0604-
4 COVER; INST PNL 1-72537-106-0 01 1 0511-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 0511-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 0511-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0511-1306
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1307-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0511-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0511-
30 WASHER; PL,INST PAD
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0511-0811
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		9-07066-310-0 01 1 0511-0603
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 0604-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 0511-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0511-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0511-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 0511-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 0511-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 0511-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0511-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 0511-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0511-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 0511-
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 0511-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0511-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0511-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0511-
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1307-
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1307-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0511-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0511-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0511-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 0511-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 0511-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 0511-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 0511-
394 HOLDER; PANEL 1-72558-048-0 02 1 0511-
457 PLATE; INST PANEL 1-72317-363-2 08 1 0511-
500 CLUSTER; INST CENTER
ECE R29<EFE> 		8-98222-024-0 01 1 1307-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0511-1306
500 CLUSTER; INST CENTER
EXC. ECE R29<EFE> 		1-72437-642-1 01 1 1307-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 0511-
505 LOCK; LID 1-72558-024-2 02 1 0511-
510 SCREW; CENTER CLUSTER
EXC. ECE R29<EFE> M6X16 		8-94479-534-0 02 1 1307-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0511-1306
510 SCREW; CENTER CLUSTER
ECE R29<EFE> M6X16 		8-94479-534-0 03 1 1307-
513 BRACKET; RELAY 8-97865-168-3 01 1 0511-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0511-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0511-
546 PANEL; INST,SUB 1-72317-354-4 01 1 0511-
546 PANEL; INST,SUB 1-72317-355-4 01 1 0511-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0511-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0511-
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1307-
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1307-
560 BRACKET
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-243-0 01 1 0812-
560 BRACKET
(B) 		1-65671-787-2 01 1 0511-1306
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65671-787-2 01 1 1307-
560 BRACKET
(A) 		1-65681-216-0 01 1 0511-0811
560 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-216-0 01 1 0812-
579 COVER; INST PNL 1-72438-195-1 01 1 0511-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0511-
595 NUT; HOOK 1-72418-013-0 06 1 0511-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0511-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 0511-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 0511-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 0511-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 0511-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 0511-
689 SEAL; INST 1-72317-364-0 01 1 0511-
