Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

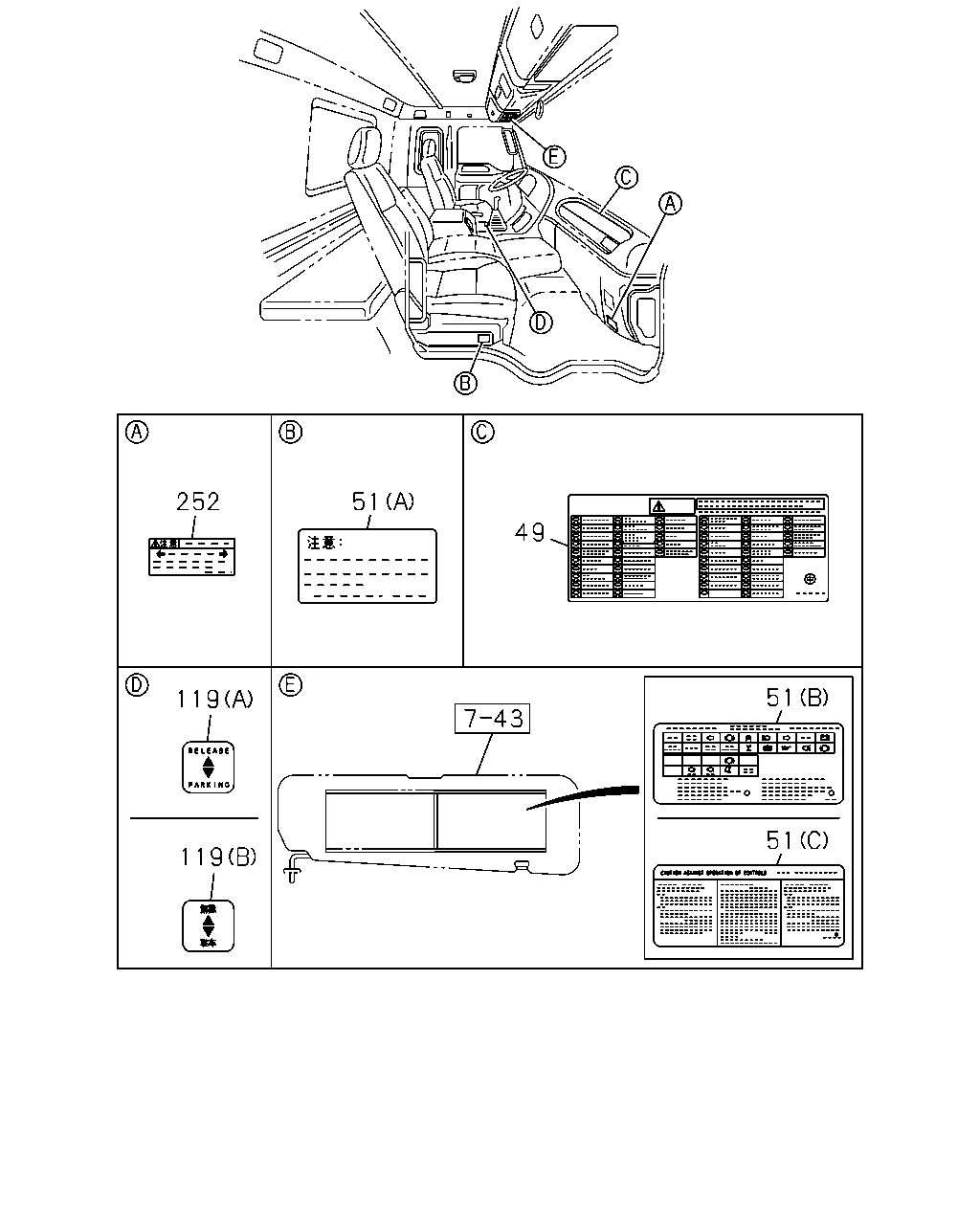

7-10 — CAUTION PLATE AND LABEL (#31250) — 96 parça

252 51 49 51 119 51 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-97624-086-0	01	1	0812-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-555-0	01	1	0812-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8> FUEL SEDIMENTER WITH HEATER<6HU>	8-98124-638-0	01	1	0807-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	1-85878-393-0	01	1	0611-0806
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	1-85878-393-0	01	1	0807-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-556-0	01	1	0611-
49	PLATE; CAUTION,FUSE BOX	1-85878-431-0	01	1	0511-0610
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-431-0	01	1	0611-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85878-544-0	01	1	0905-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	8-97633-742-0	01	1	0905-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (C)	1-85880-787-0	01	1	0812-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	8-97624-052-0	01	1	0812-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (C)	1-85880-785-0	01	1	0812-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	8-97613-336-0	01	1	0812-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (C)	1-85880-777-0	01	1	0809-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85878-433-0	01	1	0611-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (B)	1-85878-432-0	01	1	0611-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (C)	1-85880-786-0	01	1	0611-
51	PLATE; CAUTION,WARNING (A)	8-97606-278-0	01	1	0511-0605
51	PLATE; CAUTION,WARNING (A)	8-97616-500-0	01	1	0606-0610
51	PLATE; CAUTION,WARNING CHINA EQUIPMENT(YT2) (A)	8-97616-500-0	01	1	0611-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ARABIAN<WJ7> (A)	1-85881-979-0	01	1	0812-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> (A)	1-85881-944-0	01	1	0812-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> (A)	1-85881-759-0	01	1	0809-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> (A)	1-85881-945-0	01	1	0611-
119	PLATE; CAUTION,HAND BRK LEVER (B)	1-85881-874-0	01	1	0511-0610
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> (B)	1-85881-874-0	01	1	0611-
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	0905-
252	PLATE; CAUTION,HARNESS CAUTIONS ARABIAN<WJ7>	8-97623-996-0	01	1	0905-
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1>	1-85878-559-0	01	1	0905-
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8>	1-85878-560-0	01	1	0611-
252	PLATE; CAUTION,HARNESS	1-85878-515-0	01	1	0511-0610
252	PLATE; CAUTION,HARNESS CAUTIONS CHINESE<SL7>	1-85878-515-0	01	1	0611-

212 60 39 263 260 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PLATE; CAUTION,ENG STOP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> CAUTIONS CHINESE<SL7> VIN MODEL YEAR 2013(VZD)	8-97643-999-0	01	1	1307-
39	PLATE; CAUTION,ENG STOP CAUTIONS ENGLISH<RR8>	8-98138-790-0	01	1	0905-
39	PLATE; CAUTION,ENG STOP CAUTIONS FRENCH<WJ8>	1-85878-572-0	01	1	0611-
39	PLATE; CAUTION,ENG STOP	1-85878-548-0	01	1	0511-0610
39	PLATE; CAUTION,ENG STOP CAUTIONS CHINESE<SL7>	1-85878-548-0	01	1	0611-1306
39	PLATE; CAUTION,ENG STOP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> CAUTIONS CHINESE<SL7> EXC. VIN MODEL YEAR 2013(VZD)	1-85878-548-0	01	1	1307-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0812-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0812-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0611-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-85883-174-0	01	1	0611-0811
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0812-
60	PLATE; CAUTION,CAB TILT	1-85883-175-0	01	1	0511-0610
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0611-
212	LABEL; SAFETY POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> CAUTIONS ENGLISH<RR8>	8-98132-060-0	01	1	0809-
212	LABEL; SAFETY CAUTIONS FRENCH<WJ8>	8-98077-583-0	01	1	0702-
212	LABEL; SAFETY	1-85883-208-0	01	1	0511-0701
212	LABEL; SAFETY CAUTIONS CHINESE<SL7>	1-85883-208-0	01	1	0702-
260	PLATE; CAUTION,HEAD LAMP LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-85878-416-1	01	1	0511-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7>	8-98094-561-0	01	1	0812-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1>	1-85881-878-0	01	1	0511-0709
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	0710-
287	PLATE; CAUTION,SPRING CHAMBER CAUTIONS FRENCH<WJ8>	1-85883-238-0	04	1	0611-0709

156 290 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	0812-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	0812-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	0611-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-53639-004-0	01	1	0611-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	8-98082-437-0	01	1	0709-0811
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	0812-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	1-85883-113-0	01	1	0511-0610
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	0611-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	8-98082-438-0	01	1	0709-
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-85878-528-0	01	1	0511-0610
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	1-85878-528-0	01	1	0611-
290	PLATE; CAUTION,OIL TANK	1-85881-876-0	01	1	0511-0610
290	PLATE; CAUTION,OIL TANK CHINA EQUIPMENT(YT2)	1-85881-876-0	01	1	0611-

181 181 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	PLATE; CAUTION,FUEL CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	0812-
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8>	8-97621-140-0	01	1	0704-
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B)	1-85886-813-1	01	1	0511-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	0511-

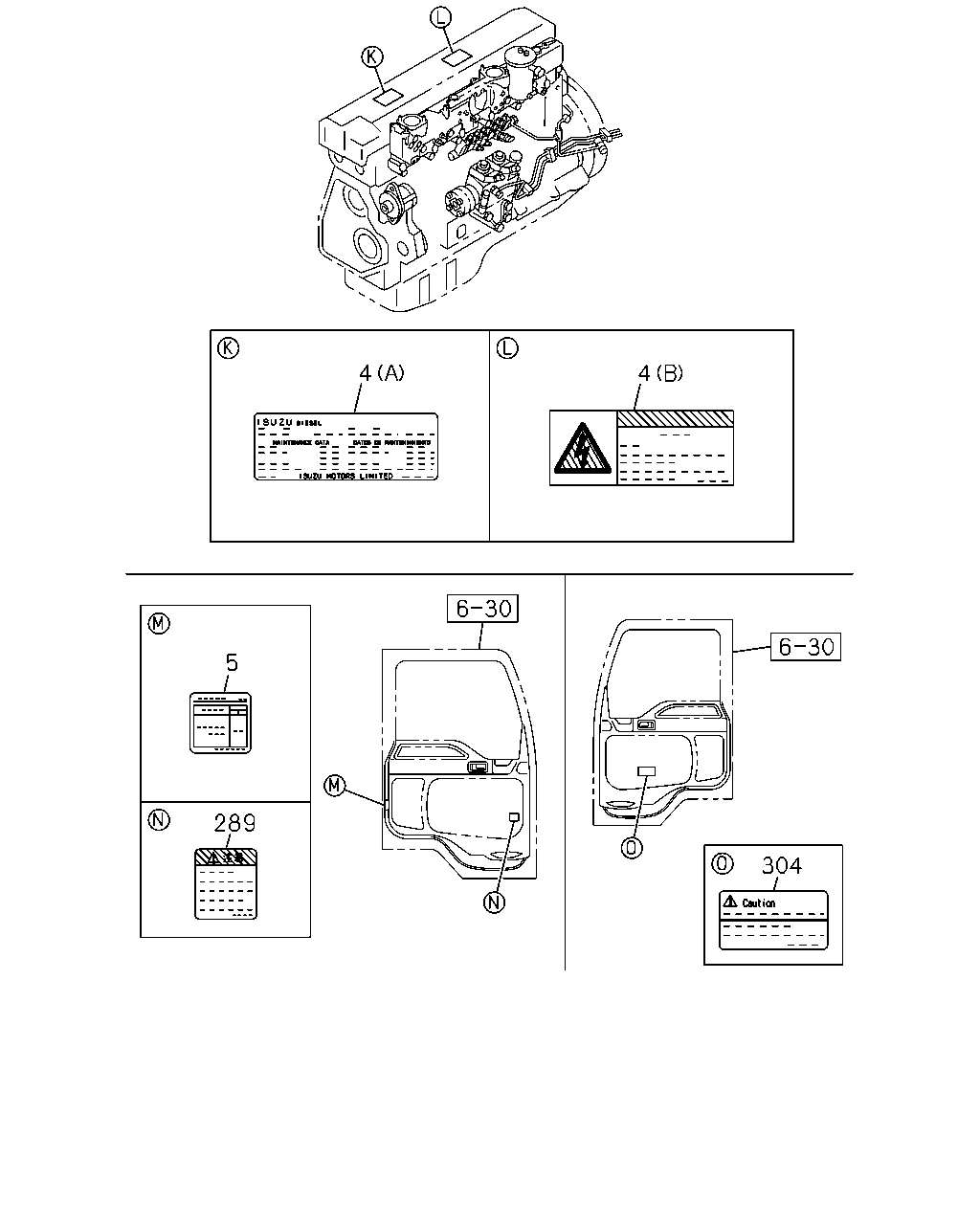

4 4 5 289 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE EURO2 SPECIFICATION<THN> (A)	1-85875-462-0	02	1	0707-0807
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A)	1-85875-462-0	02	1	0808-0902
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A)	1-85875-462-1	01	1	0903-
4	LABEL; ENG MAINTENANCE EURO2 SPECIFICATION<THN> (B)	8-94391-524-0	02	1	0707-0807
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	8-94391-524-0	02	1	0808-0902
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	8-94391-524-0	01	1	0903-
4	LABEL; ENG MAINTENANCE SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98088-627-0	01	1	0812-
4	LABEL; ENG MAINTENANCE SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98088-630-0	01	1	0812-
4	LABEL; ENG MAINTENANCE (B)	1-85875-456-0	01	1	0511-0706
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) (B)	1-85875-456-0	01	1	0707-
4	LABEL; ENG MAINTENANCE (A)	8-97612-153-0	01	1	0511-0706
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA) (A)	8-97612-153-1	01	1	0707-
5	LABEL; TIRE AIR PRESSURE LOW DECK WO/REAR BODY VAR2<XR8>	1-85880-815-0	01	1	0912-
5	LABEL; TIRE AIR PRESSURE EXC. CHINA EQUIPMENT(YT2)	1-85880-778-0	01	1	0702-
5	LABEL; TIRE AIR PRESSURE	1-85881-887-0	01	1	0511-0701
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2)	1-85881-887-0	01	1	0702-0901
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2)	1-85881-985-0	01	1	0902-0911
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-85881-985-0	01	1	0912-1109
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98201-252-0	01	1	1110-
289	PLATE; CAUTION,DRIVING CAUTIONS ARABIAN<WJ7>	8-98093-472-0	01	1	0812-
289	PLATE; CAUTION,DRIVING	1-85883-223-1	01	1	0511-0610
289	PLATE; CAUTION,DRIVING CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	0611-
304	PLATE; CAUTION,LOW TEMP CAUTIONS ENGLISH<RR8>	8-98048-989-0	01	1	0810-
