Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#31241) — 615 parça

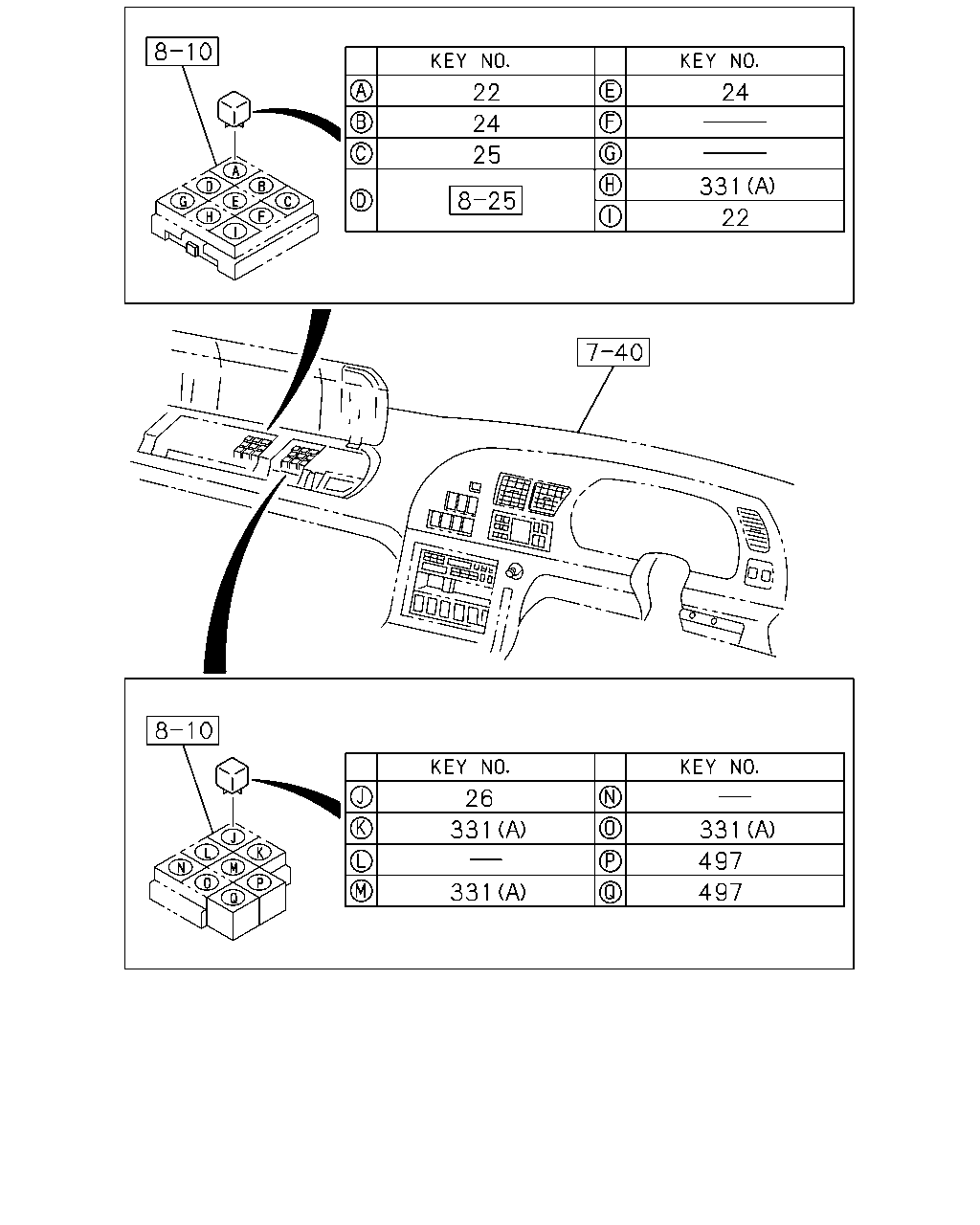

22 24 24 25 331 22 26 331 331 497 331 497

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-
331	RELAY; A/C (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-0511
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
497	RELAY; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-

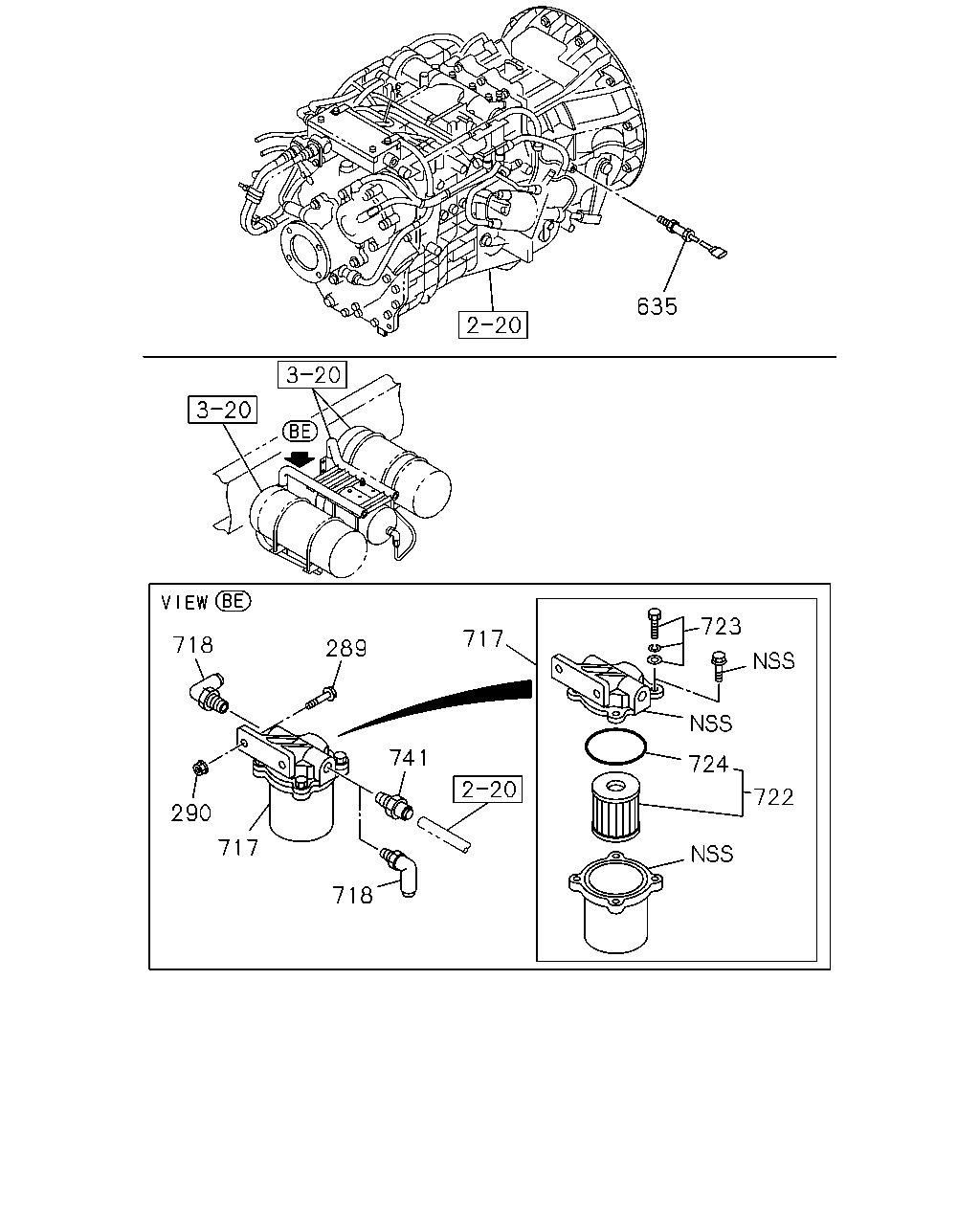

635 718 290 717 718 741 717 289 722 724 723

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
289	BOLT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X35 FLANGE	0-28650-835-0	02	1	0601-
289	BOLT M8X30 FLANGE	0-28680-830-0	02	1	0507-0511
289	BOLT 6WF1 TC-C(1B8) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
289	BOLT 6WF1 TC-C(1B8) M8X30 FLANGE	0-28650-830-0	02	1	0601-
290	NUT M8 FLANGE	0-91150-108-0	02	1	0507-0602
290	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0507-
717	FILTER; MAG VLV	1-33779-032-0	01	1	0507-0708
717	FILTER; MAG VLV	8-98092-703-0	01	1	0709-
718	CONNECTOR; FILTER 6WG1 TC-C(72L),6WG1 TC-S(97L) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0512-
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	01	1	0507-0511
718	CONNECTOR; FILTER 6WF1 TC-C(1B8) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0512-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0507-
723	BOLT; AIR FILTER	1-33779-025-0	04	1	0507-0708
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0507-
741	CONNECTOR; NYLON TUBE DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0507-

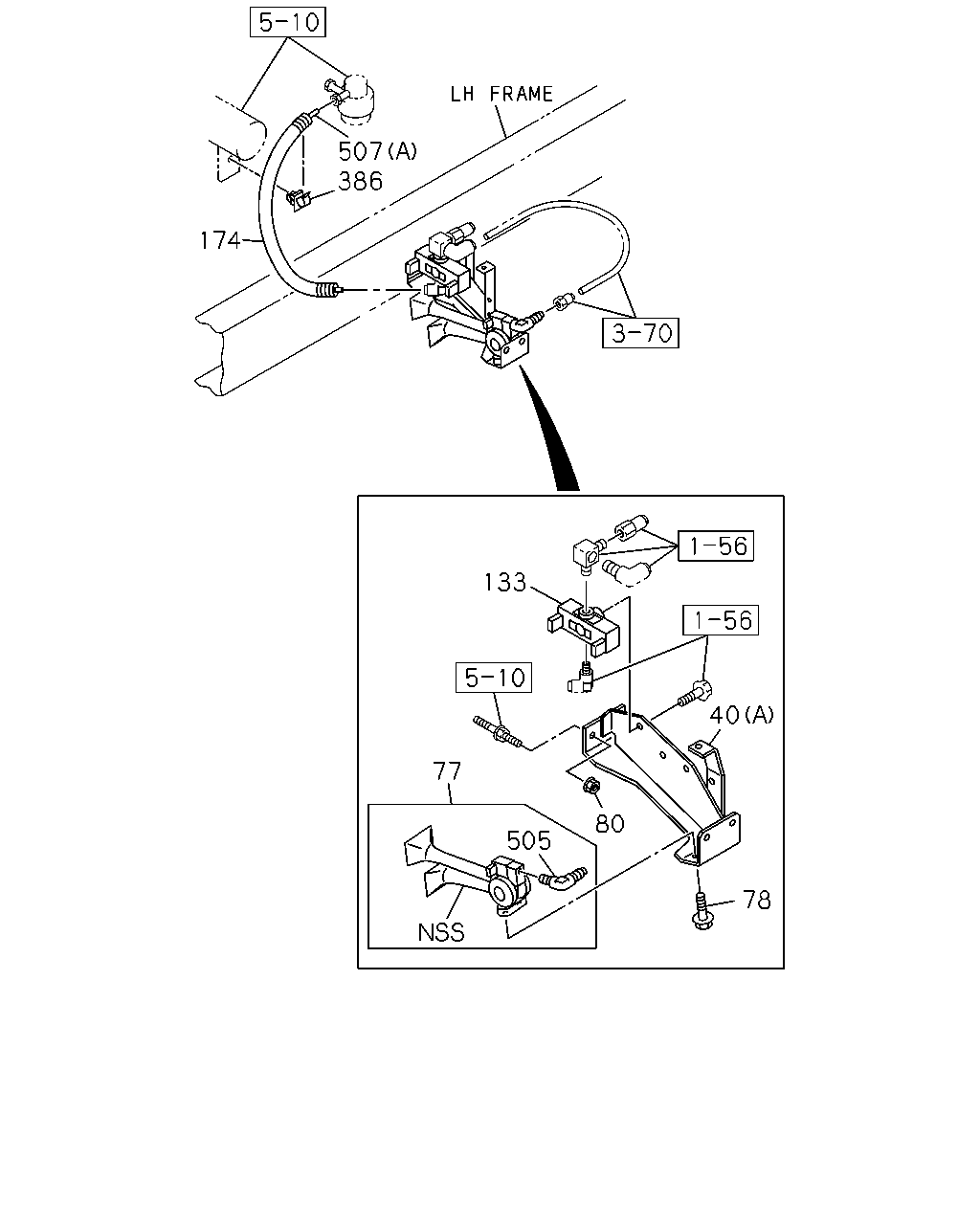

507 386 174 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0507-0510
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0511-0511
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0512-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0512-
77	HORN ASM	1-83430-041-2	01	1	0507-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
80	NUT; MAG VLV M12 FLANGE	0-91150-212-0	02	1	0507-0511
80	NUT; MAG VLV FULL FLOATING CAB(W16) M12 FLANGE	0-91150-212-0	02	1	0512-0602
80	NUT; MAG VLV FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	02	1	0603-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0507-0511
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0512-
174	COVER L=700 SERVICED BY L=800	1-83129-031-1	01	1	0507-0511
174	COVER FULL FLOATING CAB(W16) L=700 SERVICED BY L=800	1-83129-031-1	01	1	0512-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0507-0511
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0512-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0507-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0507-0511
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0507-0511
507	TUBE; NYLON FULL FLOATING CAB(W16) (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0512-

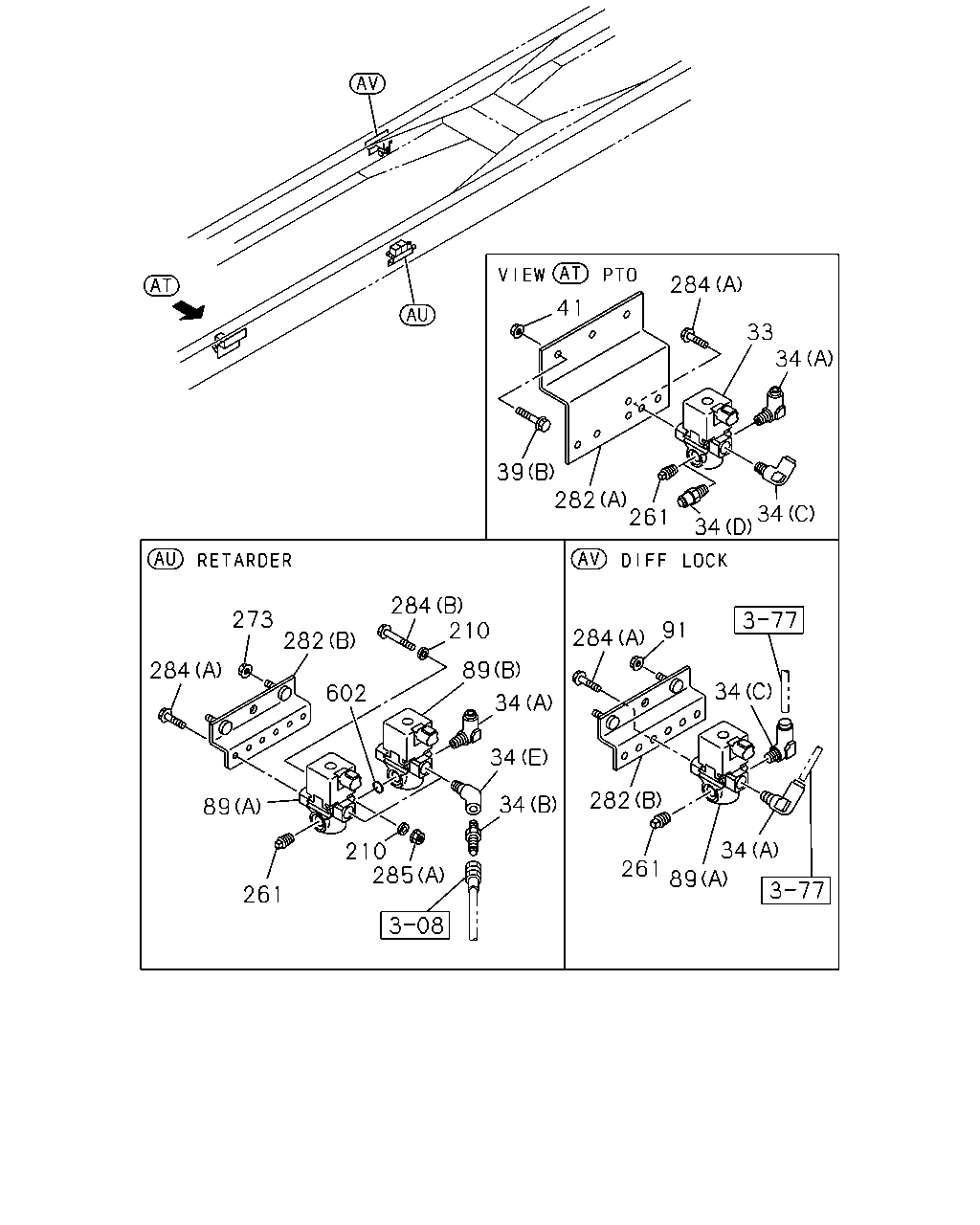

284 41 33 34 39 282 261 34 34 284 210 273 91 284 282 89 284 34 602 34 34 282 34 89 34 210 285 261 89 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0507-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0507-
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	02	1	0507-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0603-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0507-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0507-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0507-
91	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0507-0602
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0507-0511
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0507-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0507-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0507-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0507-0602
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0512-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0507-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	0507-0511
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0512-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0507-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0512-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0507-0511
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0507-0511
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-
285	NUT; MAG VLV (B) M5	9-99110-405-0	03	1	0507-0512
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0601-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0507-0511
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-

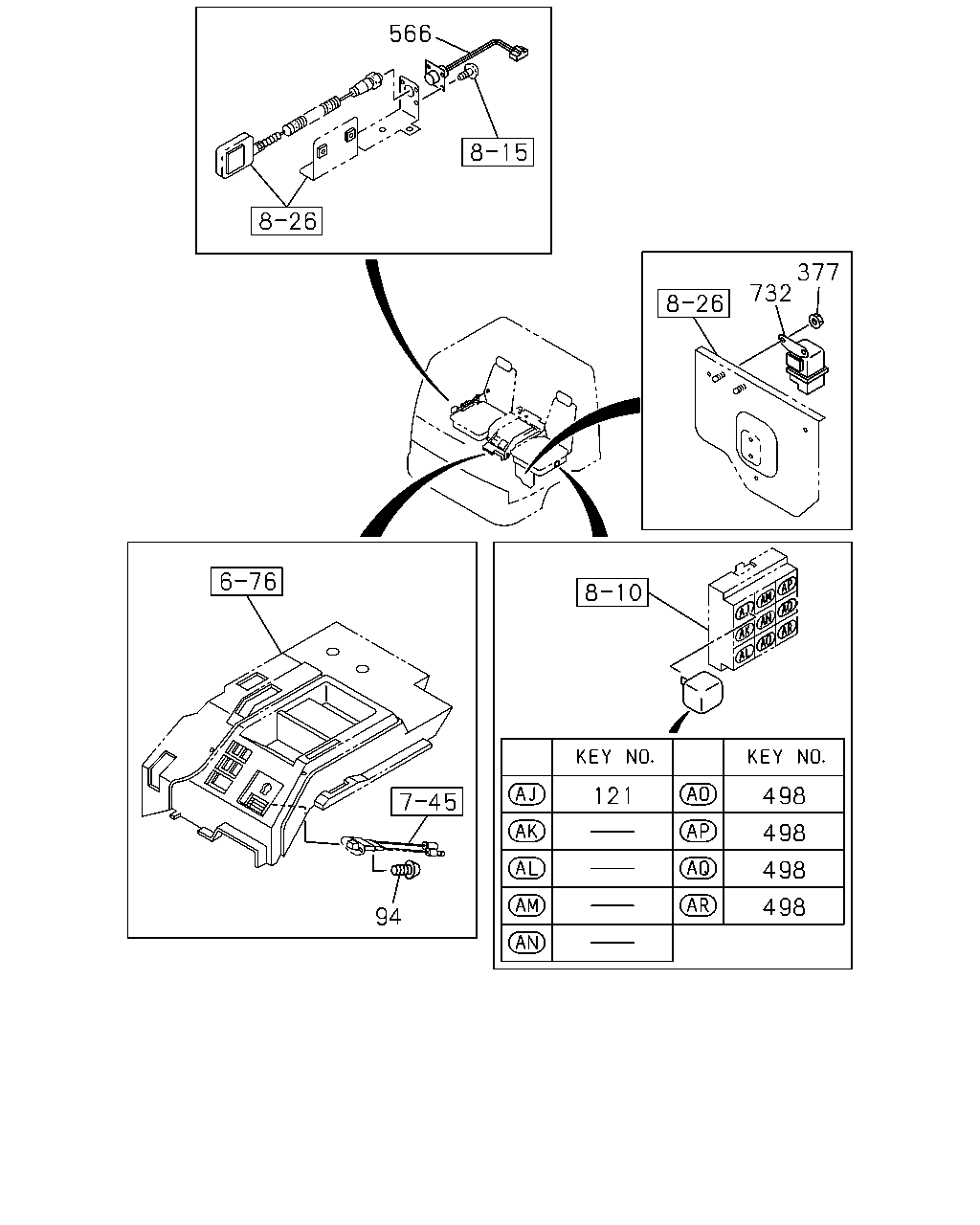

566 377 732 121 498 498 498 498 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0507-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
121	RELAY; PARKING BRK 6WF1 TC-C(1B8) AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-
121	RELAY; PARKING BRK 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE	0-91150-106-0	02	1	0512-0602
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE	0-91180-106-0	02	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0507-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC	8-97262-933-0	04	1	0512-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0507-
732	RELAY; EDS 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82550-337-1	01	1	0512-

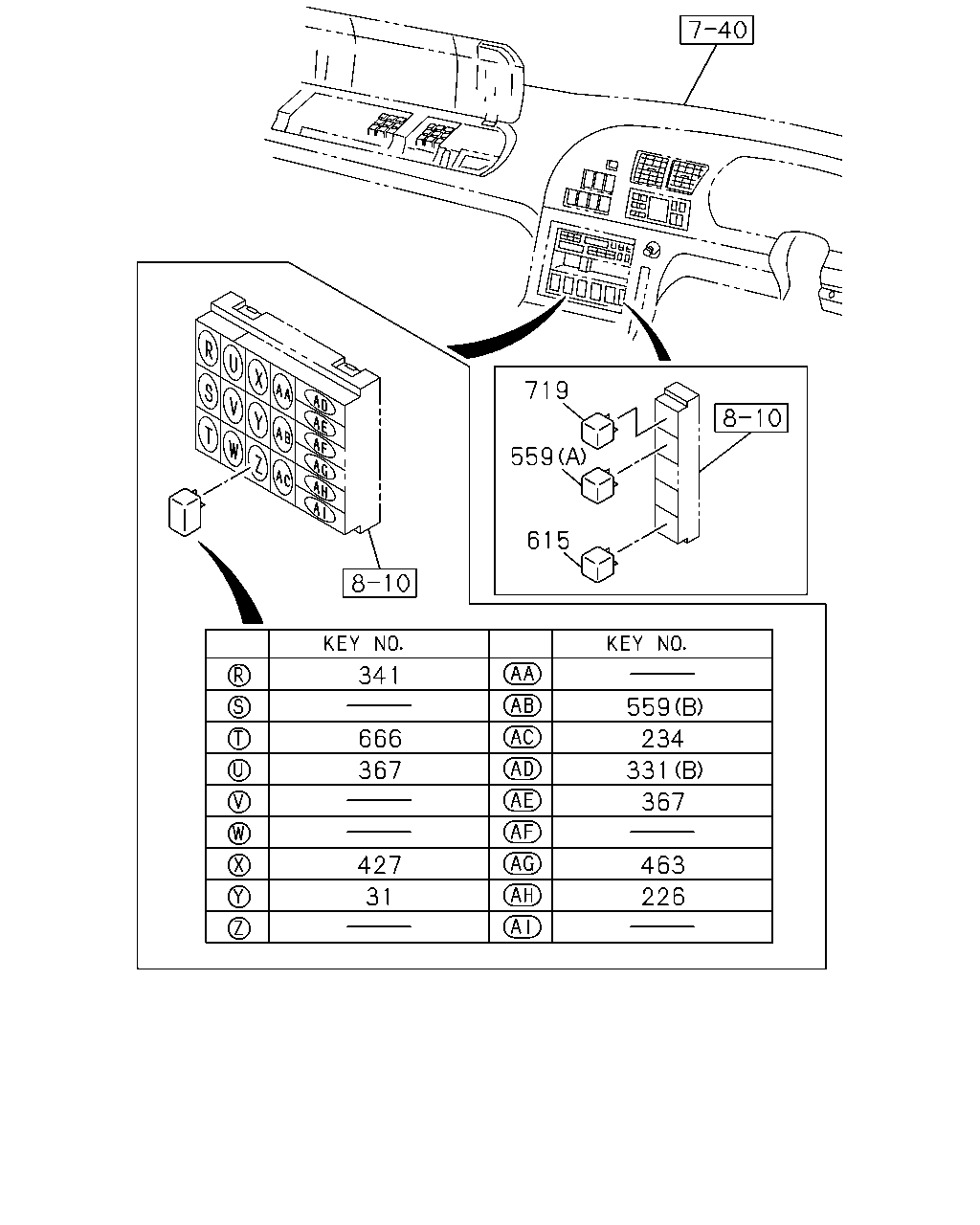

719 559 615 341 559 666 234 367 331 367 427 463 31 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
226	RELAY; EXH BRK 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
234	RELAY; AIR SUSPENSION 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
331	RELAY; A/C (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-0511
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0507-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0507-0511
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
427	RELAY; RETARDER 6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0507-
463	RELAY; ABS SIGNAL ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
559	RELAY; MAG VLV (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
559	RELAY; MAG VLV (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-
615	RELAY; TRAILER 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
615	RELAY; TRAILER 6WF1 TC-C(1B8) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-0511
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 6WF1 TC-C(1B8) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-

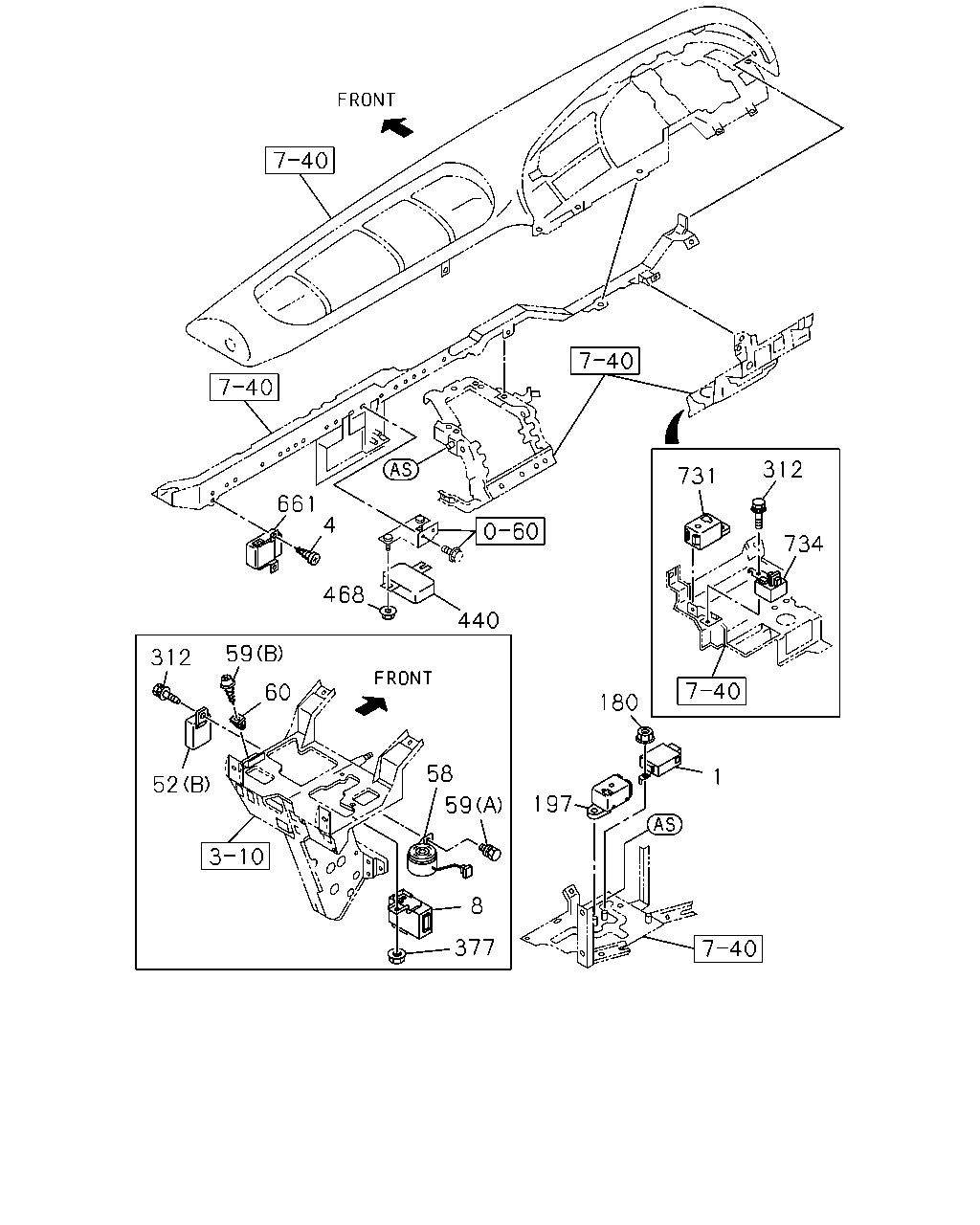

312 731 661 4 734 468 440 59 312 60 180 58 1 52 197 59 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0507-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0507-
8	RELAY; WIPER	1-83316-002-4	01	1	0507-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	1-83460-083-0	01	1	0507-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0701-
52	BUZZER; BACK (B)	1-83460-040-0	01	1	0507-0511
52	BUZZER; BACK 6WF1 TC-C(1B8) (B)	1-83460-040-0	01	1	0512-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0507-0511
58	BUZZER; AIR PRESSURE WARNING 6WF1 TC-C(1B8) METRO DENSO	1-83460-075-0	01	1	0512-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
59	SCREW; BUZZER (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0507-0511
59	SCREW; BUZZER 6WF1 TC-C(1B8) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0512-0604
59	SCREW; BUZZER (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-
59	SCREW; BUZZER (A) M5X14	8-94279-325-0	01	1	0507-0511
59	SCREW; BUZZER 6WF1 TC-C(1B8) (A) M5X14	8-94279-325-0	01	1	0512-
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0507-0511
60	GROMMET; SCREW,BUZZER 6WF1 TC-C(1B8) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0512-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0507-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
197	BUZZER; WARNING,AIR HEAT OIL BRK 6WF1 TC-C(1B8)	1-83460-051-1	01	1	0507-
312	BOLT; BUZZER 6WG1 TC-C(72L),6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0512-
312	BOLT; BUZZER M10X35 FLANGE	0-28681-035-0	01	1	0507-0512
312	BOLT; BUZZER M10X35 FLANGE	0-28651-035-0	01	1	0601-
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE	0-91150-106-0	02	1	0512-0602
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE	0-91180-106-0	02	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0507-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
440	MODULE; INFORMATION,ABS 6WF1 TC-C(1B8)	1-81510-701-0	01	1	0507-0609
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0610-
468	NUT; MODULE 6WF1 TC-C(1B8) M6 FLANGE	0-91150-106-0	02	1	0507-0602
468	NUT; MODULE 6WF1 TC-C(1B8) M6 FLANGE	0-91180-106-0	02	1	0603-0609
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0610-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0507-
731	ALARM; INFORMATION 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83460-051-1	01	1	0512-
734	ALARM; MULTI 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83460-106-0	01	1	0512-

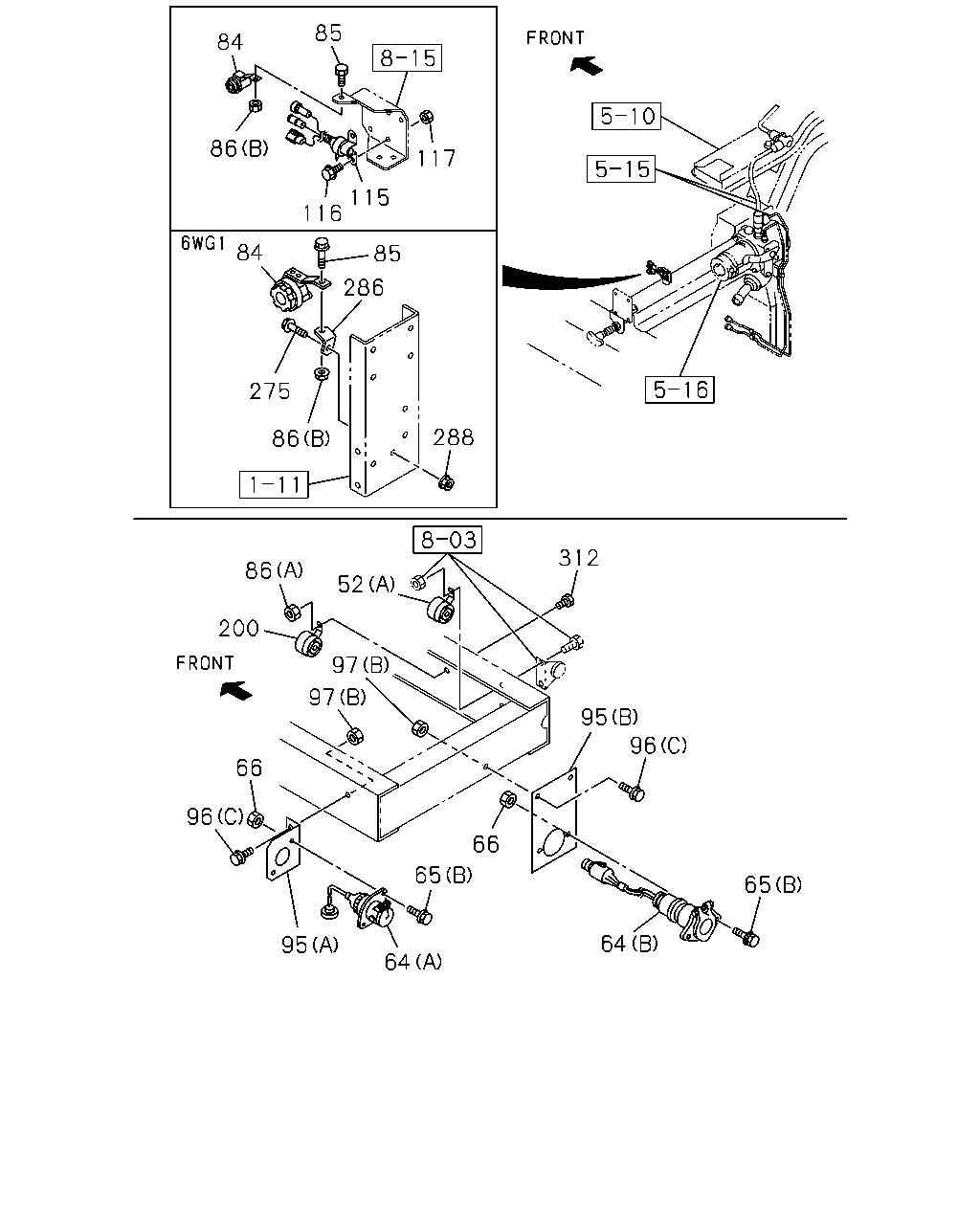

85 84 86 117 115 116 84 85 286 275 288 86 312 86 52 200 97 97 95 96 66 96 66 65 65 64 95 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	1-83460-083-0	01	1	0507-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0701-
52	BUZZER; BACK (B)	1-83460-040-0	01	1	0507-0511
52	BUZZER; BACK 6WF1 TC-C(1B8) (B)	1-83460-040-0	01	1	0512-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0507-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=860	1-82699-449-2	01	1	0507-1008
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	0507-0511
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0512-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
65	BOLT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	04	1	0507-0602
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	0603-
66	NUT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0507-0602
66	NUT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0507-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0507-0512
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
86	NUT; BUZZER (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0603-
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	0507-
95	BRACKET; SOCKET,TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82699-979-0	01	1	0507-1008
95	BRACKET; SOCKET,TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A)	8-97985-137-0	01	1	1009-
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0507-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0507-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	04	1	0507-0602
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	04	1	0603-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91150-108-0	05	1	0507-0602
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0603-
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0507-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0507-0602
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0507-
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
275	BOLT; BRKT M8X14 FLANGE	0-28080-814-0	01	1	0507-0511
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0512-
286	BRACKET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82699-199-0	01	1	0512-
288	NUT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
288	NUT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
312	BOLT; BUZZER 6WG1 TC-C(72L),6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0512-
312	BOLT; BUZZER M10X35 FLANGE	0-28681-035-0	01	1	0507-0512
312	BOLT; BUZZER M10X35 FLANGE	0-28651-035-0	01	1	0601-

282 39 284 210 604 96 261 97 604 602 210 285 88 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K)	1-09660-067-0	01	1	0512-0609
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0507-0511
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0512-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0507-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0512-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0507-0511
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0507-
88	CONNECTOR; MAG VLV (F)	1-09661-065-0	02	1	0507-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV (H) PT3/8 3WAY	1-09661-300-0	01	1	0507-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0507-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0507-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	04	1	0507-0602
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	04	1	0603-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91150-108-0	05	1	0507-0602
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0603-
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0507-0511
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0507-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0507-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0507-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0512-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0507-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	0507-0511
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0512-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0507-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0512-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0507-0511
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0507-0511
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-
285	NUT; MAG VLV (B) M5	9-99110-405-0	03	1	0507-0512
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0601-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0507-0511
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82563-871-2	04	1	0512-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0507-0511
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0512-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0507-

721 88 88 88 667 507 89 88 88 424 88 510 88 88 88 88 88 40 285 298 89 284 602 210 132 132 89 284 88 88 272 285 34 284 285 528 132 387 507 507 507 284 507 210 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0507-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0507-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0507-
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0507-0510
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0511-0511
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0512-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0512-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K)	1-09660-067-0	01	1	0512-0609
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0507-0511
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0512-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0507-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0512-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0507-0511
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0507-
88	CONNECTOR; MAG VLV (F)	1-09661-065-0	02	1	0507-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV (H) PT3/8 3WAY	1-09661-300-0	01	1	0507-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0507-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0507-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0507-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0507-
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0507-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0507-0511
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28681-020-0	02	1	0507-0511
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-1208
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0512-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0507-0511
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0507-0511
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-
285	NUT; MAG VLV (B) M5	9-99110-405-0	03	1	0507-0512
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0601-
298	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0507-0602
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
387	CLIP; BAND L=350	1-09707-183-0	01	1	0507-
424	ADAPTER PT3/8	1-09664-210-0	01	1	0507-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0507-0511
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0507-0511
507	TUBE; NYLON FULL FLOATING CAB(W16) (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0512-
510	VALVE; CHECK	1-48410-531-1	01	1	0507-
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0507-0511
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-
667	LUBRICATION 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98063-001-0	01	1	0704-0705
667	LUBRICATION	8-98063-001-0	01	1	0706-
667	LUBRICATION	1-33779-011-0	01	1	0507-0703
667	LUBRICATION 6WF1 TC-C(1B8)	1-33779-011-0	01	1	0704-0705
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0507-

88 275 40 88 450 272 88 65 97 282 97 97 282 97 39 39 604 604 96 280 96 604 96 284 210 602 88 96 88 604 280 88 280 210 285 604

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0507-0510
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0511-0511
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0512-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0507-0511
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0512-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	0507-0511
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0512-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
65	BOLT; SOCKET FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K)	1-09660-067-0	01	1	0512-0609
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0507-0511
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0512-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0507-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0512-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0507-0511
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0507-
88	CONNECTOR; MAG VLV (F)	1-09661-065-0	02	1	0507-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV (H) PT3/8 3WAY	1-09661-300-0	01	1	0507-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
96	BOLT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0507-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0507-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
96	BOLT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	04	1	0507-0602
97	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	04	1	0603-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91150-108-0	05	1	0507-0602
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0603-
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602
97	NUT; BRKT FIX EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0507-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0507-0511
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28681-020-0	02	1	0507-0511
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-1208
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
275	BOLT; BRKT M8X14 FLANGE	0-28080-814-0	01	1	0507-0511
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0512-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0507-0511
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0507-0511
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0512-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0507-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0507-
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	0507-0511
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0512-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0507-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0512-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0507-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	04	1	0507-0511
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	04	1	0507-0511
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-
285	NUT; MAG VLV (B) M5	9-99110-405-0	03	1	0507-0512
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0601-
450	VALVE; MAG	1-53458-378-2	01	1	0507-0511
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0512-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0507-0511
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82563-871-2	04	1	0512-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0507-0511
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0512-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
