◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#31235) — 801 parça
çizim 88545
53 53 53 53 53 53 53 53 59 312 334 342 334 334
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) 		1-83129-472-1 01 1 0512-
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0507-
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0507-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0507-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0507-0603
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0507-
53 BRACKET; HARNESS
(F) 		1-47479-537-0 09 1 0507-
53 BRACKET; HARNESS
(G) L=115 		1-82698-360-0 01 1 0507-
53 BRACKET; HARNESS
(H) 		1-82698-382-0 01 1 0507-
53 BRACKET; HARNESS
(I) 		1-82698-440-0 01 1 0507-
53 BRACKET; HARNESS
(J) 		1-82698-469-0 02 1 0507-0511
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (J) 		1-82698-469-0 02 1 0512-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0507-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) 		1-82698-570-0 01 1 0607-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-82698-556-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82699-182-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-358-0 01 1 0507-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (D) 		1-82698-358-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-474-1 01 1 0507-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-476-0 01 1 0507-
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0507-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-440-0 01 1 0507-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (E) 		1-82698-440-0 01 1 0512-
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0512-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0507-
334 BRACKET
(B) 		1-53458-362-0 01 1 0507-0511
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
(C) 		1-82698-543-0 01 1 0507-
334 BRACKET
(D) L=95 		1-82699-085-0 01 1 0507-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0507-

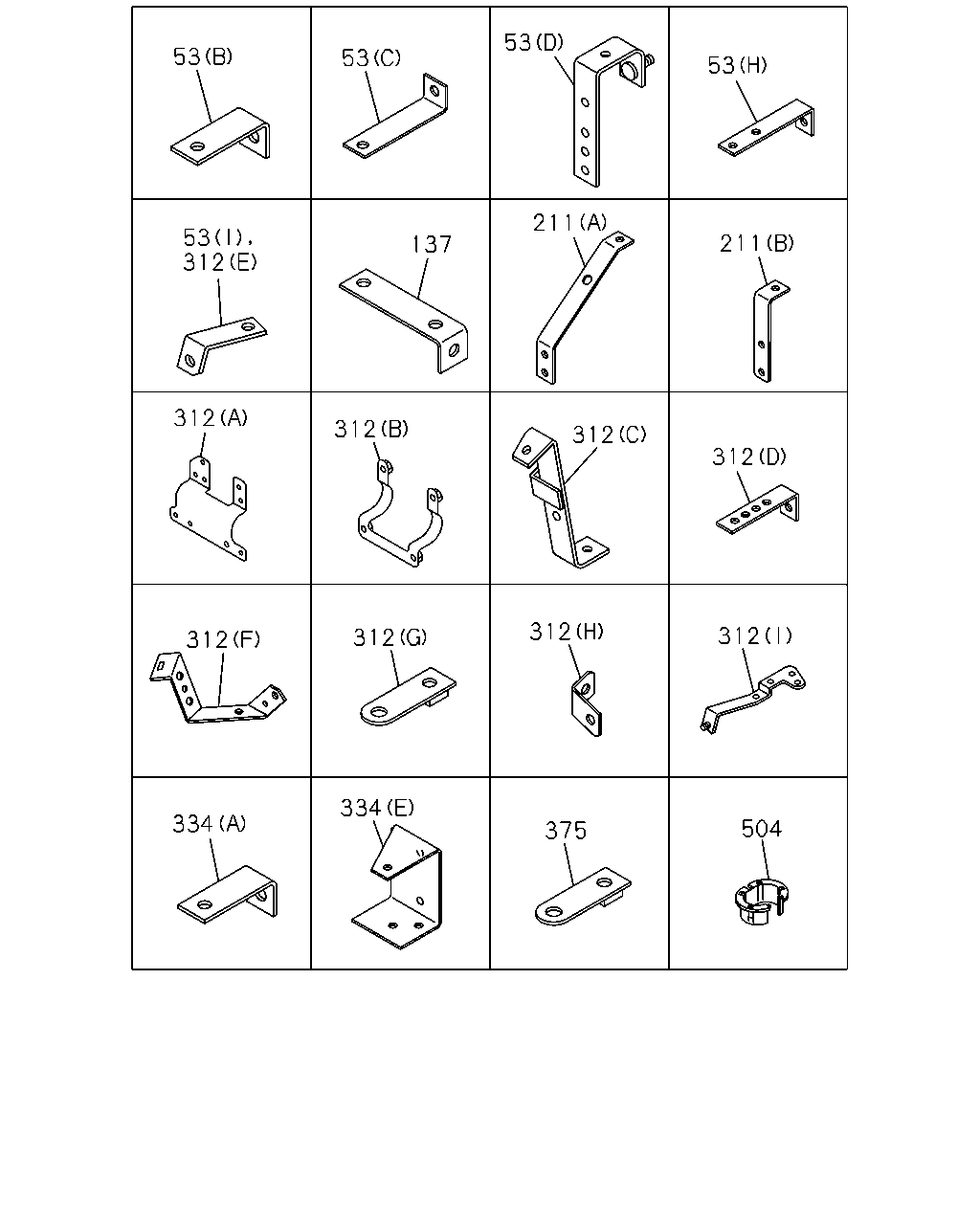

çizim 88781
53 53 53 53 211 53 312 211 137 312 312 312 312 312 312 312 312 334 334 504 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) 		1-83129-472-1 01 1 0512-
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0507-
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0507-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0507-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0507-0603
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0507-
53 BRACKET; HARNESS
(F) 		1-47479-537-0 09 1 0507-
53 BRACKET; HARNESS
(G) L=115 		1-82698-360-0 01 1 0507-
53 BRACKET; HARNESS
(H) 		1-82698-382-0 01 1 0507-
53 BRACKET; HARNESS
(I) 		1-82698-440-0 01 1 0507-
53 BRACKET; HARNESS
(J) 		1-82698-469-0 02 1 0507-0511
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (J) 		1-82698-469-0 02 1 0512-
137 BRACKET; HARNESS CLAMP
L=175 H=30 		1-47479-386-1 01 1 0507-
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82698-588-0 01 1 0607-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82698-588-0 02 1 0507-0606
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82698-588-0 02 1 0607-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47479-430-0 02 1 0507-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) 		1-82698-570-0 01 1 0607-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-82698-556-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82699-182-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-358-0 01 1 0507-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (D) 		1-82698-358-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-474-1 01 1 0507-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-476-0 01 1 0507-
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0507-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-440-0 01 1 0507-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (E) 		1-82698-440-0 01 1 0512-
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0512-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0507-
334 BRACKET
(B) 		1-53458-362-0 01 1 0507-0511
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
(C) 		1-82698-543-0 01 1 0507-
334 BRACKET
(D) L=95 		1-82699-085-0 01 1 0507-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0507-
504 PROTECTOR; HARNESS
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82698-391-0 02 1 0507-
çizim 88892
224 1 1 224 1 1 292 292 178 178 178 178 178 503 530 530 5 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=23 OD=27 L=40 		1-09337-015-0 02 1 0512-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0507-
1 SLEEVE; RUBBER
(C) ID=38.1 L=50 		5-09360-835-0 01 1 0507-0603
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 0604-
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0507-0511
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0507-0511
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0512-
1 SLEEVE; RUBBER
6WF1 TC-C(1B8) (B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0512-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0507-0511
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0512-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0507-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0507-
178 GROMMET; HARNESS
(C) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 02 1 0507-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0507-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0507-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0507-
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0507-
292 CAP; RUBBER
(A) 		1-82690-667-0 01 1 0507-
292 CAP; RUBBER
(B) 		1-82691-239-0 02 1 0507-0511
292 CAP; RUBBER
6WF1 TC-C(1B8) (B) 		1-82691-239-0 02 1 0512-
503 CONNECTOR 1-82690-666-0 01 1 0507-
530 SEAL; HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (C) OD=25 BLACK 		1-76798-019-0 01 1 0508-
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-1 16 1 0507-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0507-
530 SEAL; HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A) 100X40 		1-72498-022-1 02 1 0507-
çizim 88924
119 524 219 294 340 515 255 423 127
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0507-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0507-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0507-0511
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0507-0511
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0507-0511
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 06 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 15 1 0507-0602
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0507-0511
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0507-0511
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0507-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 05 1 0607-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 06 1 0507-0602
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 06 1 0603-0606
294 NUT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 06 1 0607-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0507-0511
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 11 1 0507-0602
294 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603-
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0507-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0507-
515 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
515 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0507-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

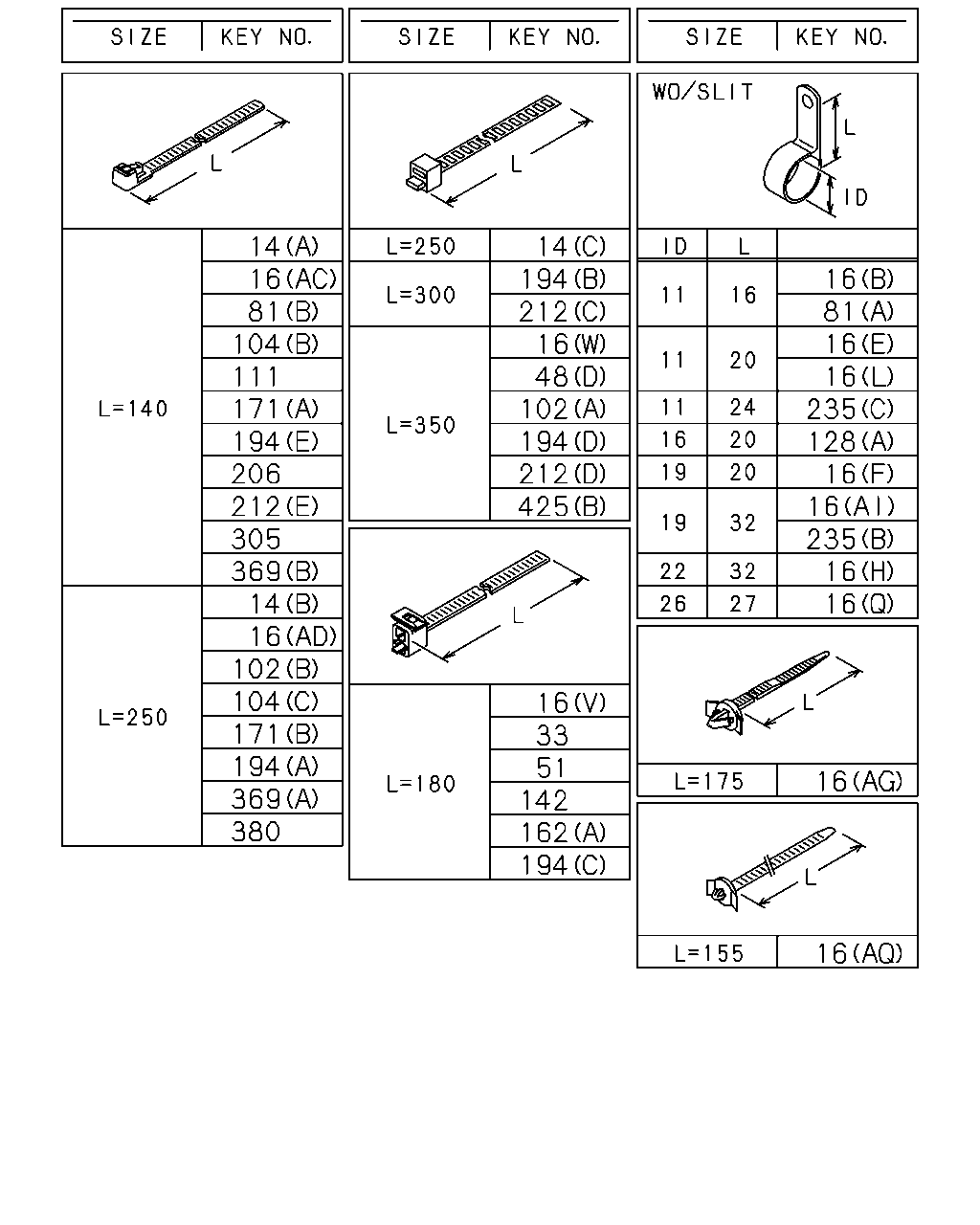

çizim 104955
14 194 212 16 48 102 194 212 425 14 16 81 104 111 171 194 206 212 305 369 14 16 102 104 171 194 369 380 16 81 16 16 235 128 16 16 235 16 16 16 33 51 142 162 194 16 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=250 		1-09707-126-0 01 1 0507-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 01 1 0507-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0507-
14 CLIP; BAND,HARNESS
(C) L=250 		1-09707-126-0 02 1 0507-

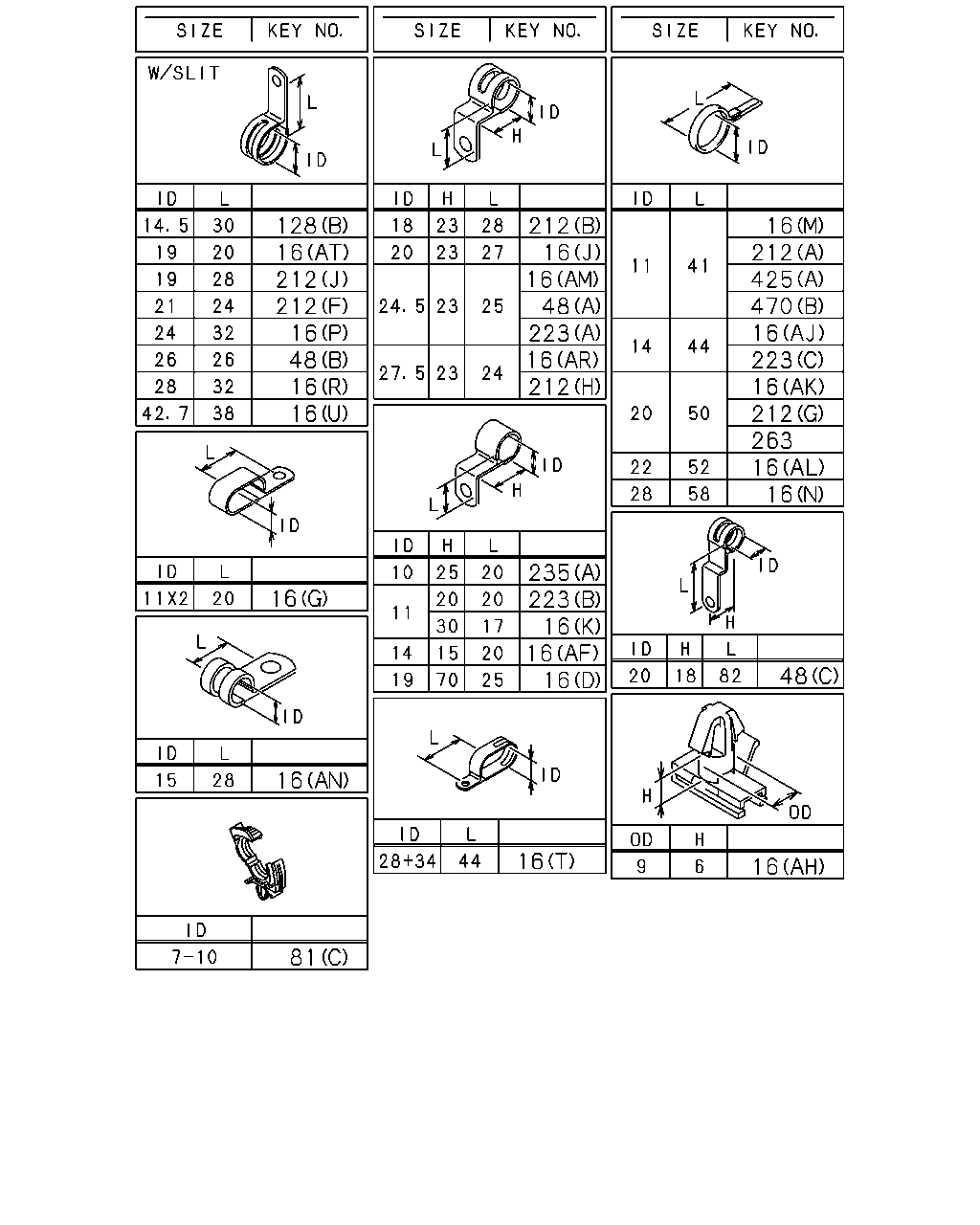

16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 01 1 0511-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AQ) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (N) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (V) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=5-12 L=22 		1-09709-288-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AO) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=14 L=44 		9-09917-427-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AK) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AS) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AT) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 01 1 0507-
16 CLIP; HARNESS
(AE) L=55 		8-94432-655-0 03 1 0507-
16 CLIP; HARNESS
(AG) L=175 		8-97110-167-0 04 1 0507-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=22 		1-09709-288-0 01 1 0507-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		9-09525-025-0 02 1 0507-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0507-0507
16 CLIP; HARNESS
(E) ID=11 L=20 		9-09525-032-0 01 1 0507-0606
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=19 L=20 		9-09525-832-0 01 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		9-09535-035-0 02 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
(G) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50 		1-09700-679-1 01 1 0507-
16 CLIP; HARNESS
(J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17 		1-09700-113-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0507-0511
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=28 L=58 		1-09700-400-0 03 1 0507-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 10 1 0507-
16 CLIP; HARNESS

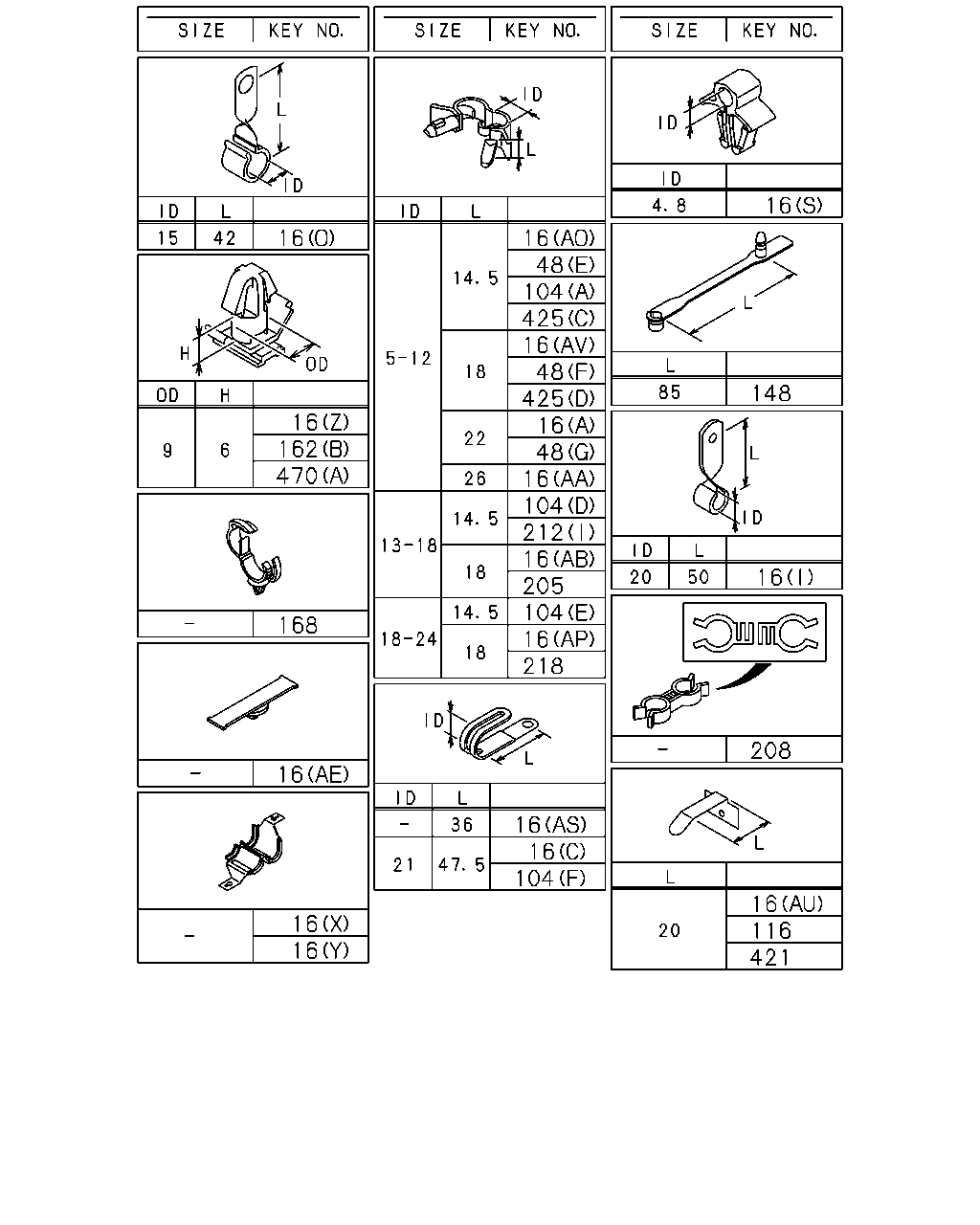

(O) ID=15 L=42 		1-09700-479-0 02 1 0507-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
(Q) ID=26 L=27 		1-09701-006-0 02 1 0507-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0507-
16 CLIP; HARNESS
(S) ID=4.8 		1-09701-218-0 01 1 0507-
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0507-0511
16 CLIP; HARNESS
HIGH ROOF<S2F> (AU) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512-
16 CLIP; HARNESS
(U) ID=42.7 L=38 		1-09701-313-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 01 1 0507-0511
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0507-0511
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 09 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (V) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 07 1 0507-
16 CLIP; HARNESS
(X) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0507-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 05 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0507-0511
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 11 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(AA) ID=5-12 L=26 		1-09709-289-0 01 1 0507-0610
16 CLIP; HARNESS
(AV) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 03 1 0507-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 05 1 0507-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 0507-
16 CLIP; HARNESS
(AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(AH) OD=9 H=6 		8-97368-793-0 01 1 0507-
16 CLIP; HARNESS
(AI) ID=19 L=32 		9-09525-866-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
(AI) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(AJ) ID=14 L=44 		9-09917-427-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=14 L=44 		9-09917-427-0 02 1 0512-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 04 1 0507-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 06 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0507-0511
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (V) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
33 CLIP; HARNESS,VLV
L=180 		1-09707-162-1 01 1 0507-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0507-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0507-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0507-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0507-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 08 1 0507-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=22 		1-09709-288-0 02 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0507-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 02 1 0507-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 02 1 0607-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0507-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350 		1-09707-183-0 02 1 0512-
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=250 		5-09707-030-1 01 1 0512-
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0507-0511
102 CLIP; BAND
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=18-24 L=14.5 		1-09709-298-0 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 10 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F) ID=21 L=47.5 		8-94178-108-0 02 1 0512-0710
104 CLIP; HEADLAMP HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (C) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (B) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(D) ID=13-18 L=14.5 		1-09709-290-0 06 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0507-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0507-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0507-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0507-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 01 1 1208-
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 0507-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
171 CLIP; STARTER HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=250 		5-09707-030-1 03 1 0512-
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 02 1 0507-0511
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (B) L=250 		5-09707-030-1 02 1 0512-
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 07 1 0507-
194 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 05 1 0512-
194 CLIP; BAND
(B) L=300 		1-09707-001-1 01 1 0507-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0507-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0507-0511
194 CLIP; BAND
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0507-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 04 1 0507-0511
194 CLIP; BAND
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 04 1 0512-
194 CLIP; BAND
(E) L=140 		5-09707-031-1 01 1 0507-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0507-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0507-
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0507-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 02 1 0507-
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 0507-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) ID=20 L=50 		9-09917-430-0 02 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) ID=20 L=50 		9-09917-430-0 02 1 0512-
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=11 L=24 		9-09525-045-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=11 L=24 		0-95235-045-0 01 1 0607-0711
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0507-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=19 L=32 		9-09525-866-0 01 1 0507-0511
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) (B) ID=19 L=32 		9-09525-866-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=19 L=32 		0-95235-866-0 01 1 0607-
305 CLIP; ENG HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0512-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0507-0511
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0512-
369 CLIP; BAND EDS HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 01 1 0512-
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 02 1 0507-0511
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0512-
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 04 1 0507-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=41 		1-09700-403-0 03 1 0507-0510
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=5-12 L=18 		1-09709-287-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0507-
çizim 104958
128 16 212 212 16 48 16 16 212 16 16 48 223 16 212 16 212 425 470 16 223 16 212 263 16 16 235 223 16 16 16 16 48 16 16 16 81
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 01 1 0511-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AQ) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (N) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (V) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=5-12 L=22 		1-09709-288-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AO) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=14 L=44 		9-09917-427-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AK) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AS) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AT) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 01 1 0507-
16 CLIP; HARNESS
(AE) L=55 		8-94432-655-0 03 1 0507-
16 CLIP; HARNESS
(AG) L=175 		8-97110-167-0 04 1 0507-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=22 		1-09709-288-0 01 1 0507-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		9-09525-025-0 02 1 0507-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0507-0507
16 CLIP; HARNESS
(E) ID=11 L=20 		9-09525-032-0 01 1 0507-0606
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=19 L=20 		9-09525-832-0 01 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		9-09535-035-0 02 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
(G) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50 		1-09700-679-1 01 1 0507-
16 CLIP; HARNESS
(J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17 		1-09700-113-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0507-0511
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=28 L=58 		1-09700-400-0 03 1 0507-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 10 1 0507-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0507-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
(Q) ID=26 L=27 		1-09701-006-0 02 1 0507-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0507-
16 CLIP; HARNESS
(S) ID=4.8 		1-09701-218-0 01 1 0507-
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0507-0511
16 CLIP; HARNESS
HIGH ROOF<S2F> (AU) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512-
16 CLIP; HARNESS
(U) ID=42.7 L=38 		1-09701-313-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 01 1 0507-0511
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0507-0511
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 09 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (V) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 07 1 0507-
16 CLIP; HARNESS
(X) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0507-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 05 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0507-0511
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 11 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(AA) ID=5-12 L=26 		1-09709-289-0 01 1 0507-0610
16 CLIP; HARNESS
(AV) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 03 1 0507-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 05 1 0507-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 0507-
16 CLIP; HARNESS
(AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(AH) OD=9 H=6 		8-97368-793-0 01 1 0507-
16 CLIP; HARNESS
(AI) ID=19 L=32 		9-09525-866-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
(AI) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(AJ) ID=14 L=44 		9-09917-427-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=14 L=44 		9-09917-427-0 02 1 0512-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 04 1 0507-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 06 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0507-0511
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (V) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0507-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0507-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0507-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0507-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 08 1 0507-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=22 		1-09709-288-0 02 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 02 1 0507-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 02 1 0607-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0507-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0507-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0507-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0507-
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0507-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 02 1 0507-
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 0507-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) ID=20 L=50 		9-09917-430-0 02 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) ID=20 L=50 		9-09917-430-0 02 1 0512-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0507-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0507-0707
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0708-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0507-
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=11 L=24 		9-09525-045-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=11 L=24 		0-95235-045-0 01 1 0607-0711
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0507-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=19 L=32 		9-09525-866-0 01 1 0507-0511
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) (B) ID=19 L=32 		9-09525-866-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=19 L=32 		0-95235-866-0 01 1 0607-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=41 		1-09700-403-0 03 1 0507-0510
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=5-12 L=18 		1-09709-287-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0507-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0507-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0507-
çizim 104960
16 16 16 48 104 425 16 48 425 16 48 16 104 212 16 205 104 16 218 148 16 162 470 16 168 208 16 16 16 104 16 116 421 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 01 1 0511-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AQ) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (N) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (V) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=5-12 L=22 		1-09709-288-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AO) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=14 L=44 		9-09917-427-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AK) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AS) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AH) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AT) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 01 1 0507-
16 CLIP; HARNESS
(AE) L=55 		8-94432-655-0 03 1 0507-
16 CLIP; HARNESS
(AG) L=175 		8-97110-167-0 04 1 0507-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AG) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=22 		1-09709-288-0 01 1 0507-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		9-09525-025-0 02 1 0507-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
(D) ID=19 H=70 L=25 		8-97360-209-0 01 1 0507-0507
16 CLIP; HARNESS
(E) ID=11 L=20 		9-09525-032-0 01 1 0507-0606
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=19 L=20 		9-09525-832-0 01 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		9-09535-035-0 02 1 0507-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
(G) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32 		1-09700-126-1 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50 		1-09700-679-1 01 1 0507-
16 CLIP; HARNESS
(J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17 		1-09700-113-0 01 1 0507-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0507-0511
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (L) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=28 L=58 		1-09700-400-0 03 1 0507-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 10 1 0507-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0507-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
(Q) ID=26 L=27 		1-09701-006-0 02 1 0507-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0507-
16 CLIP; HARNESS
(S) ID=4.8 		1-09701-218-0 01 1 0507-
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0507-0511
16 CLIP; HARNESS
HIGH ROOF<S2F> (AU) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512-
16 CLIP; HARNESS
(U) ID=42.7 L=38 		1-09701-313-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 01 1 0507-0511
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 02 1 0507-0511
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(V) L=180 		1-09707-162-1 09 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (V) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 07 1 0507-
16 CLIP; HARNESS
(X) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0507-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 05 1 0507-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 07 1 0507-0511
16 CLIP; HARNESS
(T) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(Z) OD=9 H=6 		1-09709-178-0 11 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(AA) ID=5-12 L=26 		1-09709-289-0 01 1 0507-0610
16 CLIP; HARNESS
(AV) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 03 1 0507-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 05 1 0507-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 01 1 0507-
16 CLIP; HARNESS
(AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AF) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(AH) OD=9 H=6 		8-97368-793-0 01 1 0507-
16 CLIP; HARNESS
(AI) ID=19 L=32 		9-09525-866-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
(AI) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(AJ) ID=14 L=44 		9-09917-427-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=14 L=44 		9-09917-427-0 02 1 0512-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 04 1 0507-
16 CLIP; HARNESS
(AK) ID=20 L=50 		9-09917-430-0 06 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(AL) ID=22 L=52 		9-09917-431-0 01 1 0507-0511
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (V) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(M) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
(AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0507-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AM) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
16 CLIP; HARNESS
(AO) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0507-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0507-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0507-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0507-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 08 1 0507-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=22 		1-09709-288-0 02 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0507-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=18-24 L=14.5 		1-09709-298-0 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 10 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F) ID=21 L=47.5 		8-94178-108-0 02 1 0512-0710
104 CLIP; HEADLAMP HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (C) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (B) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(D) ID=13-18 L=14.5 		1-09709-290-0 06 1 0507-0511
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0512-1409
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0507-0511
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0512-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0507-
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 0507-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
168 CLIP; DASH HARNESS
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13 		8-97069-515-0 06 1 0507-
168 CLIP; DASH HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13 		8-97069-515-0 05 1 0507-
205 CLIP; BACK LAMP HARNESS
ID=13-18 L=18 		1-09709-291-0 01 1 0507-
208 CLIP; HARNESS,MAG VLV
6WF1 TC-C(1B8) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=10.5 & 18 		8-94381-420-0 01 1 0507-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0507-
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0507-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 02 1 0507-
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 0507-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) ID=20 L=50 		9-09917-430-0 02 1 0507-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) ID=20 L=50 		9-09917-430-0 02 1 0512-
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0507-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=41 		1-09700-403-0 03 1 0507-0510
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=5-12 L=18 		1-09709-287-0 01 1 0507-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0507-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0507-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0507-
çizim 104961
38 150 150 64 242 528 38 150 242 38 313 38 38 242 480 38 64 139 313 86 139 242 313 38 64 64 516 139 239 88 133 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 08 1 0507-0511
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X20 FLANGE 		0-28680-820-0 08 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X20 FLANGE 		0-28650-820-0 08 1 0601-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0511
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28080-820-0 03 1 0507-0511
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28050-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(F) M10X20 FLANGE 		0-28781-020-0 01 1 0507-0511
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (F) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (F) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0507-1105
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0507-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0511
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0511
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0511
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0511
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (E) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (E) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
64 SCREW; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
64 SCREW; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
64 SCREW; CLIP
(A) M8X12 FLANGE 		0-28080-812-0 05 1 0507-0511
64 SCREW; CLIP
6WF1 TC-C(1B8) (A) M8X12 FLANGE 		0-28080-812-0 05 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) (A) M8X12 FLANGE 		0-28050-812-0 05 1 0601-
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
64 SCREW; CLIP
(C) M10X25 FLANGE 		0-28781-025-0 02 1 0507-0511
64 SCREW; CLIP
6WF1 TC-C(1B8) (C) M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) (C) M10X25 FLANGE 		0-28751-025-0 02 1 0601-
86 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 03 1 0607-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0507-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0507-
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28680-830-0 06 1 0507-0512
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0607-
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0607-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 05 1 0507-0511
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28680-830-0 05 1 0512-0512
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 06 1 0607-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0507-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0507-0512
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0507
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0508-0509
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 03 1 0510-0512
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0601-1208
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28080-810-0 02 1 0507-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28050-810-0 02 1 0601-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0507-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X18 FLANGE 		0-28080-818-0 01 1 0512-
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0511
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
313 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
313 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0507-0511
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 11 1 0507-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0601-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0507-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0507-
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-
528 BOLT; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512
528 BOLT; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
