Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#31234) — 236 parça

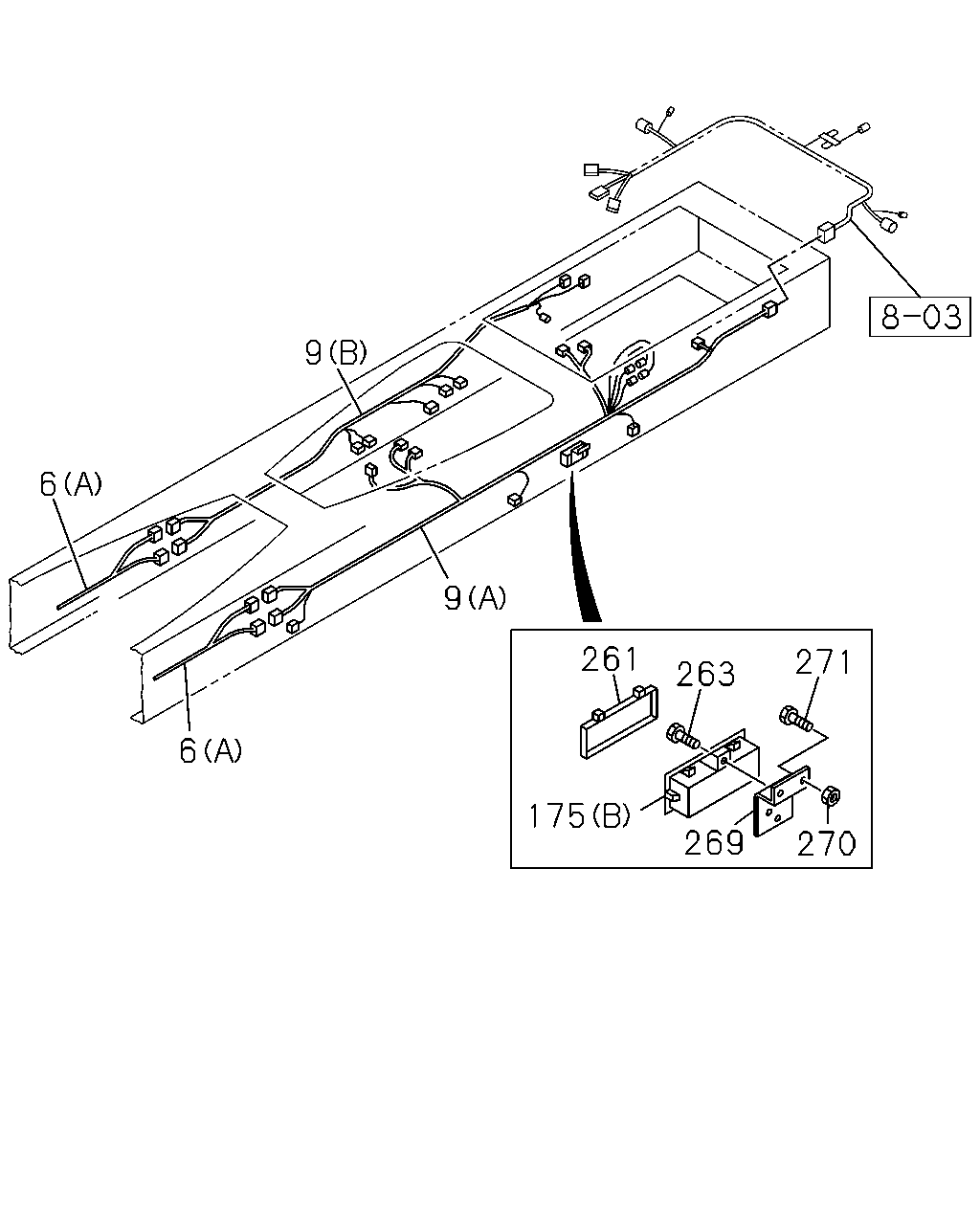

9 6 9 261 271 263 6 270 175 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97607-307-1	01	1	0512-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97609-917-3	01	1	0512-
6	HARNESS; FRAME (A)	1-82678-116-2	01	1	0507-0511
6	HARNESS; FRAME 6WF1 TC-C(1B8) (A)	1-82678-116-2	01	1	0512-
6	HARNESS; FRAME (B)	1-82678-117-1	01	1	0507-0511
6	HARNESS; FRAME 6WF1 TC-C(1B8) (B)	1-82678-117-1	01	1	0512-
9	HARNESS; FRAME,RR (A)	1-82677-183-2	01	1	0507-
9	HARNESS; FRAME,RR (B)	1-82677-184-0	01	1	0507-
175	BOX; CONNECTOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82569-389-1	01	1	0512-0606
175	BOX; CONNECTOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82569-435-1	01	1	0607-
175	BOX; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82699-467-0	01	1	0507-
175	BOX; CONNECTOR (A)	1-82569-342-0	01	1	0507-0511
175	BOX; CONNECTOR 6WF1 TC-C(1B8) (A)	1-82569-342-0	01	1	0512-
261	COVER; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82699-320-0	01	1	0507-
263	BOLT; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0507-
269	BRACKET; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82698-424-0	01	1	0507-
270	NUT; BRKT,CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0507-0602
270	NUT; BRKT,CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-
271	BOLT; BRKT CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
271	BOLT; BRKT CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	0601-

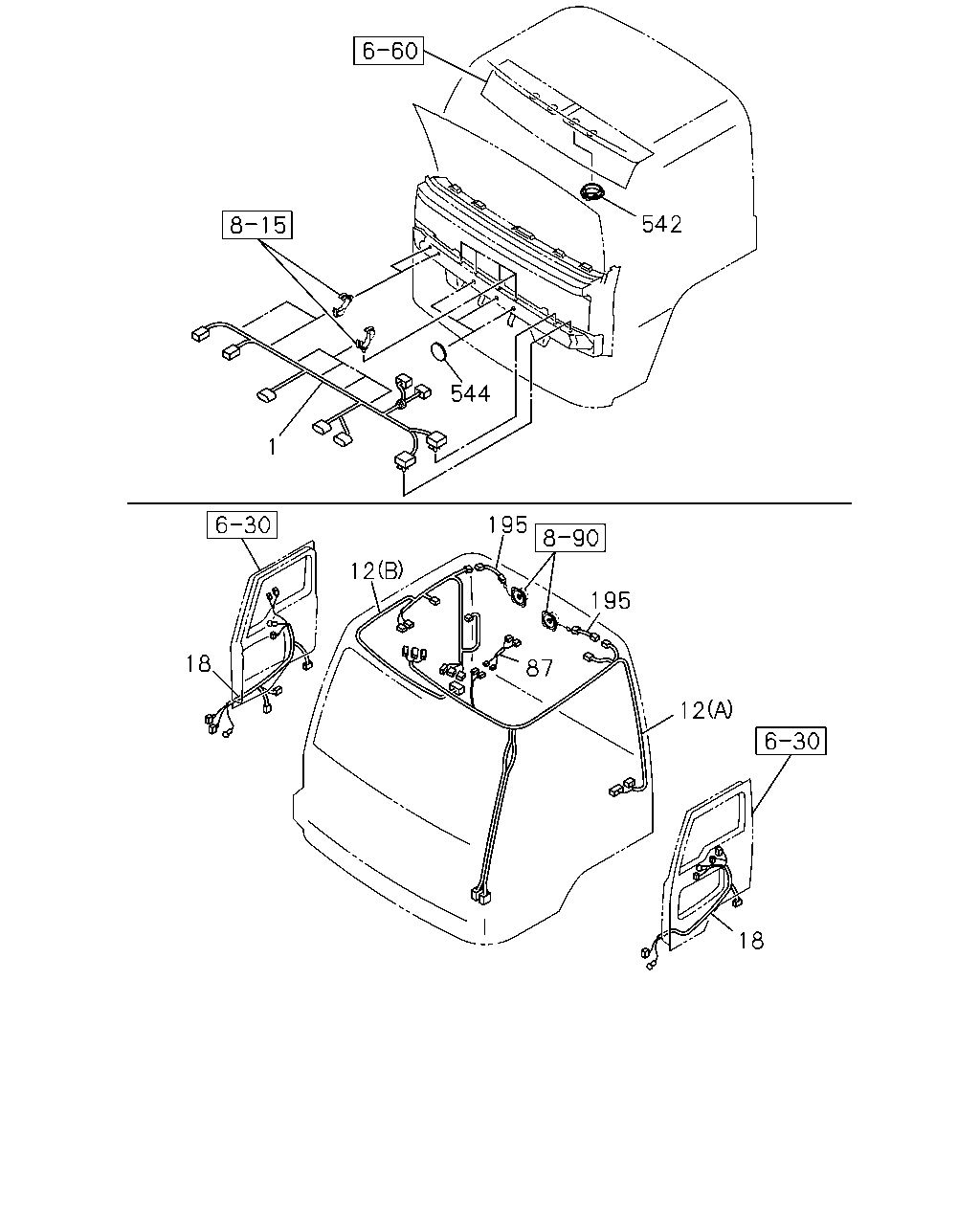

542 544 1 195 12 195 18 87 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-232-1	01	1	0507-
1	HARNESS; CAB EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-234-1	01	1	0507-
12	HARNESS; ROOF 6WF1 TC-C(1B8) HIGH ROOF<S2F> (A)	1-82662-253-2	01	1	0512-
12	HARNESS; ROOF 6WF1 TC-C(1B8) AUTO ROUND CURTAIN<TAR> (B)	1-82662-589-0	01	1	0512-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) HIGH ROOF<S2F> (A)	1-82662-765-1	01	1	0512-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) AUTO ROUND CURTAIN<TAR> (B)	1-82662-767-0	01	1	0512-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. HIGH ROOF<S2F> (A)	1-82662-764-1	01	1	0512-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. AUTO ROUND CURTAIN<TAR> (B)	1-82662-766-0	01	1	0512-
12	HARNESS; ROOF (A)	1-82662-252-2	01	1	0507-0511
12	HARNESS; ROOF 6WF1 TC-C(1B8) EXC. HIGH ROOF<S2F> (A)	1-82662-252-2	01	1	0512-
12	HARNESS; ROOF (B)	1-82662-588-0	01	1	0507-0511
12	HARNESS; ROOF 6WF1 TC-C(1B8) EXC. AUTO ROUND CURTAIN<TAR> (B)	1-82662-588-0	01	1	0512-
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<SLG>	1-82628-575-1	01	1	0512-
18	HARNESS; DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-82629-901-1	01	1	0512-
18	HARNESS; DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. REMOTE CONT DOOR LOCK<SLG>	1-82628-574-1	01	1	0512-
18	HARNESS; DOOR EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-669-0	01	1	0507-0511
18	HARNESS; DOOR EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-82628-669-0	01	1	0512-
18	HARNESS; DOOR EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-670-1	01	1	0507-0511
18	HARNESS; DOOR 6WF1 TC-C(1B8) EXC. REMOTE CONT DOOR LOCK<SLG>,MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-670-1	01	1	0512-
18	HARNESS; DOOR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-582-0	01	1	0507-0511
18	HARNESS; DOOR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-82628-582-0	01	1	0512-
18	HARNESS; DOOR 6WF1 TC-C(1B8) MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-588-0	01	1	0507-0511
18	HARNESS; DOOR 6WF1 TC-C(1B8) MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. REMOTE CONT DOOR LOCK<SLG>	1-82628-588-0	01	1	0512-
87	HARNESS; EXT,ROOM LAMP HIGH ROOF<S2F>	1-82661-333-0	01	1	0512-
195	HARNESS; EXT HIGH ROOF<S2F>	1-82625-300-1	02	1	0512-
542	GROMMET; HARNESS GRIP OUT SIDE<W52> ID=36	8-94178-685-0	01	1	0507-0712
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	0801-
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	03	1	0507-

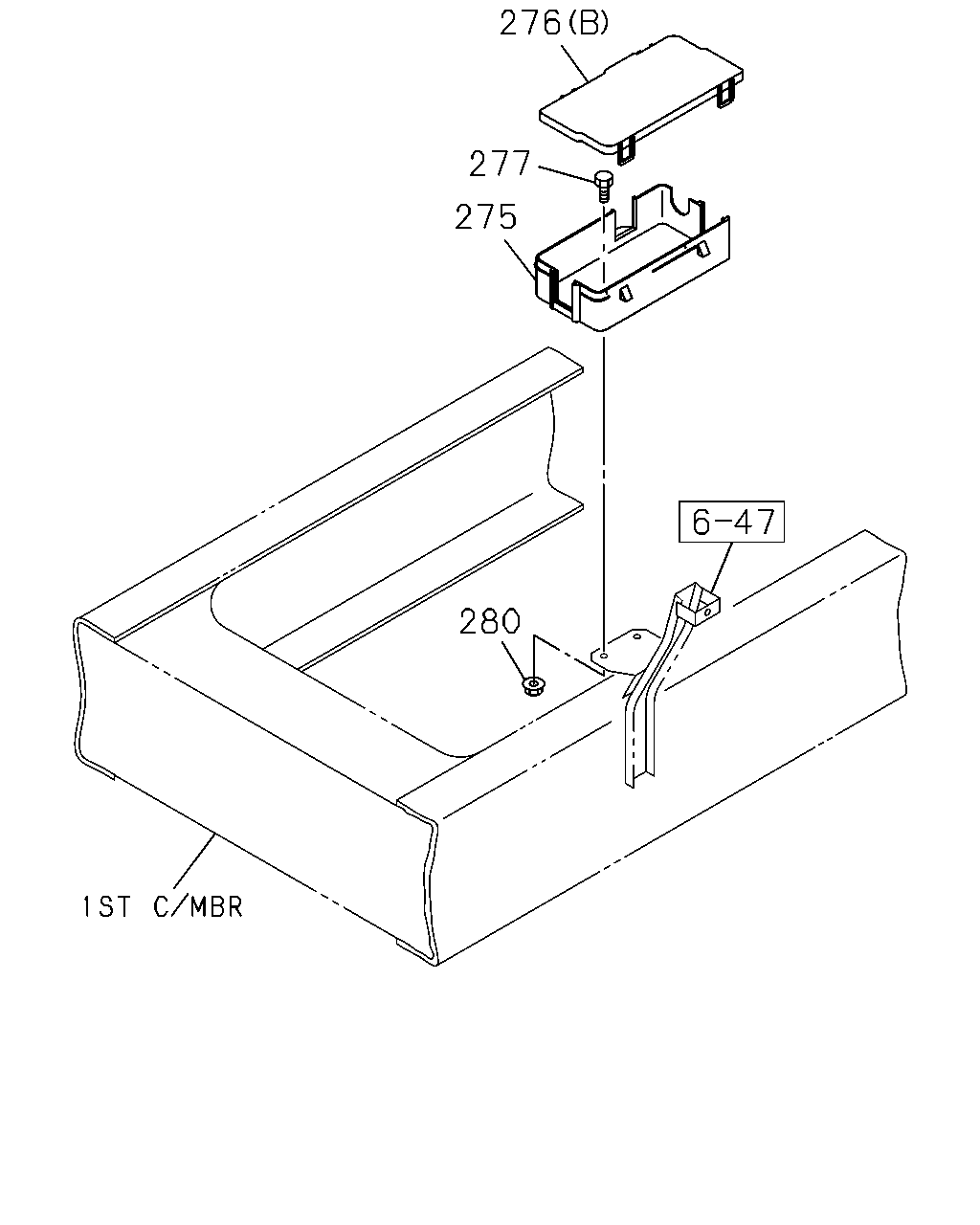

276 277 275 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOX ASM; FRAME HARNESS	1-82699-474-2	01	1	0507-0511
275	BOX ASM; FRAME HARNESS 6WF1 TC-C(1B8)	1-82699-474-2	01	1	0512-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0507-0511
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0512-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0507-
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0507-0511
277	BOLT; BOX ASM FIX 6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0512-
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0507-0511
280	NUT; BOX ASM FIX 6WF1 TC-C(1B8) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0512-

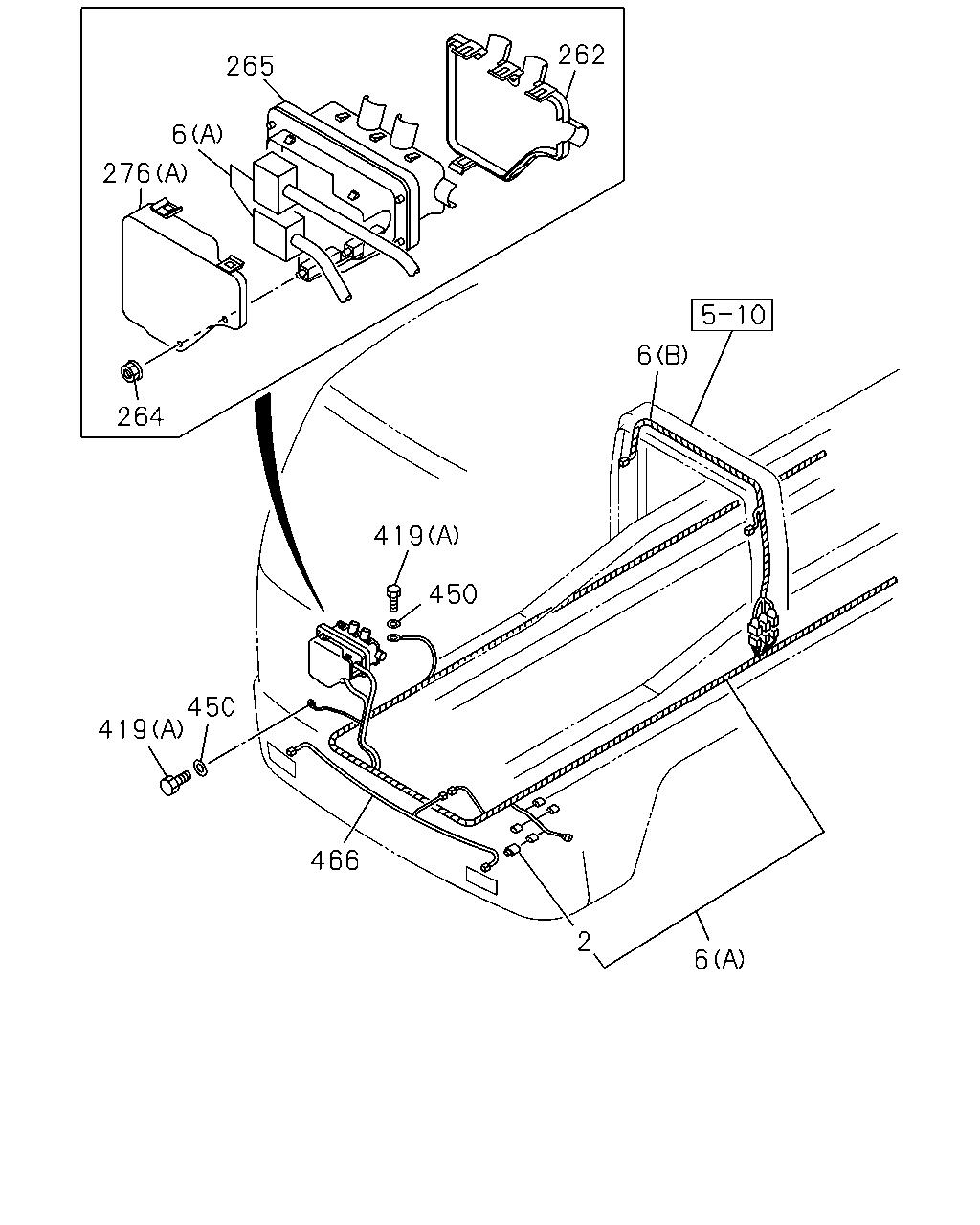

262 265 6 276 6 264 419 450 450 419 466 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0507-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97607-307-1	01	1	0512-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97609-917-3	01	1	0512-
6	HARNESS; FRAME (A)	1-82678-116-2	01	1	0507-0511
6	HARNESS; FRAME 6WF1 TC-C(1B8) (A)	1-82678-116-2	01	1	0512-
6	HARNESS; FRAME (B)	1-82678-117-1	01	1	0507-0511
6	HARNESS; FRAME 6WF1 TC-C(1B8) (B)	1-82678-117-1	01	1	0512-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	0507-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0507-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0507-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0507-0511
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0512-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0507-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0512-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0507-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0507-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0512-
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0507-
466	HARNESS; BUMPER HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-97610-100-0	01	1	0512-

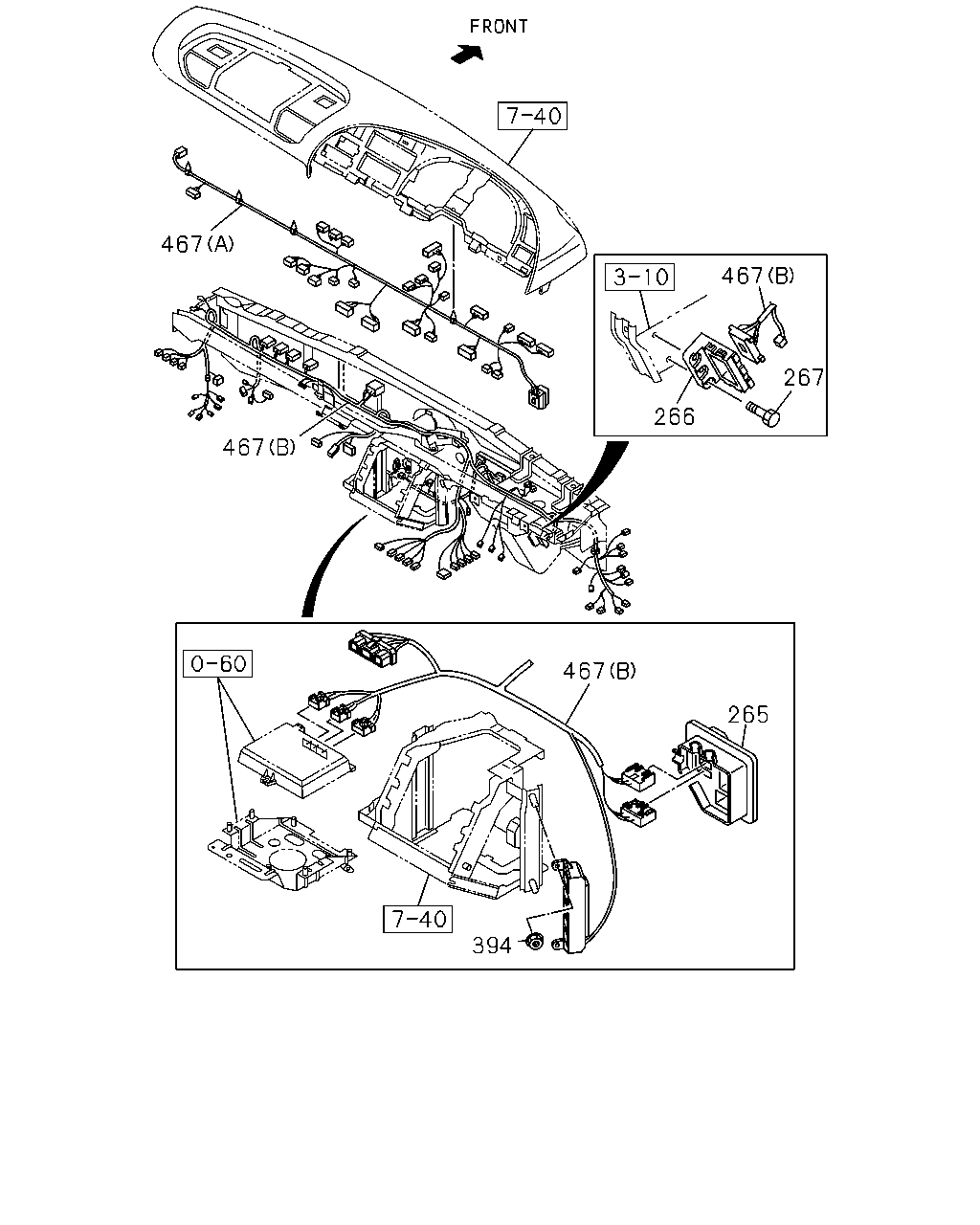

467 467 267 266 467 467 265 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0507-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0507-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0507-
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) M6 FLANGE	0-91150-106-0	01	1	0507-0602
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	01	1	0507-0602
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) M6 FLANGE	0-91180-106-0	01	1	0603-0706
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	01	1	0603-0706
394	NUT; RELAY BOX TO BODY ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	01	1	0707-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-82662-769-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-774-2	01	1	0512-0609
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-929-0	01	1	0610-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0507-0511
467	HARNESS; FACIA 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0512-
467	HARNESS; FACIA 6WF1 TC-C(1B8) (A)	1-82662-793-0	01	1	0507-

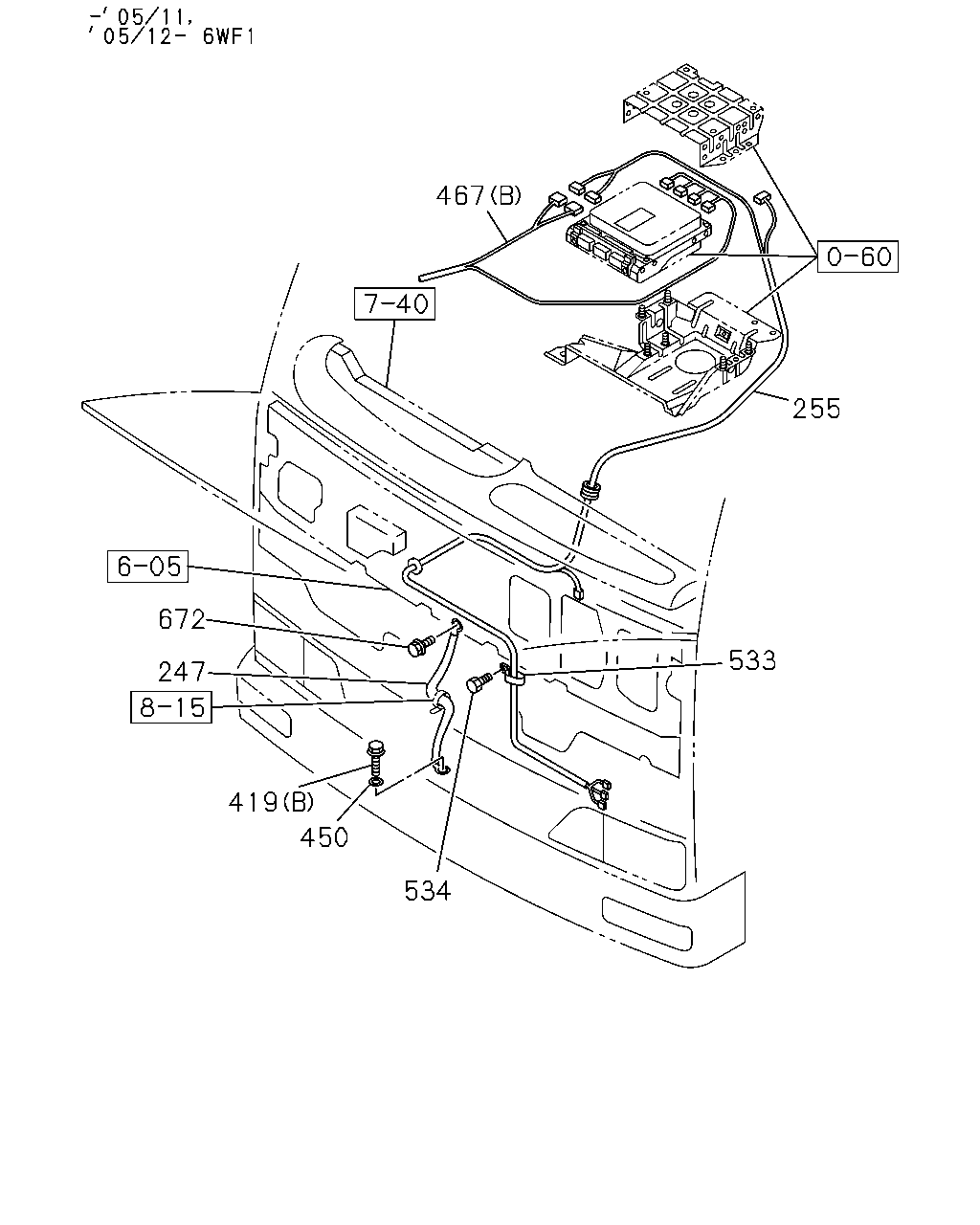

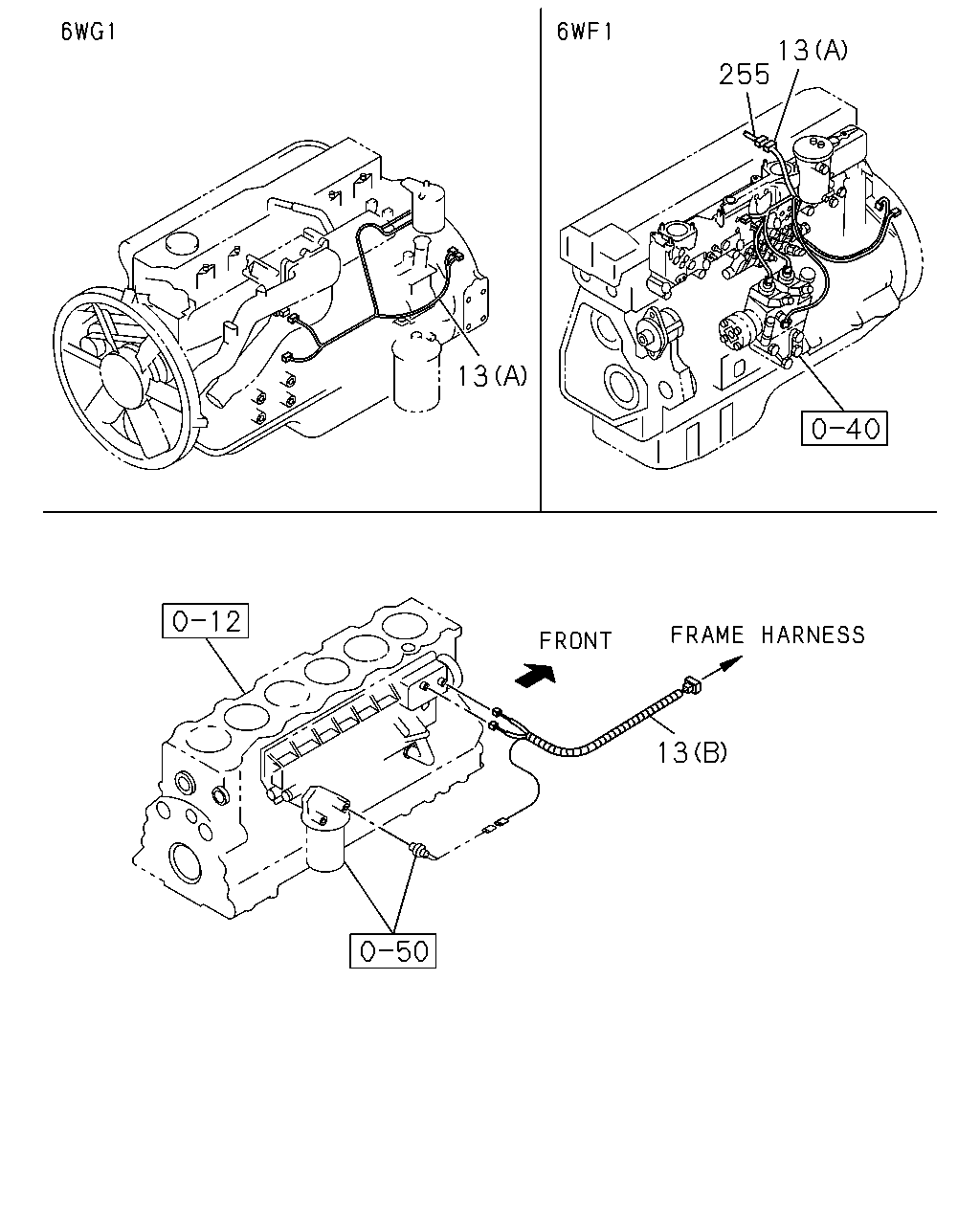

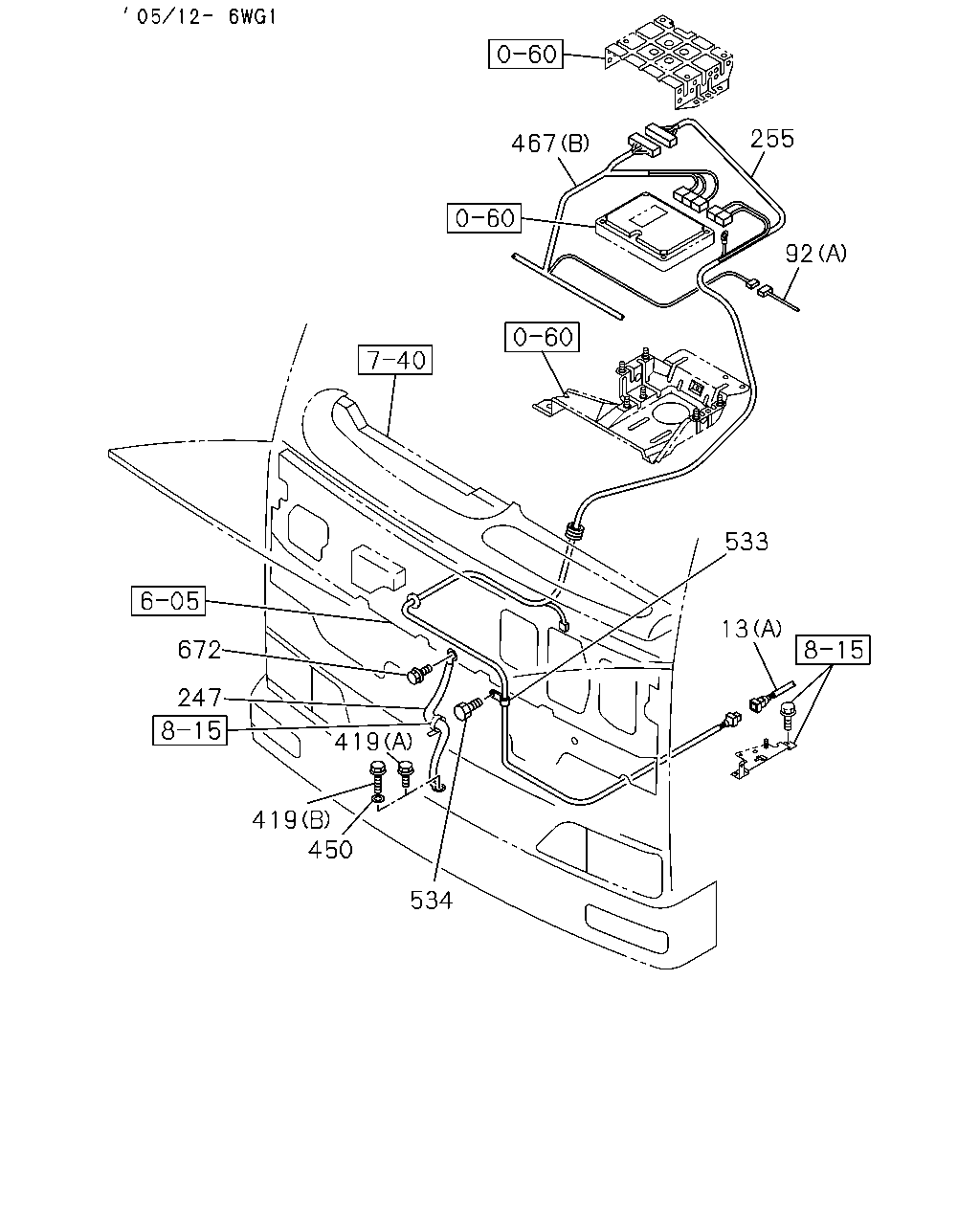

13 533 534 450 419 419 247 672 467 255 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (A)	1-82641-345-0	01	1	0507-0612
13	HARNESS; ENG (A)	8-97617-395-0	01	1	0701-1004
13	HARNESS; ENG (A)	8-98169-641-0	01	1	1005-
13	HARNESS; ENG (A)	8-97604-105-2	01	1	0512-0612
13	HARNESS; ENG (A)	8-97617-391-0	01	1	0701-
13	HARNESS; ENG (B)	1-82640-553-4	01	1	0507-

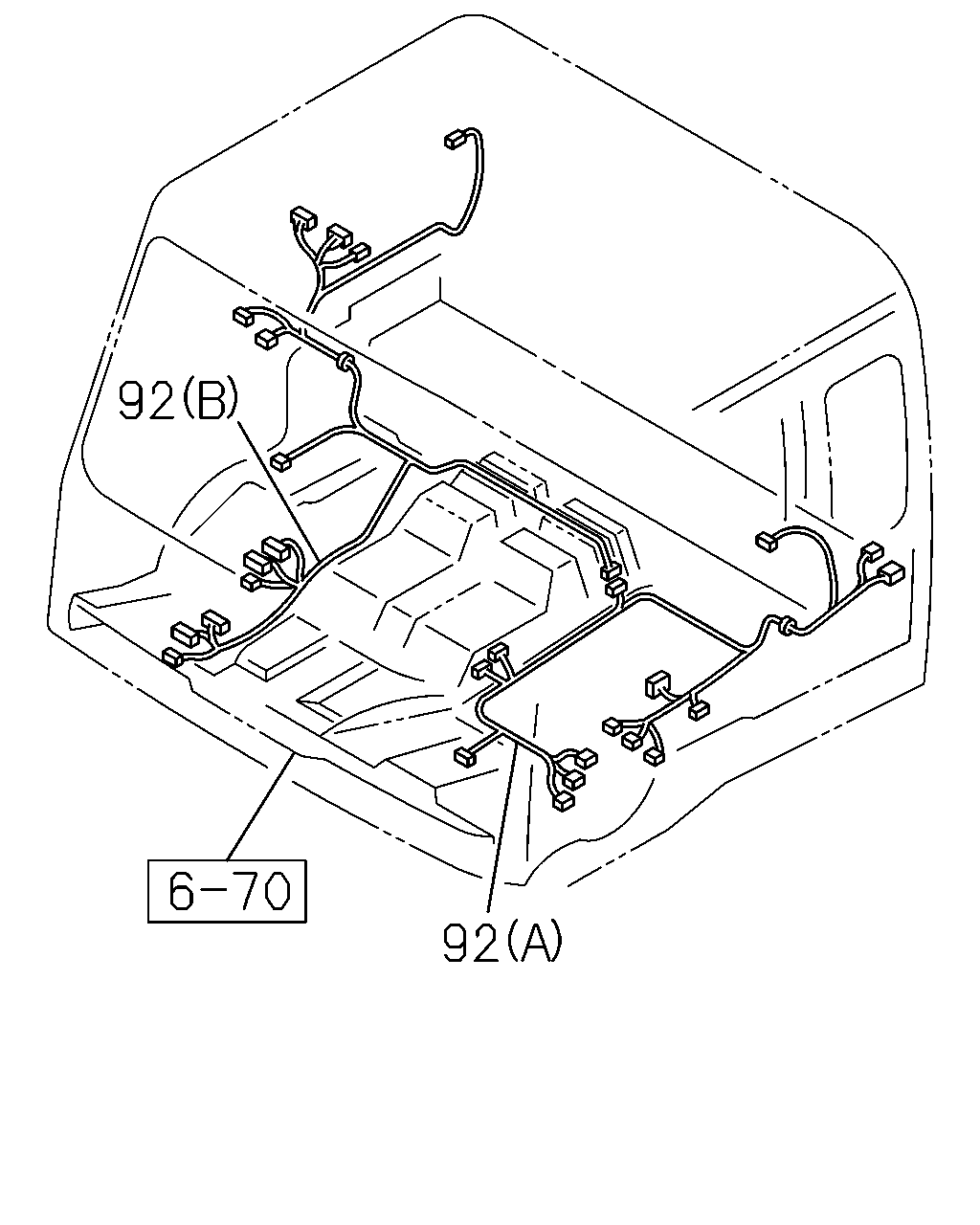

92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-82662-349-5	01	1	0512-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-783-1	01	1	0512-0604
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-895-0	01	1	0605-1212
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98229-590-0	01	1	1301-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	1-82662-722-1	01	1	0507-0604
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	1-82662-899-0	01	1	0605-1212
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	8-98229-547-0	01	1	1301-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (B)	1-82662-734-0	01	1	0507-
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0507-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0512-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0507-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0512-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0507-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0507-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0512-
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0507-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-82662-769-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-774-2	01	1	0512-0609
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-929-0	01	1	0610-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0507-0511
467	HARNESS; FACIA 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0512-
467	HARNESS; FACIA 6WF1 TC-C(1B8) (A)	1-82662-793-0	01	1	0507-
533	CLIP ID=28 & 34 L=63	1-09701-310-0	01	1	0507-
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0507-0512
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0601-
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0507-1309
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-

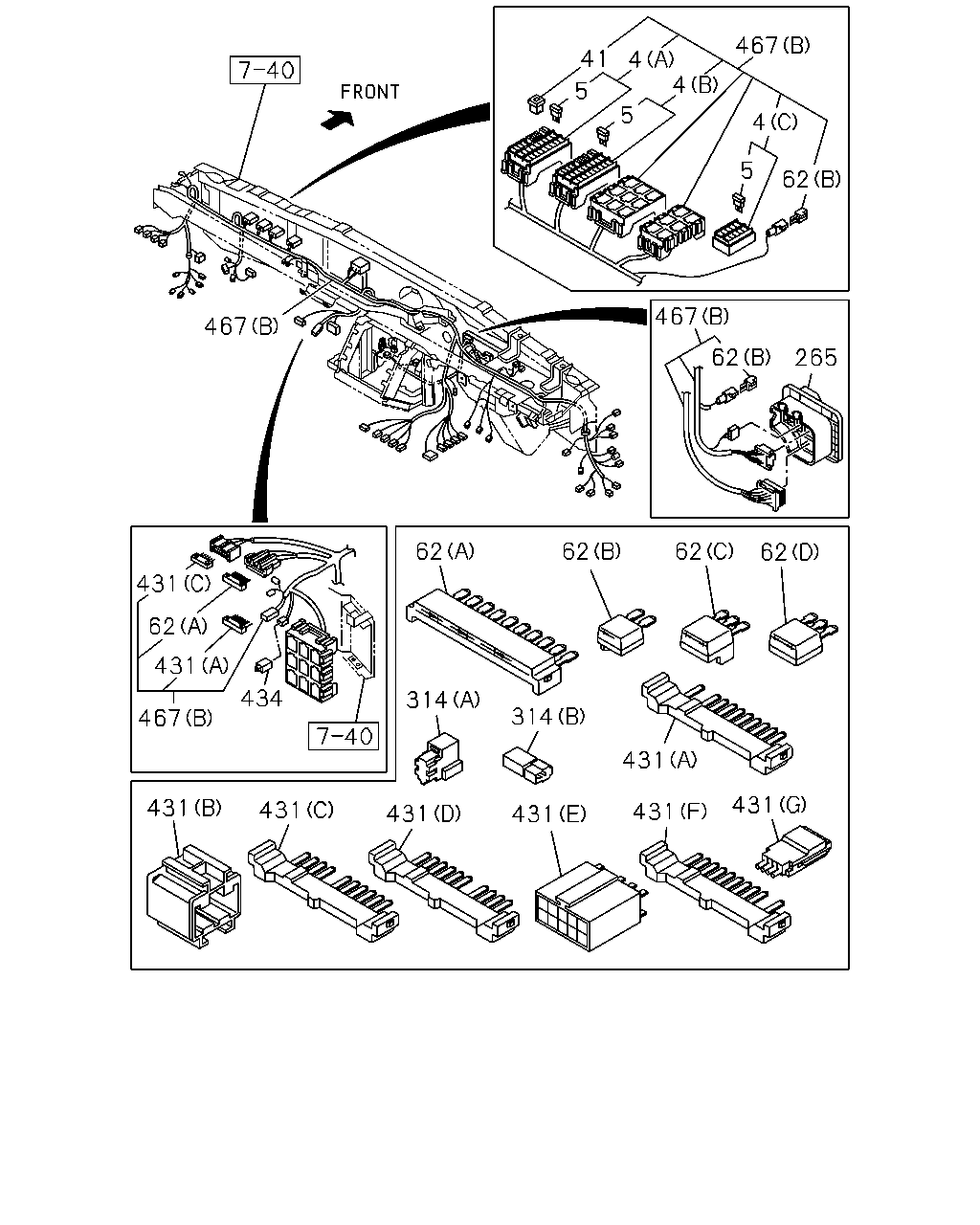

467 41 4 4 5 5 4 5 62 467 467 62 265 62 62 62 62 431 62 431 434 314 314 467 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) 7.5AX23 10AX4	1-82510-479-0	01	1	0507-
4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) 15AX25 25AX2	1-82510-602-0	01	1	0507-
4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) 15AX3	1-82510-638-0	01	1	0507-
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 10A RED	5-82516-002-0	04	1	0507-
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE	5-82516-003-0	28	1	0507-
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 25A CLEAR	5-82516-005-0	02	1	0507-
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 7.5A BROWN	8-94159-007-0	23	1	0507-
41	PULLER; FUSE ANTILOCK BRAKE SYSTEM(BFA) L=25.3 B=11.5	8-94121-482-0	01	1	0507-
62	DIODE; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 3P-1.5A	8-94416-438-1	02	1	0512-
62	DIODE; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 2P-1.5A	8-94422-639-1	08	1	0512-0609
62	DIODE; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 2P-1.5A	8-94422-639-1	09	1	0610-
62	DIODE; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) BLACK 10P	1-82699-703-0	02	1	0507-
62	DIODE; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0507-0511
62	DIODE; HARNESS 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0512-
62	DIODE; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 2P-1.5A	8-94422-639-1	05	1	0507-0511
62	DIODE; HARNESS 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 2P-1.5A	8-94422-639-1	05	1	0512-
62	DIODE; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0507-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0507-
314	RESISTOR; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) RESISTANCE NO.5 2K OHM	1-81515-025-0	01	1	0512-
314	RESISTOR; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A) BLUE	1-82691-204-0	01	1	0512-
314	RESISTOR; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) BLUE	1-82691-204-0	02	1	0507-0511
314	RESISTOR; HARNESS 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) BLUE	1-82691-204-0	02	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B) 6P	1-82691-206-0	01	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN	1-82698-579-0	03	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	13	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (D) 10P GREEN	1-82699-599-0	02	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A) 10P BROWN	1-82699-601-0	10	1	0512-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (G) 4P	8-97376-776-0	10	1	0512-
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) 3P & 3P	1-82698-170-0	04	1	0507-0511
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B) 3P & 3P	1-82698-170-0	04	1	0512-
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	09	1	0507-0511
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	09	1	0512-
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P GREEN	1-82699-599-0	04	1	0507-0511
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (D) 10P GREEN	1-82699-599-0	04	1	0512-
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) 10P BROWN	1-82699-601-0	13	1	0507-0511
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) 10P BROWN	1-82699-601-0	13	1	0512-
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (E) 10P	8-97077-943-0	01	1	0507-
434	CONNECTOR; SHORT CIRCUIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82691-051-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-82662-769-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-774-2	01	1	0512-0609
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-929-0	01	1	0610-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0507-0511
467	HARNESS; FACIA 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0512-
467	HARNESS; FACIA 6WF1 TC-C(1B8) (A)	1-82662-793-0	01	1	0507-

467 224 467 14 467 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82677-647-3	02	1	0512-
14	HARNESS; HEADLAMP	1-82677-628-3	02	1	0507-0511
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5>	1-82677-628-3	02	1	0512-
224	HARNESS; EXT,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82662-686-1	02	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-82662-769-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-774-2	01	1	0512-0609
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-929-0	01	1	0610-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0507-0511
467	HARNESS; FACIA 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0512-
467	HARNESS; FACIA 6WF1 TC-C(1B8) (A)	1-82662-793-0	01	1	0507-

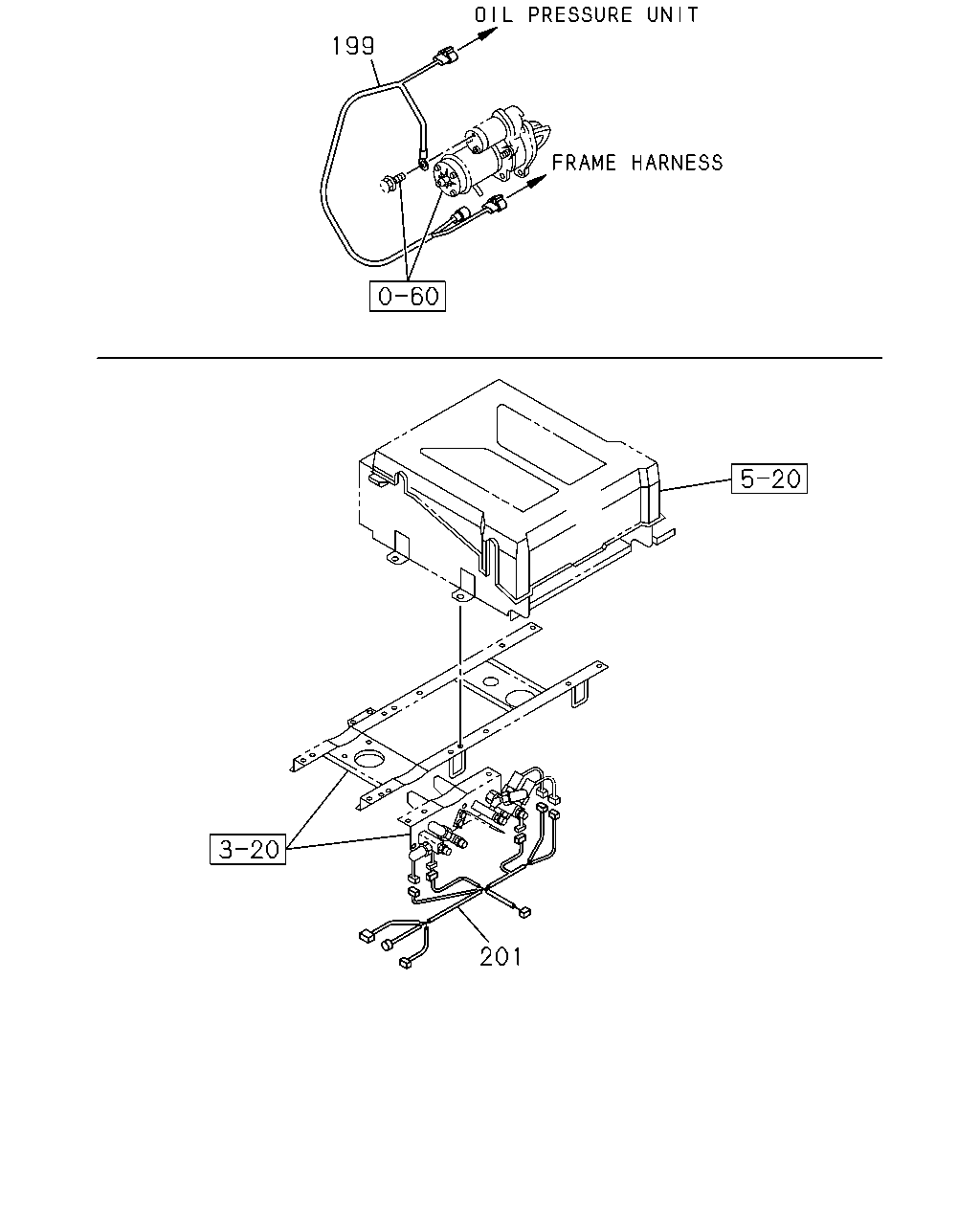

199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	HARNESS; STARTER	1-82641-329-3	01	1	0507-0511
199	HARNESS; STARTER 6WF1 TC-C(1B8)	1-82641-329-3	01	1	0512-
199	HARNESS; STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82641-368-2	01	1	0512-
201	HARNESS; AIR TANK	1-82678-120-1	01	1	0507-0511
201	HARNESS; AIR TANK	1-82678-176-1	01	1	0512-

467 255 672 533 247 419 450 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0507-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0512-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0507-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0512-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0507-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0507-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0512-
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0507-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-82662-769-0	01	1	0512-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-774-2	01	1	0512-0609
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-929-0	01	1	0610-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0507-0511
467	HARNESS; FACIA 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82662-792-0	01	1	0512-
467	HARNESS; FACIA 6WF1 TC-C(1B8) (A)	1-82662-793-0	01	1	0507-
533	CLIP ID=28 & 34 L=63	1-09701-310-0	01	1	0507-
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0507-0512
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0601-
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0507-1309
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-

92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-82662-349-5	01	1	0512-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-783-1	01	1	0512-0604
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-895-0	01	1	0605-1212
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98229-590-0	01	1	1301-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	1-82662-722-1	01	1	0507-0604
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	1-82662-899-0	01	1	0605-1212
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (A)	8-98229-547-0	01	1	1301-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) (B)	1-82662-734-0	01	1	0507-

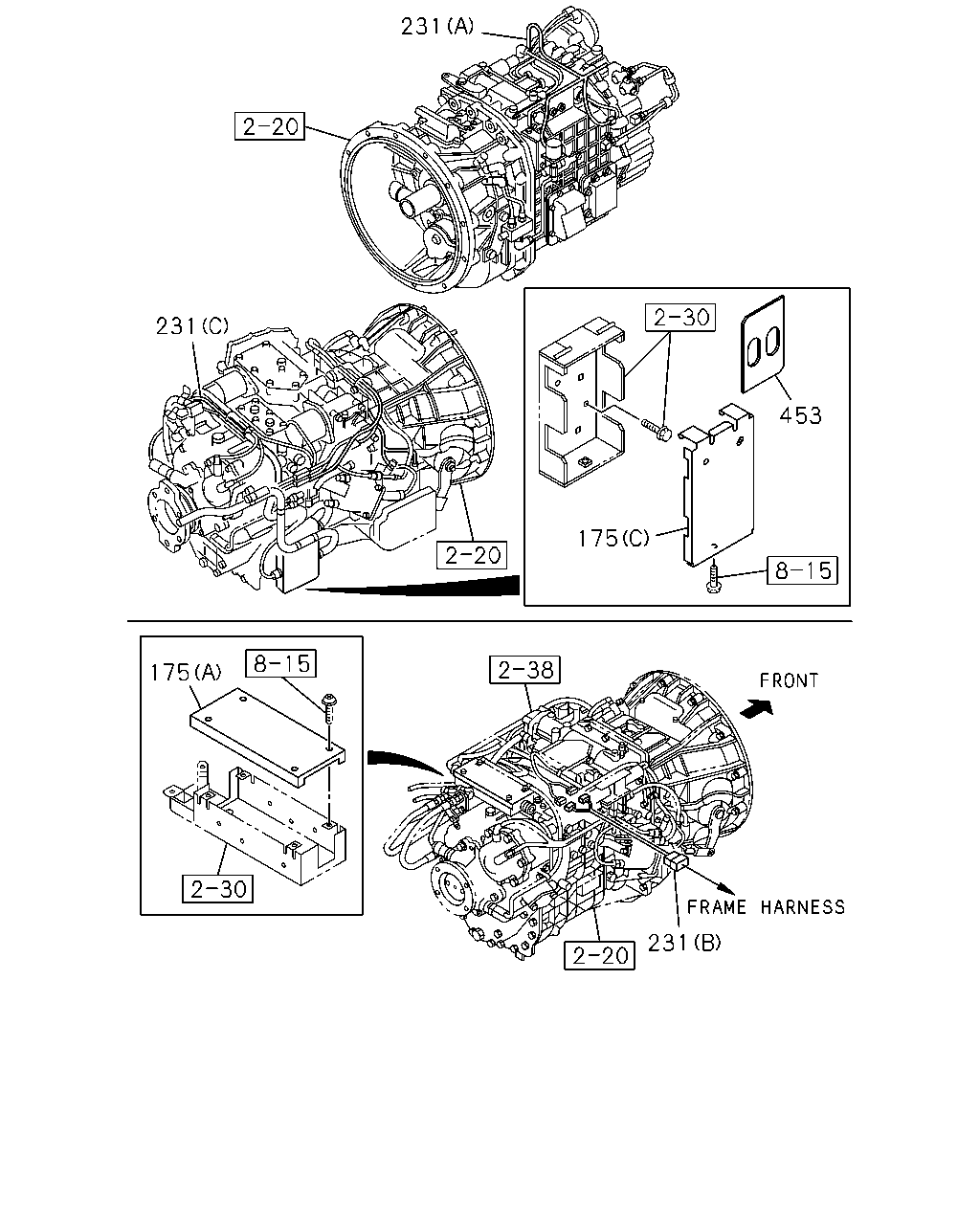

231 175 453 175 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	BOX; CONNECTOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82569-389-1	01	1	0512-0606
175	BOX; CONNECTOR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82569-435-1	01	1	0607-
175	BOX; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82699-467-0	01	1	0507-
175	BOX; CONNECTOR (A)	1-82569-342-0	01	1	0507-0511
175	BOX; CONNECTOR 6WF1 TC-C(1B8) (A)	1-82569-342-0	01	1	0512-
231	HARNESS; TRANS 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-97609-920-0	01	1	0512-1105
231	HARNESS; TRANS 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-97624-216-1	01	1	1106-
231	HARNESS; TRANS (A)	1-82678-178-0	01	1	0507-0511
231	HARNESS; TRANS 6WF1 TC-C(1B8) (A)	1-82678-178-0	01	1	0512-
231	HARNESS; TRANS (B)	1-82678-123-1	01	1	0507-0511
231	HARNESS; TRANS 6WF1 TC-C(1B8) (B)	1-82678-123-1	01	1	0512-
453	PROTECTOR; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98213-847-1	01	1	1207-

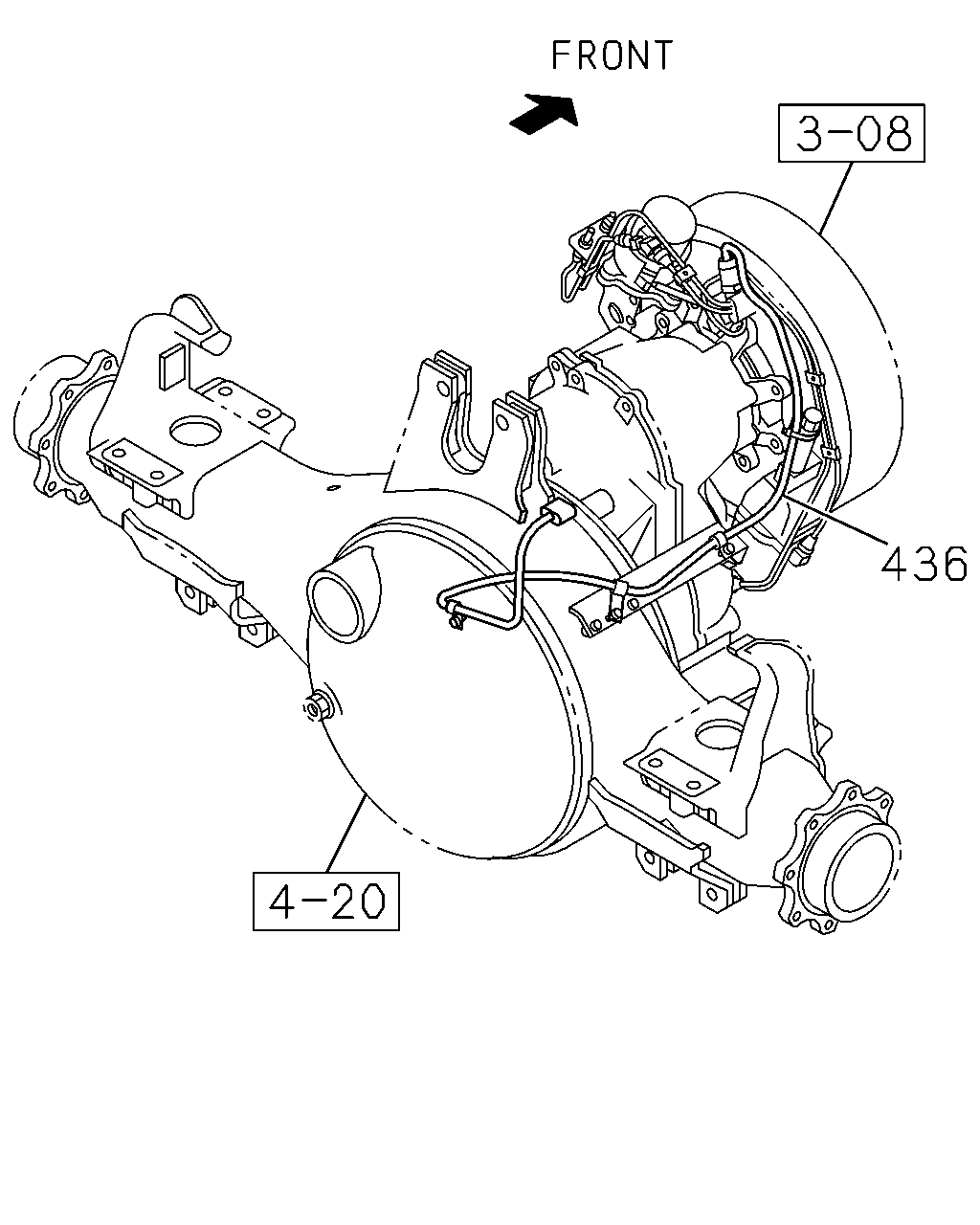

436

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	436	HARNESS; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82677-224-2	01	1	0507-

255 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (A)	1-82641-345-0	01	1	0507-0612
13	HARNESS; ENG (A)	8-97617-395-0	01	1	0701-1004
13	HARNESS; ENG (A)	8-98169-641-0	01	1	1005-
13	HARNESS; ENG (A)	8-97604-105-2	01	1	0512-0612
13	HARNESS; ENG (A)	8-97617-391-0	01	1	0701-
13	HARNESS; ENG (B)	1-82640-553-4	01	1	0507-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0512-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
