◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#31233) — 72 parça

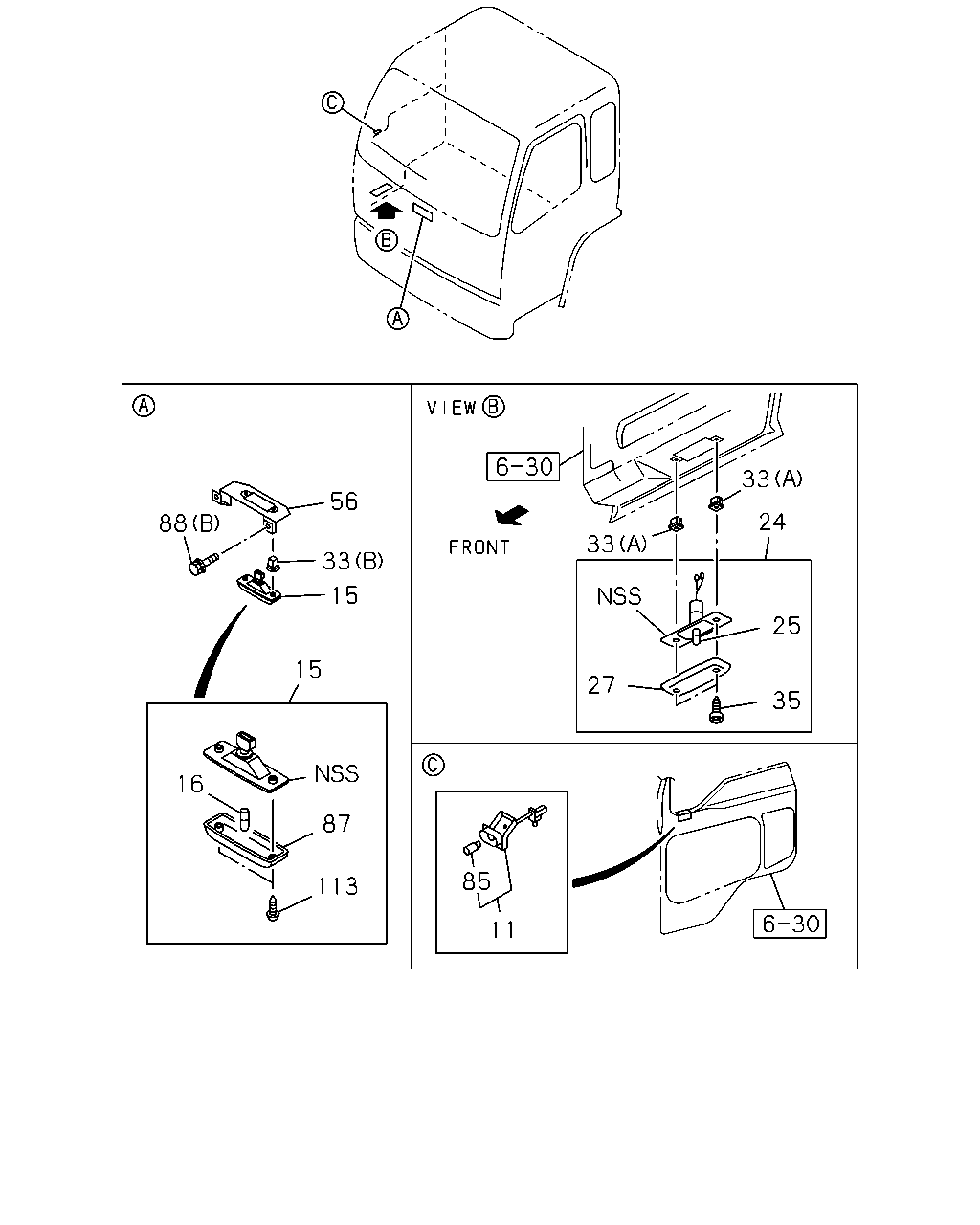

çizim 88856
33 56 24 88 33 33 15 25 15 27 35 16 87 85 113 11
BalonParca AdiParca NoAdetTipApplied Date
11 LAMP ASM; ASH TRAY
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-76458-076-1 01 1 0512-
15 LAMP; INSPECTION 1-82140-052-1 01 1 0507-
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 0507-
24 LAMP; STEP 1-82140-052-1 01 1 0507-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0507-
27 LENS; STEP LAMP 1-82145-019-0 01 1 0507-
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 0507-
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 0507-
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 0507-
56 BRACKET; LAMP 1-86830-302-1 01 1 0507-1103
56 BRACKET; LAMP 8-98121-191-0 01 1 1104-
85 BULB; ASH TRAY
6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 1.4W 		1-76457-041-0 01 1 0512-
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 0507-
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0507-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0507-
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 0507-

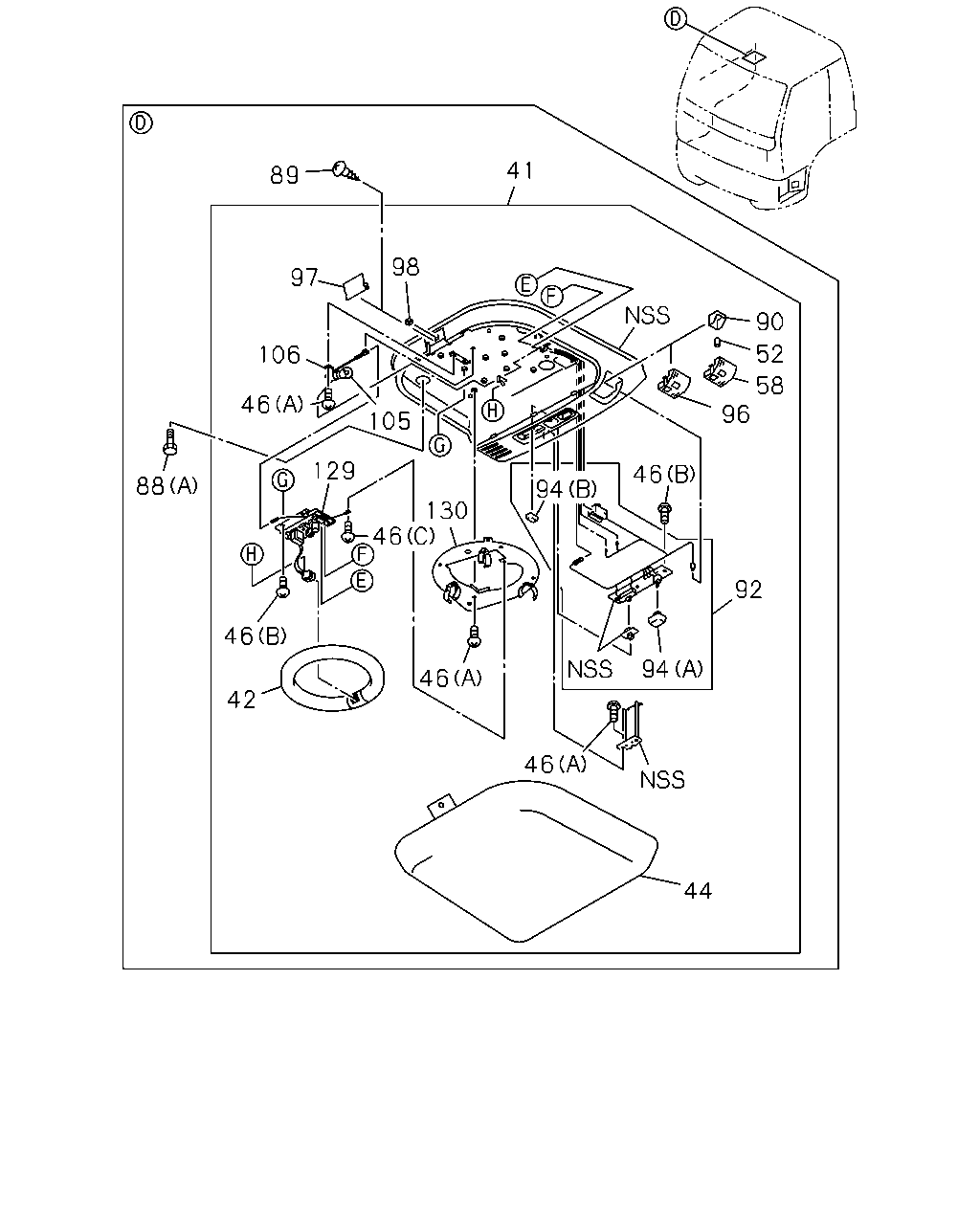

çizim 88951
41 89 98 97 90 52 106 58 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-86830-323-1 01 1 0512-
41 LAMP ASM; FLUORESCENT 1-86830-309-1 01 1 0507-0508
41 LAMP ASM; FLUORESCENT
6WF1 TC-C(1B8) 		1-86830-309-2 01 1 0509-
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0507-0508
42 LAMP; FLUORESCENT
6WF1 TC-C(1B8) 		1-86830-094-1 01 1 0509-0511
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0512-
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0507-0508
44 LENS; FLUORESCENT LAMP
6WF1 TC-C(1B8) 		1-86830-092-0 01 1 0509-0511
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0512-
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0507-0508
46 SCREW; FLUORESCENT LAMP
6WF1 TC-C(1B8) (A) M5X10 TAPPING 		1-86830-095-0 08 1 0509-0511
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0512-
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0507-0508
46 SCREW; FLUORESCENT LAMP
6WF1 TC-C(1B8) (B) M4X12 		1-86830-202-0 07 1 0509-0511
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0512-
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0507-0508
46 SCREW; FLUORESCENT LAMP
6WF1 TC-C(1B8) (C) M3X6 TAPPING 		1-86830-336-0 01 1 0509-0511
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0512-
52 BULB; SPOT LAMP
28V 6W 		1-86830-090-0 01 1 0507-0508
52 BULB; SPOT LAMP
6WF1 TC-C(1B8) 28V 6W 		1-86830-090-0 01 1 0509-
58 LENS; SPOT LAMP 1-86830-089-0 01 1 0507-0508
58 LENS; SPOT LAMP
6WF1 TC-C(1B8) 		1-86830-089-0 01 1 0509-
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0507-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0507-
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		9-07076-510-0 01 1 0507-0603
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 0604-
90 BASE; LAMP 1-86830-091-0 01 1 0507-0508
90 BASE; LAMP
6WF1 TC-C(1B8) 		1-86830-091-0 01 1 0509-
92 SWITCH ASM; FLUORESCENT 1-86830-204-0 01 1 0507-0508
92 SWITCH ASM; FLUORESCENT
6WF1 TC-C(1B8) 		1-86830-204-0 01 1 0509-
92 SWITCH ASM; FLUORESCENT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-86830-341-0 01 1 0512-
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0507-0508
94 KNOB; ROOM LAMP SW
6WF1 TC-C(1B8) (A) 		1-86830-312-0 01 1 0509-0511
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0512-
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0507-0508
94 KNOB; ROOM LAMP SW
6WF1 TC-C(1B8) (B) 		1-86830-313-0 01 1 0509-0511
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0512-
96 CAP; SPOT LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-86830-385-0 01 1 0512-
97 CAP; LENS FIX 1-86830-311-0 01 1 0507-0508
97 CAP; LENS FIX
6WF1 TC-C(1B8) 		1-86830-311-0 01 1 0509-0511
97 CAP; LENS FIX 1-86830-311-0 01 1 0512-
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0507-0508
98 GROMMET; SCREW,LENS FIX
6WF1 TC-C(1B8) 		1-86830-102-0 01 1 0509-0511
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0512-
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0507-0508
105 BULB; FLUORESCENT LAMP
6WF1 TC-C(1B8) 28V 20W 		1-86830-200-0 01 1 0509-0511
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0512-
106 SOCKET; BULB 1-86830-201-0 01 1 0507-0508
106 SOCKET; BULB
6WF1 TC-C(1B8) 		1-86830-201-0 01 1 0509-0511
106 SOCKET; BULB 1-86830-201-0 01 1 0512-
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0507-0508
129 INVERTER ASM; FLUORESCENT LAMP
6WF1 TC-C(1B8) 		1-86830-338-0 01 1 0509-0511
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0512-
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0507-0508
130 PLATE ASM; FLUORESCENT LAMP
6WF1 TC-C(1B8) 		1-86830-339-0 01 1 0509-0511
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0512-
