◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#31230) — 89 parça

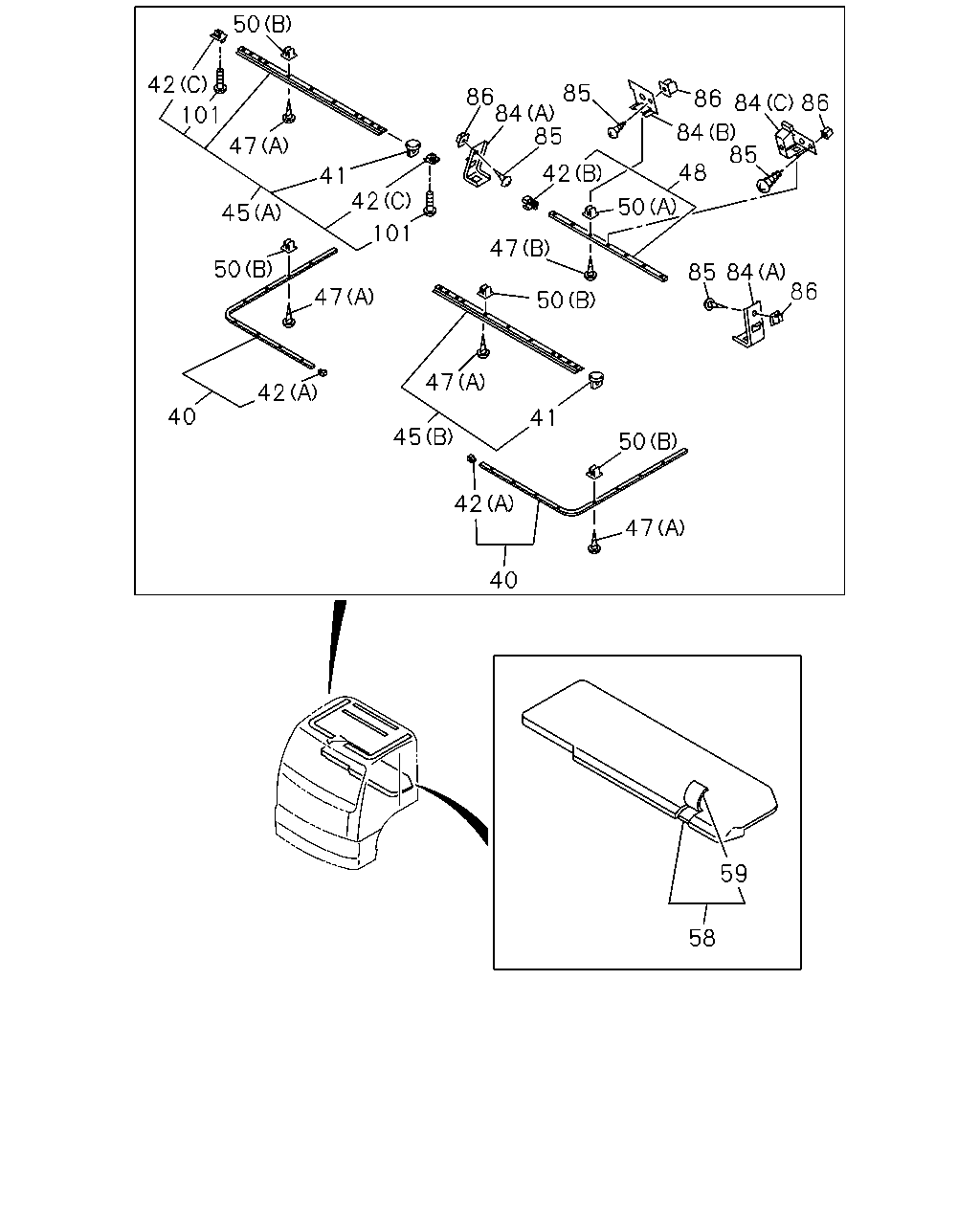

çizim 104845
50 42 86 85 84 85 86 101 84 85 47 48 42 41 42 50 45 101 47 50 85 84 86 47 50 47 42 40 41 45 50 42 47 40 59 58 84 86
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE 1-73907-535-1 01 1 0507-0511
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-535-1 01 1 0512-
40 RAIL; CURTAIN,SIDE 1-73907-536-1 01 1 0507-0511
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-536-1 01 1 0512-
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0507-0511
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
41 HOOK; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0507-0511
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73996-393-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0507-0511
42 STOPPER; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73907-546-3 01 1 0507-0511
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (C) M5X16 		9-93490-516-0 04 1 0512-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0507-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0507-
48 RAIL; CURTAIN,BACK
AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512-
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 0507-0511
48 RAIL; CURTAIN,BACK
EXC. AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0507-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0507-
58 BED; MAT 1-75127-181-1 01 1 0507-1011
58 BED; MAT 8-98168-337-1 01 1 1012-
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0507-1011
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0512-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0512-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0507-0511
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 0512-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0507-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512-
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0507-0511
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512-
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0507-0511
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512-
101 SCREW; STOPPER
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-400-0 02 1 0512-

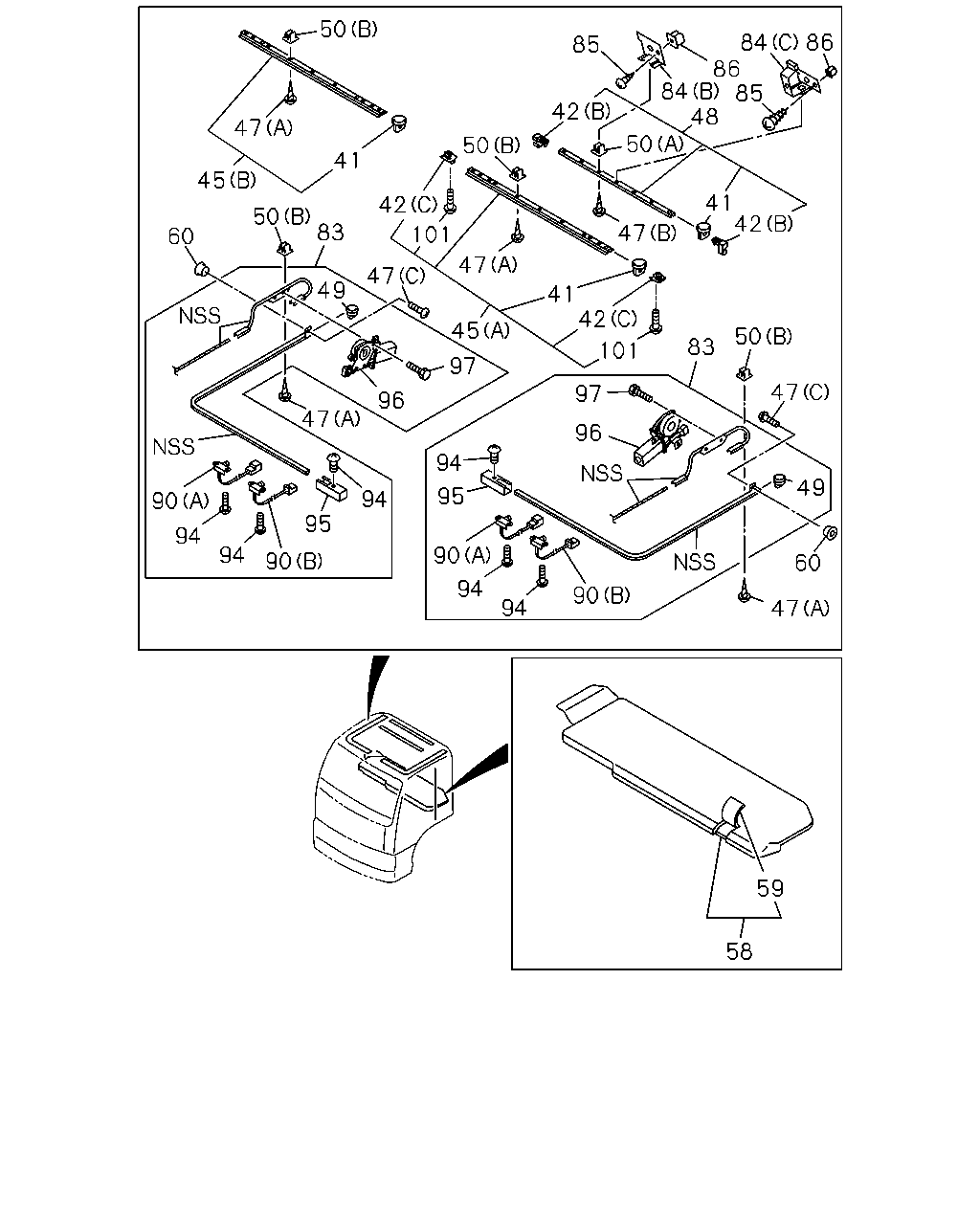

çizim 105085
50 86 48 85 42 47 50 50 41 45 41 42 42 50 83 47 101 60 47 47 49 41 42 45 50 83 101 97 47 97 96 47 96 94 49 95 94 90 95 94 94 90 90 60 94 90 94 47 59 58 84 86 84 85
BalonParca AdiParca NoAdetTipApplied Date
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0507-0511
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
41 HOOK; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0507-0511
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73996-393-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0507-0511
42 STOPPER; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73907-546-3 01 1 0507-0511
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (C) M5X16 		9-93490-516-0 04 1 0512-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0507-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0507-
48 RAIL; CURTAIN,BACK
AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512-
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 0507-0511
48 RAIL; CURTAIN,BACK
EXC. AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512-
49 HOOK; CURTAIN
AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY 		1-73996-105-0 32 1 0512-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0507-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0507-
58 BED; MAT 1-75127-181-1 01 1 0507-1011
58 BED; MAT 8-98168-337-1 01 1 1012-
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0507-1011
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012-
60 HOLDER
AUTO ROUND CURTAIN<TAR> 		1-79198-011-0 04 1 0512-
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-288-6 01 1 0512-
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-289-6 01 1 0512-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0512-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0512-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0507-0511
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 0512-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0507-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512-
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0507-0511
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512-
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0507-0511
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512-
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (A) 		1-73996-224-2 02 1 0512-
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-225-2 02 1 0512-
94 FIXING PARTS; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-256-0 10 1 0512-
95 COVER; SWITCH,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-254-0 02 1 0512-
96 MOTOR ASM; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-255-0 02 1 0512-
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		9-03910-625-0 04 1 0512-0604
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605-
101 SCREW; STOPPER
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-400-0 02 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
