Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

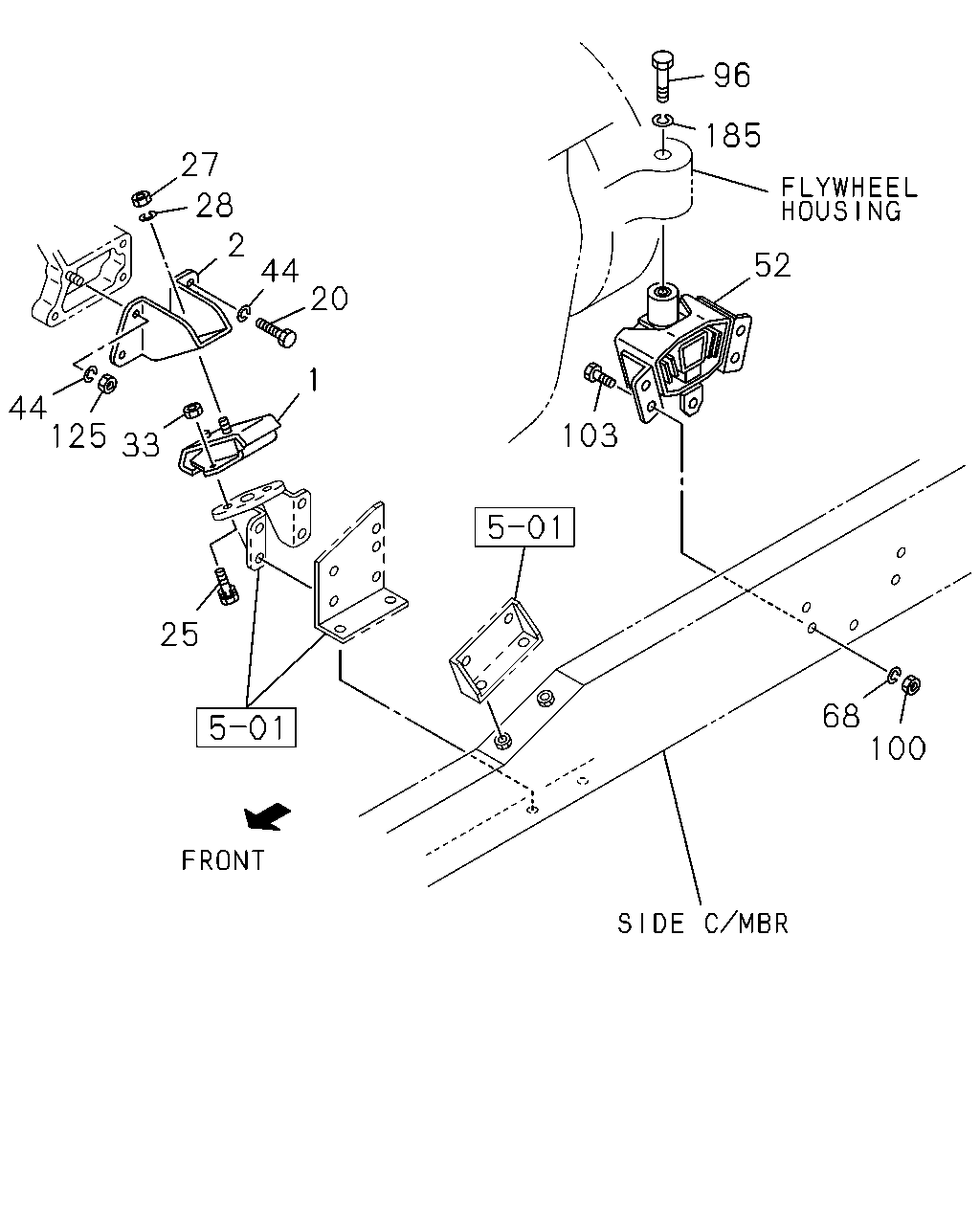

0-22 — ENGINE MOUNTING
(#3123) — 35 parça
96
185
27
28
2
52
44
20
1
103
44
125
33
25
68
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-069-1
02
1
9104-0107
1
RUBBER; ENG FOOT,FRT
1-53215-069-1
02
1
0108-
2
FOOT; ENG
1-11771-156-1
01
1
9104-0107
2
FOOT; ENG
1-11771-156-1
01
1
0108-
2
FOOT; ENG
1-11771-157-1
01
1
9104-0107
2
FOOT; ENG
1-11771-157-1
01
1
0108-
2
FOOT; ENG
1-11771-156-1
01
1
0108-
2
FOOT; ENG
1-11771-157-1
01
1
0108-
20
BOLT; ENG FOOT
M10X22
9-02061-022-0
07
1
9104-9707
20
BOLT; ENG FOOT
M10X25 FLANGE
0-28691-025-0
07
1
9708-
20
BOLT; ENG FOOT
M10X25 FLANGE
0-28691-025-0
07
1
0108-
25
BOLT; CUSHION RUBBER TO BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9104-0107
25
BOLT; CUSHION RUBBER TO BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
0108-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12
9-99110-412-0
02
1
9104-9307
27
NUT; CUSHION RUBBER TO ENG FOOT
M12
9-99110-512-0
02
1
9308-
28
WASHER; LK,SUPPORT BRKT
ID=12.2
9-09150-812-0
02
1
9104-0107
28
WASHER; LK,SUPPORT BRKT
ID=12.2
9-09150-812-0
02
1
0108-
33
NUT; CUSHION RUBBER TO BRKT
M10
9-09110-510-0
04
1
9104-
44
WASHER; LK,ENG FOOT
ID=10.2
9-09150-510-0
01
1
9710-
44
WASHER; LK,ENG FOOT
ID=10.2
9-09150-510-0
08
1
9104-9707
44
WASHER; LK,ENG FOOT
ID=10.2
9-09150-510-0
01
1
0108-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-199-0
02
1
9104-0107
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-199-0
02
1
0108-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
9-09150-614-0
10
1
9104-0107
68
WASHER; LK,CUSHION RUBBER
ID=14.2
9-09150-614-0
10
1
0108-
96
BOLT; BRKT
M22X75
1-09020-087-2
02
1
9104-0107
96
BOLT; BRKT
M22X75
1-09020-087-2
02
1
0108-
100
NUT; CUSHION RUBBER
M14
9-99110-514-0
10
1
9104-0107
100
NUT; CUSHION RUBBER
M14
9-99110-514-0
10
1
0108-
103
BOLT; CUSHION RUBBER RR,LWR
M14X40
9-92061-440-0
10
1
9104-0107
103
BOLT; CUSHION RUBBER RR,LWR
M14X40
9-92061-440-0
10
1
0108-
125
NUT; ENG FOOT
M10
9-09110-510-0
01
1
9104-
125
NUT; ENG FOOT
M10
9-09110-510-0
01
1
0108-
185
WASHER; LK,BRKT
ID=22.5
9-09150-622-0
02
1
9104-0107
185
WASHER; LK,BRKT
ID=22.5
9-09150-622-0
02
1
0108-
