◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#31229) — 13 parça

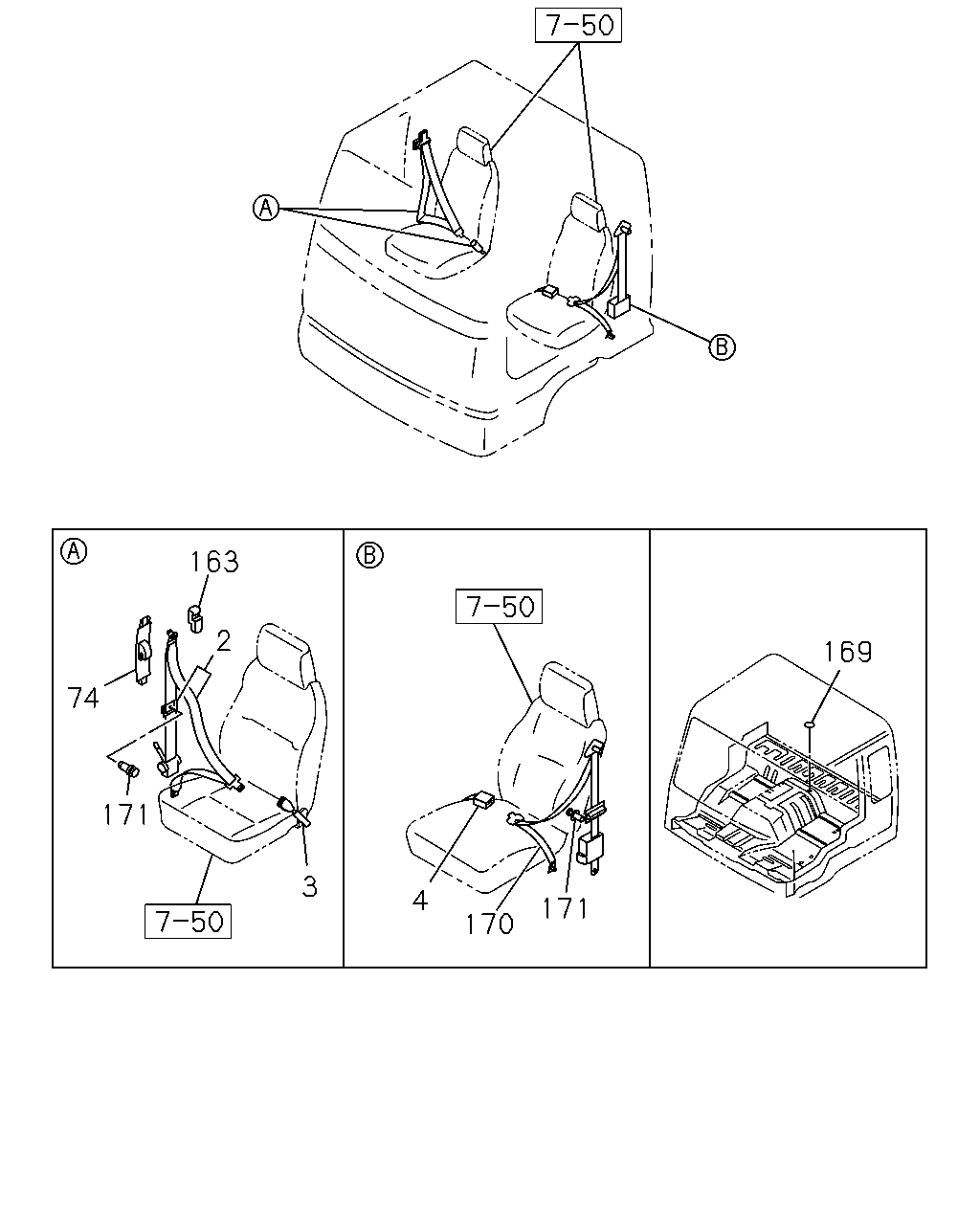

çizim 88946
163 2 169 74 171 4 3 171 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 8-97386-847-3 01 1 0507-
3 BELT; SEAT,BUCKLE SIDE 8-97386-846-0 01 1 0507-1401
3 BELT; SEAT,BUCKLE SIDE 8-98270-818-0 01 1 1402-
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 0507-0511
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0512-
74 RAIL ASM; SHOULDER ANCHOR 8-97386-855-2 01 1 0507-
163 COVER; ADJUSTER 8-97386-863-0 01 1 0507-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0507-0511
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0512-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0507-0511
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-588-3 01 1 0512-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT DELETE(SP9) 		8-98120-820-1 01 1 0806-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0507-
