◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#31228) — 206 parça

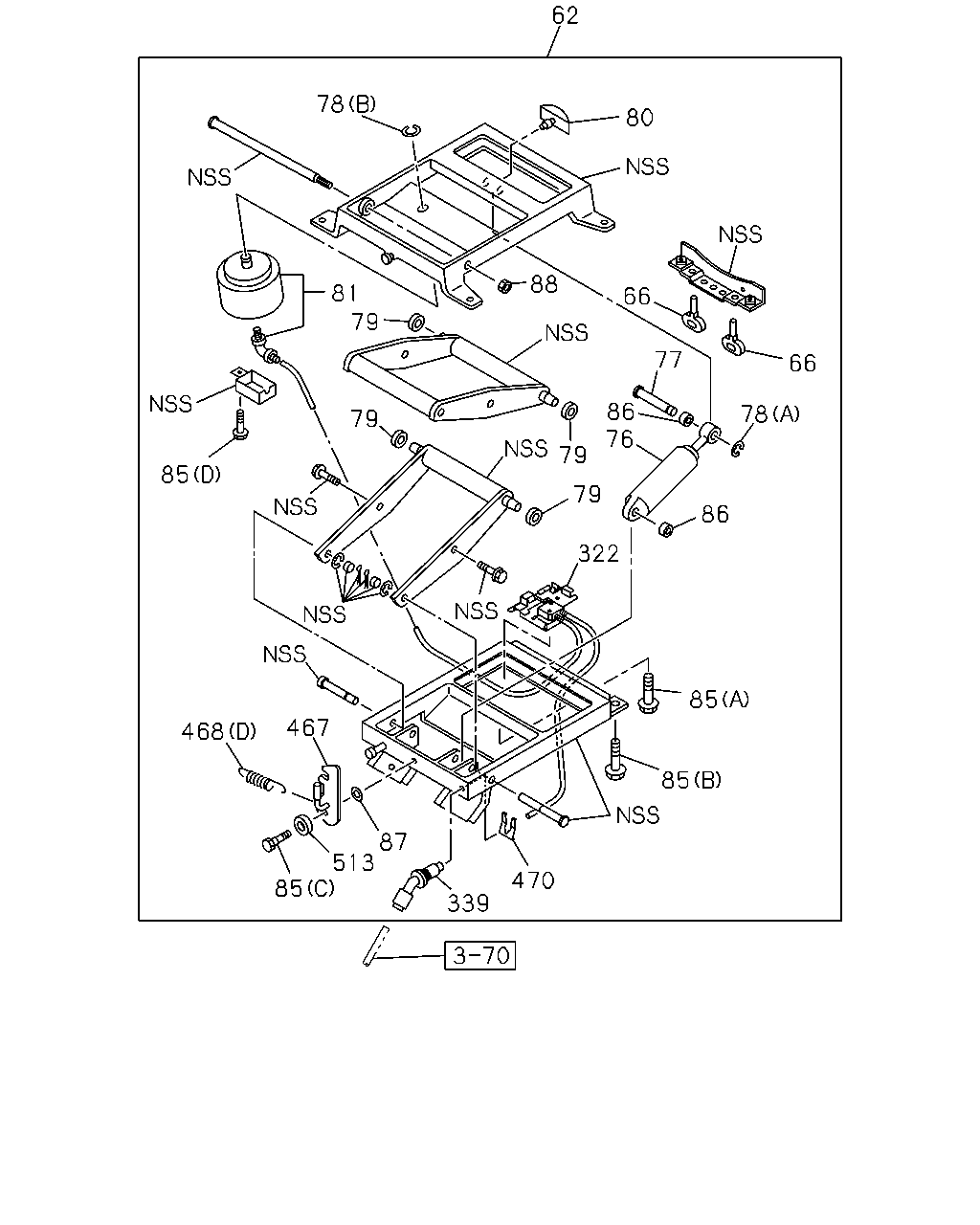

çizim 88925
78 62 80 66 66 78 86 85 85 470 339 87 513 85 467 468 322 79 79 76 86 77 88 85 81 79 79
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP 1-75537-262-8 01 1 0507-0511
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 0507-0511
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0512-
76 DAMPER; AIR SUSP 1-75537-230-2 01 1 0507-0511
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0512-
77 PIN; DAMPER 1-75538-138-2 01 1 0507-0511
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0512-
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 0507-0511
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0512-
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 0507-0511
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0512-
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 0507-0511
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0512-1403
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER 1-09987-123-0 01 1 0507-0511
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 0512-
81 SPRING; AIR 1-75538-151-2 01 1 0507-0511
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0512-1312
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 0507-0511
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0512-
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 0507-0511
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0512-
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0507-0511
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0512-1312
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0507-0511
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0512-
87 WASHER; AIR SUSP
ID=8.2 		9-09150-508-0 01 1 0507-0511
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0512-0710
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 0507-0511
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0512-
322 VALVE; AIR SPRING 1-75538-186-3 01 1 0507-0511
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0512-
339 UNION; DRIVER SEAT 1-75538-131-3 01 1 0507-0511
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0512-
467 LEVER; LOCK 1-75538-134-0 01 1 0507-0511
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0512-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0507-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0507-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0507-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0507-0511
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512-
470 CLIP; HOSE 1-75538-137-0 01 1 0507-0511
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0512-
513 SPACER; LEVER 1-75538-133-0 01 1 0507-0511
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0512-

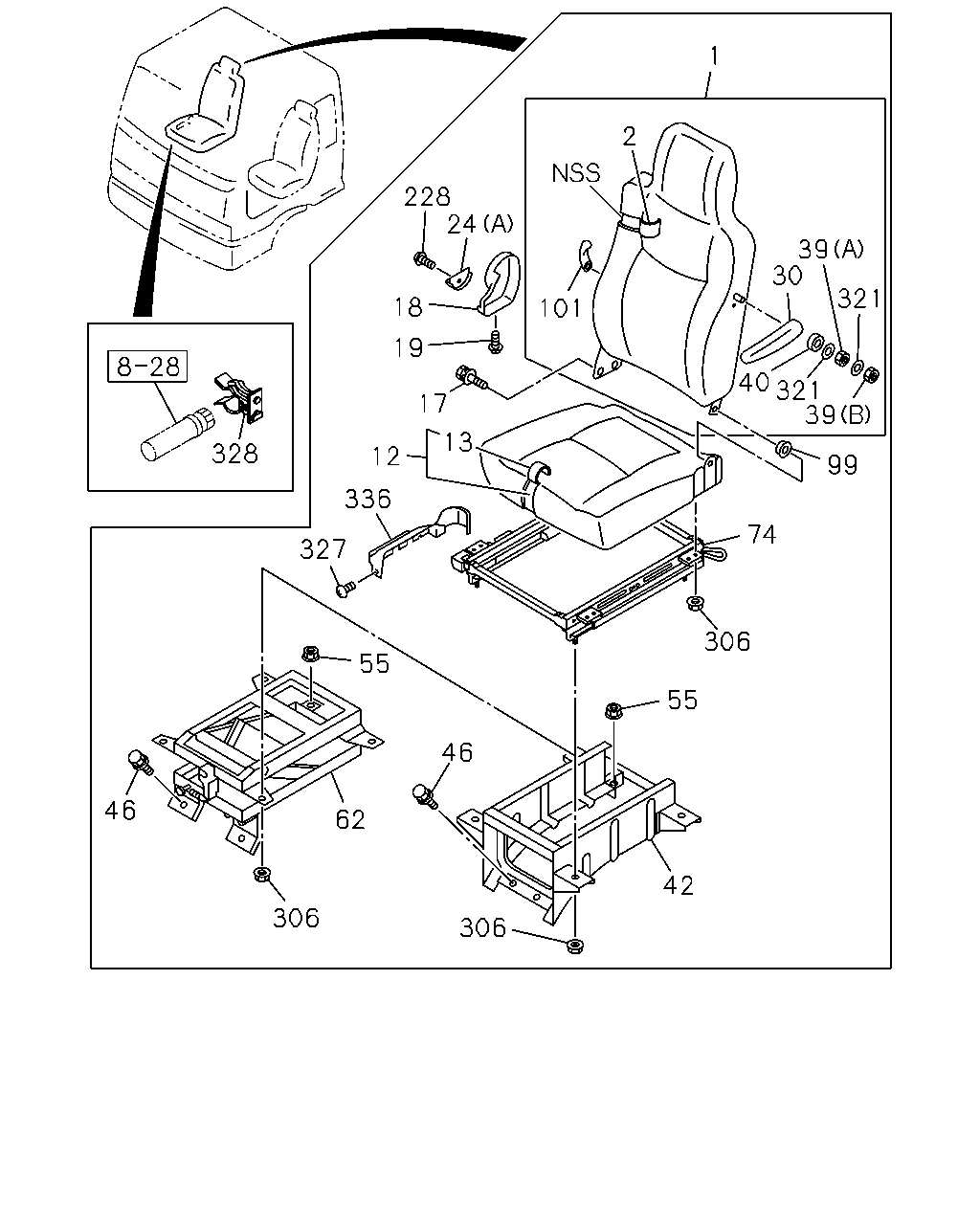

çizim 88947
1 2 228 24 39 30 321 18 101 19 40 321 39 17 13 328 12 99 336 74 327 306 55 55 46 46 62 42 306 306
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-587-3 01 1 0512-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) 		8-98135-630-0 01 1 0902-
1 BACK ASM; SEAT 1-75207-586-3 01 1 0507-0511
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0512-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-629-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-067-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) 		1-75127-146-2 01 1 0512-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-145-2 01 1 0507-0511
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0512-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-082-0 01 1 1012-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 0512-
12 CUSHION; SEAT,FRT 1-75207-584-4 01 1 0507-0511
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-584-4 01 1 0512-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-042-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 0512-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-143-3 01 1 0507-0511
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-143-3 01 1 0512-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-074-0 01 1 1012-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0507-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0507-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0507-0511
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0507-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) 		1-75127-015-1 01 1 0512-
30 REST ASM; ARM,FRT SEAT 1-75127-148-1 01 1 0507-0511
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0512-
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 0507-
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0507-
40 SPACER; ARM REST 8-94285-921-0 02 1 0507-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) 		1-75558-604-2 01 1 0512-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0507-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0507-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP 1-75537-262-8 01 1 0507-0511
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0507-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0507-
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0507-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0507-0511
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0507-0511
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0507-
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0507-
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0507-
327 CLIP; COVER 1-09987-273-0 02 1 0507-
328 CLIP; HANDY WARNING 1-72537-239-0 01 1 0507-
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0507-

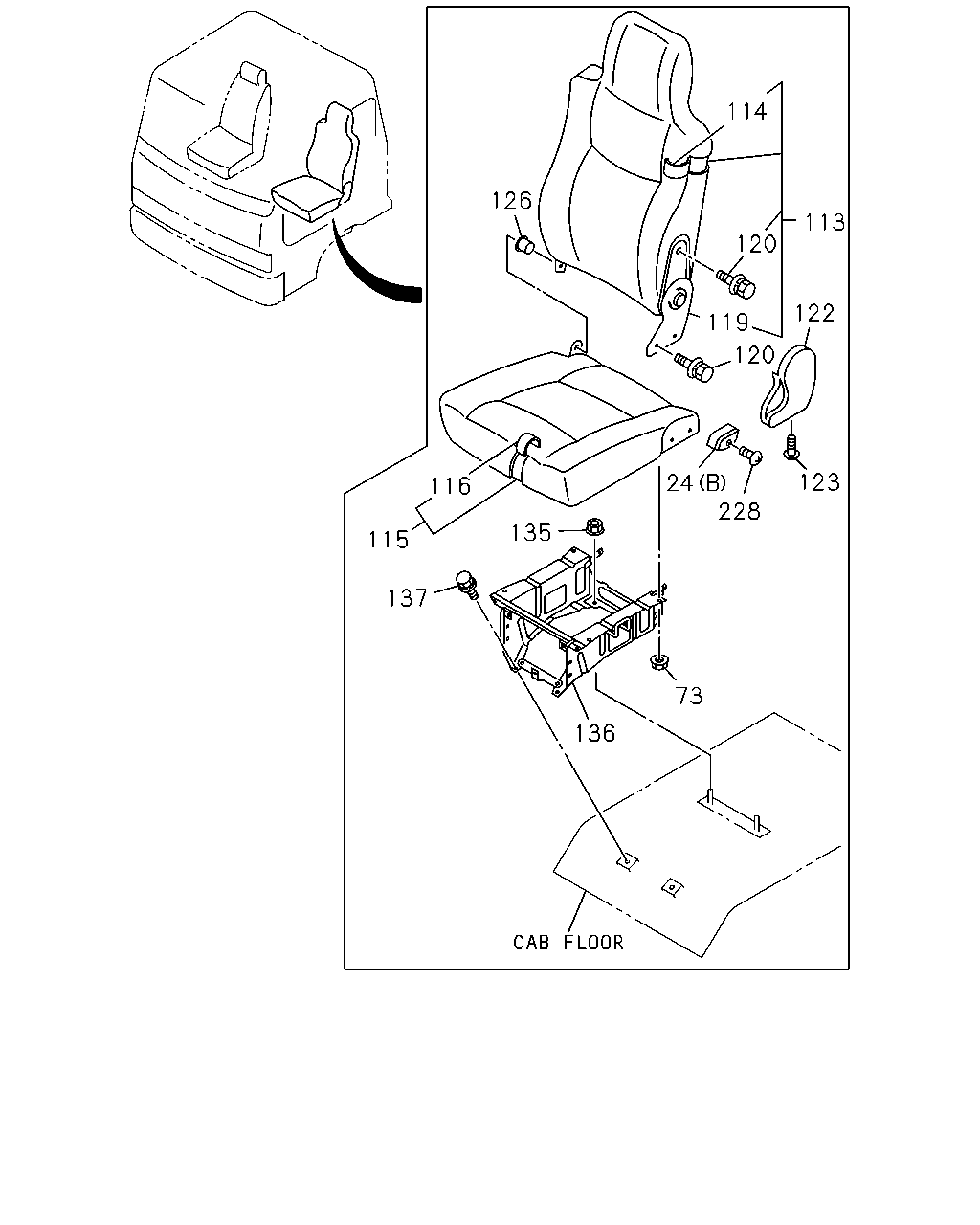

çizim 88949
114 126 113 120 122 119 120 123 24 228 116 135 115 137 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0507-0511
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0507-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0507-0511
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M8 FLANGE 		1-75538-207-0 04 1 0512-
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) M8 FLANGE 		1-75538-207-0 04 1 0512-
113 BACK ASM; SEAT
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75207-598-1 01 1 0512-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75207-597-2 01 1 0512-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-273-0 01 1 1012-
113 BACK ASM; SEAT 1-75207-651-3 01 1 0507-0511
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75207-651-3 01 1 0512-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-274-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75127-153-1 01 1 0512-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75127-152-2 01 1 0512-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-286-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-170-2 01 1 0507-0511
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75127-170-2 01 1 0512-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-290-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75207-213-2 01 1 0512-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75207-594-2 01 1 0512-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-125-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT 1-75207-737-1 01 1 0507-0511
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75207-737-1 01 1 0512-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-128-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75127-029-1 01 1 0512-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75127-149-2 01 1 0512-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-135-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-184-1 01 1 0507-0511
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75127-184-1 01 1 0512-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-141-0 01 1 1012-
119 ADJ; SEAT RECLINING,ASSIST SIDE
CUSTOM CAB(SR5) 		1-75417-597-0 01 1 0512-
120 BOLT; RECLINING ADJ
CUSTOM CAB(SR5) M8X20 		8-97255-906-0 04 1 0512-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0507-0511
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M8X20 		8-97255-906-0 02 1 0512-
122 COVER; ADJ,RECLINING
CUSTOM CAB(SR5) 		1-75417-598-0 01 1 0512-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0507-0511
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) DARK GRAY 		8-97859-018-0 01 1 0512-
123 SCREW; COVER,RECLINING
CUSTOM CAB(SR5) M6X12 		9-03490-612-0 01 1 0512-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-0511
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0507-0511
126 BUSHING; HINGE,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-97854-087-0 01 1 0512-
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-97854-087-0 01 1 0512-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0507-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75558-522-8 01 1 0512-1305
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0507-0511
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75558-601-3 01 1 0512-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98242-298-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0507-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0507-0511
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0507-0511
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011

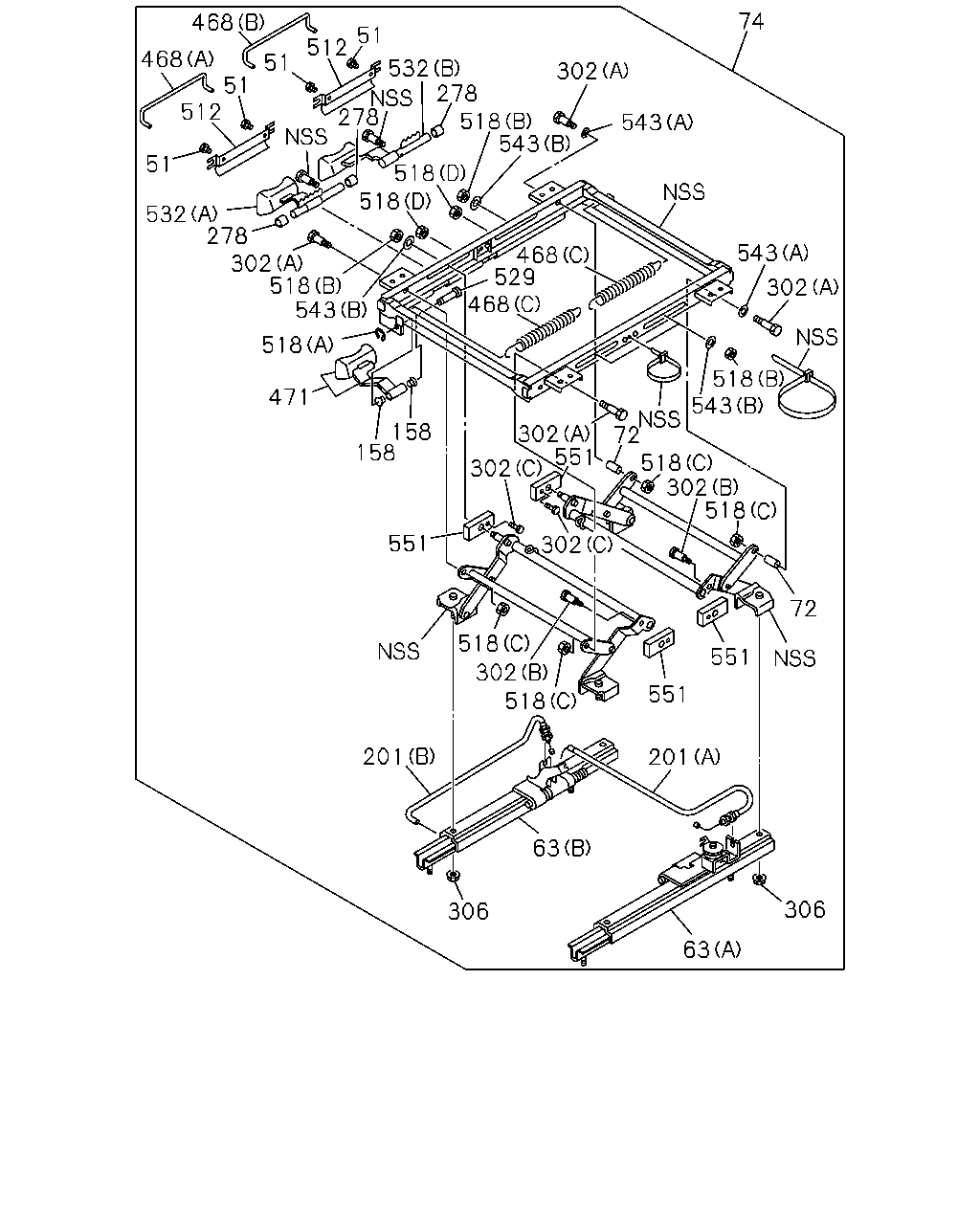

çizim 104849
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 518 543 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 0507-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0507-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0507-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0507-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0507-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0507-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0507-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0507-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0507-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0507-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0507-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0507-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0507-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0507-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0507-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0507-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0507-0511
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0507-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
512 COVER; LEVER 1-75518-243-1 02 1 0507-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0507-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0507-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0507-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0507-
529 PIN; LINK 1-75518-262-0 01 1 0507-
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0507-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0507-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 0507-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0507-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
